VEVOR Modern Floating TV Stand (55-inch) - Instruction Manual

1. Introduzione

This manual provides detailed instructions for the assembly, installation, and maintenance of your VEVOR Modern Floating TV Stand, Model SHSHDSG1116-2. Designed for wall mounting, this 55-inch media console offers ample storage and a sleek design to complement your living space. Please read these instructions carefully before beginning assembly to ensure proper installation and safe use.

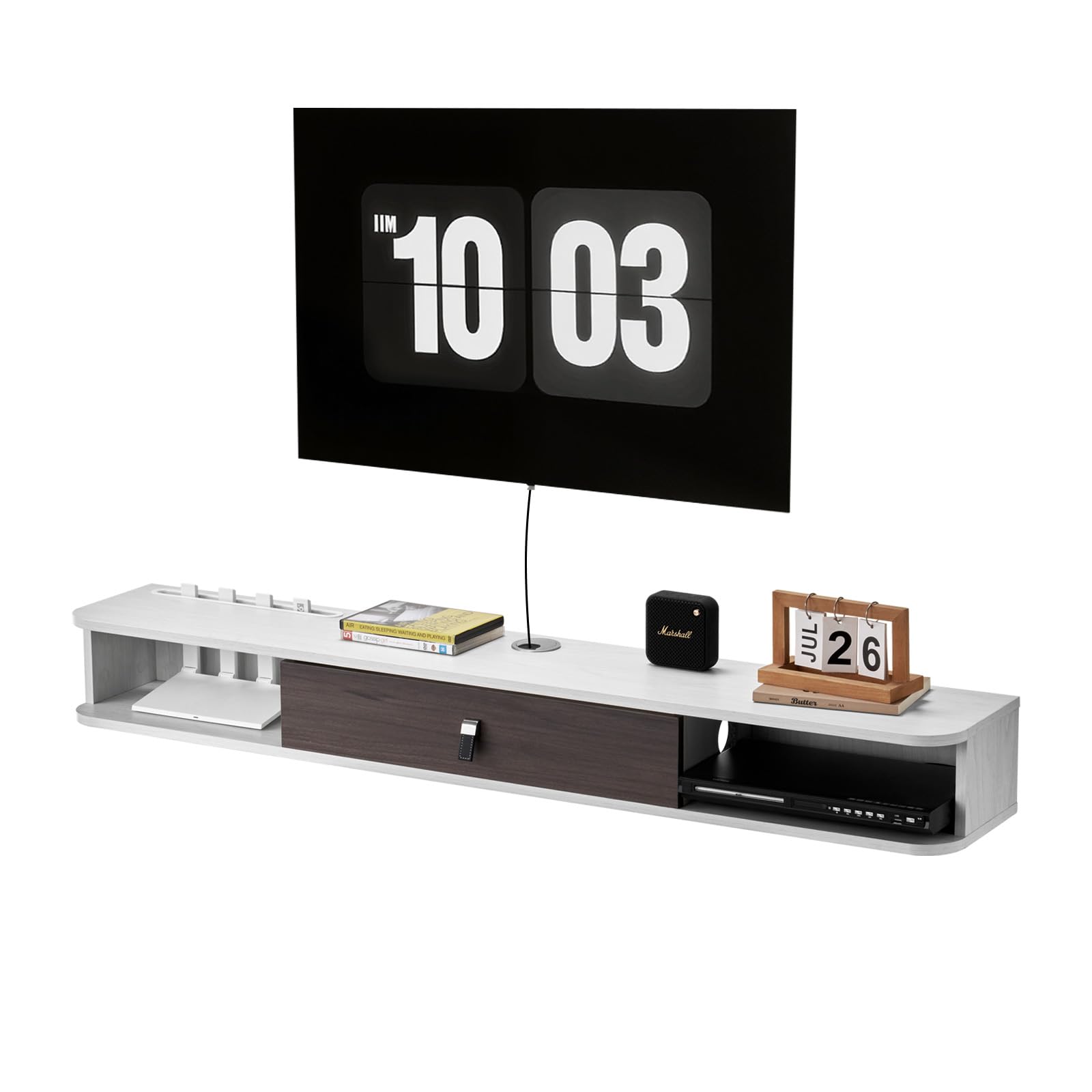

Figura 1.1: Oltreview of the VEVOR Modern Floating TV Stand.

2. Informazioni sulla sicurezza

Per la vostra sicurezza e per evitare danni al prodotto, vi preghiamo di rispettare le seguenti linee guida:

• Capacità di peso: Do not load the TV stand with more than 115 lbs (52 kg). Exceeding this limit can cause structural failure and potential injury.
• Prevenzione del ribaltamento: Ensure the cabinets with doors are securely fastened to prevent accidental tip-over, especially if children are present.
• Tipo di parete: This floating TV stand is designed for mounting on concrete, brick, or wooden walls. Ensure your wall type is suitable and use appropriate mounting hardware.
• Installazione professionale: If you are unsure about wall mounting procedures, consult a qualified professional.
• Controllo dei componenti: Prima del montaggio, verificare che tutti i componenti siano presenti e integri. Non procedere con il montaggio se alcuni componenti risultano mancanti o difettosi.

Figure 2.1: Wall compatibility for mounting the TV stand.

3. Contenuto della confezione

Before starting assembly, please check that all components listed below are included in your package. If any parts are missing or damaged, please contact VEVOR customer support.

Figure 3.1: All accessories are complete and labeled for easy assembly.

The package includes the main structural panels, hardware (screws, anchors, hinges), and an instruction manual. Ensure all numbered parts match the provided diagram.

4. Montaggio e installazione

Follow these steps carefully for proper assembly and secure wall mounting of your TV stand.

1. Preparare i componenti: Unpack all parts and lay them out on a clean, soft surface to prevent scratches. Identify each component using the provided labels and diagrams.
2. Assemblare la struttura principale: Connect the main panels according to the detailed assembly instructions provided in the included manual. Use the designated screws and fasteners.
3. Installare le ante degli armadietti: Attach the flip-top cabinet doors using the metal hinges. Ensure smooth opening and closing.


Figure 4.1: Installation of flip-top cabinet doors with metal hinges for smooth operation.

4. Segnare i punti di montaggio a parete: Choose a suitable location on your wall. Use a level to mark the precise drilling points for the mounting hardware. Ensure the stand will be level once installed.
5. Forare i fori e inserire gli ancoraggi: Drill holes at the marked points. Insert appropriate wall anchors (e.g., drywall toggle anchors for drywall, expansion bolts for concrete/brick) suitable for your wall type and the weight capacity.
6. Montare il supporto: Securely attach the TV stand to the wall using the provided screws and the installed anchors. Ensure the stand is firmly fixed and stable before placing any items on it. The design includes double screws and iron plate reinforcement for stable support.


Figure 4.2: Illustration of the powerful load-bearing capacity with reinforced mounting.

5. Istruzioni per l'uso

Your VEVOR Floating TV Stand is designed for efficient organization and display.

• Vani portaoggetti: Utilize the various compartments for storing media devices, books, and other essentials. The semi-open design ensures privacy for stored items.


Figure 5.1: Large storage space with semi-open design for privacy.

• Router-Specific Hole: A dedicated hole is provided for your router, designed to prevent interference with Wi-Fi signals and keep the device neatly stored.

Figure 5.2: Router-specific hole for optimal Wi-Fi signal and tidy storage.
• Gestione dei cavi: Use the integrated cable holes to route and organize power cords and media cables, maintaining a clean and clutter-free appearance.


Figure 5.3: Integrated cable management hole for organized wiring.

• Superficie superiore: The top surface can be used for decorative items such as vases, lamps, or small plants, enhancing your living room aesthetics.

6. Manutenzione

To ensure the longevity and appearance of your VEVOR Floating TV Stand, follow these simple maintenance tips:

• Pulizia: The stand features an E1-grade particleboard with a melamine surface finish, making it scratch-resistant, stain-resistant, and easy to clean. Wipe surfaces with a soft, damp panno. Evitare detergenti abrasivi o prodotti chimici aggressivi.

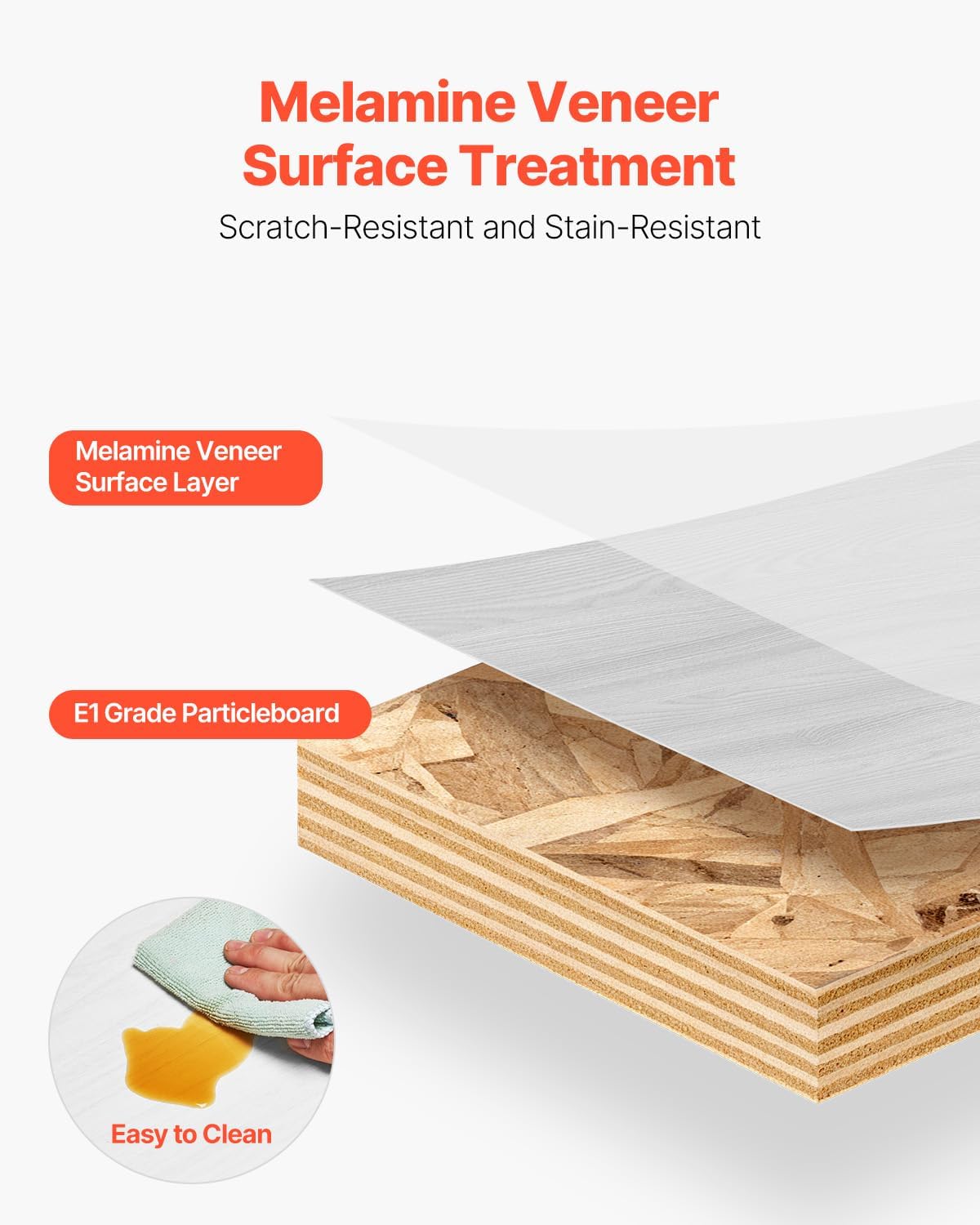

Figure 6.1: Melamine veneer surface treatment ensures scratch and stain resistance, making it easy to clean.

• Protezione dalla polvere: The cabinet doors help protect stored items from dust. Regularly wipe down the exterior surfaces to maintain cleanliness.
• Controllo hardware: Periodically check all mounting hardware and fasteners to ensure they remain tight and secure. Tighten if necessary.

7. Specifiche

Figura 7.1: Dimensioni e specifiche del prodotto.

8. Garanzia e supporto

VEVOR products are designed for durability and performance. For any questions regarding your VEVOR Modern Floating TV Stand, including assembly, missing parts, or operational concerns, please contact VEVOR customer support. Refer to your purchase documentation for specific warranty details and contact information.

Spesso puoi trovare informazioni di supporto sul sito ufficiale VEVOR websito o tramite il rivenditore presso cui hai acquistato il prodotto.
