1. Introduzione
Thank you for choosing the PURPLE LEAF Bioclimatic Pergola. This manual provides essential information for the safe assembly, operation, and maintenance of your new pergola. Please read all instructions carefully before installation and retain this manual for future reference.
The PURPLE LEAF Bioclimatic Pergola is designed to enhance your outdoor living space, offering adjustable shade and protection. Its robust aluminum construction and adjustable louvers provide a versatile solution for gardens, patios, and terraces.

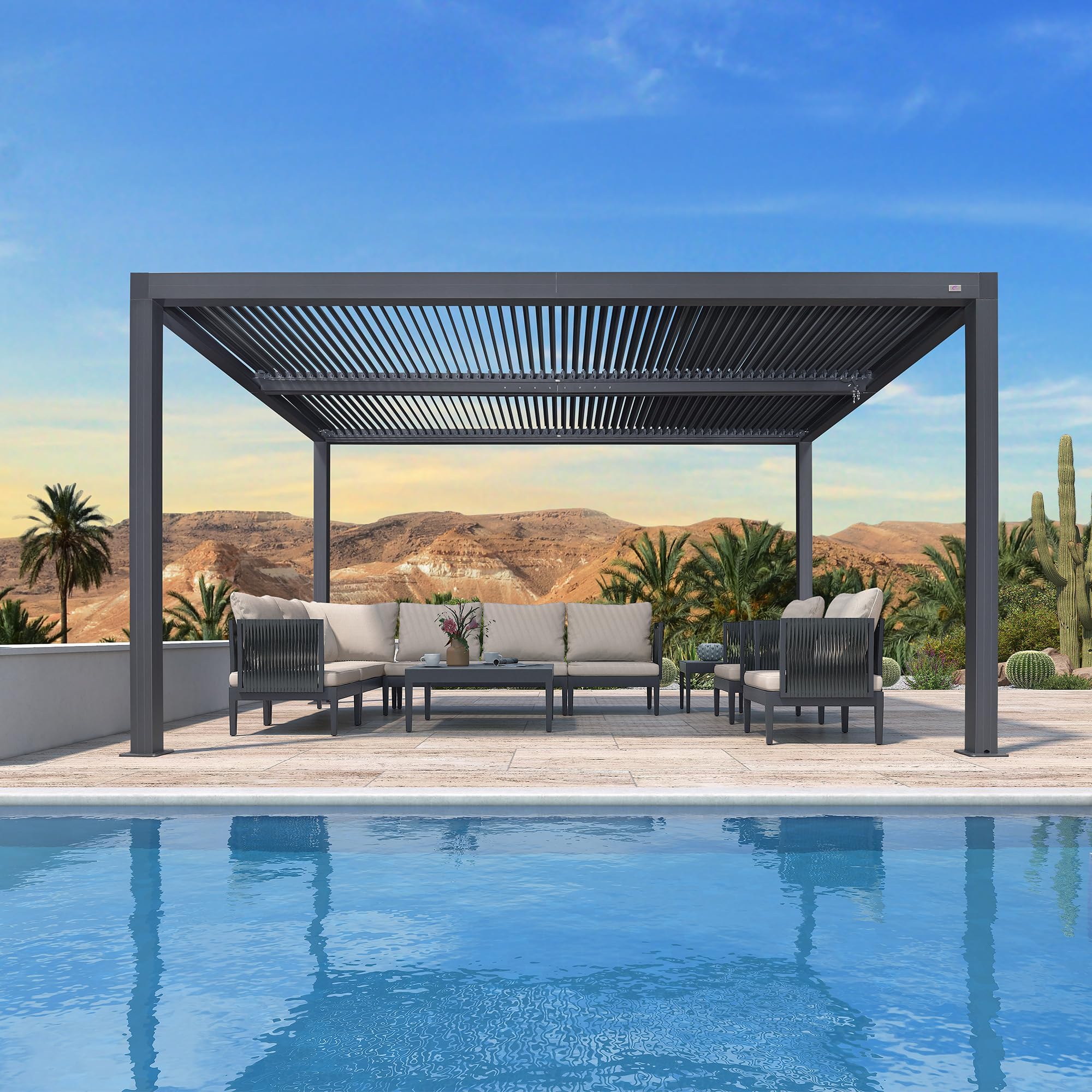

Figure 1: The PURPLE LEAF Bioclimatic Pergola in an outdoor setting.
2. Informazioni sulla sicurezza
Importante avviso di sicurezza: To prevent damage to the bioclimatic pergola during strong winds or extreme weather conditions, always open the louvers and remove any sun protection accessories (e.g., side screens, curtains) that may be attached. Failure to do so may result in structural damage or personal injury.
- Assicurarsi che tutti i componenti siano fissati saldamente durante il montaggio.
- Non arrampicarsi sulla struttura del pergolato.
- Tenere i bambini e gli animali domestici lontani dall'area di raccolta.
- Regularly inspect the pergola for any signs of wear or damage.
- Consult local building codes and regulations before installation.
3. Installazione e assemblaggio
The PURPLE LEAF Bioclimatic Pergola is designed for straightforward assembly. It is recommended that at least two people are involved in the assembly process.
3.1. Disimballaggio e controllo dei componenti
- Carefully unpack all boxes and lay out the components.
- Verify all parts against the provided parts list in the separate assembly guide.
- Segnalare immediatamente al servizio clienti eventuali parti mancanti o danneggiate.
3.2. Preparazione del sito
- Scegliere una superficie piana e stabile per l'installazione.
- Ensure adequate clearance around the pergola for assembly and future use.
- For permanent installation, secure the pergola base to the ground using appropriate anchors. The reinforced base is designed for stability.
Figure 2: Reinforced base with anchoring points for enhanced stability.
3.3. Assemblaggio del telaio
- Assemble the main frame structure according to the detailed instructions in the separate assembly guide.
- Assicurarsi che tutti i bulloni e le viti siano serrati saldamente.
- The pergola features thick aluminum columns and beams for increased load-bearing capacity and stability.
Figure 3: Detail of the thick aluminum frame, highlighting robust construction.
3.4. Installazione della persiana
- Install the aluminum louvers onto the frame.
- Connect the crank mechanism as per the assembly guide.
Figure 4: Adjustable louvers allowing control over light and shade.
For detailed step-by-step instructions, please refer to the separate assembly manual provided with your product.
4. Istruzioni per l'uso
4.1. Adjusting the Louvers
The PURPLE LEAF Bioclimatic Pergola features independently adjustable aluminum louvers, allowing you to control the amount of sunlight and shade.
- Locate the crank mechanism, typically positioned on one of the pergola's columns.
- Turn the crank clockwise to open the louvers, allowing more sunlight to pass through.
- Turn the crank counter-clockwise to close the louvers, providing more shade and protection from rain.
- You can adjust the louvers to any desired angle to optimize light and ventilation.
Figure 5: The crank handle for easy adjustment of the louvered roof.
Figure 6: Louvers in an open position, allowing full sunlight.
4.2. Rainwater Drainage System
The pergola is equipped with an advanced drainage system. Each louver piece has drainage grooves that direct rainwater through the frame edges and down the support poles, preventing water accumulation on the roof and keeping the area underneath dry.
Figure 7: Aluminum louvers designed for efficient rainwater drainage.
5. Manutenzione
Regular maintenance will ensure the longevity and optimal performance of your PURPLE LEAF Bioclimatic Pergola.
- Pulizia: Clean the aluminum frame and louvers periodically with mild soap and water. Avoid abrasive cleaners or harsh chemicals that could damage the finish. Rinse thoroughly with clean water.
- Ispezione: Annually inspect all bolts, screws, and connections to ensure they are tight. Re-tighten if necessary. Check the louvers and crank mechanism for smooth operation.
- Sistema di drenaggio: Ensure the drainage grooves on the louvers and within the frame are free from debris (leaves, dirt) to allow for proper water runoff.
- Cura invernale: In areas with heavy snowfall, it is recommended to keep the louvers open to prevent snow accumulation, which could put excessive stress on the structure.
6. Risoluzione Dei Problemi
Questa sezione affronta i problemi più comuni che potresti riscontrare con il tuo pergolato.
| Problema | Possibile causa | Soluzione |
|---|---|---|
| Louvers are difficult to adjust or stuck. | Debris in the mechanism, loose connections, or corrosion. | Clean the louver mechanism. Check and tighten all connections. Apply a silicone-based lubricant if necessary. |
| Water accumulates on the roof. | Drainage grooves are blocked by debris. | Clear any leaves, dirt, or other obstructions from the louver drainage channels and frame. |
| La pergola sembra instabile o traballante. | Loose anchor bolts or frame connections. | Inspect and re-tighten all anchor bolts and frame connections. Ensure the base is securely fastened to a stable surface. |
| Noise during wind. | Loose components or louvers not fully closed/open. | Ensure all connections are tight. Fully open or close the louvers during windy conditions as per safety instructions. |
Se riscontri problemi non elencati qui o necessiti di ulteriore assistenza, contatta l'assistenza clienti di PURPLE LEAF.
7. Specifiche
Below are the technical specifications for the PURPLE LEAF Bioclimatic Pergola (Model: 4.24 x 3 m).
| Caratteristica | Dettaglio |
|---|---|
| Modello | 4.24 x 3 metri |
| Marca | FOGLIA VIOLA |
| Materiale | Alluminio (verniciato a polvere) |
| Colore | Grigio |
| Superficie del pavimento | 12.72 m² |
| Livello di resistenza all'acqua | Impermeabile |
| Resistenza al vento | Up to Force 7 |
| Assemblaggio richiesto | SÌ |
| Regolazione della persiana | Manovella manuale |
| Sistema di drenaggio | Integrated within louvers and frame |
Figura 8: Dimensioni del prodotto suview.
8. Informazioni sulla garanzia
PURPLE LEAF products are manufactured to high-quality standards. For specific warranty details regarding your bioclimatic pergola, please refer to the warranty card included with your purchase or visit the official PURPLE LEAF websito. Conservare la prova d'acquisto per eventuali reclami in garanzia.
9. Assistenza clienti
Should you have any questions, require assistance with assembly, or need to report a missing/damaged part, please contact PURPLE LEAF customer support.
- Supporto online: Visit the official PURPLE LEAF websito per FAQ e informazioni di contatto.
- E-mail: Per conoscere l'indirizzo email del servizio clienti, consulta la documentazione relativa all'acquisto.
- Telefono: Per conoscere i numeri di telefono del servizio clienti, consulta la documentazione relativa all'acquisto.
Please have your model number (4.24 x 3 m) and proof of purchase ready when contacting support.
