Constrictor Pro Crossbow User Manual

1. Introduzione e oltreview

The Constrictor Pro crossbow is engineered for powerful performance within a compact design, ideal for hunting in confined spaces. This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your crossbow.

Key features of the Constrictor Pro include:

• Compact dimensions: Measures 8.125 inches wide when cocked and 12.0625 inches uncocked.
• High velocity: Fires bolts at speeds up to 400 FPS with a 200-pound draw weight.
• Safety mechanism: Equipped with an anti-dry fire mechanism to prevent accidental firing without an arrow.
• Ready-to-hunt package: Includes an Illuminated Reticle/speed adjustable scope, 3 BearX TrueX Max arrows, a 4-arrow top-mount quiver, sling, manual cocking sled, and arrow lube/string wax.

Figure 1: The Constrictor Pro Crossbow, showcasingrazie al suo design compatto e agli accessori inclusi.

2. Installazione e assemblaggio

Before using your Constrictor Pro crossbow, ensure all components are present and properly assembled. Refer to the included parts list for verification.

2.1 Unboxing e identificazione dei componenti

Carefully remove all items from the packaging. Identify the main crossbow body, scope, quiver, sling, manual cocking sled, arrows, rail lube, and string wax.

2.2 Scope Installation

1. Attach the Illuminated Reticle/speed adjustable scope to the picatinny rail on top of the crossbow.
2. Secure the scope mounts firmly using the provided tools. Ensure the scope is level and aligned.
3. Test the illumination function of the scope. If the illumination does not work, refer to the troubleshooting section or contact customer support.

Figura 2: lato view of the crossbow, illustrating the mounted scope and quiver.

2.3 Quiver and Sling Attachment

• Attach the 4-arrow top-mount quiver to the designated mounting point. The quiver features a 360-degree pivot, allowing for various orientations.
• Secure the sling to the attachment points on the crossbow for comfortable carrying.

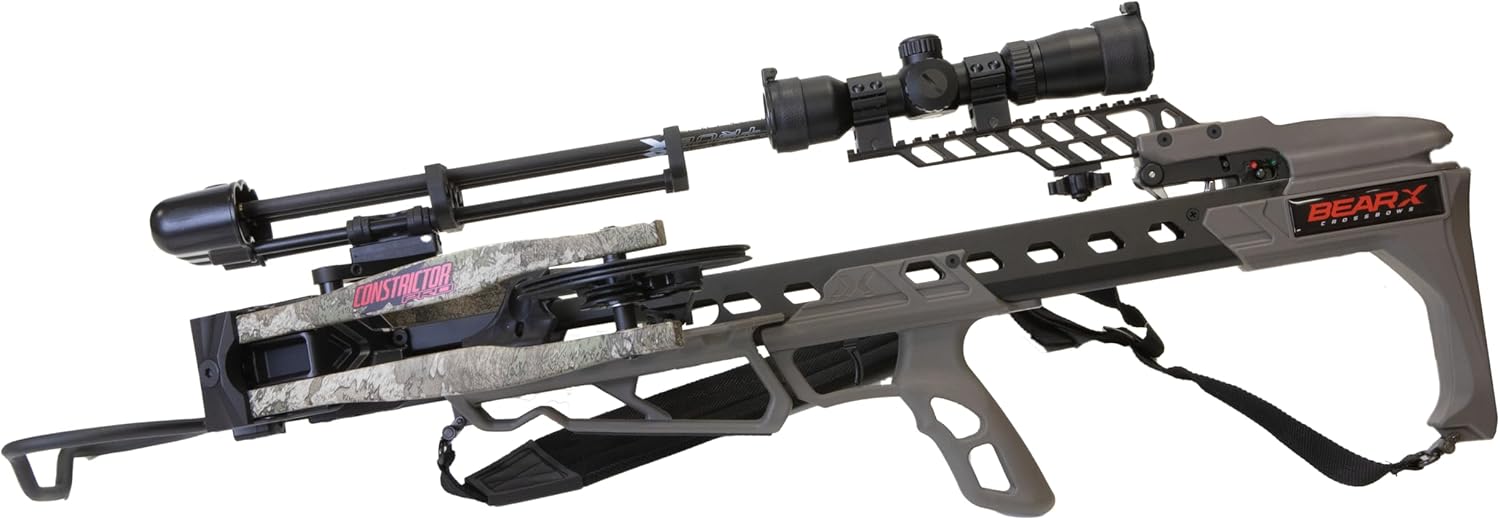

Figure 3: Another perspective of the crossbow, highlighting the sling attachment points.

3. Istruzioni per l'uso

Proper operation is crucial for safety and performance. Always follow these instructions carefully.

3.1 La sicurezza prima di tutto

• Always point the crossbow in a safe direction.
• Keep fingers and clothing clear of the string and cables.
• Ensure the anti-dry fire mechanism is engaged before cocking. Never dry fire the crossbow (firing without an arrow).
• Use only compatible arrows: 20-22 inch TrueX bolts, weighing between 375 and 425 grains.

3.2 Armare la balestra

1. Place the manual cocking sled on the string.
2. Engage the sled with the string and pull back evenly until the string locks into the trigger mechanism.
3. Ensure the safety is engaged automatically upon cocking.

3.3 Caricamento di una freccia

1. With the crossbow cocked and safety engaged, place a compatible arrow onto the rail.
2. Ensure the arrow nock is fully seated against the string and the arrow is firmly against the retention spring.
3. Verify the arrow is correctly oriented for the nock type.

Figura 4: in alto view, showing proper arrow placement on the rail and in the quiver.

3.4 Mirare e sparare

1. Aim at your target using the illuminated reticle scope. Adjust the scope for speed and distance as needed.
2. Quando si è pronti a sparare, disinserire la sicura.
3. Squeeze the trigger smoothly to release the string and fire the arrow.

4. Manutenzione

Regular maintenance ensures the longevity and safe operation of your crossbow.

4.1 Cura delle corde e dei cavi

• Apply string wax to the crossbow string and cables regularly, especially after every few uses or before extended storage. This protects them from wear and moisture.
• Inspect the string and cables for any signs of fraying, cuts, or damage before each use. Damaged strings or cables must be replaced immediately by a qualified technician.

4.2 Lubrificazione delle rotaie

• Apply rail lube to the crossbow rail periodically to reduce friction and wear on the string and arrow.

4.3 Pulizia generale e conservazione

• Wipe down the crossbow with a clean, dry cloth after each use to remove dirt and moisture.
• Conservare la balestra in un luogo fresco e asciutto, lontano dalla luce solare diretta e da temperature estreme.
• Ensure the crossbow is uncocked before long-term storage to relieve tension on the limbs and string.

5. Risoluzione Dei Problemi

This section addresses common issues you might encounter with your Constrictor Pro crossbow.

5.1 Scope Illumination Not Working

• Controllare la batteria: Ensure the scope battery is correctly installed and has sufficient charge. Replace if necessary.
• Posizione della manopola: Verify the illumination knob is turned to an "ON" setting and not between settings.
• Contatta l'assistenza: If the issue persists after checking the battery and knob, the scope may be faulty. Contact Bear Archery customer service for assistance.

5.2 String or Limb Damage (e.g., Fraying, Splintering)

• Azione immediata: STOP USE IMMEDIATELY. Do not attempt to cock or fire the crossbow if the string, cables, or limbs show any signs of damage.
• Riparazione professionale: String or limb damage can be dangerous. This type of repair requires specialized tools and expertise. Contact a certified crossbow technician or Bear Archery customer service for repair or replacement.
• Misure preventive: Ensure proper string waxing and rail lubrication. Always use the manual cocking sled for even tension. Avoid dry firing.

5.3 Difficulty Finding Compatible Arrows

• Arrow Specifications: The Constrictor Pro requires 20-22 inch TrueX bolts with a weight range of 375 to 425 grains.
• Raccomandazioni del produttore: Bear Archery recommends BearX TrueX Max arrows for optimal performance. Check with authorized dealers or the Bear Archery websito per la disponibilità.

6. Specifiche

Detailed technical specifications for the Constrictor Pro Crossbow.

7. Garanzia e supporto

Your Constrictor Pro Crossbow is backed by a manufacturer's warranty and dedicated customer support.

7.1 Informazioni sulla garanzia

The Constrictor Pro Crossbow comes with a Garanzia a vita limitata. This warranty covers manufacturing defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims. For full details and terms, refer to the warranty card included with your product or visit the official Bear Archery websito.

7.2 Assistenza clienti

For technical assistance, parts, or warranty inquiries, please contact Bear Archery customer service directly. You can find contact information and additional resources on their official brand store:

Visit the Bear Archery Store on Amazon

When contacting support, please have your model number (AC96B2B2201) and purchase date ready.
