Manuale utente per lavastoviglie integrata Hisense HV673A65

Introduzione

This user manual provides comprehensive instructions for the installation, operation, and maintenance of your Hisense HV673A65 Integrated Dishwasher. Please read this manual carefully before using the appliance to ensure safe and efficient operation. Keep this manual for future reference.

Immagine: Frontale view of the Hisense HV673A65 Integrated Dishwasher with the door open, showcasing i rack interni e il pannello di controllo.

Informazioni sulla sicurezza

Quando si utilizzano apparecchi elettrici, seguire sempre le precauzioni di sicurezza di base per ridurre il rischio di incendi, scosse elettriche e lesioni alle persone.

• Leggere tutte le istruzioni prima di utilizzare la lavastoviglie.
• Collegare l'apparecchio solo a una presa adeguatamente messa a terra.
• Non utilizzare la lavastoviglie se il cavo di alimentazione o la spina sono danneggiati.
• Tenere i bambini lontani dalla lavastoviglie, soprattutto quando lo sportello è aperto.
• Utilizzare solo detersivi e brillantanti specifici per lavastoviglie.

Caratteristiche del prodotto

The Hisense HV673A65 dishwasher is equipped with several advanced features for optimal cleaning and user convenience:

• Capacità per 16 coperti: Può contenere un grande volume di piatti.
• Asciugatura automatica: Door opens automatically at the end of the cycle for complete drying.
• Programmi automatici: Efficient programs for various soil levels, optimizing energy and water consumption.
• Terzo canestro: Dedicated compartment for cutlery and small utensils.
• Porta scorrevole: Allows the decorative panel to slide upwards for seamless integration without cutting the plinth.
• Illuminazione interna a LED: Garantisce una chiara visibilità all'interno della lavastoviglie.
• Spia di stato: Elegant illumination indicating the program status.
• Tecnologia Inverter: For efficient and quiet operation.
• Controllo touch: Intuitive control panel.
• Partenza ritardata: Schedule wash cycles at your convenience.
• Lavaggio rapido 15': Ciclo veloce per capi leggermente sporchi.
• Programma ecologico: Energy-saving wash cycle.

Image: Visual representation of the main features including Automatic Drying, Auto Program, 3rd Basket, Sliding Door, Status Light, and Interior LED Lighting.

Installazione e configurazione

Dimensioni e posizionamento

Ensure adequate space for installation. The dishwasher dimensions are approximately 81.6 cm (Height) x 59.8 cm (Width) x 55.5 cm (Depth).

Image: Technical drawing illustrating the dimensions of the Hisense HV673A65 dishwasher and recommended cabinet niche dimensions for integration.

Image: Detailed table and diagrams showing various niche dimensions and plinth heights for fixed and sliding door installations.

Connessione elettrica

The appliance requires a 220 Volt power supply. Ensure the electrical outlet is properly grounded and meets local electrical codes.

Approvvigionamento idrico e drenaggio

Connect the water inlet hose to a cold water supply with a minimum pressure of 0.04 MPa and a maximum of 1 MPa. Ensure the drain hose is properly connected to a suitable drainage system, preventing kinks or blockages.

Sliding Door Integration

The sliding door mechanism allows for flexible integration with kitchen cabinetry. The decorative panel slides upwards, eliminating the need for a plinth cut-out. This design is ideal for modern kitchen aesthetics.

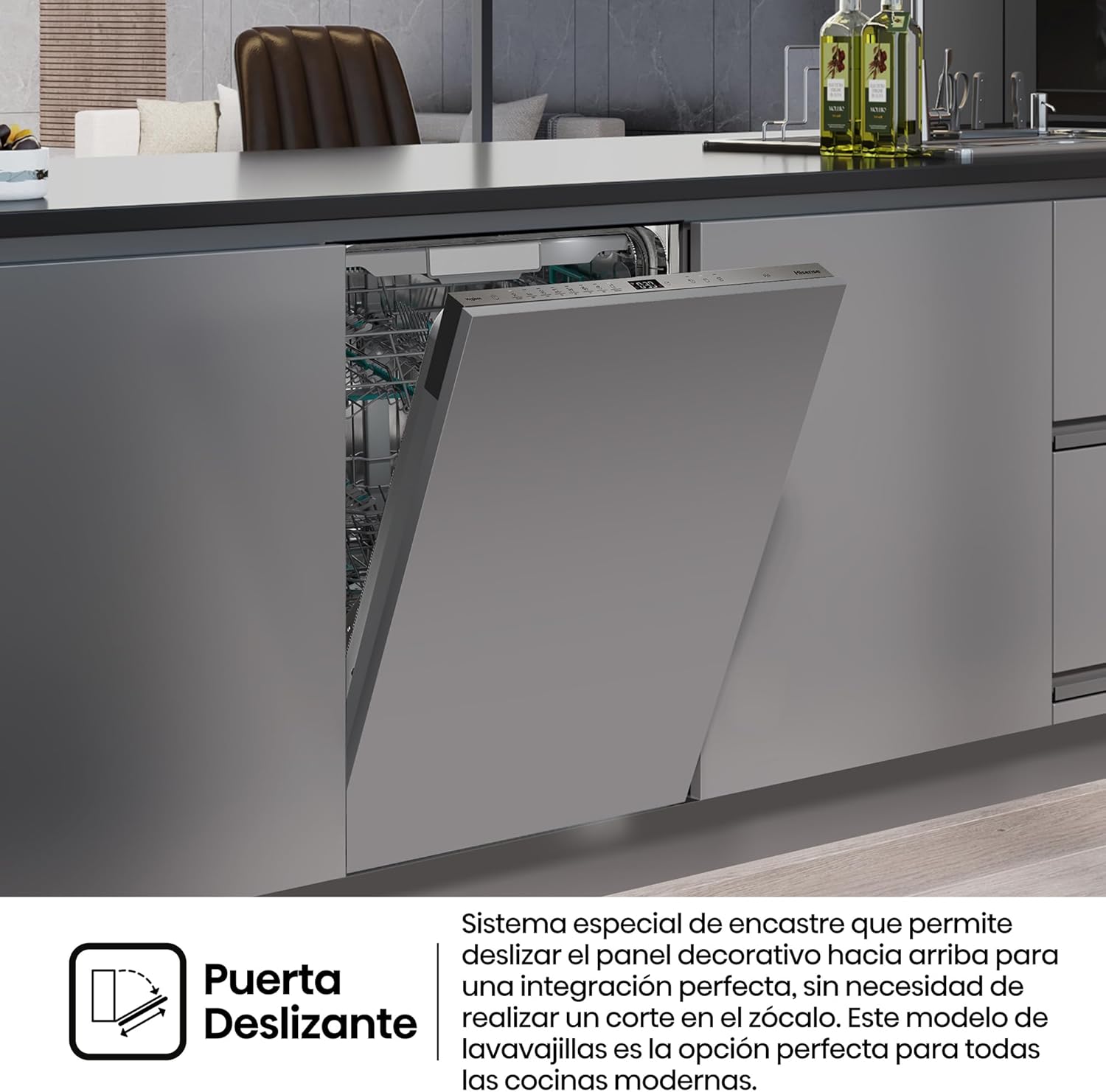

Image: Illustration demonstrating the sliding door system, where the cabinet panel moves vertically to allow the dishwasher door to open without interfering with the plinth.

Istruzioni per l'uso

Caricamento della lavastoviglie

Proper loading ensures optimal cleaning results. Scrape off large food particles before loading. Place larger items in the lower basket and smaller, delicate items in the upper basket. Utilize the third basket for cutlery and small utensils.

Immagine: Primo piano view of the third basket designed for cutlery and small kitchen tools, showing its adjustable sections for flexible loading.

Aggiunta di detersivo e brillantante

Riempire il contenitore del detersivo con la quantità appropriata di detersivo per lavastoviglie. Controllare l'indicatore del brillantante e rabboccare se necessario per garantire un'asciugatura senza aloni.

Image: A composite image showing the touch control panel with digital display, the interior baskets, and a close-up of the detergent and rinse aid dispenser.

Selezione di un programma

Use the touch control panel to select the desired wash program. Refer to the program table in the full manual for detailed information on each program (e.g., Auto, Eco, Quick Wash 15').

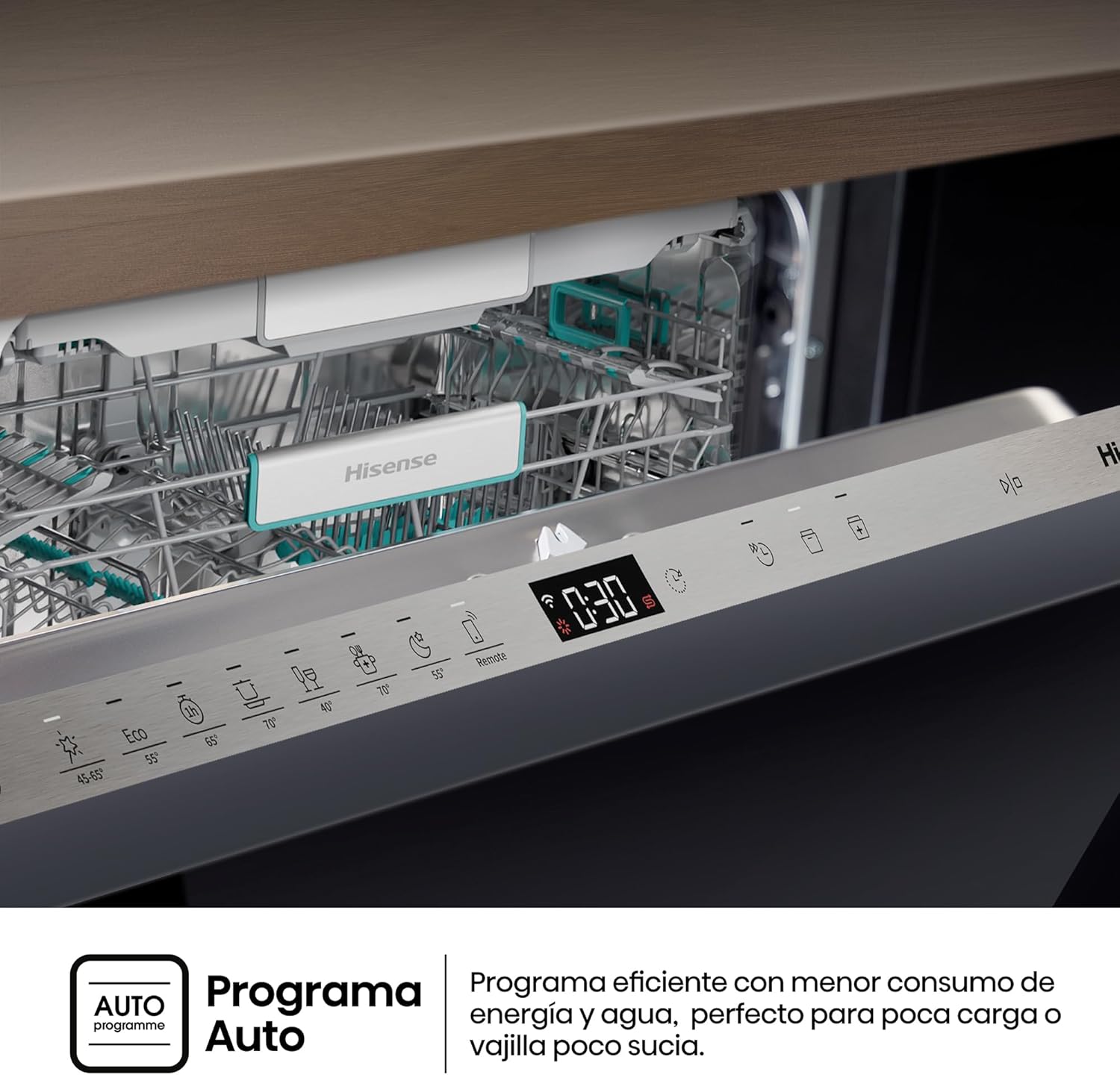

Image: A graphic explaining the "Auto Program" feature, which efficiently adjusts water and energy consumption based on the load's soil level.

Starting and Monitoring

Press the Start button to begin the cycle. The Status Light on the floor indicates the current program status. The interior LED lighting provides visibility during loading and unloading.

Immagine: A view of the dishwasher integrated into a kitchen, showing the elegant floor projection of the Status Light, which indicates the operational state of the appliance.

Image: A close-up of the dishwasher interior, highlighting the LED lighting that illuminates the racks and dishes for improved visibility.

Automatic Door Opening and Drying

At the end of the wash cycle, the dishwasher door will automatically open to facilitate natural drying and improve drying performance.

Image: A graphic illustrating the automatic door opening feature, showing warm air escaping and fresh air entering to enhance the drying process.

Manutenzione

Pulizia dei filtri

Regularly clean the filter system to prevent blockages and ensure efficient operation. Remove the filters, rinse them under running water, and reassemble.

Pulizia dei bracci irroratori

Check the spray arm nozzles for any blockages and clean them if necessary to ensure proper water distribution.

Immagine: un primo piano view of the lower spray arm inside the dishwasher, showing the nozzles responsible for water distribution during the wash cycle.

Pulizia esterna

Pulire le superfici esterne con un panno morbido, damp panno. Non usare detergenti abrasivi o solventi.

Ricarica di sale e brillantante

Monitor the salt and rinse aid indicators and refill as needed to maintain optimal performance and prevent limescale buildup.

Risoluzione dei problemi

If your dishwasher is not operating correctly, consult the following common issues before contacting service.

Specifiche

Image: A visual representation highlighting the dishwasher's Class A energy efficiency, indicating significant energy savings.

Garanzia e supporto

Your Hisense HV673A65 Integrated Dishwasher comes with a standard manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions.

For technical support, service requests, or to purchase genuine spare parts, please contact Hisense customer service. Contact details can be found on the Hisense official websito o nella documentazione fornita con l'apparecchio.

The product includes a user manual. For further assistance, please visit the official Hisense websito o contattare il servizio clienti.

Note: The "Manual del usuario" is listed as a component included in the box.
