Introduzione
Thank you for choosing the PURPLE LEAF 14' x 24' Louvered Pergola. This manual provides essential information for the safe assembly, operation, and maintenance of your new outdoor structure. Please read all instructions carefully before beginning assembly and retain this manual for future reference.
This pergola features an aluminum alloy frame, an adjustable louvered roof, and fixed louvered walls on one short side. It is designed to provide a versatile outdoor living space with excellent sun protection and a hidden drainage system.
Informazioni sulla sicurezza
AVVERTIMENTO: La mancata osservanza di queste istruzioni di sicurezza può provocare gravi lesioni o danni alla proprietà.
- Ensure all components are securely fastened before use. Regularly check for loose bolts or connections.
- Non arrampicarsi sulla struttura del pergolato.
- In strong winds or heavy snow, it is recommended to open the louvers to prevent damage to the structure.
- The louvered walls are fixed and cannot be closed. Do not attempt to adjust them.
- This pergola must be bolted to the ground or concrete for stability. Failure to do so may result in the structure overturning.
- Durante l'installazione, tenere bambini e animali domestici lontani dall'area di montaggio.
- Use appropriate safety gear (gloves, eye protection) during assembly.
Contenuto della confezione
Verify that all parts are present and undamaged before beginning assembly. Refer to the detailed parts list provided in your separate assembly guide for specific component identification.
- Aluminum Frame Components (beams, columns)
- Lamelle regolabili
- Fixed Shutter Wall Panels
- Componenti del sistema di drenaggio
- Hardware Kit (bolts, screws, washers, caps)
- Tools for Assembly (wrenches, hex keys - may be included or required separately)
Image: The PURPLE LEAF Louvered Pergola installed in an outdoor patio area, showcasinil suo design e la sua funzionalità.
Istruzioni di installazione
Detailed assembly steps are provided in the separate assembly manual. The following outlines key considerations for setup:
- Preparazione del sito: Scegliete una superficie piana e stabile per l'installazione. Assicuratevi che ci sia spazio sufficiente attorno al pergolato per il montaggio e l'utilizzo futuro.
- Fondazione: The pergola must be securely bolted to a concrete slab or other suitable ground foundation. Use appropriate anchors (not included) for your specific surface.
- Assemblaggio del telaio: Assemble the main aluminum frame according to the provided diagrams. Ensure all connections are tight and stable.
- Louvered Roof Installation: Install the adjustable louver blades into the roof frame. Follow the sequence specified in the assembly guide to ensure proper alignment and function.
- Fixed Shutter Wall Installation: Attach the fixed louvered walls to the designated short beam side. These walls are designed for privacy and sun protection and are not adjustable.
- Sistema di drenaggio: Connect the internal drainage components to ensure rainwater is channeled through the columns to the ground.
Image: This diagram illustrates various configurations for mounting the louvered walls, including one wide side, one long side, or both long and wide sides. Note that for this model, the louvered walls are fixed on one short side.

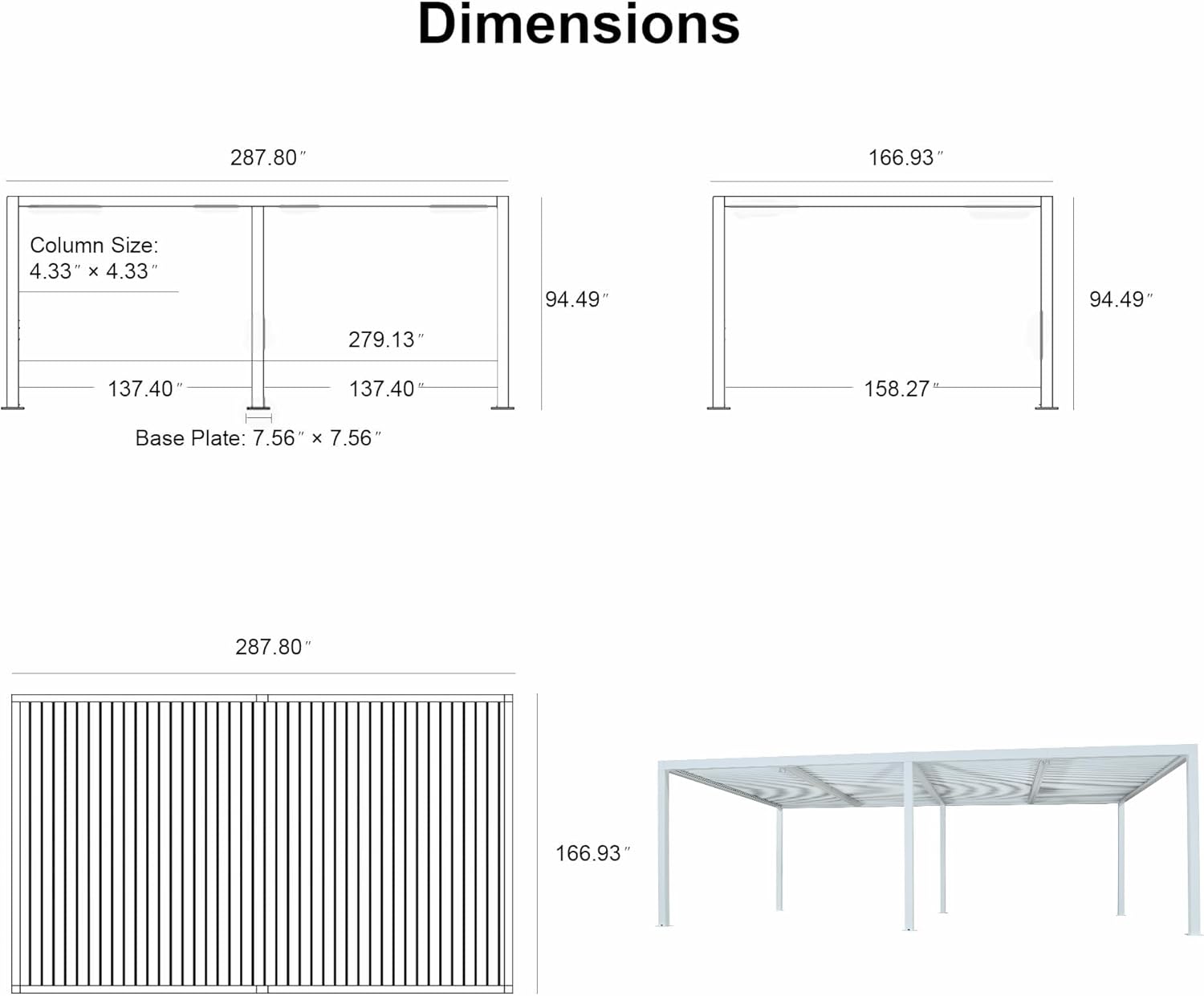

Image: A technical drawing detailing the dimensions of the pergola, including length, width, height, column size, and base plate measurements.
Istruzioni per l'uso
The PURPLE LEAF Louvered Pergola is designed for ease of use and adaptability to various weather conditions.
Regolazione del tetto a persiana
The louvered roof features a 0° - 90° rotation function, allowing you to control sunlight and ventilation. Use the integrated mechanism (typically a crank handle or lever) to rotate the louvers to your desired position:
- Completamente aperto (90°): Allows maximum sunlight and airflow. Ideal for sunbathing or clear skies.
- Parzialmente aperto: Provides filtered shade and ventilation.
- Completamente chiuso (0°): Offers complete shade and protection from light rain, directing water to the hidden drainage system.
Importante: Do not force the louvers if they encounter resistance. Ensure no obstructions are present during adjustment.
Video: This video demonstrates the easy adjustment of the pergola's louvers, showcasing how to open and close them to control sunlight and shade.
Fixed Shutter Wall
This model includes fixed louvered walls on one short side. These walls provide permanent privacy and additional sun protection. They are designed to remain at a fixed angle and cannot be adjusted or closed.
Video: This video highlights the louvered pergola with its wall-protecting privacy features, demonstrating the aesthetic and functional benefits of the fixed shutter walls.
Sistema di drenaggio nascosto
The integrated drainage system is designed to channel rainwater away from the roof. When the louvers are closed, water flows into the internal gutters and down through the hollow columns to the ground. Ensure the ground around the columns allows for proper water runoff.
Immagine: Un diagramma dettagliato mostraasing the pergola's unique hidden drainage system, which diverts water from the roof through the columns to prevent accumulation.
Manutenzione
Una manutenzione regolare prolungherà la durata e l'aspetto del tuo pergolato.
- Pulizia: Clean the aluminum frame and louver blades with mild soap and water. Avoid abrasive cleaners or harsh chemicals that could damage the finish. Rinse thoroughly with clean water.
- Ispezione: Periodically inspect all bolts and connections to ensure they remain tight. Tighten any loose hardware.
- Sistema di drenaggio: Ensure the drainage channels within the roof and columns are free from debris (leaves, dirt) to prevent water buildup.
- Cura invernale: In areas with heavy snowfall, it is recommended to keep the louvers open to prevent snow accumulation on the roof, which could cause structural damage.
Risoluzione dei problemi
| Problema | Possibile causa | Soluzione |
|---|---|---|
| Le persiane non si regolano in modo fluido | Obstruction in mechanism; debris in tracks; loose connections. | Check for obstructions and remove. Clean tracks. Inspect and tighten all relevant hardware. |
| Accumulo d'acqua sul tetto quando è chiuso | Drainage channels blocked; louvers not fully closed. | Clear any debris from drainage channels. Ensure louvers are fully rotated to the closed position. |
| La pergola sembra instabile | Anchors not secured; loose frame connections. | Verify that the pergola is properly anchored to the ground. Inspect and tighten all frame bolts. |
Specifiche del prodotto
| Caratteristica | Dettaglio |
|---|---|
| Marca | FOGLIA VIOLA |
| Modello | Pergola con persiane da 14' x 24' |
| Dimensioni (L x P x A) | 291.02" x 170.16" x 94.5" |
| Materiale | Alluminio |
| Colore | White Shutter Wall (1W) |
| Tipo di tetto | Adjustable Louvered Hardtop (0° - 90° rotation) |
| Tipo di muro | Fixed Louvered Wall (1 short side) |
| Livello di resistenza all'acqua | Resistente all'acqua |
| Protezione UV | 50 |
| Assemblaggio richiesto | SÌ |
| Superficie del pavimento | 336 piedi quadrati |
Garanzia e supporto
For warranty information, please refer to the documentation included with your purchase or contact PURPLE LEAF customer service. Keep your proof of purchase for any warranty claims.
If you require assistance with assembly, parts, or have any questions regarding your PURPLE LEAF Louvered Pergola, please contact our customer support team. Contact details can typically be found on the product packaging or the official PURPLE LEAF websito.
