MEISSALIVVE Armoire Wardrobe Closet User Manual

1. Introduzione

This manual provides comprehensive instructions for the assembly, operation, and maintenance of your MEISSALIVVE Armoire Wardrobe Closet. Designed for versatile storage, this freestanding unit features two doors, internal shelving, and a hanging rod to organize your belongings efficiently. Please read this manual thoroughly before assembly and use to ensure safe and proper operation.

Figure 1.1: Fully assembled MEISSALIVVE Armoire Wardrobe Closet in a bedroom.

2. Informazioni sulla sicurezza

Per evitare lesioni o danni al prodotto, osservare le seguenti precauzioni di sicurezza:

• Assemblea di due persone: Per motivi di sicurezza e facilità di installazione, il montaggio richiede almeno due persone.
• Dispositivo antiribaltamento: Always install the included anti-tip device to secure the wardrobe to the wall, preventing accidental tipping, especially in households with children or pets.
• Superficie stabile: Place the wardrobe on a flat, stable, and level surface to ensure stability.
• Distribuzione del peso: Distribute weight evenly inside the wardrobe. Do not overload shelves or hanging rods.
• Utilizzo degli strumenti: Use appropriate tools as specified in the assembly instructions. Avoid over-tightening screws, which can damage the material.
• Sicurezza dei bambini: Durante il montaggio, tenere le parti di piccole dimensioni e i materiali di imballaggio lontano dalla portata dei bambini.

Figure 2.1: Key safety and design features including the double anti-tilt design.

3. Elenco delle parti

Before beginning assembly, verify that all parts are present and undamaged. Refer to the diagram below for identification.

Figure 3.1: Included bonus items: clothes hangers and fabric storage bin.

4. Istruzioni di montaggio (installazione)

Assembly is recommended for two people. Follow these steps carefully. All parts are labeled for easy identification.

1. Preparare l'area: Preparate un'area spaziosa, pulita e piana per l'assemblaggio. Stendete una coperta o un cartone per proteggere il pavimento e i mobili.
2. Fissare i pannelli laterali: Connect the side panels (A) to the bottom panel (B) using the provided hardware (J). Ensure all connections are secure but do not overtighten.
3. Installare i pannelli posteriori: Slide the back panels (C) into the grooves on the assembled frame. Secure them with small nails or screws as indicated in the detailed diagram.
4. Fissare il pannello superiore: Secure the top panel (B) to the assembled frame using the appropriate hardware.
5. Installa le cerniere: Attach the hinges (H) to the doors (D) and then to the main frame of the wardrobe. Adjust as necessary for proper door alignment.
6. Fissare le maniglie: Secure the handles (G) to the front of the doors (D).
7. Insert Shelf and Rod: Place the adjustable shelf (E) at your desired height. Install the hanging rod (F) in the upper section.
8. Dispositivo antiribaltamento sicuro: Attach the anti-tip kit (I) to the top rear of the wardrobe and then to a wall stud using appropriate wall anchors. This step is crucial for safety.

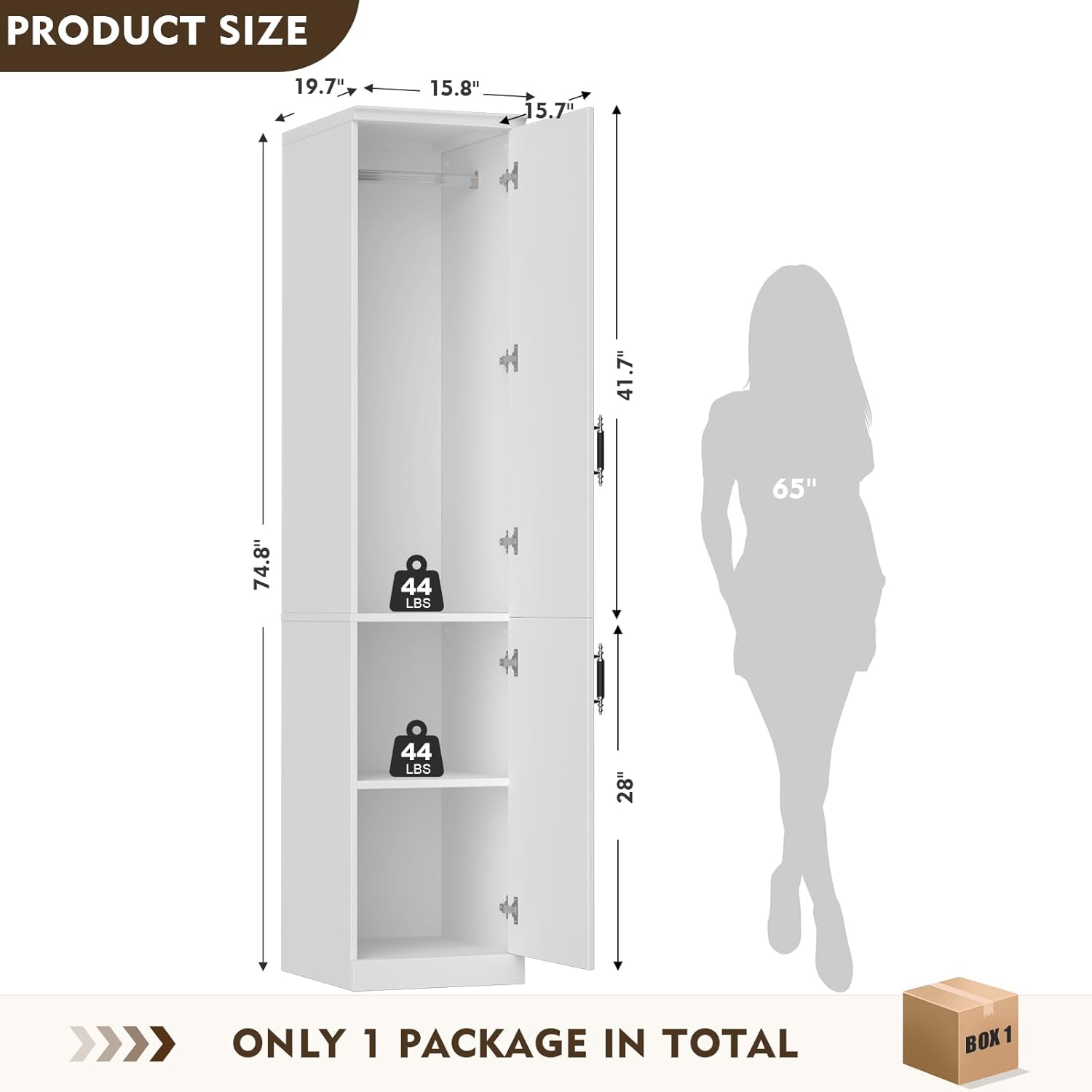

Figure 4.1: Product dimensions and internal weight distribution guidelines.

5. Istruzioni per l'uso

Your MEISSALIVVE Armoire Wardrobe Closet is designed for efficient and flexible storage.

• Area di sospensione: Use the metal hanging rod for longer items such as coats, dresses, and suits. The included bonus hangers can be used for immediate organization.
• Ripiani regolabili: The internal shelf can be adjusted to different heights to accommodate folded clothes, linens, or storage bins. To adjust, remove the shelf, reposition the shelf pins, and reinsert the shelf.
• Vani portaoggetti: Utilize the lower section for folded garments, accessories, or the included fabric storage bin for smaller items like socks and underwear.
• Ganci laterali: The side of the wardrobe features 4 metal hooks, ideal for hanging scarves, bags, or other accessories.
• Porte con chiusura ammortizzata: Le porte sono dotate di damping hinges for quiet and smooth operation. Close them gently to prolong their lifespan.

Figure 5.1: Internal organization showing top, hanging, and lower storage areas.

Figure 5.2: Detail of the adjustable shelf, allowing for customized storage space.

6. Manutenzione

Proper care will ensure the longevity of your wardrobe:

• Pulizia: Pulire le superfici con un panno morbido, damp panno. Evitare prodotti chimici aggressivi o detergenti abrasivi, che possono danneggiare la finitura.
• Fuoriuscite: Clean up spills immediately to prevent water damage, as the material is water-resistant but not waterproof.
• Graffi: While scratch-resistant, avoid dragging sharp objects across the surface to maintain its appearance.
• Controllo hardware: Controllare periodicamente tutte le viti e i collegamenti per assicurarsi che siano ben serrati. Serrare nuovamente se necessario.
• Ventilazione: Ensure adequate air circulation around the wardrobe to prevent moisture buildup, especially if storing clothes for long periods.

7. Risoluzione Dei Problemi

8. Specifiche

9. Garanzia e supporto

For warranty information or technical support, please contact MEISSALIVVE customer service through the retailer where you purchased the product. Please have your model number (B0DRFBH7H4) and purchase date ready when contacting support.

Ci impegniamo a fornire un servizio e un supporto eccellenti per il tuo prodotto.
