XWJNE 1200 Watt Pure Sine Wave Inverter

1. Introduzione

The XWJNE 1200 Watt Pure Sine Wave Inverter is designed to convert 12V DC power from batteries into stable 120V AC power, suitable for a wide range of electronic devices and appliances. With a continuous output of 1200W and a peak power of 2400W, this inverter is ideal for off-grid solar systems, RVs, semi-trailer trucks, and various outdoor applications. Its pure sine wave output ensures compatibility with sensitive electronics, providing clean and reliable power comparable to utility grid electricity.

The XWJNE 1200W Pure Sine Wave Inverter is a reliable solution for converting DC to AC power in various environments.

2. Caratteristiche principali

• 1200W Continuous / 2400W Peak Power: Provides stable 1200W continuous power output with a 2400W peak capacity for starting high-load devices.
• Uscita onda sinusoidale pura: Delivers high-quality AC power, ensuring safe and efficient operation for sensitive electronics without humming or interference.
• Alta efficienza di conversione: Achieves over 90% energy conversion efficiency, minimizing power loss.
• Comprehensive 6-Point Protection: Features undervoltage, voltage, overload, over-temperature, short circuit, and reverse connection protection for enhanced safety.
• LED Display & Remote Controller: Equipped with an accurate LED screen for real-time status monitoring and a 16.4ft wired remote controller for convenient operation.
• Porte di uscita multiple: Includes two 120V AC output ports and one 5V 2.4A USB port for versatile connectivity.
• Costruzione durevole: Built with aluminum and plastic for robust protection against impacts and efficient heat dissipation.
• Ventola di raffreddamento intelligente: An intelligent fan system automatically activates when internal temperature rises, ensuring optimal operating conditions.

The inverter produces a pure sine wave output, ensuring high efficiency and compatibility with sensitive electronics.

3. Informazioni sulla sicurezza

Please read all safety instructions carefully before installing and operating the inverter. Failure to follow these instructions may result in electric shock, fire, or serious injury.

Precauzioni generali di sicurezza:

• Non aprire l'inverter casing. All'interno non ci sono parti riparabili dall'utente.
• Garantire un'adeguata ventilazione intorno all'inverter per evitare il surriscaldamento.
• Tenere l'inverter lontano da acqua, umidità, materiali infiammabili e sostanze corrosive.
• Collegare l'inverter solo a una fonte di alimentazione a 12 V CC. Collegamento ad altri voltagpossono causare danni.
• Scollegare sempre la batteria prima di effettuare qualsiasi operazione di manutenzione o cablaggio.
• Assicurarsi che tutti i collegamenti siano ben saldi e sicuri per evitare collegamenti allentati e archi elettrici.
• Use appropriate wiring gauges as specified in the installation section.

Protezioni integrate:

The XWJNE inverter is equipped with six types of protection functions to ensure safe operation:

• Sottovoltage Protezione: Shuts down the inverter if the input DC voltage scende troppo in basso.
• Sovravoltage Protezione: Protects the inverter and connected devices from excessively high input DC voltage.
• Protezione da sovraccarico: Prevents damage by shutting down if the connected load exceeds the inverter's capacity.
• Protezione da sovratemperatura: Activates if the internal temperature becomes too high, preventing thermal damage.
• Protezione da cortocircuito: Automatically disconnects power in case of a short circuit in the output.
• Protezione della connessione inversa: Safeguards against damage from incorrect battery polarity connection.

The inverter incorporates multiple safety features for reliable and secure operation.

4. Contenuto della confezione

Si prega di verificare che tutti gli articoli elencati di seguito siano inclusi nel pacchetto:

• XWJNE 1200 Watt Pure Sine Wave Inverter
• Car Battery Cables (2.62ft 7AWG positive and negative)
• Remote Controller (with 16.4ft cable)
• Ground Wire (1.64ft)
• Manuale di istruzioni (questo documento)
• Chiave
• Fuses (2 x 40A 32V)

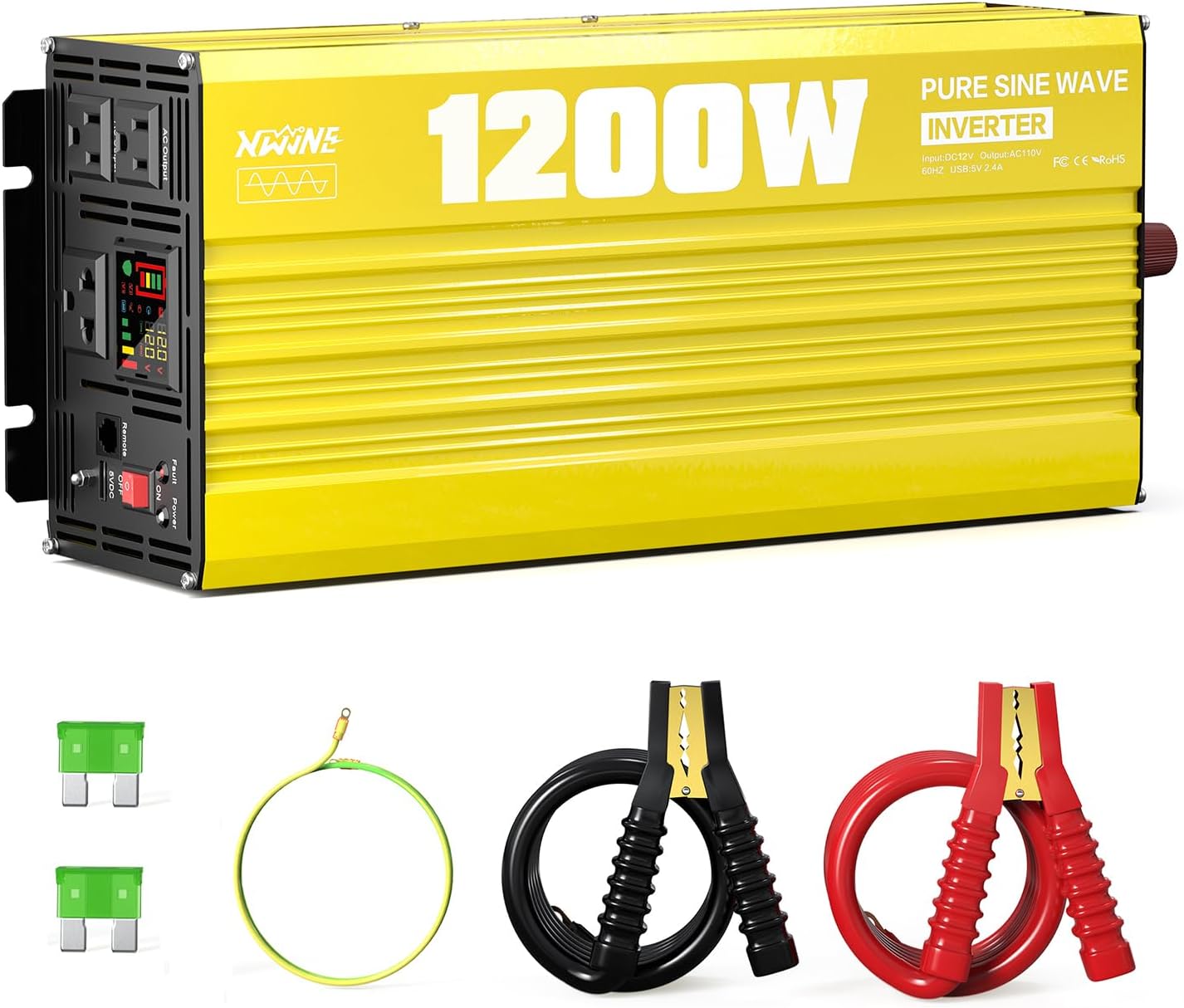

The complete package includes the inverter, battery cables, remote, ground wire, fuses, and a wrench.

Dettagliato view of the inverter's dimensions and the accessories provided in the box.

5. Componenti del prodotto e visualizzazione

Inverter Layout:

Familiarize yourself with the different parts of your XWJNE inverter:

Front and rear panel components of the XWJNE 1200W Pure Sine Wave Inverter.

• Interruttore di alimentazione: Accende/spegne l'inverter.
• Indicatore di guasto Lamp: Si illumina per indicare un errore o una modalità di protezione.
• Display a LED: Shows real-time operational data and fault codes.
• Porte di uscita CA: Two 120V AC outlets (x15A).
• Porta USB: One 5V 2.4A 12W USB output.
• Porta del telecomando: Collega il telecomando cablato.
• Terminale del filo di terra: Per la messa a terra dell'inverter.
• Positive Terminal (DC+): Si collega al terminale positivo della batteria da 12 V.
• Negative Terminal (DC-): Si collega al terminale negativo della batteria da 12 V.
• Ventole di raffreddamento intelligenti: Automatically regulate temperature.

LED Screen Display:

The LED display provides crucial information about the inverter's status:

Understanding the various indicators on the inverter's LED display.

• Livello della batteria: Indicates the charge level of the connected battery.
• Frequenza: Displays the output AC frequency (e.g., 60Hz).
• Ingresso volumetage: Mostra il volume di ingresso CC correntetage dalla batteria.
• Volume di uscitatage: Visualizza l'uscita AC corrente voltage.
• Output Load Percent: Indica la percentualetage della capacità dell'inverter attualmente utilizzata.
• Indicatore di accensione: Shows when the inverter is active.
• Battery Connected Indicator: Confirms proper battery connection.
• Inverter Normal Working Indicator: Confirms the inverter is operating correctly.

6. Configurazione e installazione

Una corretta installazione è fondamentale per il funzionamento sicuro ed efficiente dell'inverter. Seguire attentamente questi passaggi.

Scelta di una posizione:

• Install the inverter in a dry, well-ventilated area, away from direct sunlight, heat sources, and moisture.
• Ensure there is sufficient clearance around the inverter for airflow, especially around the cooling fans.
• Montare l'inverter su una superficie stabile e non infiammabile.

Requisiti della batteria:

For optimal performance and safety, use a deep cycle battery with at least 80% discharge depth. The inverter is compatible with various battery types including LI (Lithium), SLD (Sealed Lead-Acid), FLD (Flooded Lead-Acid), GEL, and AGM batteries.

The inverter supports multiple battery input types and can power various household and vehicle appliances.

Passaggi di connessione:

1. Preparare i cavi: Use the provided 7AWG positive (red) and negative (black) battery cables. Ensure the cable length is appropriate for your setup to minimize voltage goccia.
2. Collegare il filo di terra: Connect one end of the green ground wire (provided) to the inverter's earth terminal and the other end to a reliable ground point (e.g., vehicle chassis, ground rod).
3. Collegare i cavi della batteria all'inverter: Connect the positive (red) battery cable to the inverter's positive (DC+) terminal and the negative (black) battery cable to the inverter's negative (DC-) terminal. Ensure connections are tight.
4. Collegare i cavi della batteria alla batteria: Connect the other end of the positive (red) cable to the positive terminal of your 12V battery. Then, connect the other end of the negative (black) cable to the negative terminal of your 12V battery.
5. Collegamento del telecomando (facoltativo): If desired, plug the remote controller cable into the designated port on the inverter.
6. Verifica connessioni: Controllare attentamente tutti i collegamenti per accertarsi che siano saldi e correttamente polarizzati.

Connection diagrams for independent battery use and integration into an off-grid solar system.

7. Guida operativa

Accensione/spegnimento:

1. Assicurarsi che tutti i collegamenti siano sicuri.
2. Flip the main power switch on the inverter to the 'ON' position. The LED display will illuminate, showing input/output voltage e altri parametri.
3. Per spegnerlo, portare l'interruttore di alimentazione principale in posizione "OFF".

Utilizzo del telecomando:

The wired remote controller allows you to turn the inverter on and off from a distance, which is convenient for installations where the inverter is not easily accessible. Simply use the switch on the remote to control the inverter's power state.

Funzionamento della ventola di raffreddamento:

The inverter features intelligent cooling fans. These fans will automatically activate when the internal temperature reaches approximately 50 degrees Celsius or when the load reaches half of the inverter's capacity. This ensures efficient heat dissipation and maintains optimal operating temperature, contributing to the inverter's durability.

The inverter's dual cooling fans operate efficiently to maintain optimal temperature.

8. Manutenzione

Regular maintenance helps ensure the longevity and reliable performance of your XWJNE inverter.

• Pulizia: Periodically clean the exterior of the inverter with a dry, soft cloth. Ensure ventilation openings and cooling fans are free from dust and debris. Do not use liquid cleaners or solvents.
• Verifica della connessione: Regularly inspect all electrical connections (battery cables, ground wire) to ensure they remain tight and free from corrosion. Loose connections can cause overheating and damage.
• Sostituzione fusibile: The inverter is protected by internal fuses. If a fuse blows, the inverter may stop functioning. Replacement should only be performed by qualified personnel. Use only 40A 32V fuses as replacements.
• Magazzinaggio: If storing the inverter for an extended period, ensure it is clean, dry, and stored in a cool, well-ventilated area. Disconnect it from all power sources.

9. Risoluzione Dei Problemi

This section provides solutions to common issues you might encounter with your inverter. The LED display will show fault codes to help diagnose problems.

Fault Display Codes:

Understanding the fault codes displayed on the inverter's screen for quick diagnosis.

Suggerimenti generali per la risoluzione dei problemi:

• Nessuna potenza in uscita: Controllare i collegamenti della batteria, il volume della batteriatage, and ensure the inverter is switched on.
• L'inverter si spegne: This is often due to a protection feature. Check for overload, low/high battery voltage, or overheating. Reduce load, charge battery, or allow to cool.
• Funzionamento rumoroso: A slight fan noise is normal when under load or hot. Excessive noise might indicate a fan obstruction or internal issue.

10. Specifiche tecniche

11. Assistenza clienti

For any questions, technical assistance, or warranty inquiries regarding your XWJNE 1200 Watt Pure Sine Wave Inverter, please contact our customer service team. We offer 24-hour customer service to assist you when needed.

Please refer to your purchase documentation for specific contact details or visit the official XWJNE websito per informazioni di supporto.
