1. Introduzione
Thank you for choosing the YOLEO Kick Scooter. This manual provides essential information for the safe and proper use, maintenance, and care of your new scooter. Please read it thoroughly before use and keep it for future reference. The YOLEO Kick Scooter is designed for children aged 3 to 12 years, featuring adjustable height, LED light-up wheels, a foldable design for easy storage, and intuitive gravity steering.
Image: Children enjoying their YOLEO Kick Scooters, showcasing il prodotto in uso.
2. Informazioni sulla sicurezza
- Certificazione: This product complies with European toy safety standard EN71, similar to the Japanese Toy Association's ST Mark, ensuring safety for children.
- Equipaggiamento protettivo: Quando si guida lo scooter, indossare sempre casco, ginocchiere e gomitiere.
- Supervisione: I bambini devono sempre essere sorvegliati da un adulto durante la guida.
- Limite di peso: Non superare la portata massima di 50 kg.
- Fascia d'età: Adatto a bambini da 3 a 12 anni.
- Superficie di guida: Use on smooth, dry, and level surfaces away from traffic. Avoid riding on wet, uneven, or slippery surfaces.
- Cavalcata notturna: While LED wheels enhance visibility, exercise caution when riding in low-light conditions.
3. Caratteristiche del prodotto
3.1. Altezza regolabile
The handlebar height can be adjusted steplessly from a minimum of 58cm to a maximum of 82cm to accommodate your child's growth. Please confirm your child's height and the product's actual size for optimal fit.
Image: Adjustable handlebar height for various child sizes.

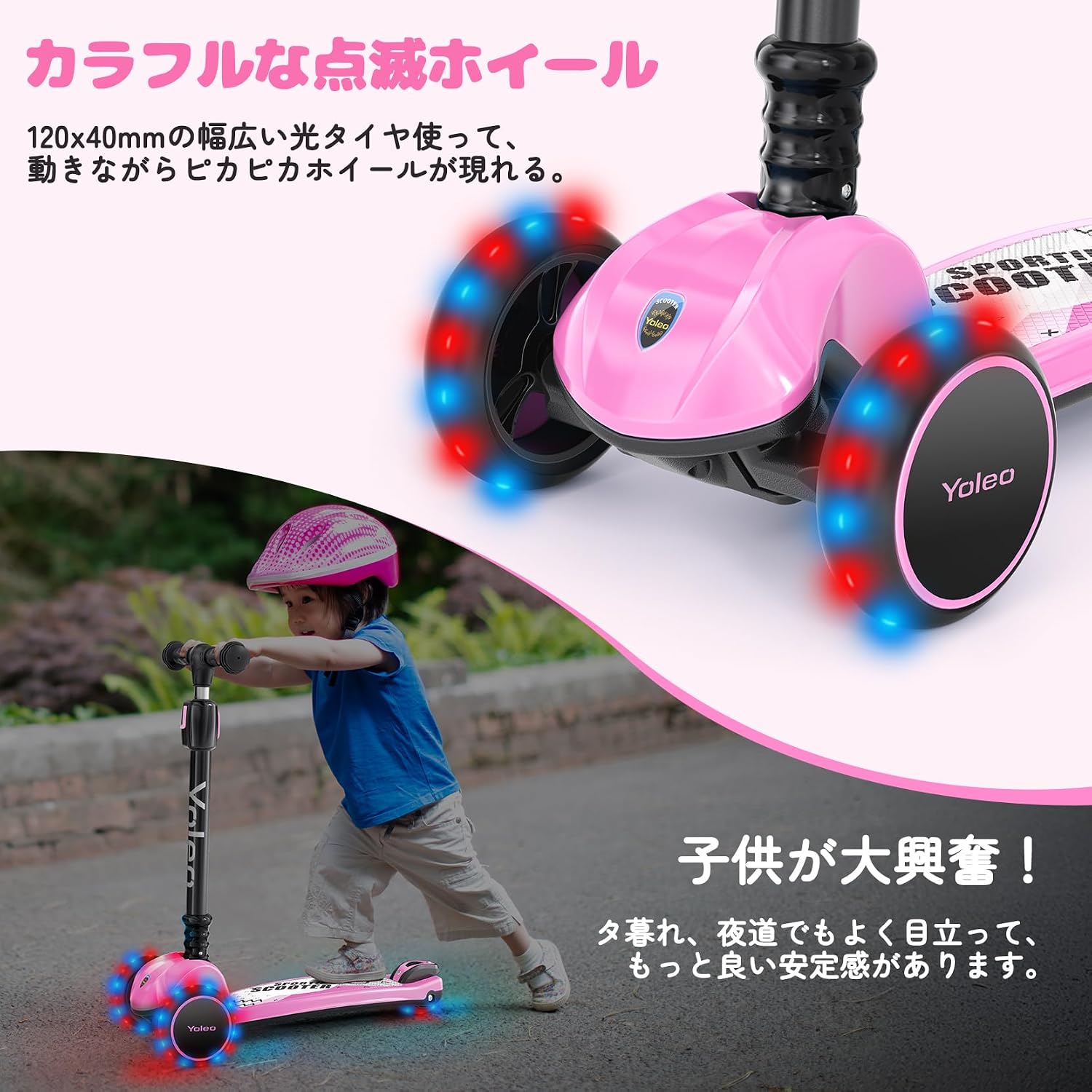

3.2. LED Light-Up Wheels
The kick scooter features wide 120x40mm light-up tires that do not require batteries. The wheels illuminate automatically while moving, making the scooter visible in the evening and enhancing safety.
Image: LED light-up wheels for enhanced visibility and fun.
3.3. Design pieghevole
This kick scooter is designed to be foldable. It can be compactly stored in just 3 seconds without requiring much force. Its lightweight design (3.1KG) makes it easy for children to carry when folded. Ideal for storage in hallways, indoors, or in a car. Note: This kick scooter comes fully assembled and does not require additional assembly.
Image: Foldable design for convenient storage and portability.
3.4. Gravity Steering
The kick scooter incorporates gravity steering, allowing for easy turns by shifting your body weight. This design helps children develop their balance and coordination, preventing falls by improving maneuverability.
Image: Gravity steering mechanism for intuitive turning and balance development.
3.5. Funzionalità aggiuntive
- Stable Wide Deck: The 13cm wide deck provides ampspazio per i piedi e stabilità.
- Non-slip Deck: Features a textured, non-slip surface for secure footing during rides.
- Freno a pedale posteriore: Allows for smooth deceleration and quick stops by pressing down with your foot.
- Secure Rubber Grips: Handlebar grips are designed for a firm hold, preventing hands from slipping.
Image: Key features including the wide deck, foot brake, and rubber grips.
4. Impostazione
The YOLEO Kick Scooter comes pre-assembled, so no complex setup is required. Simply unfold the scooter and adjust the handlebar height to your child's preference.
4.1. Apertura dello scooter
- Individuare il meccanismo di piegatura vicino alla base dell'attacco manubrio.
- Press the release button or lever (refer to the diagram on the product for exact location).
- Pull the handlebar stem upwards until it locks securely into the upright position. Ensure you hear a 'click' sound, indicating it is locked.
4.2. Regolazione dell'altezza del manubrio
- Individuare la regolazione in altezza clamp sull'attacco del manubrio.
- Aprire il clamp.
- Press the spring-loaded button and slide the handlebar to the desired height.
- Assicurarsi che il pulsante scatti in uno dei fori di regolazione.
- Chiudi il clamp saldamente per fissare il manubrio in posizione.
5. Istruzioni per l'uso
5.1. Equitazione
- Posizionare saldamente un piede sul ponte dello scooter.
- Use the other foot to push off the ground, gaining momentum.
- Once moving, place both feet on the deck, one behind the other.
5.2. Sterzo
The YOLEO Kick Scooter uses gravity steering. To turn, simply lean your body in the direction you wish to go. The wheels will respond to your body's movement, providing an intuitive and stable steering experience.
5.3. Frenata
To slow down or stop, place your foot on the rear brake pedal located above the back wheel. Apply gentle pressure to gradually reduce speed, or firm pressure for a quicker stop. Practice braking in a safe area before riding at higher speeds.
6. Manutenzione
- Pulizia: Pulisci lo scooter con un pannoamp dopo ogni utilizzo. Evitare l'uso di prodotti chimici aggressivi o detergenti abrasivi.
- Ispezione delle ruote: Regularly check the wheels for wear and tear. Ensure they spin freely and are free from debris.
- Handlebar and Folding Mechanism: Periodically check that the handlebar is securely fastened and the folding mechanism operates smoothly. Lubricate moving parts if necessary.
- Bulloni e viti: Prima di ogni utilizzo, assicurarsi che tutti i bulloni e le viti siano ben serrati.
- Magazzinaggio: Per prolungarne la durata, conservare lo scooter in un luogo asciutto, lontano dalla luce solare diretta e da temperature estreme.
7. Risoluzione Dei Problemi
If you encounter any issues with your YOLEO Kick Scooter, please consider the following general advice:
- Manubrio allentato: Assicurare la regolazione dell'altezza clamp is fully tightened and the spring-loaded button is engaged in a hole.
- Wheels Not Lighting Up: The LED wheels are motion-activated. Ensure the scooter is moving to activate the lights. If they still don't light up, check for any obstructions or damage to the wheel mechanism.
- Difficoltà di sterzo: Ensure the handlebar is correctly installed and not overly tightened, allowing for the lean-to-steer mechanism to function properly.
- Freno non efficace: Check the rear brake pedal for any debris or damage. Ensure it makes proper contact with the wheel.
Per problemi persistenti, consultare la sezione garanzia e supporto per le informazioni di contatto.
8. Specifiche

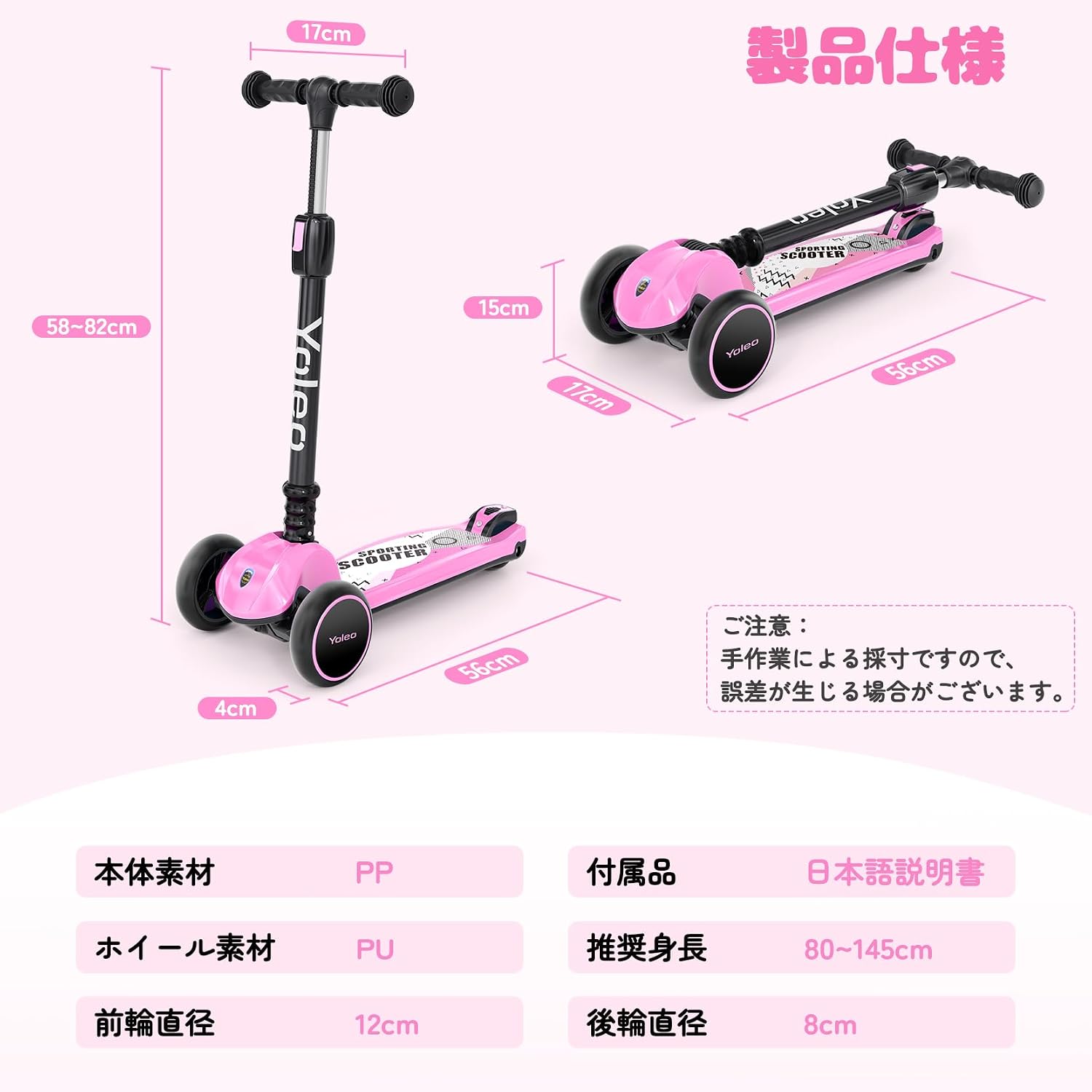

Immagine: Specifiche e dimensioni del prodotto.
| Attributo | Valore |
|---|---|
| Marca | YOLEO |
| Numero di modello | 931 |
| Colore | Rosa |
| Caratteristiche | Light-up wheels, Foldable, Non-slip deck, Lightweight, Adjustable height |
| Limite di peso | 50 kg |
| Dimensioni del prodotto (L x P x A) | Dimensioni: 56 cm x 17 cm x 58 cm |
| Numero di ruote | 3 |
| Tipo di manubrio | Regolazione continua |
| Stile del freno | Freno posteriore |
| Peso del prodotto | 3.1 kg |
| Handle Height (Max) | 82 centimetri |
| Dimensioni della ruota | 12 centimetri |
| Materiale della ruota | Poliuretano |
| Materiale del telaio | Alluminio |
| Paese di origine | Cina |
| Componenti inclusi | Manuale di istruzioni |
9. Garanzia e supporto
Your YOLEO Kick Scooter comes with a Garanzia del produttore di 1 anni dalla data di acquisto.
If you experience any defects or issues upon arrival of the product, exchanges or returns may be possible. Please contact the seller directly via the 'Ask a Question' button on the product page for prompt assistance. Our customer support team is dedicated to providing quick and effective solutions.
10. Video di prodotto
No official product videos from the seller for this specific YOLEO Kick Scooter model were found in the provided data.
