1. Introduzione e oltreview
The Enventor 10L Portable Mini Fridge/Warmer is a versatile appliance designed for both cooling and warming items. Its compact size and dual power options (AC/DC) make it suitable for various environments, including home, office, car, camping, and outdoor activities. This manual provides essential information for safe and efficient operation of your device.
Immagine: Frontale view of the Enventor 10L Portable Mini Fridge/Warmer, showcasingrazie al suo design compatto e al display LCD.
2. Istruzioni di sicurezza
Si prega di leggere e comprendere tutte le istruzioni di sicurezza prima di utilizzare questo apparecchio per evitare lesioni o danni.
- Assicurarsi che l'alimentazione corrisponda al voltage requisiti dell'unità (CA 100-240 V o CC 12 V).
- Do not block the ventilation openings on the unit. Maintain at least 10 cm of space around the appliance for proper airflow.
- Keep the appliance away from water or other liquids. Do not immerse the unit in water.
- Unplug the unit from the power source before cleaning or when not in use.
- Non tentare di smontare o riparare l'unità da soli. Contattare personale di assistenza qualificato per assistenza.
- Avoid placing hot items directly into the cooling mode or cold items directly into the warming mode without allowing the unit to adjust to the new temperature setting.
- Questo apparecchio non è destinato all'uso da parte di persone (bambini compresi) con ridotte capacità fisiche, sensoriali o mentali, o prive di esperienza e conoscenza, a meno che non siano supervisionate o abbiano ricevuto istruzioni riguardanti l'uso dell'apparecchio da una persona responsabile della loro sicurezza.
3. Contenuto della confezione
Verificare che tutti gli articoli siano presenti nel pacco:
- Enventor 10L Mini Fridge/Warmer Unit (Model KB-10L)
- AC Power Cord (for household use)
- DC 12V Car Power Cord (for vehicle use)
- Removable Shelves (2 pieces)
4. Caratteristiche del prodotto
The Enventor 10L Mini Fridge/Warmer offers a range of features for optimal performance and convenience:
- Funzionamento silenzioso: Utilizes Peltier cooling technology for minimal noise, making it suitable for bedrooms, offices, and other quiet environments.
- Isolamento efficiente: Features high-density foam insulation for effective temperature retention, contributing to energy efficiency.
- Dual Cooling and Warming Modes: Capable of cooling down to -2°C (approximately 20°C below ambient temperature) and warming up to 60°C.
- Controllo preciso della temperatura: LCD display shows the internal temperature in real-time, allowing for one-touch adjustment in 1°C increments.
- Capacità 10 litri: Offerte ample storage for beverages, snacks, cosmetics, and other small items. Includes removable shelves for flexible organization.
- Opzioni di alimentazione CA/CC: Compatible with standard household AC power (100-240V) and 12V DC car power outlets, providing portability.
- Compatto e portatile: Lightweight design (approx. 3.5 kg) with a built-in handle for easy transport.

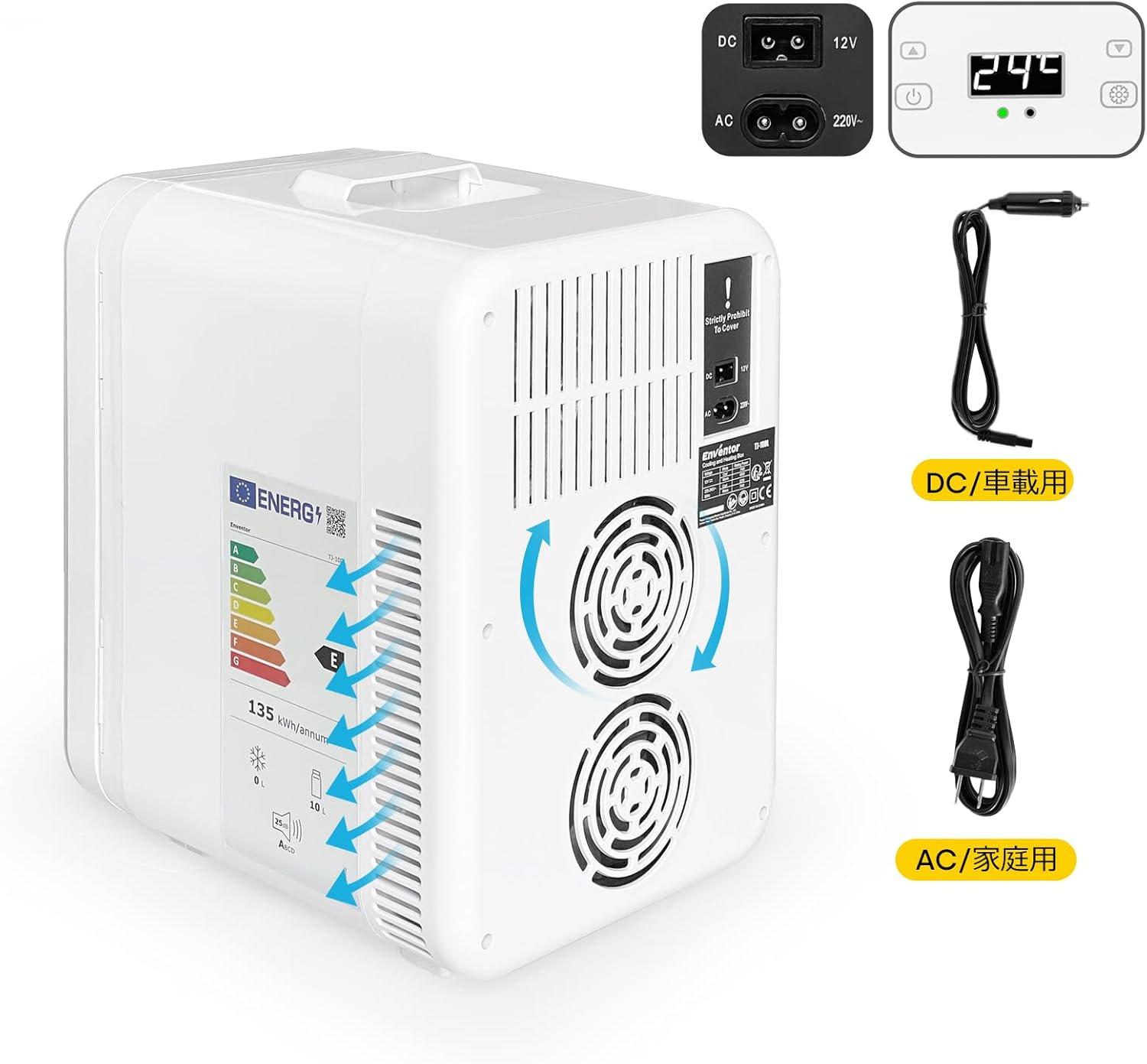

Immagine: Posteriore view of the unit, highlighting the dual cooling fans and AC/DC power input ports.
Image: Illustration of the removable and adjustable shelves for customized storage.
5. Impostazione
Follow these steps to set up your Enventor Mini Fridge/Warmer:
- Posizionamento: Place the unit on a flat, stable surface. Ensure there is adequate ventilation (at least 10 cm) around all sides, especially the rear, to allow heat dissipation. Avoid direct sunlight or heat sources.
- Collegamento elettrico:
- For Household Use (AC): Connect the AC power cord to the AC input port on the back of the unit, then plug the other end into a standard wall outlet.
- Per uso veicolare (DC): Connect the DC 12V car power cord to the DC input port on the back of the unit, then plug the other end into your vehicle's 12V cigarette lighter socket.
- Operazione iniziale: After connecting power, press the power button to turn on the unit. The LCD display will illuminate, showing the current internal temperature.
Image: Visual guide for connecting the AC (household) and DC (car) power cords.
6. Istruzioni per l'uso
Operating your Enventor Mini Fridge/Warmer is straightforward:
- Accensione/spegnimento: Premere il tasto Pulsante di accensione () once to turn the unit on or off.
- Select Mode (Cooling/Warming):
- Per attivare Modalità di raffreddamento, premere il tasto Pulsante di raffreddamento (often indicated by a snowflake or blue icon). The indicator light will turn blue.
- Per attivare Modalità di riscaldamento, premere il tasto Pulsante di riscaldamento (often indicated by a sun or red icon). The indicator light will turn red.
- Imposta temperatura: Utilizzare il Up E Giù arrow buttons to adjust the desired temperature. The LCD display will show the set temperature, then revert to the current internal temperature. The unit will work to reach and maintain the set temperature.
- Cooling range: Approximately -2°C (28°F) to 20°C (68°F). Note: Minimum temperature is dependent on ambient temperature (approx. 20°C below ambient).
- Warming range: Up to 60°C (140°F).
- Caricamento degli articoli: Place items inside the unit. For best results, pre-chill or pre-warm items before placing them in the unit, especially if a rapid temperature change is desired. The time required to reach the target temperature depends on the quantity and initial temperature of the contents.
Immagine: Interno view showing various fruits and vegetables stored in cooling mode.

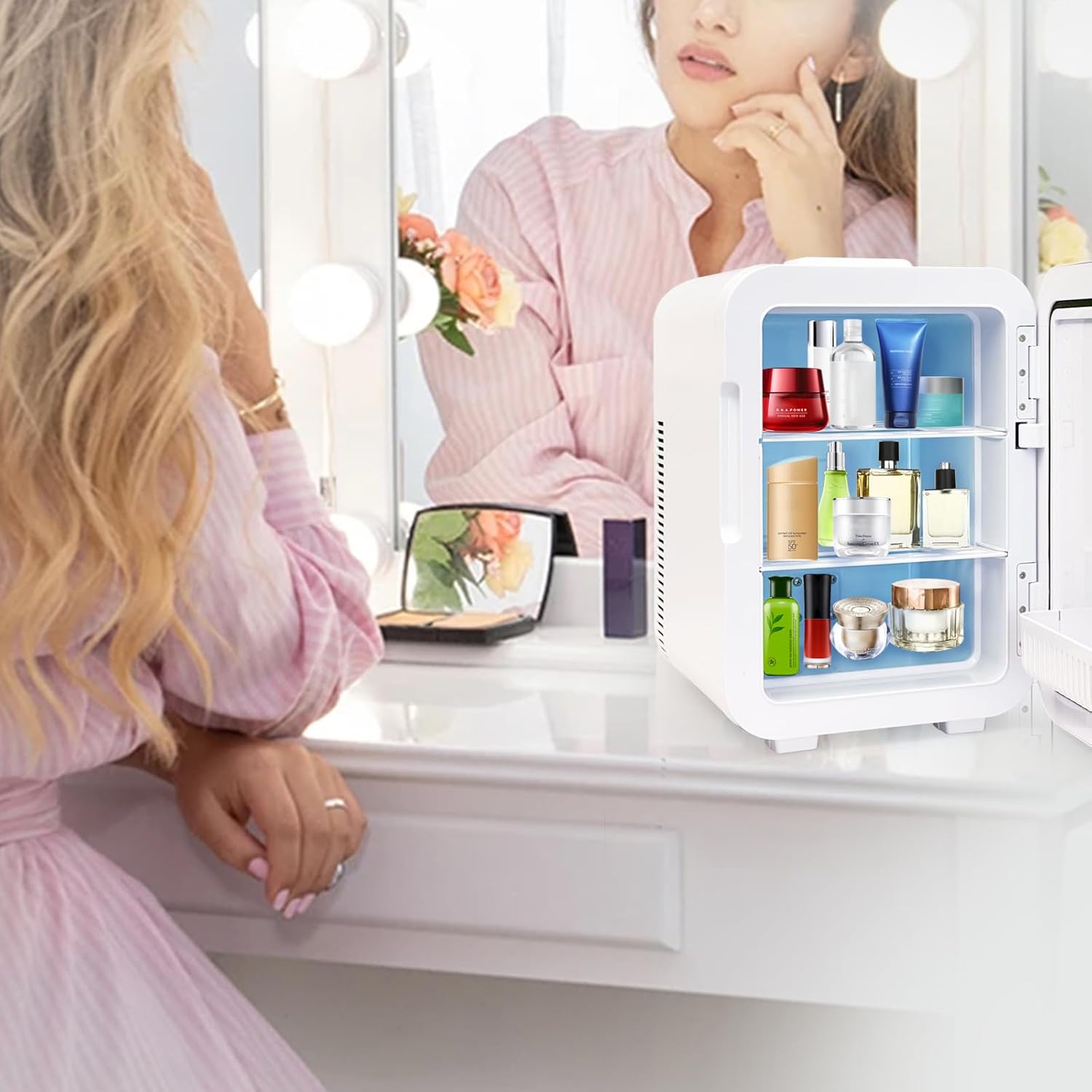

Immagine: Interno view demonstrating storage of cosmetics and skincare products.
7. Manutenzione
Regular maintenance ensures the longevity and optimal performance of your appliance:
- Pulizia degli interni: Pulisci l'interno con un panno morbido eamp panno e detergente delicato. Non utilizzare detergenti abrasivi o solventi. Assicurarsi che l'unità sia scollegata dalla presa di corrente prima di pulirla.
- Pulizia dell'esterno: Wipe the exterior with a soft, dry or slightly damp stoffa.
- Cleaning Fan Vents: Periodically check and clean the fan vents on the back of the unit to prevent dust buildup, which can affect cooling efficiency. Use a soft brush or vacuum cleaner.
- Sbrinamento: If ice accumulates inside the unit during cooling, unplug the unit and allow the ice to melt naturally. Wipe away any excess water with a cloth.
- Magazzinaggio: When not in use for extended periods, unplug the unit, clean it thoroughly, and leave the door slightly ajar to prevent odors. Store in a dry, well-ventilated area.
8. Risoluzione Dei Problemi
If you encounter issues with your Enventor Mini Fridge/Warmer, refer to the following common problems and solutions:
| Problema | Possibile causa | Soluzione |
|---|---|---|
| L'unità non si accende. | No power supply; faulty power cord; power outlet issue. | Check if the power cord is securely plugged into both the unit and the power outlet. Test the outlet with another device. Ensure the power button is pressed. |
| L'unità non raffredda/riscalda efficacemente. | Blocked ventilation; ambient temperature too high/low; door not sealed properly; too many items inside. | Ensure ventilation vents are clear. Check door seal. Reduce the number of items. Allow more time for temperature stabilization, especially if ambient temperature is extreme. |
| Rumore eccessivo proveniente dall'unità. | Ostruzione della ventola; unità non posizionata su una superficie piana. | Check fan vents for obstructions and clean if necessary. Ensure the unit is placed on a stable, level surface. Some fan noise is normal during operation. |
| Accumulo di acqua all'interno. | Condensazione; scioglimento del ghiaccio. | This is normal. Wipe away water with a cloth. Defrost the unit if ice buildup is significant. |
Se il problema persiste dopo aver provato queste soluzioni, contattare l'assistenza clienti.
9. Specifiche
Detailed specifications for the Enventor 10L Portable Mini Fridge/Warmer:
- Marca: eventor
- Modello: KB-10L
- Capacità: 10 litri
- Temperatura di raffreddamento: Down to -2°C (approx. 20°C below ambient)
- Temperatura di riscaldamento: Fino a 60°C
- Alimentazione elettrica: CA 100-240 V, CC 12 V
- Dimensioni del prodotto (P x L x A): 32 cm x 23 cm x 34 cm (12.6 pollici x 9.1 pollici x 13.4 pollici)
- Peso del prodotto: Circa 4.96 kg (10.9 libbre)
Image: External dimensions of the Enventor 10L Mini Fridge/Warmer.

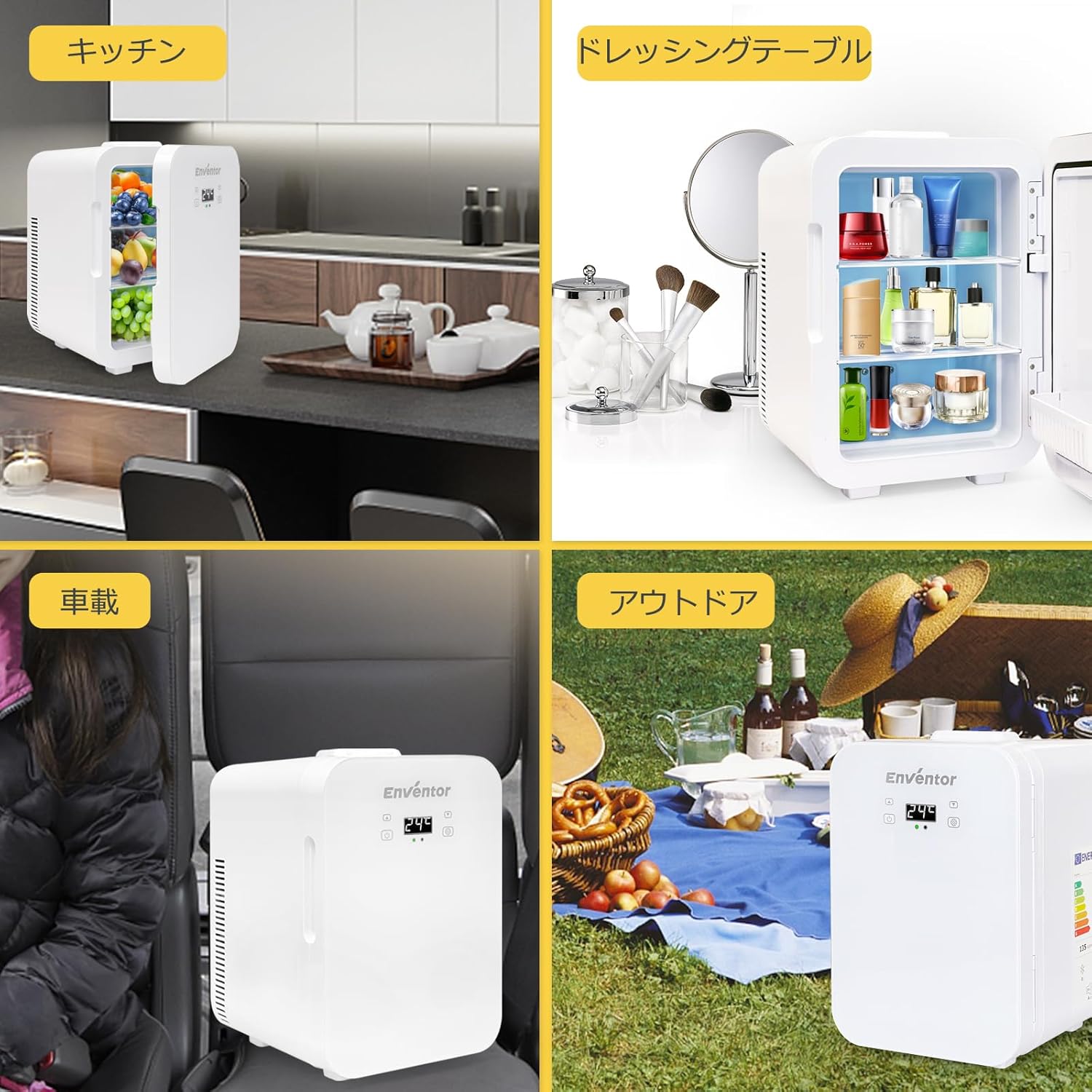

Immagine: Examples of the mini fridge in different settings: kitchen, car, and outdoor camping.
10. Garanzia e supporto
Enventor provides a 1-year quality warranty for this product. In case of initial defects or issues under normal use, we offer product exchange or refund. For warranty claims or any questions, please contact our customer support team. We are committed to ensuring your satisfaction.
For support, please refer to the contact information provided with your purchase or visit the official Enventor websito.
