User Manual: Beurer IH 16 Inhaler

1. Introduzione

Thank you for choosing the Beurer IH 16 Inhaler. This device is designed for the treatment of upper and lower respiratory tracts, suitable for both acute and chronic respiratory diseases, and for preventing colds. Its compact design and comprehensive accessories make it ideal for use by adults and children. Please read this manual carefully before first use and keep it for future reference.

2. Informazioni importanti sulla sicurezza

Always observe the following safety instructions to ensure safe operation of the device and to prevent injuries or damage:

• Consult your doctor or pharmacist before using the device, especially if you have pre-existing medical conditions or are taking medication.
• This device is not a substitute for medical consultation or treatment.
• Tenere il dispositivo fuori dalla portata dei bambini e degli animali domestici.
• Do not use the device in the presence of flammable gases or vapors.
• Only use original Beurer accessories and spare parts.
• Ensure the device is disconnected from the power supply before cleaning.
• Non immergere l'unità principale in acqua o altri liquidi.
• Regularly check the air filter and replace it as recommended to ensure optimal performance and hygiene.

3. Prodotto finitoview

3.1 Contenuto della confezione

The Beurer IH 16 Inhaler package typically includes:

• Beurer IH 16 Compressor Unit
• Nebulizer with mouthpiece
• Revolver nasale
• Maschera per adulti
• Maschera per bambini
• Tubo flessibile per aria compressa
• 5 Filtri di ricambio

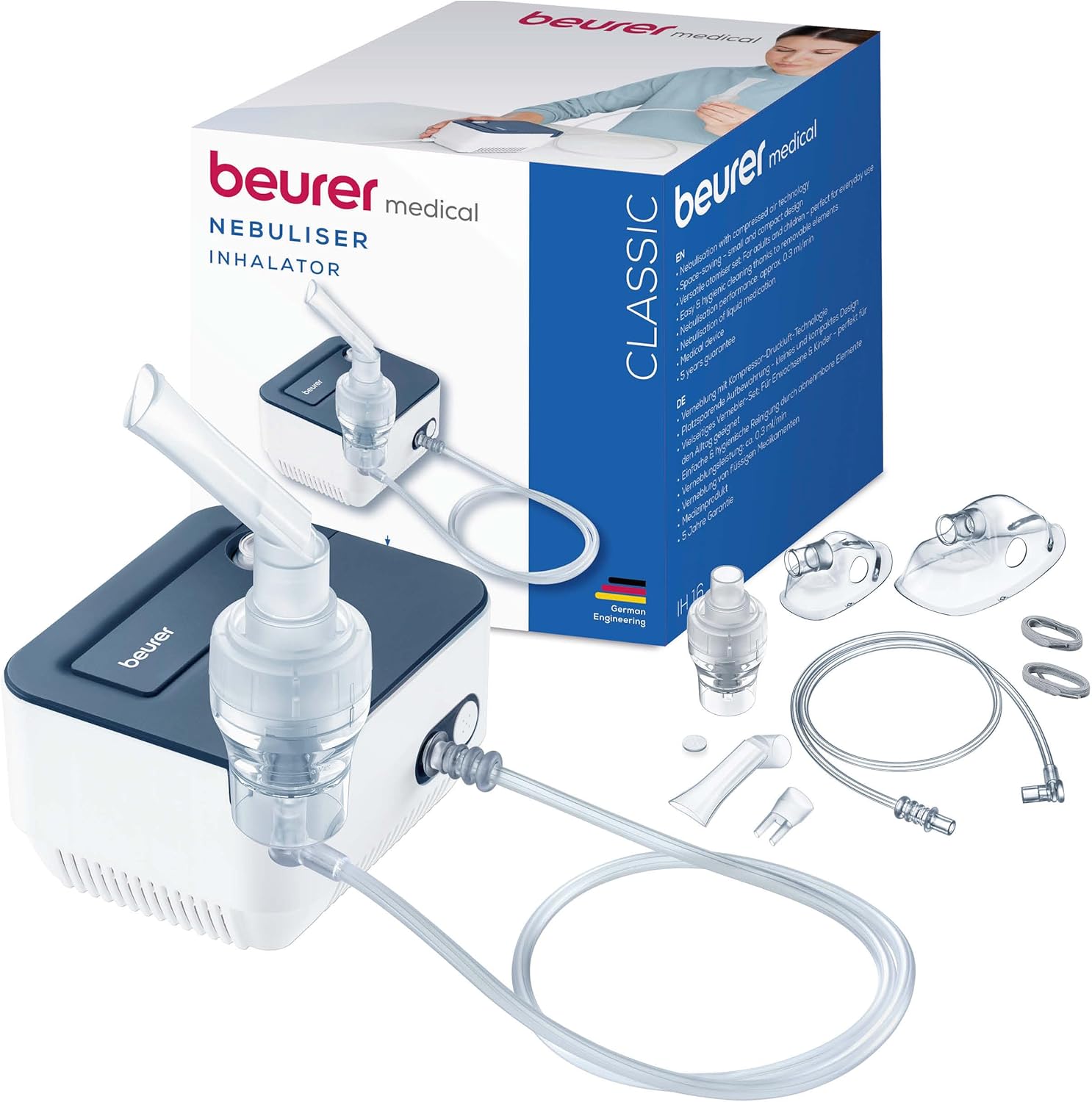

Image: The Beurer IH 16 Inhaler unit, its packaging, and all included accessories laid out.

Immagine: Un dettaglio view of the Beurer IH 16 inhaler unit and its various accessories, including masks, mouthpiece, nosepiece, and air hose.

3.2 Componenti del dispositivo

Familiarize yourself with the main parts of your inhaler:

• Unità compressore: The main power unit that generates compressed air.
• Nebulizzatore: Where the liquid medication is converted into a fine mist.
• Tubo dell'aria: Connects the compressor unit to the nebulizer.
• Mouthpiece/Nosepiece/Masks: Attachments for directing the mist to the respiratory tract.
• Filtro: Ensures clean air is used for nebulization.

4. Installazione e assemblaggio

4.1 Prima del primo utilizzo

1. Disimballare tutti i componenti e verificare che non vi siano danni.
2. Clean all accessories (nebulizer, masks, mouthpiece, nosepiece) thoroughly before first use as described in the 'Cleaning and Maintenance' section.
3. Ensure the air filter is correctly inserted into the compressor unit.

4.2 Assembling the Inhaler

1. Place the compressor unit on a stable, flat surface.
2. Connect one end of the compressed air hose to the air outlet on the compressor unit.
3. Connect the other end of the compressed air hose to the nebulizer.
4. Open the nebulizer and pour the prescribed medication into the medication chamber. Do not overfill.
5. Securely close the nebulizer.
6. Attach the desired accessory (mouthpiece, nosepiece, or mask) to the nebulizer.
7. Collegare il cavo di alimentazione a una presa elettrica idonea.

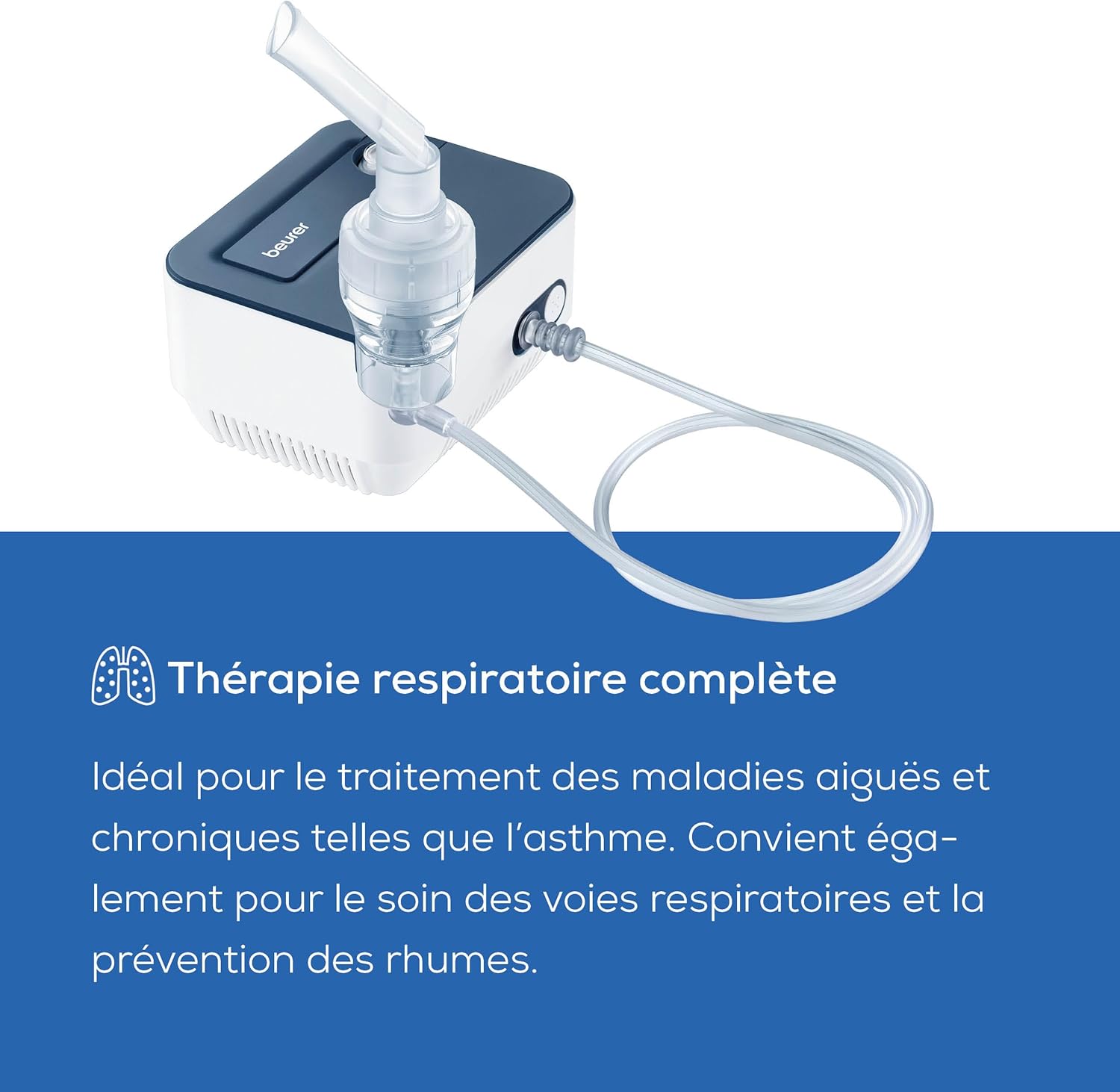

Image: The Beurer IH 16 inhaler unit connected to the nebulizer via the air hose, ready for use.

5. Operating the Beurer IH 16 Inhaler

5.1 Preparing for Inhalation

Ensure the device is correctly assembled and the medication is loaded into the nebulizer as per your doctor's instructions.

5.2 Performing Inhalation

1. Press the ON/OFF switch on the compressor unit to start the nebulization process. The device will begin to produce a fine mist.
2. If using the mouthpiece, place it between your teeth and close your lips around it. Breathe in slowly and deeply through your mouth, then exhale normally.
3. If using the nosepiece, insert it into one nostril and close the other. Breathe in slowly and deeply through your nose.
4. If using a mask, place it firmly over your nose and mouth. Breathe normally.
5. Continue the inhalation until all the medication has been nebulized, or as advised by your doctor. This typically takes 8-15 minutes depending on the medication volume.
6. Once the session is complete, press the ON/OFF switch to turn off the device.
7. Scollegare il dispositivo dall'alimentazione elettrica.

Image: A woman demonstrating the use of the Beurer IH 16 inhaler with the mouthpiece, highlighting its compact design for convenient use.

Image: A woman using the Beurer IH 16 inhaler, emphasizing its compact and powerful performance for effective respiratory therapy.

Image: A father and child using the Beurer IH 16 inhaler, demonstrating its suitability and ease of use for both adults and children.

6. Pulizia e manutenzione

Proper cleaning and maintenance are crucial for the hygienic and effective operation of your Beurer IH 16 Inhaler.

6.1 Pulizia giornaliera

1. After each use, disconnect the nebulizer, mouthpiece/nosepiece/mask, and air hose from the compressor unit.
2. Rinse the nebulizer and accessories under warm running water.
3. For thorough cleaning, disassemble the nebulizer into its individual parts.
4. Wash all parts with a mild detergent and rinse thoroughly with clean water.
5. Lasciare asciugare completamente all'aria tutti i componenti prima di rimontarli o riporli.

6.2 Disinfezione

Disinfect the nebulizer and accessories regularly (e.g., once a week or as recommended by your doctor) by boiling them in distilled water for 5 minutes or using a suitable cold disinfection solution. Follow the instructions of the disinfectant manufacturer.

6.3 Sostituzione del filtro

The air filter should be replaced approximately every 100 operating hours or at least once a year, or sooner if it becomes discolored. A clogged filter can reduce the device's performance.

1. Locate the filter cap on the compressor unit.
2. Rimuovere il vecchio filtro.
3. Insert a new filter, ensuring it fits snugly.
4. Sostituire il tappo del filtro.

Image: A woman demonstrating the easy and hygienic cleaning process of the Beurer IH 16 inhaler's removable components.

7. Risoluzione Dei Problemi

If you encounter issues with your Beurer IH 16 Inhaler, please refer to the table below for common problems and solutions.

Se il problema persiste dopo aver provato queste soluzioni, contattare l'assistenza clienti Beurer.

8. Specifiche tecniche

Here are the key technical specifications for the Beurer IH 16 Inhaler:

Image: A visual representation of the Beurer IH 16 inhaler's dimensions and a summary of its key technical specifications.

9. Garanzia e assistenza clienti

Beurer products are designed for quality and reliability. For information regarding the warranty period and conditions, please refer to the warranty card included with your product or visit the official Beurer website. Please note that accessories are considered consumable parts and may not be covered under the standard product guarantee.

If you have any questions, require technical assistance, or need to order replacement parts, please contact Beurer customer support. Contact details can typically be found on the Beurer websito o nella confezione del prodotto.
