Manuale utente del router domestico wireless ZTE G5B 5G WiFi6

Introduzione

This manual provides detailed instructions for setting up, operating, and maintaining your ZTE G5B 5G WiFi6 Wireless Home Router. Please read this manual carefully before using the device to ensure optimal performance and safety. The ZTE G5B is a high-performance router designed to provide fast and reliable internet connectivity for your home or small office, leveraging advanced 5G and WiFi6 technologies.

Contenuto della confezione

Verifica che tutti gli articoli siano presenti nel tuo pacco:

• 1x router ZTE G5B
• 1x adattatore di alimentazione
• 1x cavo Ethernet
• 1x Guida rapida

Prodotto finitoview

The ZTE G5B router features a minimalist design with essential indicators and ports for easy operation.

Figura 1: Fronte view of two ZTE G5B routers, showcasing their sleek, white design.

Indicatori del pannello frontale

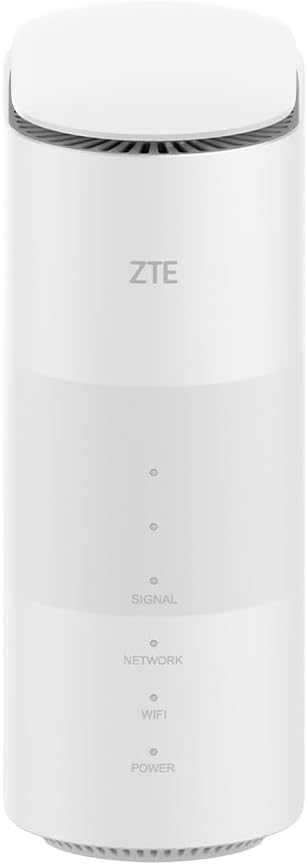

Figure 2: Close-up of the ZTE G5B front panel, highlighting the LED indicators.

• SEGNALE: Indicates the strength of the 5G/4G cellular signal. More illuminated dots mean stronger signal.
• NETWORK: Indicates the status of the cellular network connection (e.g., connected to 5G, 4G, or no service).
• WIFI: Indicates the status of the Wi-Fi network (on/off, activity).
• ENERGIA: Indicates the power status of the device (on/off).

Pannello posteriore e porte

Figura 3: Vari views of the ZTE G5B, showing all sides and port locations.

• Pulsante WPS: For quick and secure Wi-Fi connection to compatible devices.
• Porta TELEFONO: For connecting a telephone for VOIP/VOLTE services.
• Porte LAN (x2): Ethernet ports for wired connections to computers, gaming consoles, or other network devices.
• Porta di alimentazione: Per collegare l'adattatore di alimentazione in dotazione.
• Slot per scheda SIM: Located typically at the bottom or rear, for inserting a Nano SIM card.
• Pulsante di reset: A small pinhole button to restore factory default settings.

Guida all'installazione

The ZTE G5B router is designed for plug-and-play operation, requiring minimal configuration.

1. Inserire la carta SIM: Locate the Nano SIM card slot, usually at the bottom or rear of the device. Insert your activated Nano SIM card into the slot until it clicks into place. Ensure the SIM card is oriented correctly as indicated by the diagram near the slot.
2. Connetti alimentazione: Connect the provided power adapter to the router's power port and then plug the adapter into a standard wall outlet.
3. Accensione: The router will automatically power on. Wait for the indicator lights on the front panel to stabilize. The Power, Network, and WiFi indicators should illuminate, indicating successful startup and network connection.
4. Connetti dispositivi:
   • Connessione wireless: On your Wi-Fi enabled device (laptop, smartphone, tablet), search for available Wi-Fi networks. Select the network name (SSID) printed on the label at the bottom of the router. Enter the Wi-Fi password (Key) also found on the label.
   • Connessione cablata: For a stable and high-speed connection, connect an Ethernet cable from one of the LAN ports on the router to the Ethernet port on your computer or other network device.
5. Accesso a Internet: Once your device is connected, it should automatically gain internet access. You can now browse the web, stream content, and use online applications.

Istruzioni per l'uso

Collegamento di più dispositivi

The ZTE G5B router is designed to support up to 64 Wi-Fi compatible devices simultaneously. This includes a wide range of devices such as laptops, tablets, smartphones, smart TVs, gaming consoles, and various smart home devices.

Connettività 5G

The router leverages the high-speed 5G network to deliver internet speeds of up to 3.4 Gbps. For optimal 5G performance, ensure your SIM card supports 5G and that the router is placed in an area with strong 5G network coverage.

Integrated Antenna System

Equipped with 10 integrated omni-LTE/NR antennas and 2 omni-Wi-Fi antennas, the ZTE G5B is engineered to enhance signal reception and extend Wi-Fi coverage throughout your premises, minimizing dead zones.

VOIP and VOLTE Support

The router supports Voice over Internet Protocol (VOIP) and Voice over LTE (VOLTE), enabling advanced calling features and the use of multiple voice accounts, offering a modern alternative to traditional landline services over a high-speed wireless connection.

Secure Network and Parental Control

The ZTE G5B provides robust network security with WPA-PSK and WPA2-PSK encryptions to protect your network from unauthorized access. Additionally, the integrated parental control feature allows you to manage and restrict internet access for specific devices, ensuring a safe online environment for children. Configuration options for parental control are available through the router's web interfaccia di gestione.

Preferred Position Function

This function assists users in identifying the optimal placement for the router within their environment to achieve the best possible signal reception and network performance.

Modalità di rete

The router supports various operational modes, including broadband mode, wireless bridge mode, and wired bridge mode, providing flexibility to integrate into different network infrastructures.

Manutenzione

• Pulizia: Use a soft, dry cloth to clean the exterior of the router. Do not use liquid cleaners, aerosols, or harsh chemicals, as these can damage the device.
• Ventilazione: Ensure the router is placed in a well-ventilated area. Do not block the ventilation openings on the device, as proper airflow is crucial to prevent overheating and maintain performance.
• Aggiornamenti del firmware: Periodically check the official ZTE website for available firmware updates. Keeping your router's firmware up-to-date ensures you have the latest features, security patches, and performance improvements.
• Riavvio: If you experience network issues such as slow speeds or disconnections, a simple restart can often resolve the problem. Unplug the power adapter from the router, wait for approximately 10 seconds, and then plug it back in.

Risoluzione dei problemi

This section addresses common issues you might encounter with your ZTE G5B router.

Specifiche

Garanzia e supporto

Il router ZTE G5B è dotato di un Garanzia di 2 anno from the date of purchase, covering manufacturing defects and malfunctions under normal use. For technical assistance, troubleshooting, or any questions regarding your device, please contact the ZTE technical support team. Refer to the quick start guide included in your package or visit the official ZTE website for detailed contact information and support resources.
