Manuale di istruzioni del passeggino 2 in 1 Kikkaboo Lanah

1. Introduzione

Thank you for choosing the Kikkaboo Lanah 2-in-1 Stroller. This manual provides essential information for the safe assembly, operation, and maintenance of your stroller. Please read these instructions carefully before use and retain them for future reference. This stroller is designed for children from birth up to a maximum weight of 22 kg.

2. Informazioni sulla sicurezza

• Prima dell'uso, assicurarsi sempre che tutti i dispositivi di bloccaggio siano inseriti.
• Do not leave your child unattended in the stroller.
• Ensure your child is secured with the 5-point harness at all times.
• Do not overload the storage basket; maximum weight capacity is specified by the manufacturer.
• Do not use accessories or spare parts other than those approved by Kikkaboo.
• Inserire sempre i freni quando si parcheggia il passeggino.
• Prestare attenzione al rischio di fuochi aperti e altre fonti di calore intenso, come fornelli elettrici, fornelli a gas, ecc., nelle immediate vicinanze del passeggino.
• Regularly check the stroller for loose parts, damaged components, or signs of wear. Discontinue use if any damage is found.
• Questo prodotto non è adatto per la corsa o il pattinaggio.

3. Contenuto della confezione

Si prega di verificare che tutti gli articoli siano presenti e integri:

• Stroller Frame with Wheels
• 2-in-1 Seat Unit / Bassinet
• Soft Mattress (for bassinet mode)
• Tettoia solare
• Barra anteriore
• Footmuff (for both stroller and bassinet)
• Manuale di istruzioni

4. Installazione e assemblaggio

4.1 Apertura del telaio del passeggino

1. Posizionare il passeggino piegato su una superficie piana.
2. Release the folding latch, usually located on the side of the frame.
3. Lift the handle upwards until the frame locks into its open position. Listen for a click to confirm it is securely locked.

4.2 Fissaggio delle ruote

1. Insert the rear wheels into the axle until they click into place. Pull gently to ensure they are secure.
2. Insert the front wheels into their respective slots until they click. Ensure they can swivel freely.

4.3 Attaching the 2-in-1 Seat Unit / Bassinet

1. Align the connectors on the seat unit with the mounting points on the stroller frame.
2. Press down firmly until the unit clicks securely into place.
3. To convert to bassinet mode, adjust the backrest to the fully reclined position and ensure the footrest is raised. Insert the soft mattress.
4. To convert to seat mode, adjust the backrest to an upright or semi-reclined position and lower the footrest.

Image 1: The Kikkaboo Lanah 2-in-1 Stroller in its primary configuration, with smaller insets showing the bassinet and folded modes. This image illustrates the versatility of the product.

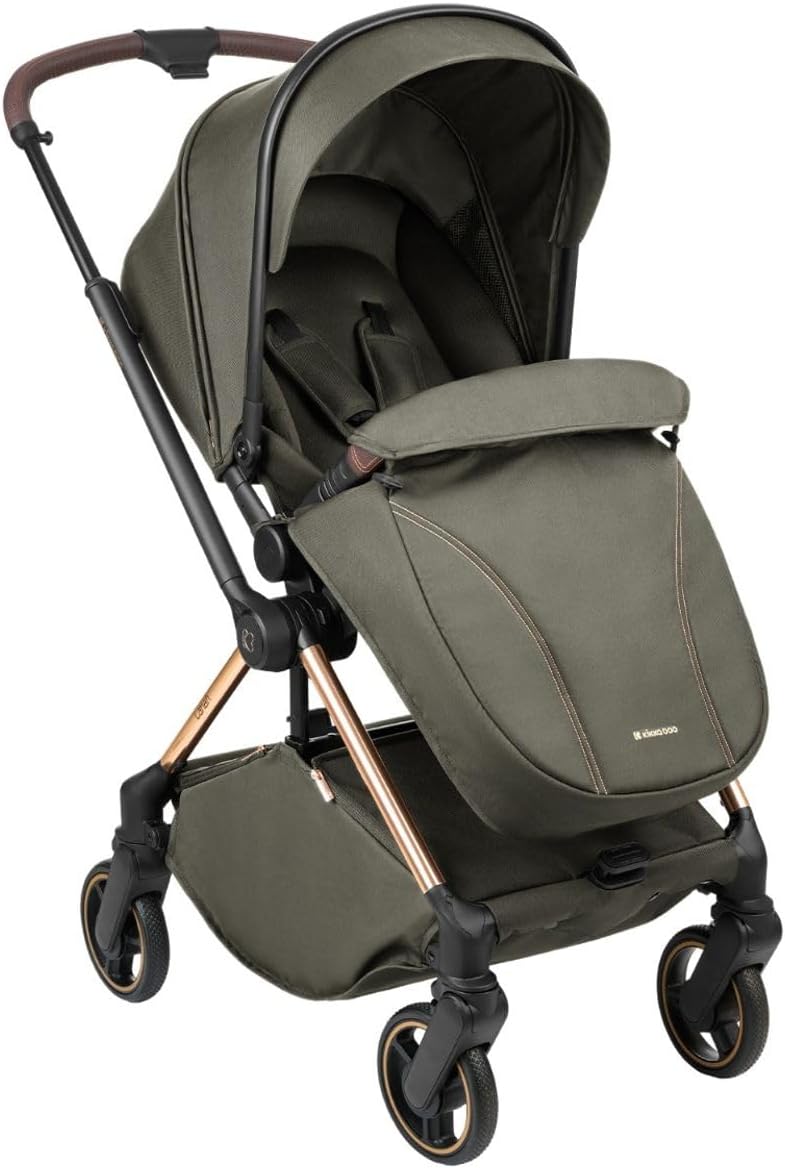

Immagine 2: Un primo piano view of the Kikkaboo Lanah stroller's seat unit, demonstrating the included footmuff for enhanced comfort and weather protection.

5. Istruzioni per l'uso

5.1 Regolazione dello schienale

The backrest can be adjusted to 3 positions. Locate the adjustment lever or strap on the back of the seat unit. Press or pull the mechanism and move the backrest to the desired position. Ensure it locks securely.

5.2 Regolazione del poggiapiedi

The footrest has 2 adjustable positions. Press the buttons on either side of the footrest and move it up or down to the desired angle. Release the buttons to lock it in place.

5.3 Reversible Push Handle

The faux leather push handle is reversible, allowing the seat unit to face forward or towards the parent. To reverse the handle, locate the release buttons on both sides of the handle. Press these buttons and swing the handle over to the opposite side until it locks into position. The handle is also 3-position height adjustable; press the central button on the handle to adjust its height.

5.4 Inserimento dei freni

The stroller features a double brake system. To engage the brakes, press down firmly on the brake pedal located near the rear wheels until both wheels are locked. To release, lift the pedal upwards.

5.5 Come assicurare il bambino con l'imbracatura a 5 punti

1. Posizionare il bambino sul seggiolino.
2. Fai passare le spalline sulle spalle del bambino e le cinghie intorno alla vita.
3. Insert the buckle tongues into the central buckle until they click.
4. Adjust the straps to ensure a snug, secure fit without being too tight. The harness includes pads for comfort.
5. Per sganciarlo, premere il pulsante sulla fibbia centrale.

5.6 Chiusura del passeggino

The stroller features a quick and simple folding system for compact storage.

1. Ensure the seat is in the forward-facing position and the backrest is fully upright.
2. Locate the folding mechanisms, typically on the handle or sides of the frame.
3. Follow the specific instructions for your model to activate the folding mechanism and collapse the stroller.
4. Secure the folding latch to keep the stroller in its compact state.

Image 3: This composite image displays the Kikkaboo Lanah stroller in multiple states: fully assembled, with the bassinet attached, and in its compact folded form, highlighting its adaptability.

6. Manutenzione

• Pulizia: The waterproof UPF50+ fabrics can be spot cleaned with a damp cloth and mild soap. Do not use harsh detergents or abrasive cleaners. For deeper cleaning, refer to the care labels on the fabric components.
• Telaio: Pulisci il telaio in alluminio con un panno morbido eamp panno. Asciugare accuratamente per prevenire la ruggine.
• Ruote: Regularly clean the EVA wheels to remove dirt and debris. Lubricate moving parts (axles, swivel mechanisms) periodically with a silicone-based lubricant to ensure smooth operation.
• Magazzinaggio: Conservare il passeggino in un luogo asciutto e ben ventilato, lontano dalla luce solare diretta e da temperature estreme.

7. Risoluzione Dei Problemi

• Il passeggino non si apre/chiude senza problemi: Check for any obstructions in the folding mechanism. Ensure all locking devices are disengaged before folding. Lubricate moving parts if necessary.
• Wheels squeak or do not swivel: Clean the wheels and axles to remove dirt. Apply a silicone-based lubricant to the swivel mechanisms and axle points.
• I freni non si innestano/disinnestano: Check for debris obstructing the brake mechanism. Ensure the brake pedal is fully pressed or lifted.
• Seat unit feels loose: Verify that the seat unit is correctly attached to the frame and has clicked securely into place.

Se riscontri problemi persistenti non trattati qui, contatta l'assistenza clienti di Kikkaboo.

8. Specifiche

9. Garanzia e supporto

Kikkaboo products are manufactured to high-quality standards. For information regarding warranty coverage, terms, and conditions, please refer to the warranty card included with your purchase or visit the official Kikkaboo website. For technical support, spare parts, or any inquiries, please contact Kikkaboo customer service through their official channels.
