Rimoody Wireless Carplay Android 13 Car Radio Instruction Manual

Introduzione

This manual provides detailed instructions for the installation, operation, and maintenance of your Rimoody Wireless Carplay Android 13 Car Radio. Please read this manual thoroughly before using the product to ensure proper functionality and safety.

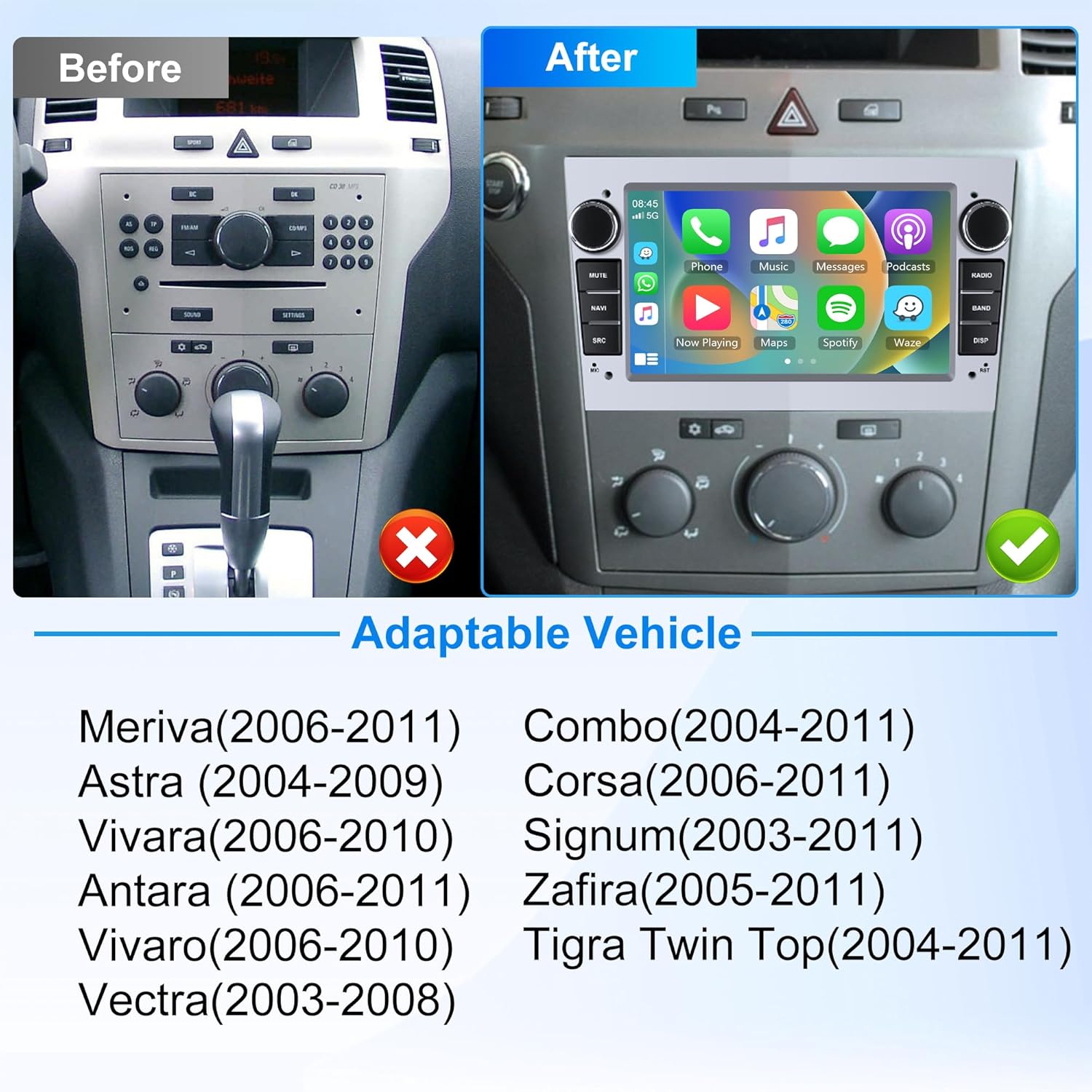

Veicoli compatibili

• Opel Astra (2004-2009)
• Opel Antara (2006-2011)
• Opel Vectra (2003-2008)
• Opel Corsa (2006-2011)
• Opel Zafira (2005-2011)
• Opel Meriva (2006-2011)
• Opel Vivaro (2006-2010)
• Opel Combo (2004-2011)
• Opel Signum (2003-2011)
• Opel Tigra TwinTop (2004-2011)

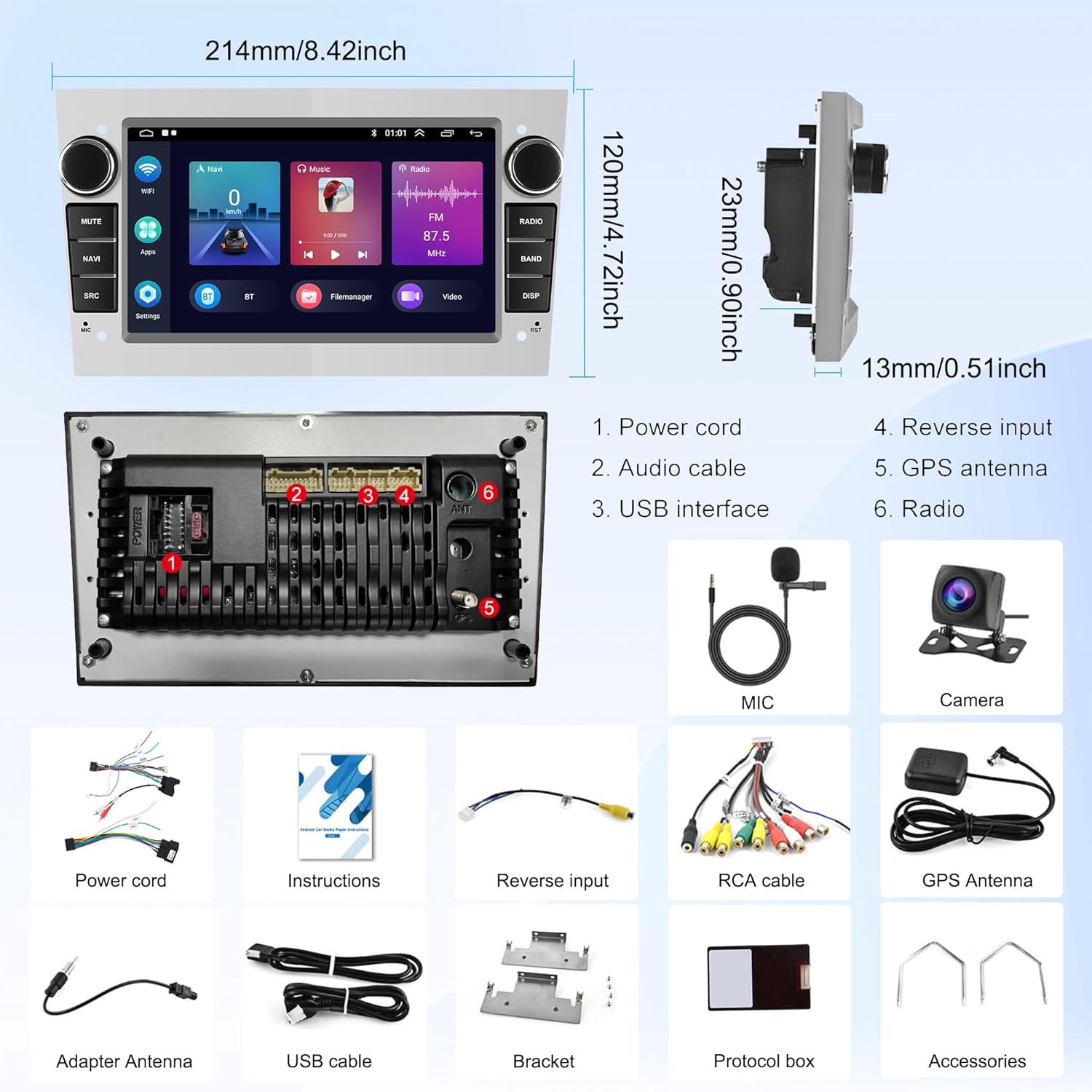

Cosa c'è nella scatola

Il pacchetto include i seguenti componenti:

• 1 x lettore Android (unità principale)
• 1 antenna GPS
• 2 x cavo di alimentazione
• 1 x Manuale utente
• 2 cavo USB
• 1 x Cavo RCA
• 1 antenna radio
• 1 x scatola CANBUS
• 1 cavo di ingresso della telecamera
• 1 x telecamera per la retromarcia

Configurazione e installazione

Follow these steps to install your new car radio:

1. Rimuovere l'unità originale: Carefully use prying tools to detach the side panels of your car's dashboard around the existing radio. Once the panels are loose, remove the screws securing the original car radio. Disconnect the power and antenna cables from the back of the old unit.
2. Collegare i cavi USB: Route the provided USB cables from the radio compartment to a convenient location, such as the glove box, for easy access.
3. Collegare posteriore View Telecamera: Collegare la parte posteriore view camera cable to the main wiring harness. Ensure the video signal cable (yellow RCA) and the power wire (red) are correctly connected. The red wire from the camera cable should connect to the reverse light power source, and the yellow RCA connects to the 'CAM IN' port on the main unit.
4. Connect Main Wiring Harness: Connect the main wiring harness, including the CANBUS box if applicable for your vehicle model, to the car's electrical system. Ensure all connections are secure.
5. Collegare l'adattatore dell'antenna: Attach the radio antenna adapter to the main unit's antenna input.
6. Collegare il microfono esterno: If using an external microphone, connect it to the designated port on the main unit and route it to an optimal position, such as near the rearview mirror or A-pillar, for clear audio.
7. Installare la nuova unità: Carefully manage all cables to ensure they do not interfere with the unit's placement. Slide the new Android car radio into the dashboard slot and secure it with screws. Reattach the dashboard panels.

Videoguida all'installazione

Video: This video demonstrates the step-by-step process of removing the old car radio and connecting the new Rimoody Android unit, including USB cables, antenna, and rear view cablaggio della telecamera.

Istruzioni per l'uso

Your Rimoody car radio offers a wide range of features for an enhanced driving experience:

Carplay wireless e Android Auto

Connect your iOS or Android smartphone wirelessly to access phone functions, navigation, music, and more directly on the car radio's display. This feature supports voice control for hands-free operation.

Navigazione GPS e WiFi

The integrated GPS module supports both online and offline maps, providing accurate navigation with voice guidance and real-time traffic information. Connect to the internet via built-in WiFi to stream online content, download apps like Waze or YouTube, and browse the web.

Radio Bluetooth e FM/RDS

Utilize Bluetooth for hands-free calling and wireless music streaming from your mobile phone. The FM/RDS radio tuner allows for manual or automatic station search, with 18 preset stations to save your favorites.

Rear Camera & Steering Wheel Controls

Il retrovisore AHD incluso view la telecamera visualizza automaticamente la parte posteriore view on the screen when reversing, enhancing safety and convenience. The unit supports steering wheel controls, allowing you to manage essential functions without taking your hands off the wheel.

Split Screen & Hi-Fi Audio

La funzione schermo diviso consente di view two applications simultaneously, such as navigation and music playback. Enjoy high-quality audio with the integrated Hi-Fi amplifier and customizable equalizer settings.

Feature Demonstration Video

Video: This video provides a demonstration of the various functionalities of the Rimoody Android car radio, including navigation, media playback, and smart connectivity features.

Impostazioni e personalizzazione

Access the 'Settings' menu to personalize your car radio experience:

• CANBus Configuration: Navigate to 'Factory Settings' (password: 1617) and select the correct CAN Box type, Car Brand (Opel), and Car Model (Astra) to ensure proper integration with your vehicle's systems.
• Temi: Customize the user interface with various themes available in the 'Themes' section.
• Aggiornamenti app: Ensure your pre-installed apps are up-to-date by connecting to WiFi and checking for updates in the App Store or relevant settings.
• Apprendimento del controllo del volante: If your steering wheel controls are not automatically recognized, you may need to manually configure them in the 'Steering Wheel Control' settings.

Specifiche

Risoluzione dei problemi

If you encounter any issues with your Rimoody car radio, please consider the following general troubleshooting steps:

• Nessun potere: Check all power connections and ensure the car's fuse for the radio is intact.
• Nessun suono: Verify speaker connections and check the volume settings on the unit and your steering wheel controls.
• Problemi con il segnale GPS: Assicurarsi che l'antenna GPS sia installata correttamente e che abbia una visuale libera verso il cielo.
• Problemi di connettività Bluetooth: Assicurati che il Bluetooth sia abilitato sia sull'autoradio che sul tuo dispositivo mobile. Prova a disaccoppiare e riaccoppiare i dispositivi.
• La telecamera posteriore non visualizza: Check the camera input cable connection and ensure the camera is receiving power (usually from the reverse light).
• Comandi al volante non funzionanti: Confirm the CANBUS box is correctly installed and configured for your specific car model in the factory settings.
• Ritardo/blocco del sistema: Prova a riavviare l'unità. Se il problema persiste, valuta la possibilità di eseguire un ripristino delle impostazioni di fabbrica (nota: questa operazione cancellerà tutti i dati e le impostazioni utente).

Per problemi persistenti, contattare l'assistenza clienti Rimoody.

Manutenzione

Per garantire la longevità e le prestazioni ottimali della tua autoradio:

• Pulizia: Utilizzare un panno morbido e asciutto per pulire lo schermo e l'esterno. Evitare detergenti abrasivi o solventi.
• Aggiornamenti software: Regularly check for and install software updates to improve performance and add new features.
• Condizioni ambientali: Evitare di esporre l'unità a temperature estreme, alla luce solare diretta per periodi prolungati o a umidità eccessiva.

Garanzia e supporto

Your Rimoody car radio comes with a standard manufacturer's warranty. Please refer to the warranty card included in your package for specific terms and conditions. For technical support, product inquiries, or warranty claims, please contact Rimoody customer service through the retailer where you purchased the product.
