surmen 60% Mechanical Gaming Keyboard with Linear Red Switch (Model: 61 White-Ice Blue) - Instruction Manual

1. Prodotto finitoview

The surmen 60% Mechanical Gaming Keyboard is a compact, wired keyboard designed for gaming and general use. It features a 61-key layout, linear red switches for a smooth and responsive typing experience, and customizable ice-blue LED backlighting. Its durable PBT keycaps are designed for longevity and shine-through illumination.

Image: The surmen 60% Mechanical Gaming Keyboard in White-Ice Blue, showcasing its compact design and backlighting.

2. Contenuto della confezione

Verifica che tutti gli articoli siano presenti nel tuo pacco:

• surmen 60% Mechanical Gaming Keyboard (61-key)
• Cavo da USB-A a USB-C
• Estrattore per tasti
• Estrattore per interruttori
• Tasti extra (per la personalizzazione)
• Manuale d'uso

Image: Contents of the surmen keyboard package, including the keyboard, USB cable, and tools.

3. Impostazione

1. Collegare la tastiera: Plug the USB-C end of the provided cable into the port on the keyboard and the USB-A end into an available USB port on your computer (PC, laptop, etc.). The keyboard is wired and requires a constant connection.
2. Regola l'angolazione della tastiera: The keyboard features adjustable feet on the underside. Flip out the feet to achieve your preferred typing angle for ergonomic comfort.
3. Installazione del driver: The keyboard is plug-and-play. Your operating system (Windows, macOS, Linux) should automatically detect and install the necessary drivers.

Image: Close-up of the keyboard's Type-C USB port and the included 150cm long cable for connection.

4. Istruzioni per l'uso

4.1 Key Layout and Function Keys

The 60% layout is compact, omitting the number pad, function row, and navigation cluster to save desk space. Many of these functions are accessible via the Fn (Function) key combined with other keys.

Image: Diagram illustrating the compact 60% layout of the keyboard with 61 keys, highlighting the absence of a number pad and dedicated function row.

4.2 Controllo della retroilluminazione

The keyboard features single ice-blue LED backlighting with various effects. Use the following key combinations to control the lighting:

• Fn+P: Toggle backlight On/Off.
• Tasto funzione + [: Ridurre la luminosità della retroilluminazione.
• Fn+]: Aumentare la luminosità della retroilluminazione.
• Fn + \: Change backlight mode/effect.
• Fn + Backspace: Ripristina le impostazioni di illuminazione predefinite.

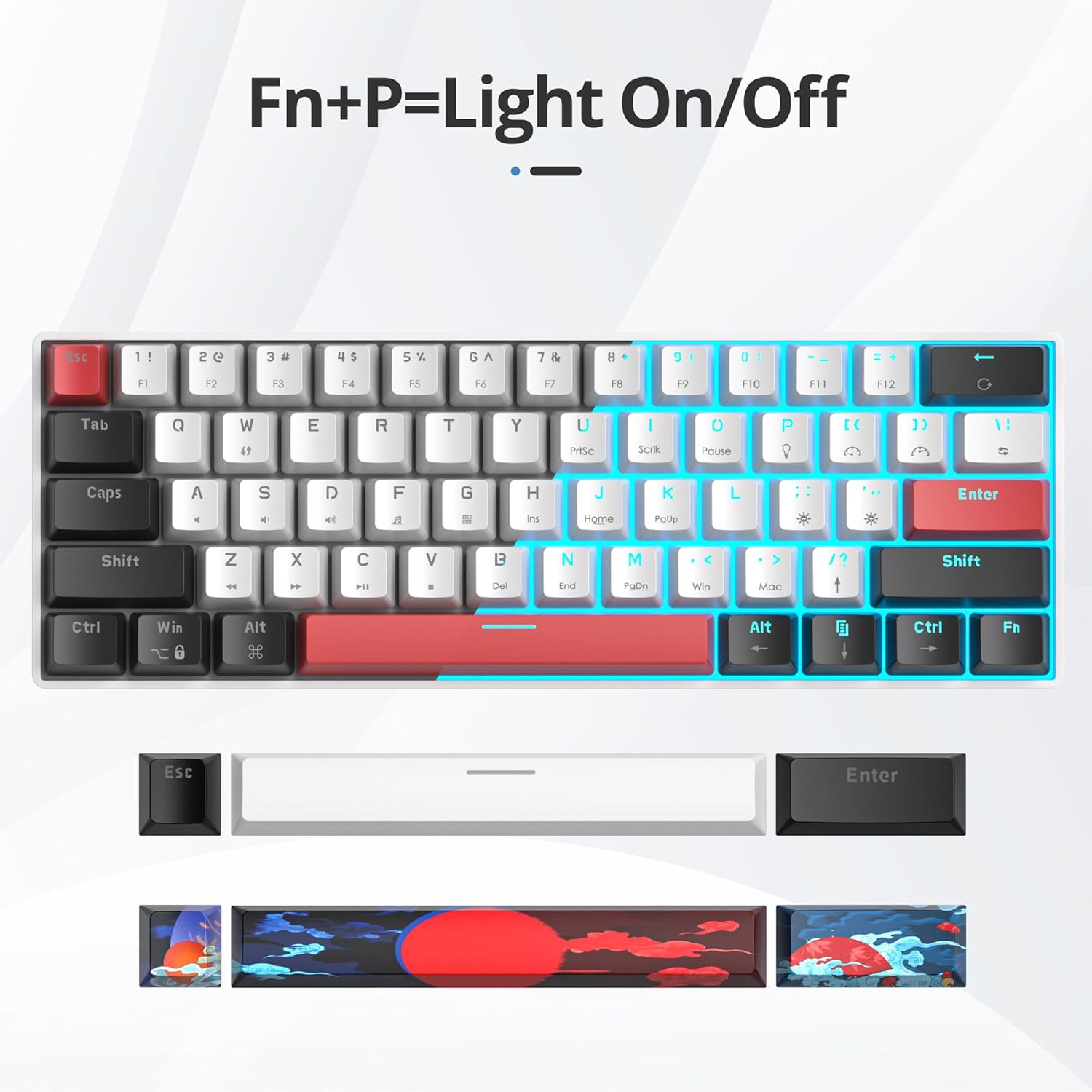

Image: Illustration showing the 'Fn + P' key combination to turn the keyboard backlight on or off.

Image: Visual guide to various backlight modes and controls, including brightness adjustment and effect changes.

4.3 Linear Red Switches

The keyboard is equipped with linear red mechanical switches. These switches are characterized by a smooth, consistent keystroke from top to bottom, without a tactile bump or audible click. This makes them ideal for fast-paced gaming and quiet typing environments.

Immagine: Primo piano view of a linear red mechanical switch, highlighting its internal structure and smooth actuation.

4.4 Full Anti-Ghosting

All 61 keys on this keyboard feature full anti-ghosting (N-key rollover). This ensures that every keystroke is registered accurately, even when multiple keys are pressed simultaneously, which is crucial for competitive gaming and fast typing.

Image: A visual representation of the keyboard's full anti-ghosting capability, showing multiple key presses being registered simultaneously.

5. Manutenzione

5.1 Pulizia

To clean your keyboard, first disconnect it from your computer. Use a can of compressed air to remove dust and debris from between the keycaps. For stubborn dirt, gently wipe the keycaps with a soft, damp stoffa. Evitare l'uso di prodotti chimici aggressivi o materiali abrasivi.

5.2 Sostituzione dei tasti e degli interruttori

The keyboard features durable PBT keycaps. If you wish to replace keycaps or switches, use the provided keycap puller and switch puller. The hot-swappable design allows for easy removal and replacement of switches without soldering.

Image: Close-up of the keyboard's shine-through PBT keycaps, illustrating their design for enhanced backlighting.

Image: The keyboard shown alongside a set of extra keycaps, demonstrating customization options.

6. Risoluzione Dei Problemi

• La tastiera non risponde:
  • Assicurarsi che il cavo USB sia collegato saldamente sia alla tastiera che al computer.
  • Prova a collegare la tastiera a una porta USB diversa del computer.
  • Riavvia il computer.
• La retroilluminazione non funziona:
  • Premere Fn + P per assicurarsi che la retroilluminazione sia accesa.
  • Regola la luminosità utilizzando Fn + [ E Fn+].
  • Try resetting the lighting settings with Fn + Backspace.
• Chiavi non registrate:
  • Clean the affected key area as described in the Maintenance section.
  • If the issue persists, the switch may need replacement. Utilize the switch puller to replace the faulty switch.

7. Specifiche

8. Garanzia e supporto

Your surmen 60% Mechanical Gaming Keyboard comes with a standard manufacturer's warranty. For detailed warranty information, please refer to the warranty card included in your package or visit the official surmen website. If you encounter any issues not covered in this manual or require further assistance, please contact surmen customer support through their official channels.
