Samsung Series 6 AI Energy Washing Machine

1. Introduzione

Grazie per l'acquistoasing the Samsung Series 6 AI Energy Washing Machine. This appliance is designed to provide efficient and effective laundry care with advanced features such as ecobubble technology, SmartThings connectivity, and AI Energy Mode for optimized energy consumption. Please read this manual carefully before using the appliance to ensure safe and proper operation.

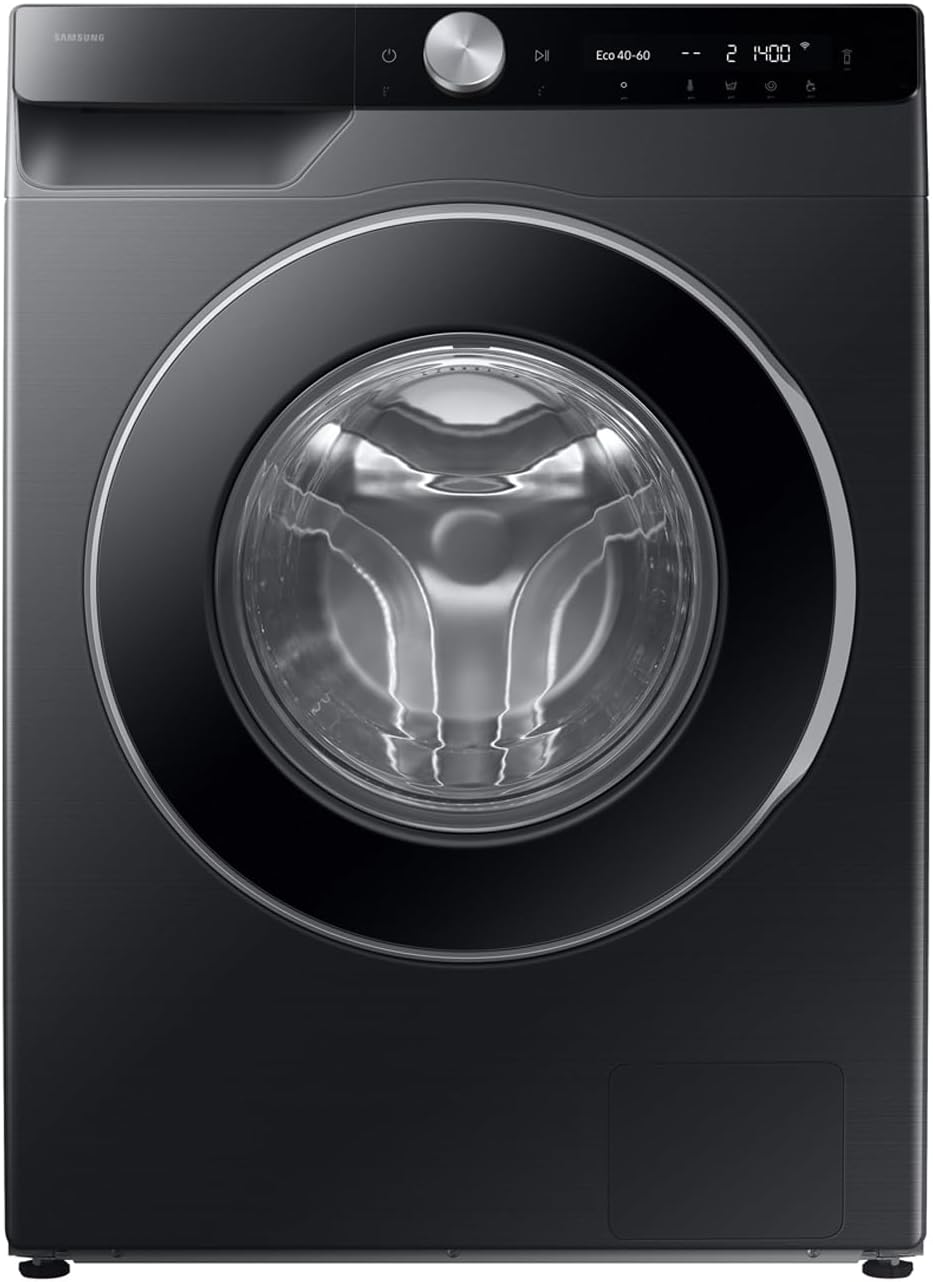

Figura 1.1: Fronte view of the Samsung Series 6 AI Energy Washing Machine.

2. Informazioni sulla sicurezza

Quando si utilizzano apparecchi elettrici, seguire sempre le precauzioni di sicurezza di base per ridurre il rischio di incendi, scosse elettriche o lesioni personali.

• Assicurarsi che l'apparecchio sia adeguatamente messo a terra.
• Non permettere ai bambini di giocare sopra o all'interno dell'apparecchio.
• Tenere i materiali infiammabili lontano dall'apparecchio.
• Non utilizzare la macchina se danneggiata o malfunzionante.
• Scollegare l'apparecchio prima di pulirlo o di effettuare qualsiasi intervento di manutenzione.
• Do not wash items that are soiled with oil, gasoline, or other flammable substances.

3. Cosa c'è nella scatola

Upon unpacking your Samsung Series 6 AI Energy Washing Machine, please verify that all components are present:

• Samsung Series 6 AI Energy Washing Machine
• Printed User Manual (short version)
• Etichetta energetica
• Scheda di garanzia
• Chiave inglese
• Tappi per bulloni
• Guida del tubo
• Cold Water Hose

4. Impostazione

Un'installazione corretta è fondamentale per garantire le prestazioni e la longevità della lavatrice.

4.1 Disimballo e Posizionamento

Carefully remove all packaging materials. Position the washing machine on a firm, level surface. Ensure there is adequate space around the appliance for ventilation and access.

4.2 Rimozione dei bulloni di trasporto

Before operation, remove the transit bolts located at the rear of the machine. These bolts secure the drum during transport and must be removed to prevent damage during operation. Use the provided spanner to loosen and remove them, then insert the bolt caps into the holes.

4.3 Collegamento alimentazione idrica

Connect the cold water hose to the cold water tap and the corresponding inlet on the back of the washing machine. Ensure all connections are tight to prevent leaks.

4.4 Collegamento del tubo di scarico

Securely place the drain hose into a standpipe or over the edge of a sink, ensuring it is properly secured with the hose guide to prevent it from dislodging during the drain cycle.

4.5 Livellamento dell'apparecchio

Adjust the leveling feet at the bottom of the machine until the appliance is perfectly level. This will minimize vibration and noise during operation.

5. Istruzioni per l'uso

Questa sezione ti guida attraverso il funzionamento quotidiano della tua lavatrice.

5.1 Pannello di controllo Sopraview

Figura 5.1: Pannello di controllo.

The control panel features a central program dial, touch-sensitive buttons for various functions, and a digital display for cycle information. Turn the dial to select a wash program, and use the touch buttons to adjust options like temperature, spin speed, and delay end.

5.2 Caricamento della biancheria

Open the washing machine door and load your laundry. Do not overload the machine; ensure there is enough space for clothes to tumble freely. The machine has a 9kg load capacity.

Figura 5.2: Caricamento del tamburo.

5.3 Aggiunta di detersivo e ammorbidente

Add the appropriate amount of detergent and fabric softener to the designated compartments in the detergent drawer. For models with Auto Dose, the machine will automatically dispense the correct amount.

Figure 5.3: Stay Clean Drawer. Targeted jets of water rinse away build-up in the drawer.

5.4 Selezione di un programma di lavaggio

Turn the program dial to select the desired wash program (e.g., Cotton, Synthetics, Delicates, Eco 40-60). The display will show the default settings for the selected program.

5.5 Funzioni speciali

• ecobubble™ Technology: This feature mixes air, water, and detergent to create bubbles that penetrate fabrics faster, allowing for effective cleaning at cooler temperatures, saving energy.

Figure 5.4: ecobubble™ Technology.
• Integrazione SmartThings: Connect your washing machine to the SmartThings app on your smartphone for remote control, cycle recommendations, energy monitoring, and diagnostic assistance.


Figure 5.5: SmartThings Connectivity. Receive helpful notifications, recommended cleaning cycles, remote engineer assistance, and monitor your energy usage.

• Modalità Energia AI: Utilize the AI Energy Mode via the SmartThings app to optimize energy consumption, potentially reducing it by up to 70%.

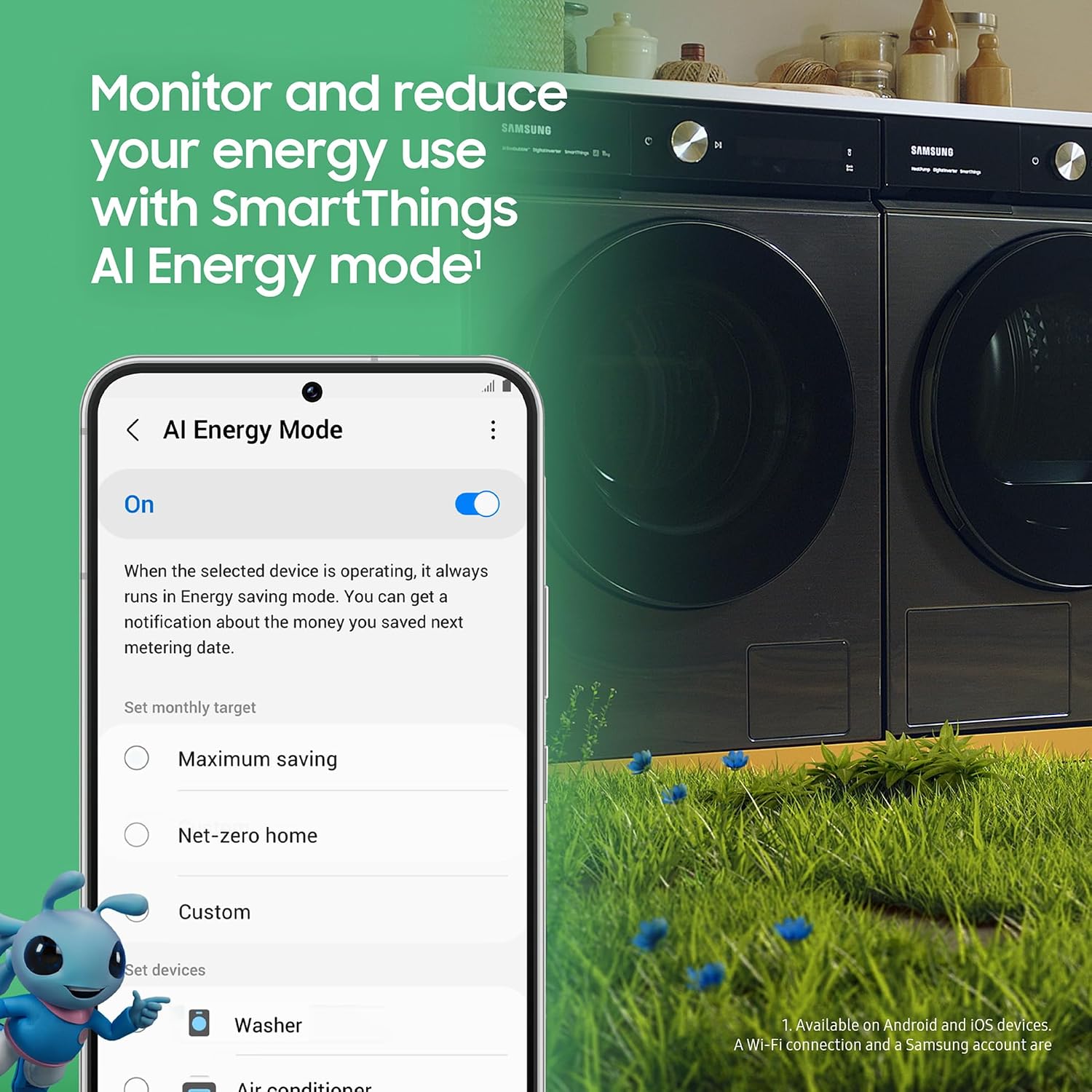

Figure 5.6: SmartThings AI Energy Mode. Monitor and reduce your energy use.

• Vapore igienico: This cycle releases steam from the bottom of the drum, providing a deep and hygienic clean that removes 99.9% of certain bacteria.

Figure 5.7: Hygiene Steam. Give clothes a deep and hygienic clean with 99.9% sanitisation.
• Super Speed Cycle: For smaller loads (up to 5kg), this cycle can complete a wash in just 39 minutes.


Figure 5.8: Super Speed Cycle. Wash in 39 minutes for loads up to 5kg.

• Motore inverter digitale: The machine is equipped with a durable and quiet Digital Inverter Motor, designed for long-lasting performance.


Figure 5.9: Digital Inverter Motor. Enjoy long-lasting peace of mind with a 20 year warranty on the Digital Inverter Motor.

5.6 Avvio di un ciclo di lavaggio

Premere il pulsante Avvio/Pausa per avviare il ciclo di lavaggio selezionato. La macchina procederà automaticamente attraverso le fasi di lavaggio, risciacquo e centrifuga.

6. Manutenzione

Una manutenzione regolare garantisce prestazioni ottimali e prolunga la durata della lavatrice.

6.1 Pulizia del cassetto del detersivo

Periodically remove the detergent drawer and rinse it under running water to remove any detergent or softener residue. This prevents blockages and ensures proper dispensing.

6.2 Pulizia del tamburo

Run a 'Drum Clean' or 'Eco Drum Clean' cycle (if available on your model) regularly to remove detergent buildup and bacteria from the drum. This helps prevent odors.

Figure 6.1: Washing machine drum interior.

6.3 Pulizia del filtro detriti

Locate the debris filter at the bottom front of the machine. Open the cover, place a shallow container underneath to catch any water, and carefully unscrew the filter. Remove any lint, coins, or foreign objects, then clean the filter under running water before reinserting it.

6.4 Pulizia esterna

Pulisci l'esterno della lavatrice con un panno morbido eamp stoffa. Evitare l'uso di detergenti o solventi abrasivi.

7. Risoluzione Dei Problemi

Questa sezione fornisce soluzioni ai problemi più comuni che potresti riscontrare.

Se il problema persiste dopo aver provato queste soluzioni, contattare l'assistenza clienti Samsung.

8. Specifiche

Detailed technical specifications for your Samsung Series 6 AI Energy Washing Machine.

Figura 8.1: Etichetta energetica. Per maggiori dettagli, visitare eprel.ec.europa.eu/qr/1947634.

Figure 8.2: Product Information Sheet. Further details available at www.samsung.com/support.

9. Garanzia e supporto

Your Samsung Series 6 AI Energy Washing Machine comes with a comprehensive warranty to ensure peace of mind.

• Appliance Warranty: 5-year warranty on parts and labour.
• Digital Inverter Motor Warranty: 20-year warranty specifically for the Digital Inverter Motor.

For technical support, service requests, or warranty claims, please visit the official Samsung support website or contact their customer service line. Details can be found on the warranty card included with your product or at www.samsung.com/support.
