SK03 LED Rechargeable Flashlight User Manual

Introduzione

Thank you for choosing the LOOP GEAR SK03 LED Rechargeable Flashlight. This compact and powerful EDC (Everyday Carry) flashlight is designed for versatility and durability, offering 10 lighting modes, a multi-function side light with color filters, and convenient USB-C recharging. This manual provides essential information for the proper setup, operation, maintenance, and troubleshooting of your SK03 flashlight to ensure optimal performance and longevity.

Image: The SK03 LED Rechargeable Flashlight, showcasing its compact design and clip.

Contenuto della confezione

Si prega di verificare che tutti gli articoli elencati di seguito siano inclusi nel pacchetto:

• 1x SK03 Flashlight
• 1x cavo di ricarica USB-C
• 4x Side Light Filters (Orange, Red, White, Blue)
• 1x cordino

Image: All components included in the SK03 Flashlight package: flashlight, USB-C cable, side light filters, and lanyard.

Caratteristiche del prodotto

• Illuminazione potente: Experience exceptional visibility with an ultra-bright 1000 lumens main light, offering a 145° floodlight angle that can illuminate up to 393 feet (120 meters).


  Image: A person walking on a path at night, illuminated by the powerful 1000 lumens beam of the SK03 flashlight.
• Versatile Side Light: Features a unique multi-function side light with a maximum brightness of 80 lumens. Customize your lighting with the included 4 color filters (Orange, Red, White, Blue). This side light can also function as a camping lamp or night light.

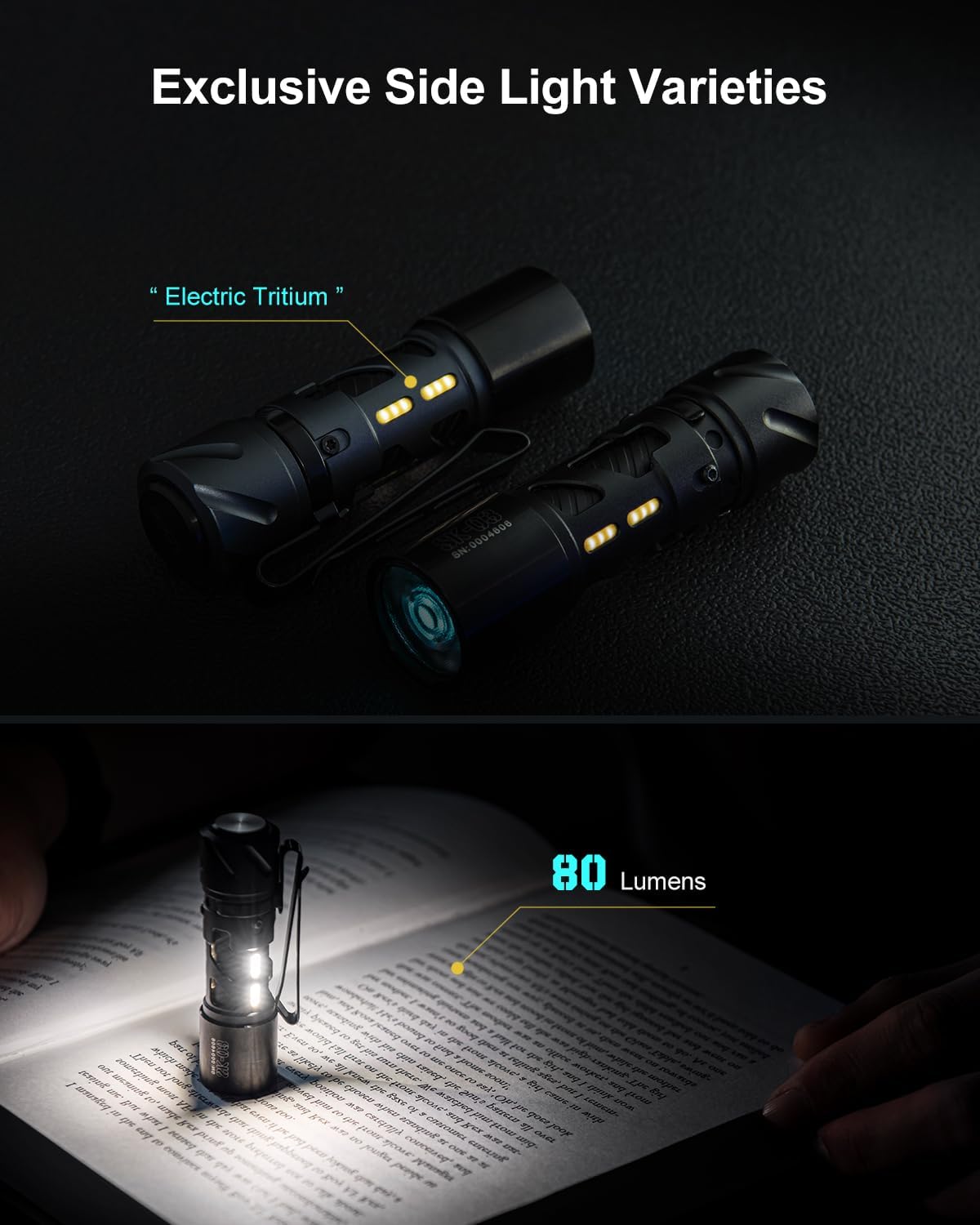

  Image: Two SK03 flashlights demonstrating the side light feature, one with a warm glow and another illuminating a book.



  Image: Four SK03 flashlights showcasing the different colored side light filters (blue, red, orange, white) in use.

• Compatto e portatile: Designed for easy portability with its ultra-small size (3.0 inches length) and lightweight construction (1.83 oz). The integrated clip-on design and included lanyard make it effortless to carry.


  Image: The SK03 flashlight held in a hand next to a folding knife, illustrating its compact size and portability.
• 10 modalità di illuminazione: Offers a comprehensive range of lighting options controlled by a single button, catering to various scene requirements from outdoor adventures to reading at home.
• USB-C ricaricabile: Conveniently recharge the flashlight via its USB-C port. The included Lithium-Ion battery provides long-lasting power, with up to 2 years of battery life in micro mode.
• Costruzione durevole: Crafted from premium quality aluminum, ensuring durability and reliability. The flashlight is also waterproof.

Impostare

Ricarica della torcia

The SK03 flashlight comes with a built-in rechargeable Lithium-Ion battery. Before first use, it is recommended to fully charge the device.

1. Individuare la porta di ricarica USB-C sulla torcia.
2. Connect the included USB-C charging cable to the flashlight's port.
3. Connect the other end of the USB-C cable to a compatible USB power source (e.g., computer USB port, wall adapter, power bank).
4. The charging indicator light will show the charging status. Refer to the flashlight's specific indicator behavior (e.g., red for charging, green for fully charged).
5. Una carica completa richiede in genere circa 1.5 ore.

Image: The SK03 flashlight connected to a USB-C charging cable, illustrating the charging process.

Istruzioni per l'uso

The SK03 flashlight features a single button for controlling all its functions. Familiarize yourself with the button presses to navigate through the various modes.

Main Light Modes (Front LED)

The main light offers 6 modes: Turbo, High, Mid, Low, Strobe, and SOS.

1. Attiva/disattiva: Single click the button to turn the main light on or off.
2. Modalità ciclo: When the main light is on, press and hold the button to cycle through Low → Mid → High. Release the button to select the desired brightness.
3. Modalità Turbo: Double-click the button from any state (on or off) to activate Turbo mode (1000 lumens). Double-click again to return to the previous mode or turn off.
4. Modalità strobo: Triple-click the button from any state to activate Strobe mode. Triple-click again to return to the previous mode or turn off.
5. Modalità SOS: Quadruple-click the button from any state to activate SOS mode. Quadruple-click again to return to the previous mode or turn off.

Side Light Modes (Side LEDs)

The side light offers 4 modes: High, Low, Beacon, and Micro.

1. Attiva/disattiva: Press and hold the button for 3 seconds from any state to turn the side light on or off.
2. Modalità ciclo: When the side light is on, single click the button to cycle through High → Low → Beacon → Micro.
3. Applying Color Filters: Gently slide one of the four included color filters over the side light section of the flashlight to change the light color.

Image: A visual representation of the 10 lighting modes available on the SK03 flashlight, including main light and side light options.

Manutenzione

Proper maintenance ensures the longevity and optimal performance of your SK03 flashlight.

• Pulizia: Pulisci il corpo della torcia con un panno morbido eamp panno. Non utilizzare detergenti abrasivi o solventi. Mantenere la lente pulita per ottenere la massima resa luminosa.
• Cura della batteria: Recharge the flashlight regularly, even if not in frequent use, to maintain battery health. Avoid fully depleting the battery for extended periods.
• Magazzinaggio: Conservare la torcia in un luogo fresco e asciutto, lontano dalla luce solare diretta e da temperature estreme.
• Resistenza all'acqua: The flashlight is waterproof, but avoid prolonged submersion or exposing it to high-pressure water jets. Ensure the USB-C port cover is securely closed when exposed to water.

Risoluzione dei problemi

If you encounter issues with your SK03 flashlight, please refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact LOOP GEAR customer support for further assistance.
