Sailnovo 35-65 Egg Incubator User Manual - Model B0CTYCXMZF

1. Prodotto finitoview

The Sailnovo 35-65 Egg Incubator is designed for efficient and reliable hatching of various poultry eggs, including chicken, duck, goose, and quail. It features automatic egg turning, precise temperature and humidity control, and a transparent lid for easy observation. This manual provides detailed instructions to ensure optimal performance and successful hatching.

Figure 1: Sailnovo 35-65 Egg Incubator and included accessories, showing dimensions of 17.5 inches (44.5 cm) by 14 inches (35.5 cm) by 6 inches (15.2 cm).

2. Istruzioni per l'installazione

Before starting your incubation journey, carefully assemble the incubator and prepare it for operation. Ensure all components are clean and correctly installed.

2.1 Disimballaggio e montaggio iniziale

1. Carefully remove all components from the packaging. The Styrofoam packaging can be used for insulation in colder environments.
2. Install the handle onto the transparent lid using the provided screws. It is recommended to use tools for a secure fit.
3. Place the base of the incubator on a stable, level surface.
4. Insert the ABC water tank components into the base as shown in the installation video.
5. Place the matting in the bottom of the incubator base.
6. Install the egg card strips onto the matting.
7. Align the motorized card shaft with the egg strips to ensure the automatic egg turning function operates correctly.
8. Connect the water-adding device (hose and bottle) to the designated port on the top cover.

2.2 Initial Power-On and Pre-Incubation

1. Connect the power cable to the incubator and a suitable power outlet. The display will light up.
2. Fill one of the water tanks in the base with water. Close the water tank cover.
3. Place the egg tray (if using for turning) or the matting (for hatching period) into the base.
4. Close the top cover of the incubator.
5. Allow the incubator to run for 2-3 hours to stabilize the temperature and humidity before placing eggs. Keep the vents closed during this pre-incubation period to help reach desired values.

Figure 2: The control panel of the Sailnovo incubator, showing the digital display for temperature and humidity, along with buttons for settings, egg candler, water adding, and egg turning test.

3. Istruzioni per l'uso

This section details how to operate your Sailnovo incubator for successful hatching.

3.1 Controllo della temperatura e dell'umidità

• Impostazione della temperatura: Press the "MENU" button once. The temperature value will blink. Use the "+" or "-" buttons to adjust to the required temperature. Press "MENU" again to save.
• Monitoraggio dell'umidità: The LED display shows the current humidity percentage. The incubator features an auxiliary humidity control system with an independent water tank and adjustable vents.
• Aggiunta di acqua: Use the water-adding button (often labeled with a water drop icon) to activate the water pump for adding water. For first-time use, press and hold for 3 seconds to add water for 10 minutes. The visualized water level helps monitor the amount of water.
• Regolazione delle prese d'aria: The lid is equipped with two ventilation volumes. Open them to reduce humidity and close them to increase humidity. During pre-incubation, close the vents. Keep them open for the last three days of incubation.

Figure 3: Features for intelligent humidity control, including the water injection hole, visual water level indicator, and adjustable vents on the incubator lid.

Figure 4: Illustration of the precise temperature control system using silicone aluminum foil heaters and double turbo large fan double circulation air duct design for uniform heat distribution.

3.2 Girauova automatico

The incubator is equipped with an automatic egg turner that rotates eggs every two hours to simulate natural hatching and improve hatch rates. This feature reduces the need for manual intervention.

• Egg Turning Test: Long press the "DOWN" button for 3 seconds to test the egg turning function.
• Disabling Turning: The auto-turn feature should be turned off for the last 3 days of incubation. Remove the egg card strips during this period to prevent chicks from being pinched.

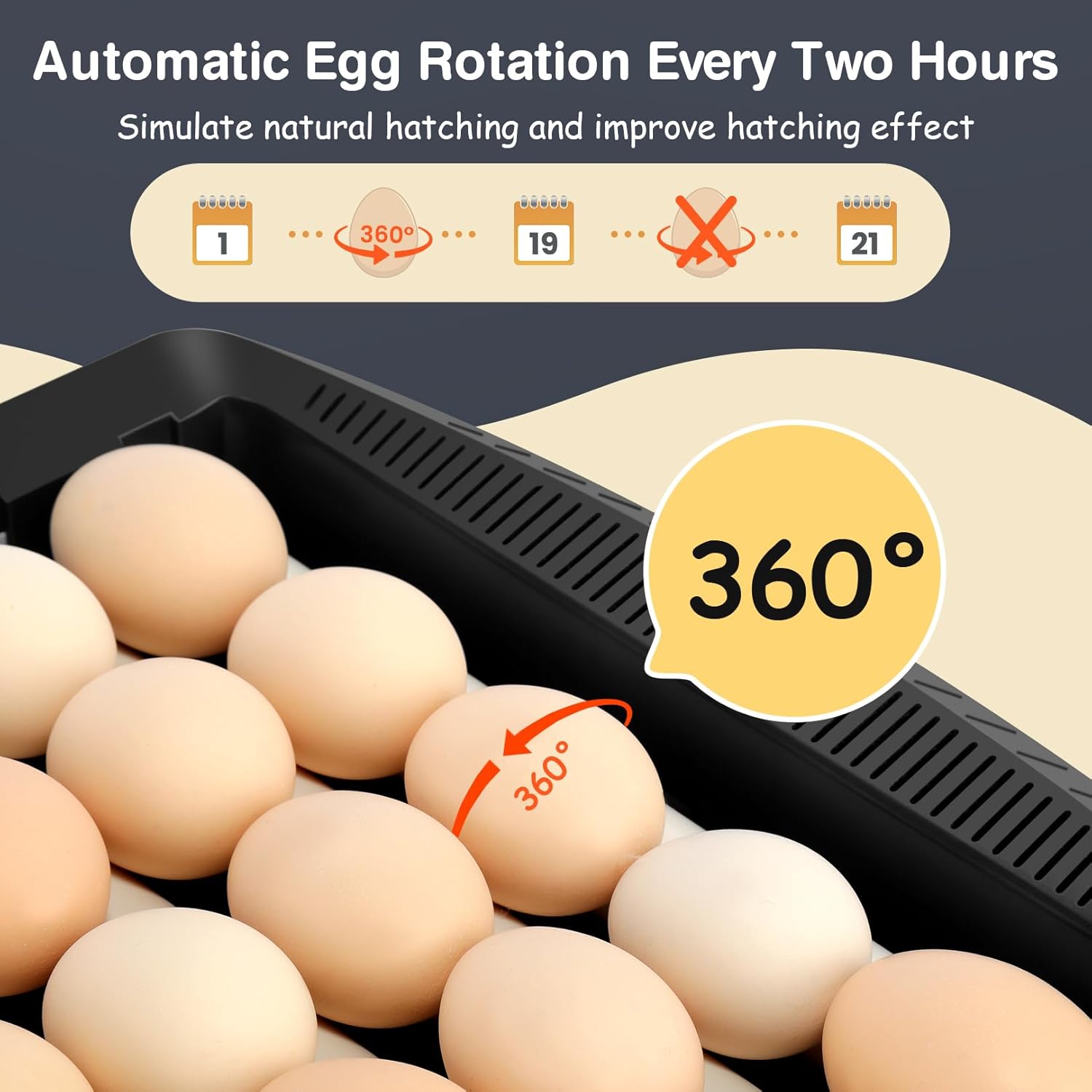

Figure 5: Visual representation of the automatic egg rotation mechanism, which turns eggs 360 degrees every two hours to mimic natural incubation.

3.3 Egg Candling

The incubator includes an egg candler function to observe the development of embryos. Press the "Egg Candler" button (often labeled with a light bulb icon) to activate the internal light for candling.

4. Manutenzione

Proper cleaning and maintenance ensure the longevity and hygiene of your incubator for future hatches.

• Cleaning after Incubation: Please clean the incubator promptly after each incubation cycle.
• Componenti lavabili: The base, egg tray, and water tank cover are washable. Rinse them thoroughly with water.
• Non-Washable Components: The top cover, which contains electronic components, is non-washable. Wipe it clean with a damp straccio.

5. Risoluzione Dei Problemi

This section addresses common issues you might encounter during incubation.

• Allarmi di temperatura/umidità: The incubator is designed to alert you if the temperature or humidity falls outside the set range. Check the water levels and ensure the vents are adjusted appropriately.
• Malfunzionamento della rotazione delle uova: If the automatic egg turner is not functioning, ensure the motorized card shaft is correctly aligned with the egg strips. Perform an "Egg Turning Test" by long-pressing the "DOWN" button for 3 seconds.
• Basso tasso di schiusa: Ensure you are following recommended temperature and humidity settings for your specific egg type. Proper egg handling, storage, and turning are crucial for successful hatches.
• acquatage Allarme: L'acqua è cortatage alarming indicator light will illuminate if water levels are too low. Add water promptly using the water-adding button.
• Ripristino di fabbrica: To reset the incubator to factory settings, long press the "+" and "-" buttons simultaneously for 3 seconds.

6. Specifiche

7. Garanzia e supporto

For warranty information, technical support, or any questions regarding your Sailnovo 35-65 Egg Incubator, please refer to the product packaging or contact Sailnovo customer service directly. Keep your purchase receipt for warranty claims.
