TOTAL TBLI2002 20V Cordless Lithium-Ion Heat Gun

1. Introduzione

Thank you for choosing the TOTAL TBLI2002 20V Cordless Lithium-Ion Heat Gun. This portable tool is designed for various applications requiring precise heat, such as welding, heat shrink tubing, and loosening rusted bolts. Its cordless design offers excellent mobility and convenience. Please read this manual carefully before operation to ensure safe and effective use of the product.

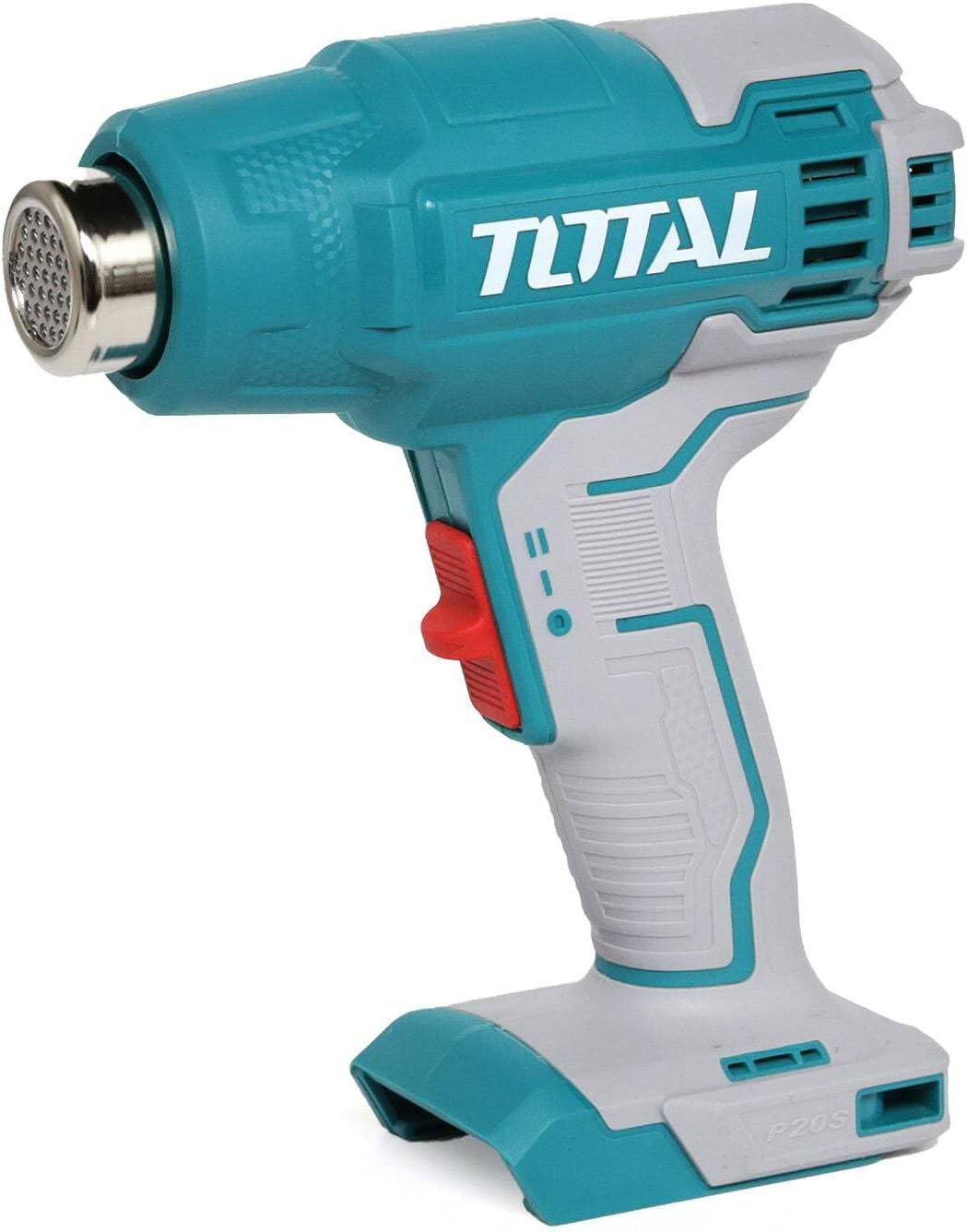

Image 1.1: The TOTAL TBLI2002 Cordless Heat Gun. This image shows the main unit of the heat gun, highlighting its ergonomic design and the nozzle at the front.

2. Istruzioni di sicurezza

Osservare sempre le precauzioni di sicurezza di base per ridurre il rischio di incendi, scosse elettriche e lesioni personali quando si utilizza questo strumento.

• Leggi tutte le istruzioni: Familiarizzare con il funzionamento e le linee guida di sicurezza dell'utensile.
• Sicurezza personale: Indossare dispositivi di protezione individuale adeguati, tra cui occhiali di sicurezza e guanti resistenti al calore.
• Area di lavoro: Ensure your work area is well-ventilated and free from flammable materials. Do not use in explosive atmospheres.
• Evita il contatto: The nozzle and accessories become extremely hot during and after use. Avoid direct contact with skin.
• Conservazione corretta: Allow the tool to cool completely before storing. Store in a dry, secure place out of reach of children.
• Sicurezza della batteria: Use only specified 20V Lithium-Ion batteries and chargers (sold separately). Do not expose batteries to heat or water.
• Protezione contro il surriscaldamento: The tool is equipped with overheat protection. If it shuts off, allow it to cool before resuming use.

3. Prodotto finitoview

Understand the main components of your TOTAL TBLI2002 heat gun.

1. Heat Nozzle: Dirige l'aria calda.
2. Prese d'aria: For cooling and air intake.
3. Interruttore di alimentazione: Controls ON/OFF and temperature/airflow settings.
4. Maniglia: Impugnatura ergonomica per un utilizzo confortevole.
5. Porta batteria: Where the 20V Lithium-Ion battery (sold separately) is inserted.

Immagine 3.1: Esploso view of the heat gun showing included nozzles and a diagram of the battery compartment. This image illustrates the main components and how accessories attach.

Image 3.2: Close-up of the product label, detailing voltage, temperature, and airflow specifications.

4. Impostazione

4.1 Installazione della batteria

The TOTAL TBLI2002 requires a 20V Lithium-Ion battery, which is sold separately. Ensure the battery is fully charged before use.

• Align the battery with the battery port at the base of the heat gun handle.
• Inserire la batteria nella porta finché non scatta in posizione.
• Per rimuoverla, premere il pulsante di rilascio della batteria (se presente) e farla scorrere fuori.

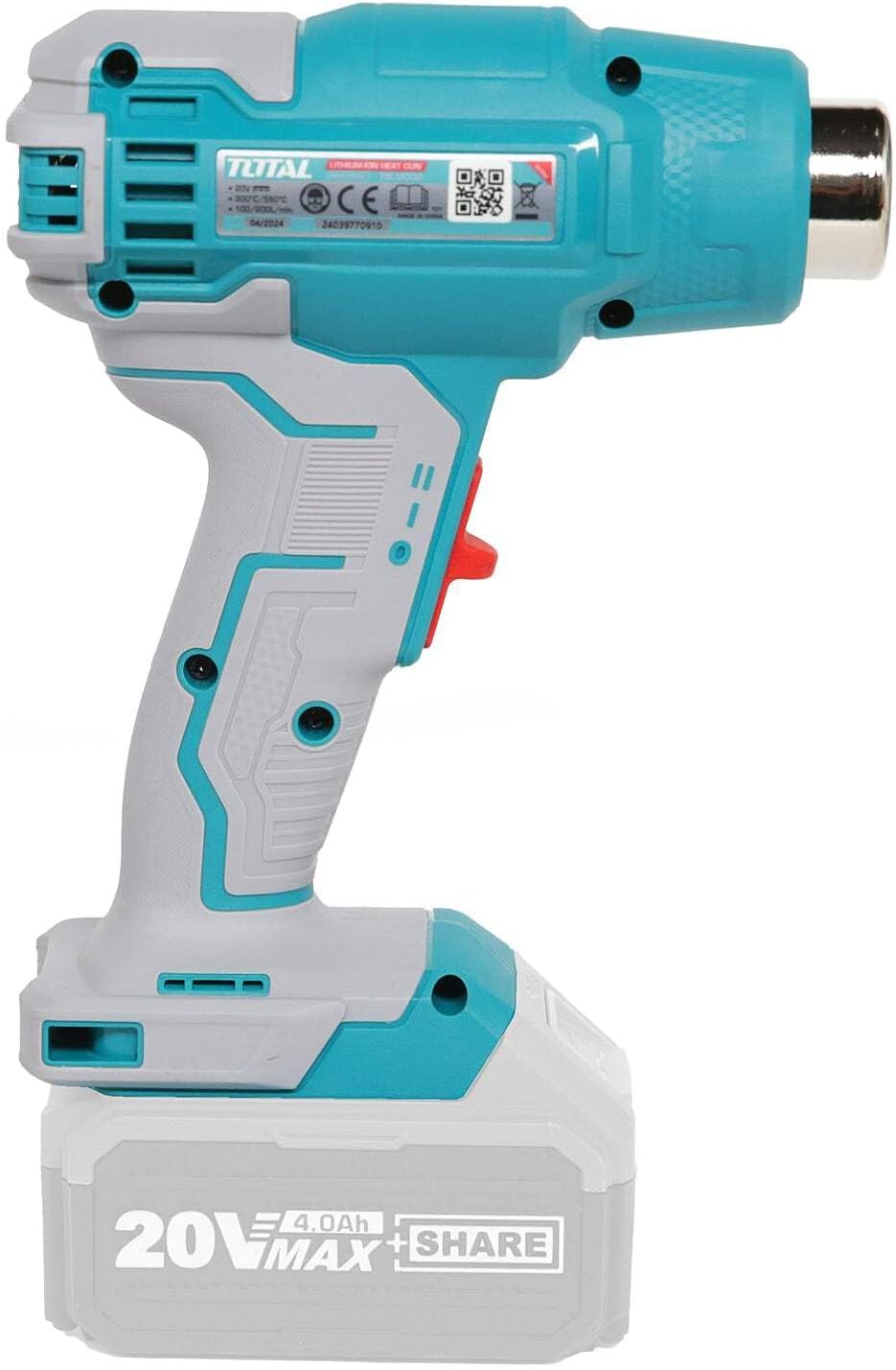

Immagine 4.1: Lato view of the heat gun with a 20V battery attached, demonstrating proper battery installation.

4.2 Attacco ugello

The heat gun comes with various nozzles for different applications:

• Reduction Nozzle: For concentrating heat on small areas.
• Ugello riflettore: For heat shrink tubing or bending plastic pipes.
• Ugello piatto: For spreading heat over a wider area, such as paint stripping.

To attach a nozzle:

• Ensure the heat gun is off and cool.
• Slide the desired nozzle onto the heat nozzle until it is firmly seated.
• To remove, pull the nozzle off once the tool has cooled.

Image 4.2: The heat gun shown with a flat nozzle attached, ready for use.

5. Istruzioni per l'uso

5.1 Powering On/Off and Temperature/Airflow Settings

The power switch typically has multiple positions to control both power and heat/airflow settings.

• SPENTO (0): The tool is off.
• Impostazione 1: Provides lower temperature (300°C) and lower airflow (100 L/min).
• Impostazione 2: Provides higher temperature (550°C) and higher airflow (200 L/min).

Operare:

1. Ensure the battery is installed and a suitable nozzle is attached.
2. Slide the power switch to the desired setting (1 or 2). The tool will begin to heat up.
3. Direct the hot air towards the workpiece, maintaining a safe distance to avoid scorching or damage.
4. After use, slide the power switch to the OFF (0) position.
5. Allow the tool to cool down completely before handling the nozzle or storing.

Immagine 5.1: In alto view of the heat gun, showing the power switch with its distinct settings.

5.2 Suggerimenti generali per l'uso

• Always test on a scrap piece of material first to determine the optimal temperature and distance.
• Keep the heat gun moving to prevent overheating a single spot.
• For delicate materials, use the lower temperature setting and maintain a greater distance.

6. Manutenzione

Una manutenzione regolare garantisce la longevità e il funzionamento sicuro della pistola termica.

• Pulizia: After each use, ensure the tool is cool. Wipe the exterior with a soft, damp stoffa. Non utilizzare prodotti chimici aggressivi o detergenti abrasivi.
• Prese d'aria pulite: Regularly check and clear the air intake and exhaust vents of any dust or debris to prevent overheating. Use a soft brush or compressed air if necessary.
• Cura degli ugelli: Clean nozzles after use, ensuring they are free of residue.
• Magazzinaggio: Store the heat gun and its accessories in a dry, clean, and secure location, away from direct sunlight and extreme temperatures. Ensure the battery is removed for long-term storage.

Immagine 6.1: anteriore view of the heat gun, highlighting the air vents that require regular cleaning.

7. Risoluzione Dei Problemi

Se riscontri problemi con la tua pistola termica, fai riferimento ai seguenti problemi comuni e alle relative soluzioni:

Se il problema persiste dopo aver provato queste soluzioni, contattare l'assistenza clienti.

8. Specifiche

9. Garanzia e supporto

For warranty information and customer support, please refer to the documentation provided with your purchase or visit the official Total Tools websito. Conservare la prova d'acquisto per eventuali reclami in garanzia.

For further assistance, please contact Total customer service.
