Total TCS1075248 600W 8Bar Direct Drive 24-Liter Air Compressor User Manual

1. Introduzione

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Total TCS1075248 600W 8Bar Direct Drive 24-Liter Air Compressor. Please read this manual thoroughly before operating the unit and keep it for future reference.

The Total TCS1075248 is a heavy-duty, direct-drive air compressor designed for industrial and workshop applications. It features a powerful 600W motor and an oil-free system, providing efficient and consistent compressed air for various pneumatic tools and equipment. Its 24-liter tank ensures a stable air supply and reduces motor cycling frequency.

2. Istruzioni di sicurezza

Per ridurre il rischio di incendi, scosse elettriche e lesioni personali durante l'utilizzo di questo prodotto, seguire sempre le precauzioni di sicurezza di base.

• Leggi il manuale: Understand all operating instructions and warnings before use.
• Protezione per occhi e orecchie: Always wear safety glasses and hearing protection when operating the compressor.
• Ventilazione adeguata: Utilizzare il compressore in un'area ben ventilata. Non ostruire le prese d'aria.
• Sicurezza elettrica: Ensure the power supply matches the compressor's requirements (220-240V, 50Hz). Use a grounded outlet and avoid using extension cords unless absolutely necessary and rated for the compressor's power.
• Sollievo dalla pressione: Never exceed the maximum operating pressure of 8 Bar. Ensure the pressure relief valve is functional.
• Manutenzione: Disconnect the power supply and release all air pressure from the tank before performing any maintenance or repairs.
• Bambini e astanti: Keep children and unauthorized persons away from the operating compressor.
• Stabilità: Ensure the compressor is on a stable, level surface to prevent tipping.

3. Contenuto della confezione

Verificare che tutti gli articoli siano presenti al momento del disimballaggio:

• 1 x Total TCS1075248 600W 8Bar Direct Drive 24-Liter Air Compressor
• Manuale dell'utente (questo documento)

4. Caratteristiche del prodotto

• Motore potente: 600W (0.8 HP) copper wire motor for reliable performance.
• Sistema di trasmissione diretta: Ensures efficient and consistent air compression.
• Funzionamento senza olio: Reduces maintenance and eliminates oil contamination in compressed air.
• Grande capacità del serbatoio: 24-liter (6.3 Gallons) air tank for extended use and reduced cycling.
• Basso livello di rumore: Funziona a circa 60 dB, adatto a vari ambienti.
• Pressione massima: Delivers up to 8 Bar (116 PSI) of operating pressure.
• Portabilità: Dotato di ruote per facilitarne lo spostamento.
• Applicazioni versatili: Ideal for car repair, carpentry, and general industrial tasks.

5. Impostazione

Follow these steps to set up your air compressor:

1. Disimballaggio: Estrarre con cautela il compressore dall'imballaggio. Verificare che non vi siano danni dovuti al trasporto.
2. Fissare ruote e piedini: If not pre-assembled, attach the wheels and rubber feet to the compressor base using the provided hardware. Ensure they are securely fastened.
3. Posizionamento: Posizionare il compressore su una superficie solida e piana, in un'area ben ventilata. Assicurarsi che vi sia spazio sufficiente attorno all'unità per la circolazione dell'aria.
4. Collegamento elettrico: Connect the power cord to a grounded 220-240V, 50Hz electrical outlet. Ensure the power switch on the compressor is in the 'OFF' position before plugging it in.
5. Initial Run (Break-in): For the first use, turn the pressure regulator to its lowest setting or open the drain valve slightly. Turn the compressor ON and allow it to run for 10-15 minutes without any air tools connected. This helps to properly seat the motor components.

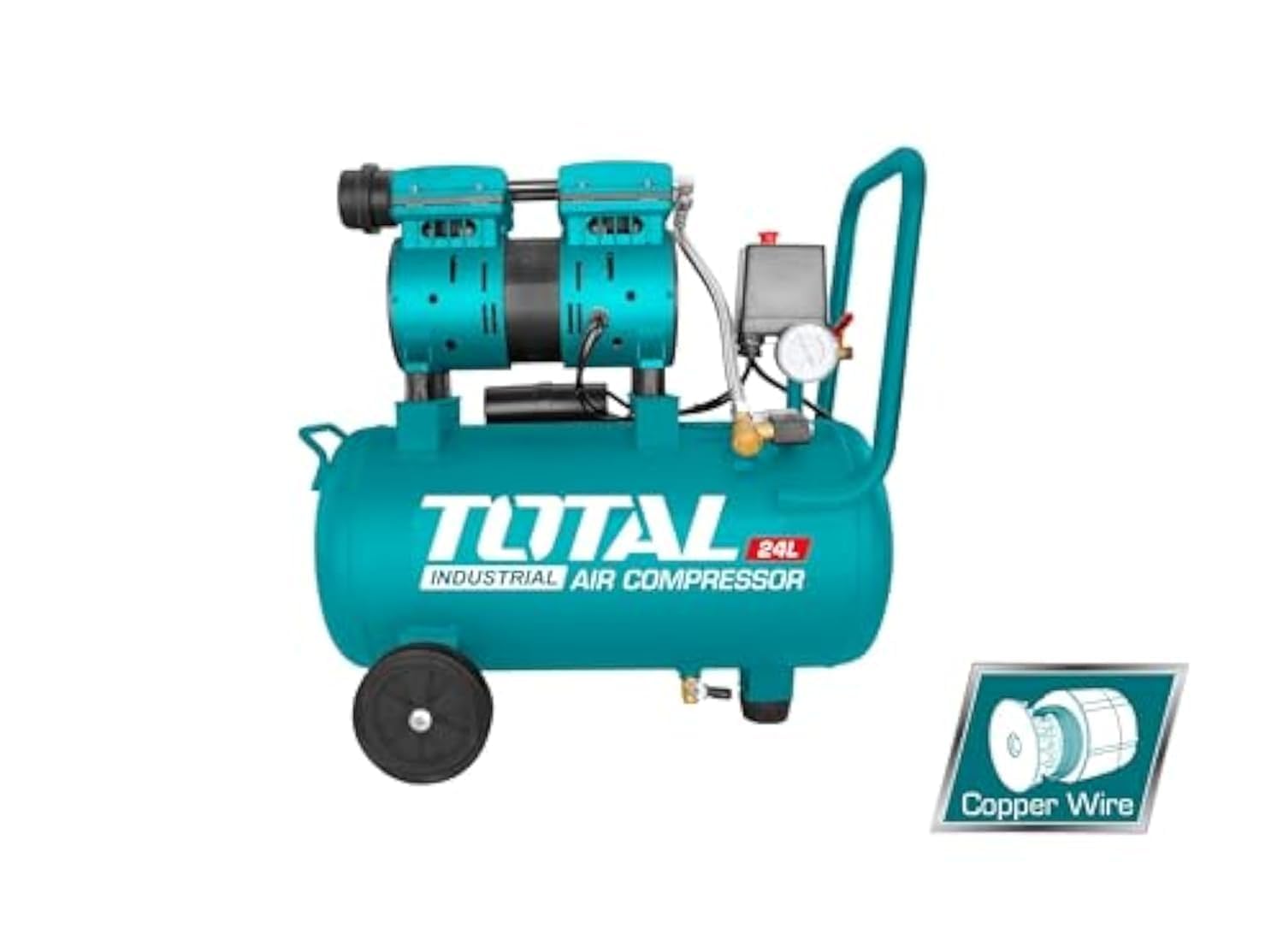

Image: Total TCS1075248 24-liter air compressor. It features a blue tank with two direct-drive motor units on top, a pressure gauge, and wheels for portability.

6. Istruzioni per l'uso

To operate your air compressor:

1. Accensione: Ensure the compressor is plugged in and the power switch is in the 'ON' position. The motor will start and build pressure in the tank.
2. Monitorare la pressione: Observe the pressure gauge. The compressor will automatically shut off once the maximum pressure (8 Bar) is reached. It will restart when the pressure drops below a preset minimum.
3. Regolare la pressione di uscita: Use the pressure regulator knob to set the desired output pressure for your air tool. The regulated pressure will be shown on the secondary gauge.
4. Collegare l'utensile pneumatico: Attach your pneumatic tool to the quick-connect coupler on the air hose.
5. Operazione: Use your air tool as required. The compressor will cycle on and off to maintain tank pressure.
6. Spegni: Al termine, portare l'interruttore di alimentazione su "OFF".
7. Depressurizzare: Disconnect the air tool and release any remaining air pressure from the tank by opening the drain valve or using an air blow gun until the gauge reads zero.

7. Manutenzione

Regular maintenance ensures optimal performance and extends the life of your compressor. Always disconnect power before maintenance.

• Scarico della condensa (giornalmente/dopo ogni utilizzo): Open the drain valve located at the bottom of the air tank to release accumulated moisture. This prevents rust and corrosion inside the tank. Close the valve tightly after draining.
• Clean Air Filter (Monthly or as Needed): Inspect the air filter for dust and debris. Clean it by tapping out loose dirt or using compressed air. Replace if heavily soiled or damaged. A clogged filter reduces efficiency.
• Inspect Hoses and Connections (Regularly): Check all air hoses, fittings, and connections for leaks, cracks, or damage. Replace any worn or damaged parts immediately.
• Pulizia generale: Keep the compressor clean and free of dust and debris. Wipe down the exterior with a damp stoffa. Non utilizzare prodotti chimici aggressivi.
• Controllare la valvola di sicurezza: Periodically pull the ring on the safety relief valve to ensure it operates freely and is not obstructed.

8. Risoluzione Dei Problemi

Per problemi comuni e relative soluzioni, fare riferimento a questa sezione:

Se riscontri problemi non elencati qui o se le soluzioni suggerite non risolvono il problema, contatta l'assistenza clienti.

9. Specifiche

10. Garanzia e supporto

This Total TCS1075248 Air Compressor is designed for durability and performance. For specific warranty details, please refer to the warranty card included with your purchase or contact Total customer service.

For technical support, spare parts, or service inquiries, please contact your local Total dealer or authorized service center. Always provide the model number (TCS1075248) when seeking support.
