GROBELL Steam Cleaner User Manual

1. Introduzione

Thank you for choosing the GROBELL Steam Cleaner. This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your new steam cleaner. Please read this manual thoroughly before first use and retain it for future reference. This powerful and versatile steam cleaner is designed for chemical-free cleaning and sanitization across various surfaces in your home and vehicle.

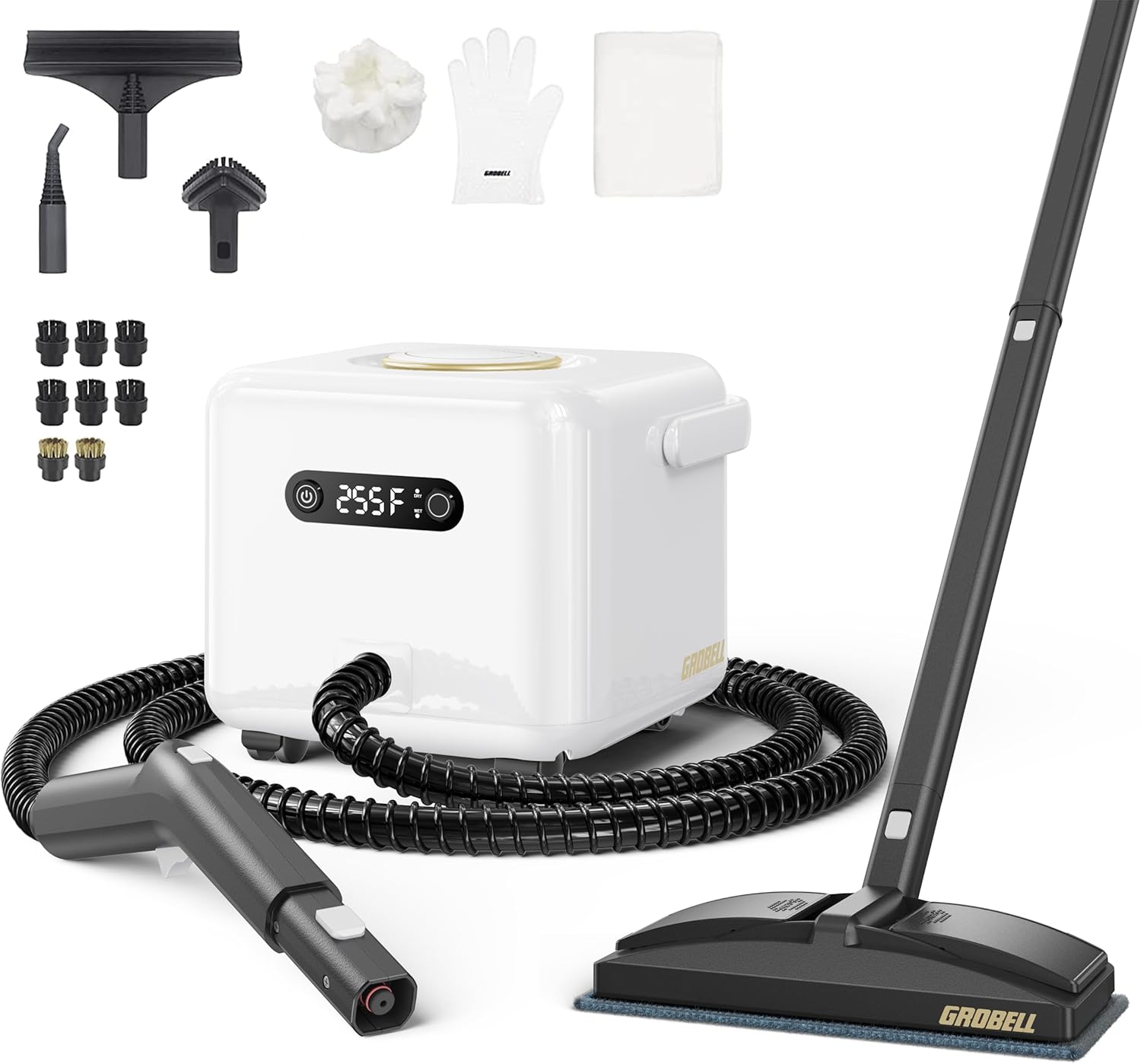

Image: The GROBELL Steam Cleaner with its main unit, mop head, handheld nozzle, and various attachments.

2. Informazioni sulla sicurezza

WARNING: Steam is extremely hot and can cause severe burns. Always exercise caution when operating the steam cleaner.

• Non dirigere il vapore verso persone, animali domestici o apparecchi elettrici.
• Ensure the appliance is unplugged before filling, emptying, or cleaning.
• Use only clean tap water. Do not add cleaning solutions, perfumes, or other chemicals to the water tank.
• Tenere fuori dalla portata dei bambini.
• Always wear the provided insulation glove when handling hot attachments or surfaces.
• The steam temperature decays over distance. For optimal cleaning and safety, maintain a close distance (less than 1 inch) for high temperature and pressure. Avoid touching surfaces immediately after steaming.

Image: Diagram illustrating how steam temperature decreases with distance from the nozzle.

3. Prodotto finitoview

3.1 Componenti e Accessori

Your GROBELL Steam Cleaner comes with a comprehensive 21-piece accessory kit to tackle various cleaning tasks.

Image: A visual guide to the various components and accessories included with the steam cleaner.

• Unità principale: The core steam generator with a 2.2-liter (0.6 Gallon) water tank and control panel.
• Tubo staccabile: Connects the main unit to the handheld nozzle, allowing for flexible movement.
• Handheld Nozzle: The primary steam output device, to which various brushes and tools attach.
• Testa del mocio: For cleaning and sanitizing floors. Use with microfiber pads.
• Tubi di prolunga: Two tubes to extend the reach of the mop head or other accessories for floor or high-surface cleaning.
• Tergivetro: Ideal for cleaning glass, mirrors, and smooth surfaces.
• Pennello triangolare: For cleaning and sanitizing various surfaces, often used with a bonnet.
• Spazzole rotonde: Includes nylon and brass brushes for scrubbing tough stains and grout.
• Cuscinetti in microfibra: Multiple pads for use with the mop head or for wiping softened stains.
• Cofano: A cloth cover for the triangular brush to collect dust and debris.
• Insulation Glove: For protection when handling hot components.
• Borsa portaoggetti: For organizing and storing accessories.

3.2 Caratteristiche principali

• Riscaldamento rapido: Pronto all'uso in circa 50 secondi.
• Serbatoio di grande capacità: 2.2 liters (0.6 Gallons) for extended cleaning sessions without frequent refills.
• Continuous Refill: Water can be refilled at any time during operation, as the tank remains cold.
• Switchable Dry & Wet Functions: Allows adjustment of steam output for different cleaning needs.
• High Temperature Sanitization: Steam reaches over 255°F for effective cleaning and sanitization.
• Design portatile e compatto: Facile da spostare e riporre.

Image: Summary of key features including fast heat-up, large tank, and adjustable steam modes.

4. Impostazione

1. Disimballare: Rimuovere con cautela tutti i componenti dall'imballaggio. Conservare l'imballaggio per lo stoccaggio o il trasporto futuro.
2. Montare il tubo: Connect the detachable hose to the main unit by aligning the connectors and twisting until secure.
3. Attach Nozzle/Mop Head: Depending on your cleaning task, attach the handheld nozzle or the mop head to the end of the hose. For floor cleaning, connect the extension tubes between the hose and the mop head.
4. Riempire il serbatoio dell'acqua: Open the water tank cap. Using a measuring cup or directly from a tap, fill the tank with clean tap water up to the MAX fill line. Do not overfill. Securely close the cap.

Image: Illustration of the steam cleaner's internal water flow and heating process.

5. Istruzioni per l'uso

1. Accensione: Plug the power cord into a grounded electrical outlet. Press the power button on the main unit. The indicator light will illuminate, and the unit will begin heating.
2. Tempo di riscaldamento: The steam cleaner will be ready for use in approximately 50 seconds. The display will show the temperature.
3. Seleziona la modalità Steam: Use the controls on the handheld nozzle or main unit to select between 'Dry' and 'Wet' steam modes. 'Dry' mode provides less moisture, while 'Wet' mode provides more steam for tougher jobs.
4. Inizia la pulizia: Direct the steam nozzle or mop head towards the surface to be cleaned. Press the steam trigger to release steam. Move the cleaner slowly over the surface.
5. Utilizzo degli allegati:
   • Testa del mocio: Attach a microfiber pad. Ideal for sealed hard floors (tile, hardwood, laminate).
   • Handheld Nozzle with Bonnet/Triangular Brush: Excellent for upholstery, mattresses, and delicate surfaces.
   • Spazzole rotonde: Use nylon brushes for general scrubbing and brass brushes for very stubborn dirt on durable surfaces like grout lines.
   • Tergivetro: Attach to the handheld nozzle for streak-free cleaning of windows and mirrors.
6. Riempimento durante il funzionamento: If the water level is low, you can safely refill the tank at any time without waiting for the unit to cool down.
7. Post-pulizia: For surfaces that may retain excess moisture (e.g., floors, car interiors), wipe with a clean, dry cloth after steaming. For initial steam bursts, direct the nozzle into a bucket to clear condensation before applying to the cleaning surface.

Image: The steam cleaner in use on a hardwood floor, demonstrating chemical-free sterilization.

Image: Demonstrating the switchable dry and wet functions on a kitchen countertop.

Immagine: Examples of the steam cleaner's versatility on various surfaces including toys, tiles, wallpaper, and car interiors.

6. Manutenzione

1. Serbatoio dell'acqua vuoto: After each use, unplug the unit and allow it to cool. Carefully open the water tank cap and drain any remaining water.
2. Accessori puliti: Wash microfiber pads and bonnets with mild detergent and air dry. Clean brushes and other attachments with water and a soft cloth.
3. Unità di pulizia: Wipe the exterior of the main unit and hose with a damp panno. Non usare detergenti abrasivi.
4. Descaling (Periodic): Se si nota una riduzione dell'erogazione di vapore o un accumulo di minerali, potrebbe essere necessario procedere alla decalcificazione. Consultare il manuale del produttore. websito o all'assistenza clienti per istruzioni specifiche sulla decalcificazione.
5. Magazzinaggio: Store the steam cleaner and all accessories in a cool, dry place, away from direct sunlight and extreme temperatures. Use the provided storage bag for accessories.

7. Risoluzione Dei Problemi

8. Specifiche

9. Garanzia e supporto

GROBELL provides a GARANZIA DI 1 ANNO for this product. We have functionally tested every device to ensure compliance with technical standards; therefore, you may find some water in the tank upon arrival. This is normal and indicates a brand new, tested device.

If you encounter any issues during subsequent use, please do not hesitate to contact our customer service team. We are committed to resolving your problem within 24 ORE.

For support, please visit the GROBELL Store on Amazon or refer to the contact information provided with your purchase.

Image: Information regarding fast heating, water refill, and 1-year warranty with 24-hour customer support.
