ninetom GPBM2022H-NBT
Android 13 Car Radio User Manual
Marca: ninetom | Modello: GPBM2022H-NBT
1. Introduzione
This manual provides comprehensive instructions for the installation, operation, and maintenance of your ninetom Android 13 Car Radio. This 12.3-inch touchscreen unit is designed to enhance your in-car entertainment and navigation experience while retaining your vehicle's original functionalities.
Compatibilità: This unit is compatible with Mercedes Benz E Class S212 W212 models from 2009 to 2014, specifically those equipped with NTG4.0, NTG4.5, and NTG4.7 systems. This includes models such as E200, E250, E300, E350, E400, E500, E550, and E63 AMG.
Image: Compatible Model List. This image displays a table detailing the compatible Mercedes Benz E Class models (S212 W212) from 2009-2014 with NTG 4.0/4.5/4.7 systems.
Image: Fitment Check. This image illustrates how to verify compatibility by checking the original car dashboard picture and the original car system (NTG 4.0, 4.5, 4.7). It explicitly states that the unit is not compatible with E Coupe cars or NTG 5.0/5.1/5.2 systems.
2. Prodotto finitoview
The ninetom Android 13 Car Radio features a 12.3-inch touchscreen display, powered by Android 13 with 8GB RAM and 256GB storage. It is designed to integrate seamlessly with your Mercedes Benz, preserving original vehicle functions.
Caratteristiche principali:
- Sistema Android 13: Equipped with the latest Android 13 operating system, offering enhanced performance and access to a wide range of applications.
- Alte prestazioni: Features 8GB RAM and 256GB internal storage for smooth operation and ampspazio per app e contenuti multimediali.
- CarPlay e Android Auto wireless: Supports both wireless and wired connections for Apple CarPlay and Android Auto, allowing integration with Siri, Maps, Music, and phone calls.
- Funzione di collegamento specchio: Enables screen mirroring from your smartphone (AirPlay for iPhone, AutoLink for Android).
- Mantiene le funzioni originali: Fully compatible with original car radio, amplifier, joystick control, reversing camera, parking radar, and other factory features.
- Connettività: Built-in WiFi, USB ports, and SIM card slot for versatile connectivity options.
- Display ad alta risoluzione: 12.3-inch touchscreen with 1920x1080 resolution for clear and vibrant visuals.
Image: ninetom Android 13 Car Radio. This image shows the 12.3-inch touchscreen unit with its Android 13 interface, featuring navigation, music, phone, weather, and car info icons. A smartphone displaying "Android 13 CarPlay" is shown connected to the unit, which is installed in a Mercedes Benz dashboard.
Image: Before and After Upgrade. This image provides a side-by-side comparison of a Mercedes Benz dashboard before and after the installation of the ninetom Android 13 touchscreen, highlighting the visual upgrade.

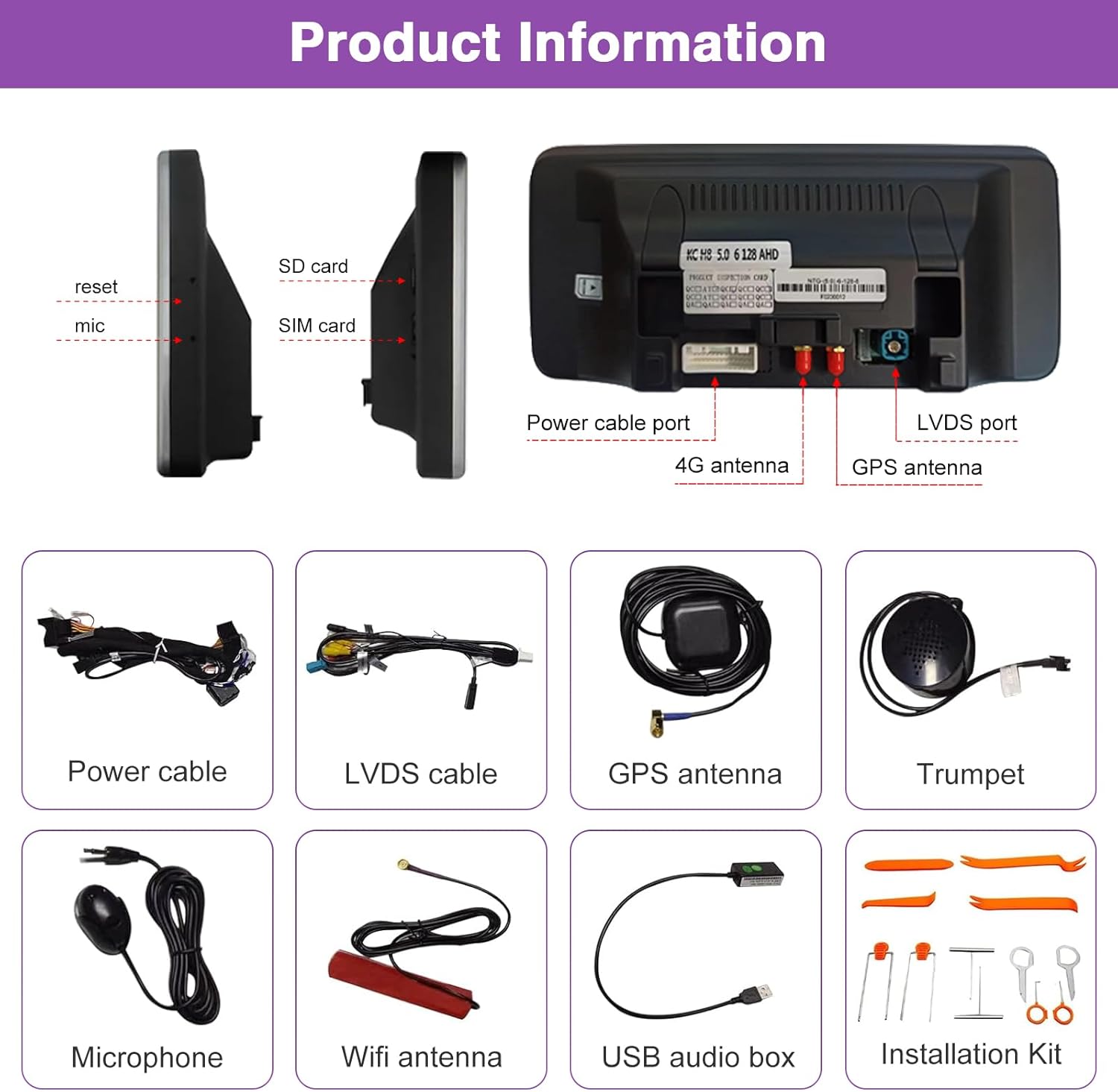

Image: Product Information. This image details the ports on the unit (reset, mic, SD card, SIM card, power cable port, 4G antenna, GPS antenna, LVDS port) and displays all included components: Power cable, LVDS cable, GPS antenna, Trumpet, Microphone, Wifi antenna, USB audio box, and Installation Kit.
3. Configurazione e installazione
Installation of the ninetom Android 13 Car Radio requires careful attention. It is recommended to seek professional assistance if you are not confident in performing the installation yourself. Ensure all functions are tested before finalizing the installation.
Linee guida generali per l'installazione:
- Preparazione: Before beginning, ensure your vehicle's ignition is off and the battery is disconnected to prevent electrical damage.
- Rimuovere l'unità originale: Carefully remove the existing car radio unit and display from your dashboard. Refer to your vehicle's service manual for specific instructions on panel removal.
- Collegare i cavi: Connect the provided power cable, LVDS cable, GPS antenna, 4G antenna, microphone, and USB audio box to the new Android unit as indicated in the product information image. Ensure all connections are secure.
- Integrazione con il sistema del veicolo: Connect the new unit to your vehicle's wiring harness. The design ensures retention of original car functions.
- Funzioni di test: Before fully reassembling the dashboard, reconnect the vehicle battery and power on the unit. Test all functionalities, including audio, navigation, CarPlay/Android Auto, Bluetooth, and camera inputs (if applicable).
- Assemblaggio finale: Once all functions are verified, carefully reassemble the dashboard and secure the new unit in place.
Important: Do not finalize the installation until you have tested every function on your vehicle and ensured they work correctly.
4. Istruzioni per l'uso
Funzionamento di base:
- Accensione/spegnimento: The unit powers on automatically with the vehicle ignition. To turn off, turn off the vehicle ignition.
- Navigazione tramite touchscreen: Navigate through the Android interface by tapping icons and swiping.
- Controllo del volume: Use the vehicle's original steering wheel controls or the unit's touchscreen volume controls.
Passaggio da un sistema all'altro:
You can easily switch between the factory car system and the Android 13 system by tapping the 'Car Info' button on the Android home screen menu.
Image: System Switching. This image demonstrates how to switch between the Android 13 System Interface and the Factory NTG4.5/4.7 System Interface by tapping the 'Car Info' button. It also shows 8 color options for the user interface.
CarPlay e Android Auto wireless:
The unit supports both wireless and wired connections for Apple CarPlay and Android Auto. The connection method depends on your phone type.
- Abilita Bluetooth e Wi-Fi: Assicurati che Bluetooth e Wi-Fi siano abilitati sul tuo smartphone.
- Accoppia dispositivo: On the car radio, go to the Bluetooth settings and pair your phone.
- Avvia CarPlay/Android Auto: Once paired, the CarPlay or Android Auto interface should automatically launch or be accessible from the main menu.
With CarPlay/Android Auto, you can use Siri/Google Assistant, access Maps (Waze, Sygic, etc.), play music from iTunes or other apps, and manage phone calls and messages.
Image: CarPlay, Android Auto, Mirror Link. This image shows the unit displaying Apple CarPlay and Android Auto interfaces, along with a demonstration of the MirrorLink function (AirPlay for iPhone and AutoLink for Android).
Multimedia and Connectivity:
- Musica Bluetooth: Connect your phone via Bluetooth to stream music.
- Porte USB: Use the USB ports for media playback or connecting other devices.
- Slot per scheda SIM: Insert a SIM card for mobile data connectivity.
- Navigazione GPS: The unit supports GPS navigation. You can download different navigation apps and link them to your homescreen.
- Supporto per fotocamera: Supports factory original reverse camera, parking radar, aftermarket reverse camera, and 360 camera. Also supports front view telecamera DVR (ingresso CVBS).
Image: Connectivity and Camera Support. This image highlights features such as WiFi/USB/Bluetooth support, global weather display, GPS navigation, and compatibility with factory, aftermarket, and 360 cameras.
Image: Original Car Settings Support. This image shows that the unit supports original car audio, CD radio, steering wheel control, original command knob, original touch mouse, and original joystick.
Image: Applications. This image displays a grid of various applications available on the Android system, including navigation, music, communication, and entertainment apps.
Video: 12.3 Inch Touchscreen for Mercedes Benz. This video demonstrates the user interface of the ninetom Android 13 car radio, showcasing various features, app navigation, and system information.
5. Manutenzione
To ensure the longevity and optimal performance of your ninetom Android 13 Car Radio, follow these maintenance guidelines:
- Pulizia dello schermo: Utilizzare un panno morbido e privo di lanugine per pulire delicatamente il touchscreen. Per le macchie ostinate, strofinare leggermenteampPulisci il panno con un detergente per schermi. Evita materiali abrasivi o prodotti chimici aggressivi.
- Aggiornamenti software: Controlla periodicamente la presenza di aggiornamenti software per assicurarti di disporre delle funzionalità e delle patch di sicurezza più recenti. Gli aggiornamenti sono in genere disponibili nelle impostazioni di sistema o tramite il sito web del produttore. websito.
- Evitare temperature estreme: Do not expose the unit to extreme temperatures, as this can affect its performance and lifespan.
- Proteggere dai liquidi: Tenere i liquidi lontani dall'unità per evitare danni ai componenti interni.
6. Risoluzione Dei Problemi
If you encounter issues with your ninetom Android 13 Car Radio, refer to the following common troubleshooting steps:
| Problema | Possibile soluzione |
|---|---|
| L'unità non si accende. | Check power connections and vehicle fuse. Ensure the vehicle ignition is on. |
| Nessun suono dagli altoparlanti. | Verify speaker connections. Check volume levels on both the unit and the vehicle's original audio system. Ensure the amplifier è funzionante. |
| CarPlay/Android Auto non si connette. | Ensure Bluetooth and Wi-Fi are enabled on your phone. Try forgetting the device on both the phone and the unit, then re-pair. Check for software updates on both devices. |
| Il touchscreen non risponde. | Restart the unit (turn vehicle ignition off and on). If issue persists, perform a factory reset (refer to system settings). |
| Segnale GPS debole o impreciso. | Assicurarsi che l'antenna GPS sia installata correttamente e abbia una visuale libera view of the sky. Try updating navigation app maps. |
| Le funzioni originali dell'auto non funzionano. | Verify all LVDS and CANBUS connections are secure. Ensure the unit is correctly configured to retain original functions. |
If these steps do not resolve the issue, please contact ninetom customer support for further assistance.
7. Specifiche
| Caratteristica | Dettaglio |
|---|---|
| Marca | nove tom |
| Numero di modello | GPBM2022H-NBT |
| Sistema operativo | Androide 13 |
| Memoria RAM | 8 GB |
| Magazzinaggio | 256 GB |
| Dimensioni dello schermo | 12.3 pollici |
| Risoluzione | 1920x1080 |
| Metodo di controllo | Touchscreen, Voice Command |
| Connettività | Bluetooth, Wi-Fi, USB, SIM Card |
| Car Play/Android Auto | Supporto wireless e cablato |
| Peso dell'articolo | 5.83 libbre |
| Dimensioni del pacco | 15.43 x 7.28 x 7.24 pollici |
Image: Resolution Comparison. This image compares the unit's 1920x720 resolution (approximately 1,368,000 pixels) with a lower 1280x480 resolution (approximately 628,800 pixels), highlighting the superior clarity and brightness of the ninetom unit.
Image: Screen Size Comparison. This image visually compares a 10.25-inch screen with the 12.3-inch screen, showing the larger dimensions of the product.
8. Garanzia e supporto
Your ninetom Android 13 Car Radio comes with a Garanzia di 1 annoQuesta garanzia copre i difetti di fabbricazione e assicura la qualità del prodotto.
Assistenza all'installazione: The installation process does not damage your original car wiring and will not affect your factory car warranty. If you require assistance with installation, it is recommended to seek help from a professional.
Assistenza clienti: For any issues, questions, or technical support, please feel free to reach out to ninetom customer service. Our team is available to provide knowledgeable assistance.
