MASKO Folding Platform Cart (300kg Capacity) Instruction Manual

Introduzione

The MASKO Folding Platform Cart is designed for efficient and safe transport of heavy loads. It features a compact, foldable design, a robust steel frame, and easy maneuverability. This manual provides essential information for the proper assembly, operation, maintenance, and troubleshooting of your platform cart.

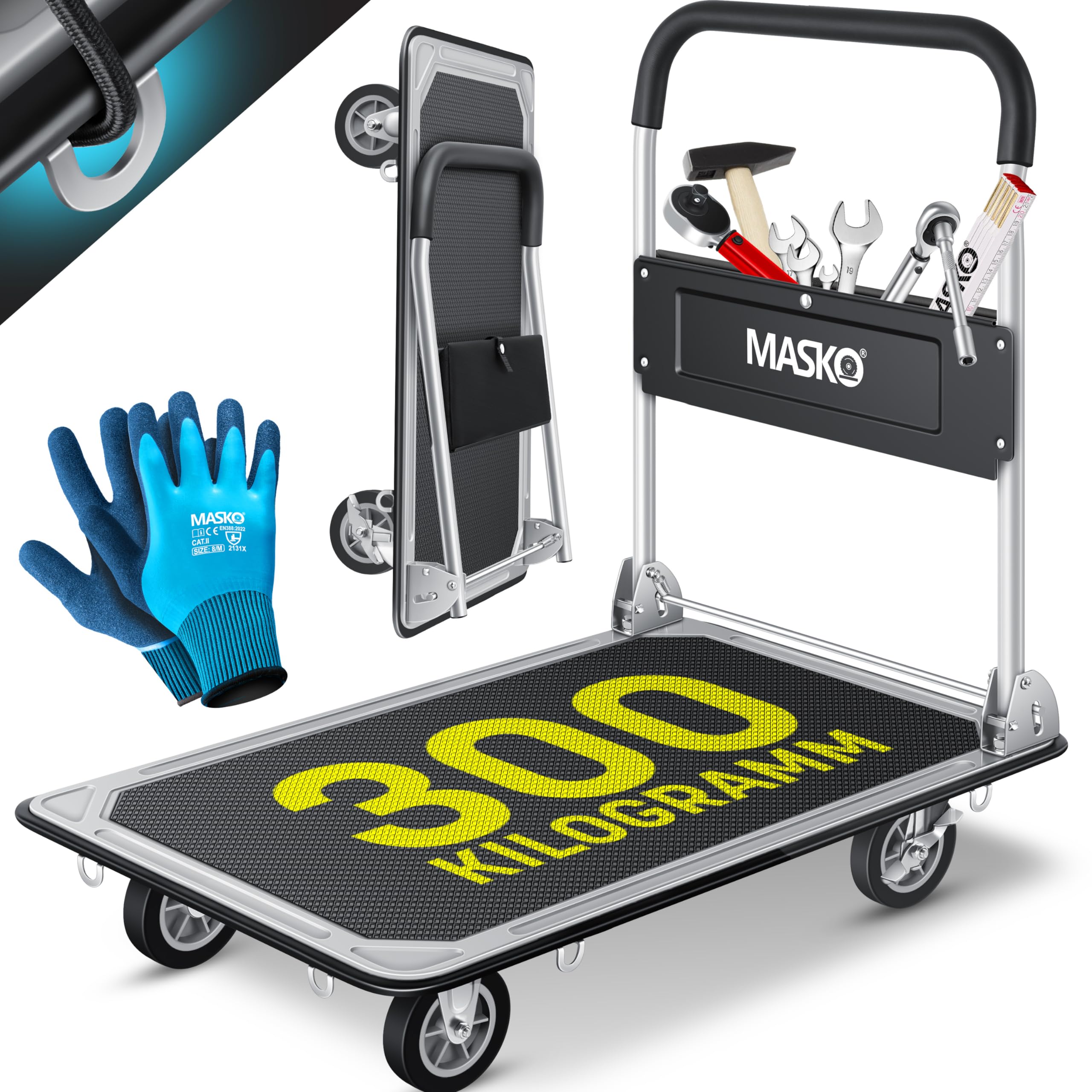

Figure 1: MASKO Folding Platform Cart (300kg Capacity)

Informazioni sulla sicurezza

• Always ensure the cart is fully unfolded and stable before loading.
• Non superare la capacità di carico massima di 300 kg.
• Distribute the load evenly on the platform to maintain balance.
• Use the parking brake when loading, unloading, or when the cart is stationary on an incline.
• Secure loads using the integrated safety eyelets and appropriate straps to prevent shifting during transport.
• Wear the provided work gloves for improved grip and hand protection.
• Be aware of your surroundings and potential obstacles when maneuvering the cart.
• Tenere mani e piedi lontani dalle parti in movimento, soprattutto durante le operazioni di apertura e chiusura.

Impostare

1. Disimballaggio

Carefully remove all components from the packaging. Verify that all parts listed in the packing list are present and undamaged. Dispose of packaging materials responsibly.

2. Attaching Wheels (if not pre-assembled)

If the wheels are not pre-assembled, attach them according to the diagram. Ensure all bolts are securely tightened. The 360-degree swivel wheels with brakes should typically be installed on the handle side for optimal maneuverability.

3. Unfolding the Cart

1. Posizionare il carrello piegato su una superficie piana e stabile.
2. Grasp the handle and lift it upwards until it locks into its upright position.
3. Gently push down on the platform until it fully extends and locks into place. Ensure all locking mechanisms are engaged before use.

Figura 2: Meccanismo di piegatura e dispiegamento
This image illustrates the cart's convenient folding mechanism. It shows how the platform cart can be quickly folded into a compact size for easy storage and transport, such as in a car trunk. The cart's robust design and high load capacity make it suitable for various transport tasks.

Istruzioni per l'uso

1. Loading the Cart

• Ensure the cart is on a level surface and the parking brake is engaged before loading.
• Place items centrally on the anti-slip loading surface.
• For heavy or bulky items, use the six safety eyelets to secure the load with straps or bungee cords.
• Non superare la capacità di carico massima di 300 kg.

2. Maneuvering and Transport

• Disengage the parking brake before moving the cart.
• Use the ergonomic, foam-padded handle for comfortable pushing or pulling.
• The 360-degree swivel wheels allow for easy navigation in tight spaces and around corners.
• Proceed slowly and cautiously, especially on uneven surfaces or inclines.
• The all-round edge protection helps prevent damage to walls and obstacles.

Figura 3: Caratteristiche principaliview
This diagram highlights the main components and features of the platform cart, such as the ergonomic foam handle, integrated tool bag, robust powder-coated steel frame, and the large anti-slip loading surface. It also points out the all-round edge protection, puncture-proof solid rubber wheels, six safety eyelets for securing loads, and the 360-degree swivel wheels equipped with a parking brake for easy and secure maneuvering.

3. Using the Parking Brake

To engage the parking brake, press down on the lever located on the swivel wheels. To release, lift the lever. Always engage the brake when the cart is stationary, especially on sloped surfaces, to prevent unintended movement.

Figure 4: 360-Degree Wheels and Parking Brake
This image demonstrates the cart's maneuverability and stability. It shows the cart being used to transport potted plants, emphasizing its 360-degree swivel wheels for easy navigation and the parking brakes for secure positioning, especially on uneven or sloped terrain. The six load-securing eyelets are also highlighted for added safety.

4. Integrated Tool Bag and Work Gloves

The cart includes an integrated tool bag on the handle for convenient storage of small tools and accessories. Use the provided work gloves, featuring a micro-foamed latex coating and an extra-long elastic cuff, for enhanced grip, comfort, and hand protection during tasks.

Figure 5: Tool Bag and Work Gloves
This image showcases the cart's integrated tool bag, designed to keep essential tools and small items readily accessible during transport. It also highlights the included work gloves, which provide protection and maintain hand cleanliness during tasks. The cart is shown with items secured on its platform, demonstrating its load-carrying capability.

Manutenzione

• Pulizia: Pulisci il carrello con la pubblicitàamp cloth after use to remove dirt and debris. Avoid abrasive cleaners that could damage the powder coating or anti-slip surface.
• Ispezione delle ruote: Regularly check the wheels for wear and tear. Ensure they rotate freely and that the parking brake mechanism functions correctly.
• Ispezione del telaio: Periodically inspect the steel frame for any signs of damage, bends, or loose connections. Tighten any loose bolts. The powder coating provides rust resistance, but inspect for any chips that could expose bare metal.
• Magazzinaggio: For long-term storage, clean the cart and fold it into its compact form. Store in a dry place away from extreme temperatures.

Risoluzione dei problemi

• Cart difficult to roll: Check for debris caught in the wheels. Ensure the parking brake is fully disengaged. Verify that the load is not exceeding the maximum capacity or unevenly distributed.
• Parking brake not engaging: Inspect the brake mechanism for any obstructions or damage. Ensure the wheels are clean.
• Handle not locking into place: Ensure the handle is fully extended and aligned with the locking points. Check for any obstructions in the locking mechanism.
• Platform not folding/unfolding smoothly: Check for any obstructions or debris in the folding joints. Apply a small amount of lubricant to moving parts if necessary.

Specifiche

Figure 6: Model Comparison and Dimensions
This diagram provides a detailed comparison of the two available models: Model 1 with a 150kg load capacity and Model 2 with a 300kg load capacity. It illustrates the unfolded and folded dimensions (length, width, height) and the weight for each model, allowing users to understand the physical characteristics and capacity differences. This manual specifically covers the 300kg capacity Model 2.

Garanzia e supporto

Specific warranty information may vary by region and retailer. Please refer to your purchase documentation or contact the seller directly for details regarding warranty coverage and claims. For technical support or inquiries, please reach out to the MASKO customer service department through their official websito o le informazioni di contatto fornite con l'acquisto.
