OMG Kingsmith WalkingPad K15 Smart Foldable Treadmill User Manual

1. Importanti istruzioni di sicurezza

Leggere attentamente tutte le istruzioni prima di utilizzare questo tapis roulant. Conservare il manuale per riferimento futuro.

• Posizionare sempre il tapis roulant su una superficie piana e stabile.
• Assicurare uno spazio libero adeguato attorno al tapis roulant (almeno 2 metri dietro e 0.6 metri su ciascun lato).
• Tenere i bambini e gli animali domestici lontani dal tapis roulant durante il funzionamento.
• Non utilizzare il tapis roulant se si pesa più di 120 kg (242 libbre).
• Indossare calzature sportive adatte.
• If you experience dizziness, nausea, chest pain, or any other abnormal symptoms, stop exercising immediately and consult a physician.
• Always use the safety key during operation. Attach the clip to your clothing.
• Scollegare il tapis roulant dalla presa di corrente quando non è in uso o prima di pulirlo/manutenerlo.

2. Contenuto della confezione

Verificare che tutti gli articoli siano presenti nel pacco:

• Kingsmith WalkingPad K15 Treadmill Unit
• Cavo di alimentazione
• Chiave di sicurezza
• Kit di attrezzi (per montaggio/manutenzione)
• Manuale dell'utente (questo documento)

3. Prodotto finitoview

The Kingsmith WalkingPad K15 is a smart foldable treadmill designed for both walking and running. It features a robust aluminum frame, a powerful 1.25 HP motor, and an integrated LCD display.

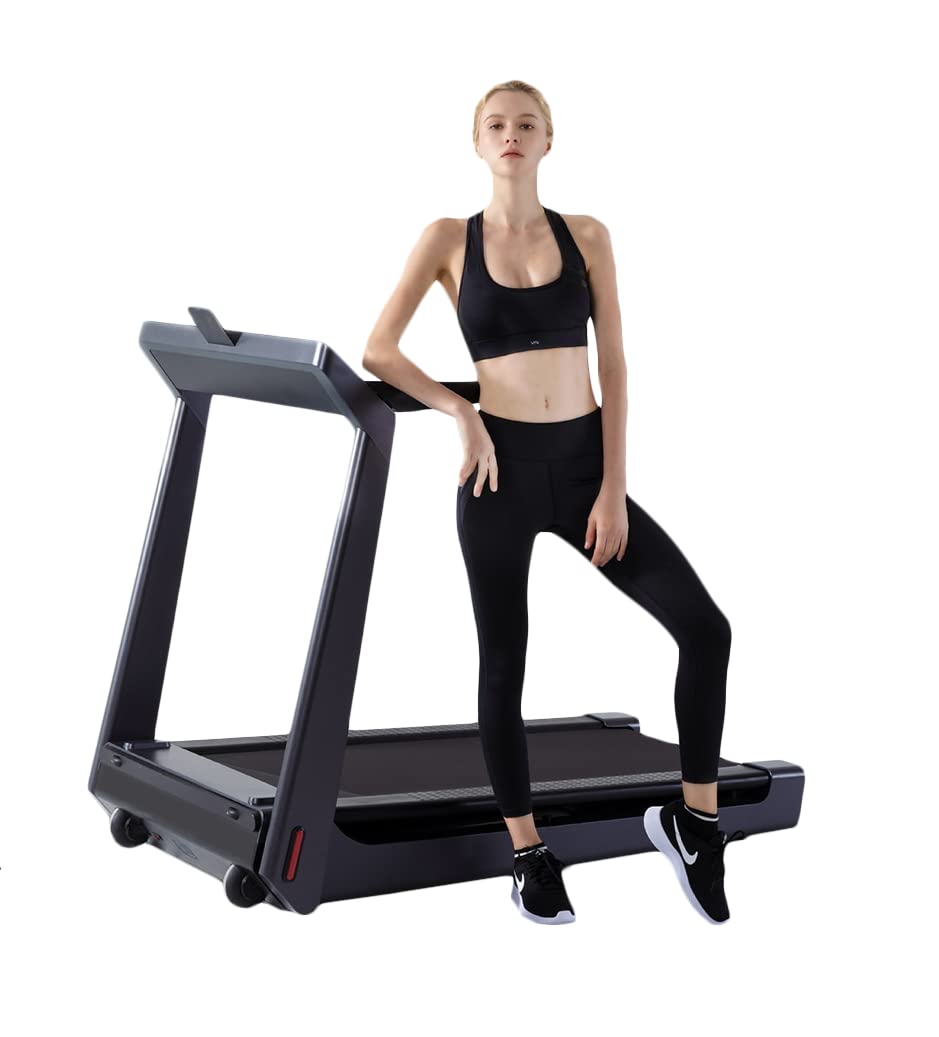

Figure 3.1: Kingsmith WalkingPad K15 Treadmill in its operational, unfolded state.

Componenti chiave:

• Cintura da corsa: Multi-layered belt for comfortable use.
• Corrimano: Provide support during exercise.
• Pannello di controllo/Display: Shows speed, time, distance, calories, and incline.
• Slot per chiave di sicurezza: Per fissare la chiave di sicurezza.
• Meccanismo di piegatura: Consente di piegare il tapis roulant per riporlo.
• Ruote di trasporto: For easy relocation when folded.

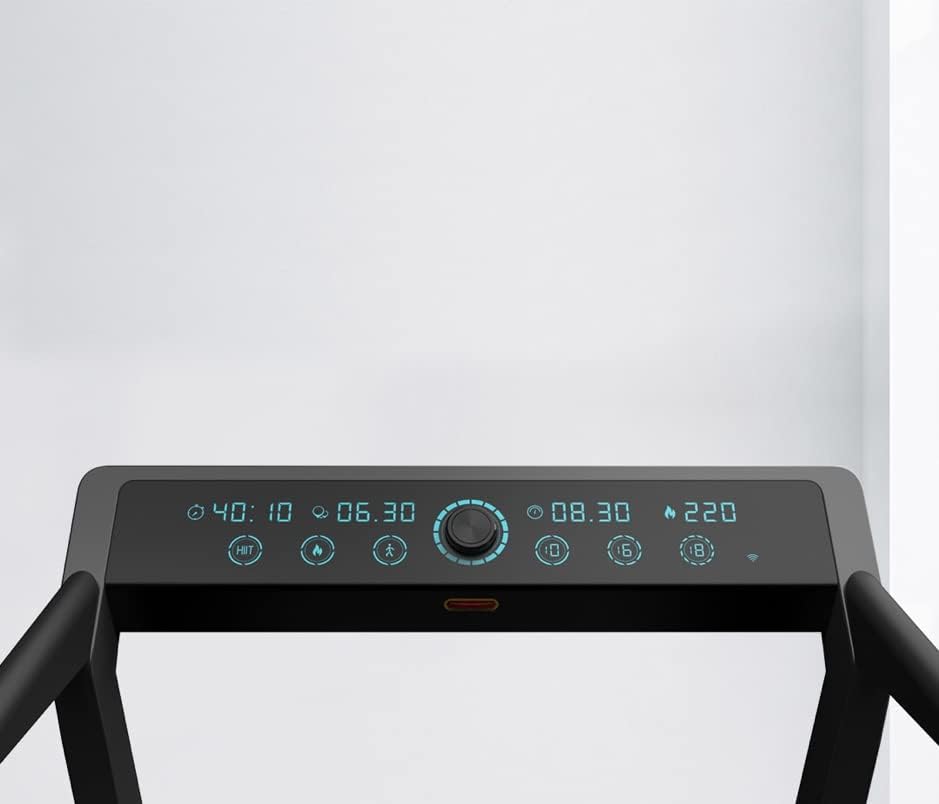

Figura 3.2: dettagliata view of the K15's LCD control panel, displaying various metrics.

4. Installazione e dispiegamento

The Kingsmith WalkingPad K15 comes largely pre-assembled. Follow these steps to prepare it for use:

1. Disimballare: Estrarre con cautela il tapis roulant dalla confezione.
2. Posizione: Place the folded treadmill on a flat, stable surface where you intend to use it. Ensure sufficient space around the unit.
3. Unfold the Handrail: Gently lift the handrail assembly until it locks into the upright position. Ensure it is securely locked.
4. Lower the Running Deck: Carefully lower the running deck until it is flat on the floor.
5. Connetti alimentazione: Plug the power cord into the treadmill's power inlet and then into a grounded electrical outlet.
6. Collegare la chiave di sicurezza: Insert the safety key into its designated slot on the control panel. Clip the other end of the safety key to your clothing. The treadmill will not operate without the safety key in place.

Figure 4.1: The K15 treadmill in its folded configuration, ready for storage or initial setup.

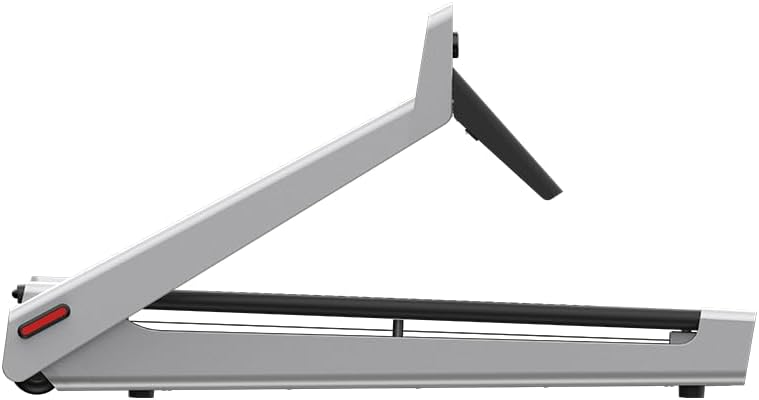

Figura 4.2: lato view of the K15 treadmill when folded, highlighting its compact design.

5. Funzionamento del tapis roulant

5.1 Accensione/spegnimento

• To power on, ensure the safety key is inserted and press the power button on the control panel.
• Per spegnere, tenere premuto il pulsante di accensione o rimuovere la chiave di sicurezza.

5.2 Funzioni del pannello di controllo

The LCD display provides real-time feedback on your workout. Use the central knob and buttons to control the treadmill.

Figure 5.1: User interacting with the K15 control panel, which includes a central knob for adjustments and a phone holder.

• Avvio/Arresto: Press the central knob to start or stop the running belt.
• Regolazione della velocità: Rotate the central knob clockwise to increase speed, counter-clockwise to decrease speed. The speed range is 0.5-15 km/h (0.5-9.4 MPH).
• Modalità di visualizzazione: Cycle through different display metrics (Time, Distance, Calories, Speed) by pressing the mode button (if available, otherwise it cycles automatically).
• Connettività Bluetooth: The treadmill supports Bluetooth for connecting to fitness apps. Refer to the app's instructions for pairing.

5.3 Running and Walking

The K15 offers both walking and running modes. It has a fixed 4% incline for an enhanced workout.

Figure 5.2: A user demonstrating the K15 treadmill in use for running, showcasing il suo stato operativo.

• Always start at a low speed and gradually increase to your desired pace.
• Mantenere un passo comodo e controllato.
• Hold the handrails for balance if needed, especially when starting or stopping.

6. Piegatura e conservazione

The K15 treadmill features a unique folding design for convenient storage.

1. Fermare il tapis roulant: Assicurarsi che il tapis roulant sia completamente fermo e spento. Rimuovere la chiave di sicurezza.
2. Piegare il ponte di corsa: Lift the rear end of the running deck upwards until it folds parallel to the handrail assembly. Ensure it locks securely in place.
3. Lower the Handrail (Optional): For more compact storage, the handrail can be folded down to align with the running belt.
4. Trasferisci: Use the integrated transport wheels to move the folded treadmill to your desired storage location. It can be stored vertically to save space.

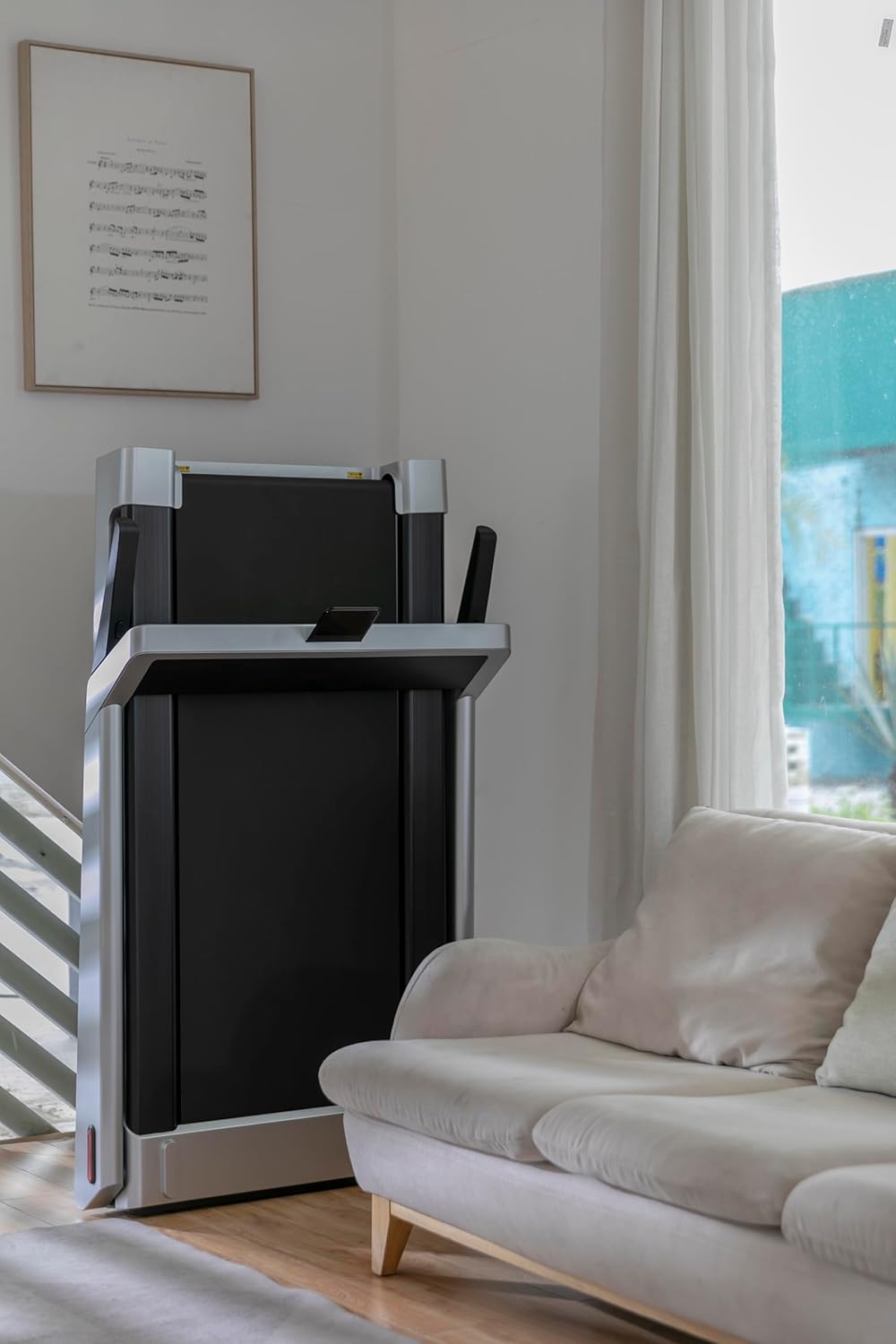

Figure 6.1: The K15 treadmill stored vertically, demonstrating its space-saving design.

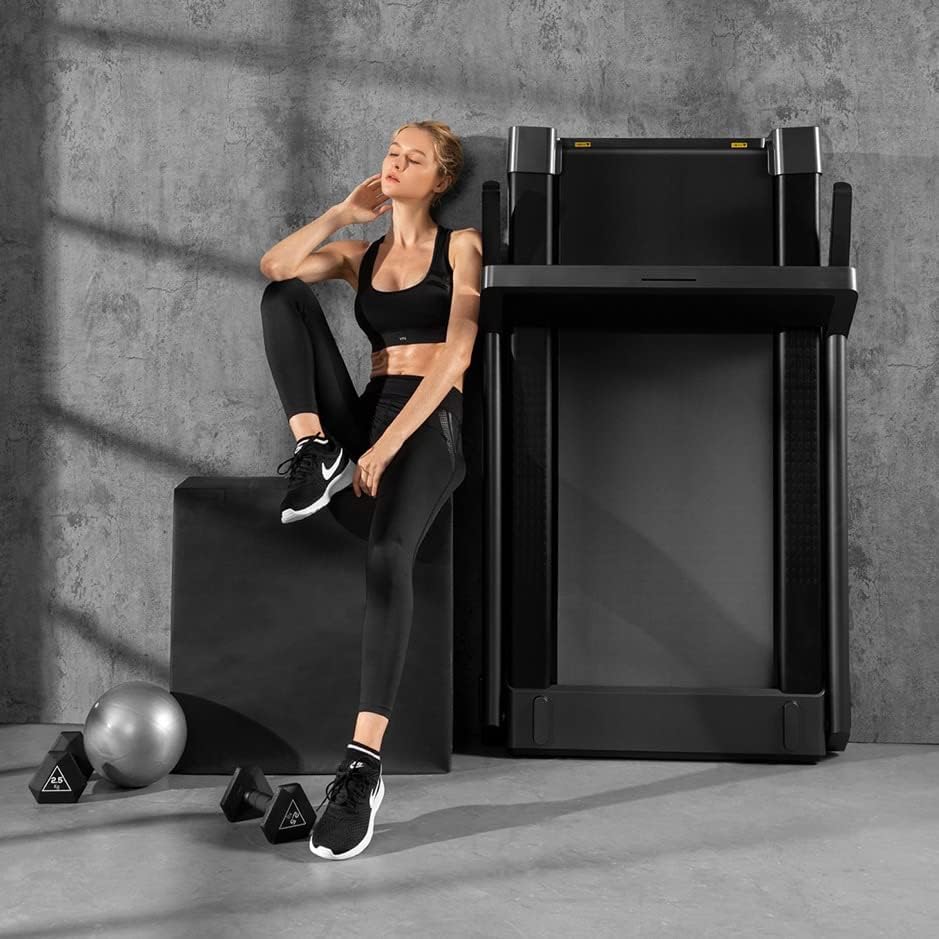

Figure 6.2: A user next to the K15 treadmill stored in an upright position, illustrating its compact footprint.

7. Manutenzione

Una manutenzione regolare garantisce la longevità e le prestazioni ottimali del tuo tapis roulant.

7.1 Pulizia

• Scollegare sempre il tapis roulant prima di pulirlo.
• Pulisci il display e le superfici esterne con un panno morbido eamp stoffa. Evitare detergenti abrasivi.
• Periodically vacuum dust from under the treadmill.

7.2 Lubrificazione del nastro scorrevole

The running belt requires periodic lubrication to reduce friction and extend its lifespan. Refer to the included tool kit for lubricant and specific instructions. Generally, lubricate every 3-6 months depending on usage.

7.3 Regolazione del nastro da corsa

If the running belt becomes off-center or slips, it may need adjustment. Use the provided Allen wrench to make small adjustments to the rear rollers. Consult the detailed instructions in the tool kit for proper procedure.

8. Risoluzione Dei Problemi

If you encounter issues with your Kingsmith WalkingPad K15, refer to the following common problems and solutions:

8.1 Addressing a Stuck Walking Machine

If the walking machine mechanism appears stuck or difficult to fold/unfold, a specific procedure may be required.

9. Specifiche

Figure 9.1: Dimensional diagram of the Kingsmith WalkingPad K15 treadmill, indicating its length, width, and height.

10. Garanzia e supporto

Your Kingsmith WalkingPad K15 Treadmill is covered by a manufacturer's warranty. Please refer to the warranty card included in your package for specific terms and conditions.

For technical support, parts, or service inquiries, please contact your retailer or the manufacturer's customer service department. Contact information can typically be found on the product packaging or the official brand websito.

Manufacturer: Beijing Kingsmith Technology Co., Ltd
