HUIZHEN Replacement Parts for iHome AutoVac Nova and Halo Robot Vacuums

Prodotto finitoview

This accessory kit provides essential replacement parts for iHome AutoVac Nova and Halo self-emptying robot vacuum cleaners. Designed to maintain optimal cleaning performance, the kit includes a main roller brush, side brushes, HEPA filters, mop pads, and dust bags.

Marca: HUIZHEN

Modelli compatibili: iHome AutoVac Nova (iHRV6-BLK), iHome AutoVac Halo (iHRV7-SLV)

Immagine: Oltreview of the HUIZHEN replacement parts kit, including all components.

Modelli compatibili

This replacement parts kit is specifically designed for compatibility with the following iHome AutoVac robot vacuum cleaner models:

• iHome AutoVac Nova Self Emptying (iHRV6-BLK)
• iHome AutoVac Halo Self Emptying (iHRV7-SLV)

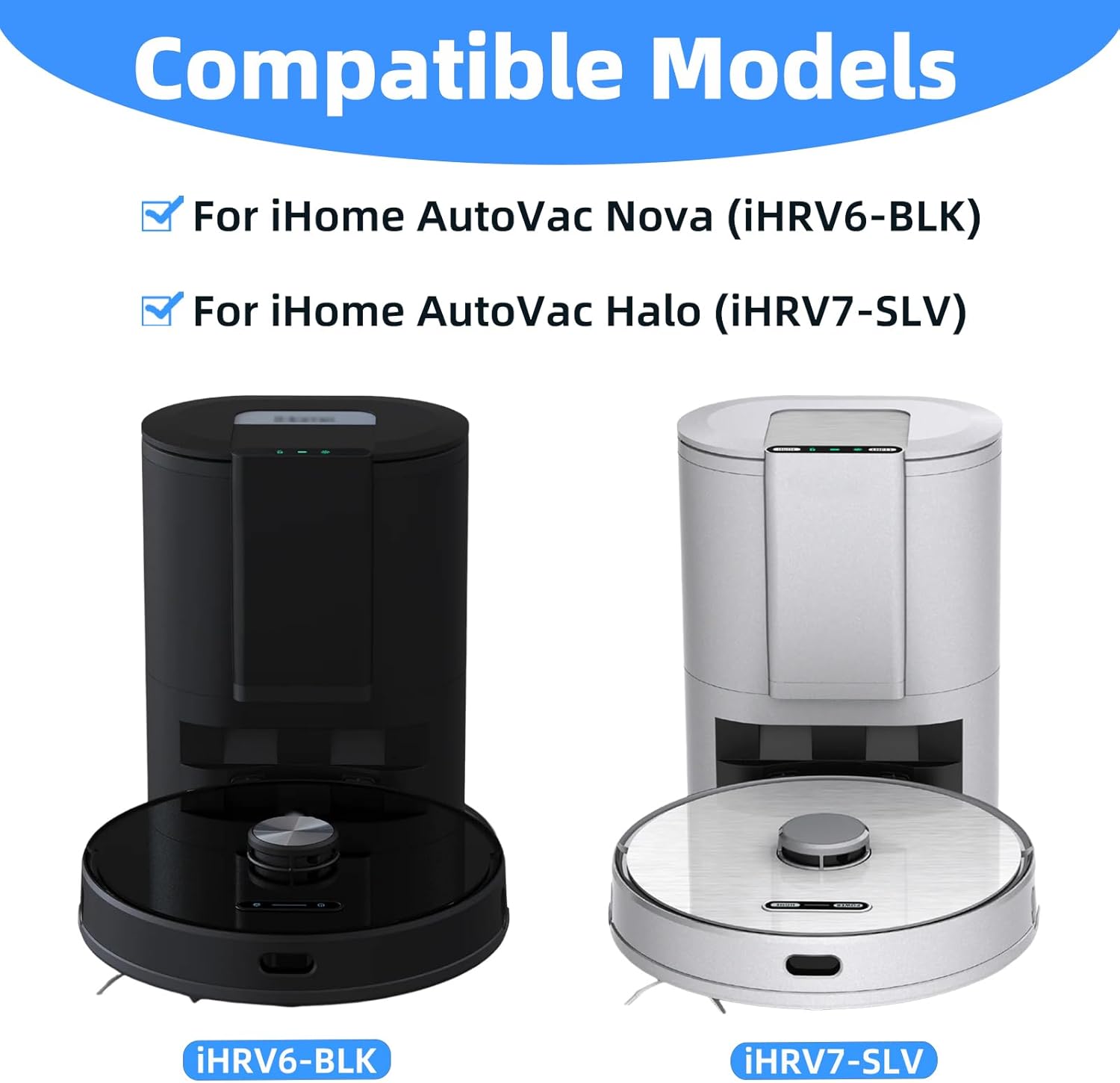

Image: Visual representation of the iHome AutoVac Nova (iHRV6-BLK) and iHome AutoVac Halo (iHRV7-SLV) robot vacuum cleaners, highlighting compatibility.

Contenuto della confezione

Each HUIZHEN replacement parts kit contains the following items:

• 1 x Main Roller Brush
• 4 x Side Brushes (with screws included)
• 4 filtri HEPA
• 3 x panni in microfibra per mocio
• 3 sacchetti per la polvere

Installazione e sostituzione

Regular replacement of vacuum cleaner accessories is crucial for maintaining optimal cleaning efficiency and extending the lifespan of your device. Follow these general guidelines for installation and replacement.

Main Roller Brush Installation

The main roller brush is designed to effectively pick up debris from various floor types. It features sturdy ABS material and soft nylon bristles to prevent floor damage.

Immagine: dettagliata view of the main roller brush, highlighting its construction from sturdy ABS material and soft nylon bristles for effective cleaning without damaging floors.

1. Turn off and unplug the robot vacuum.
2. Flip the vacuum over to access the brush compartment.
3. Remove the brush guard or cover, typically by unlatching clips or unscrewing.
4. Lift out the old main roller brush.
5. Inserire la nuova spazzola principale, assicurandosi che scatti in posizione.
6. Replace the brush guard/cover and secure it.

Installazione della spazzola laterale

Side brushes sweep debris from edges and corners into the vacuum's path. These brushes are made with soft nylon bristles and durable ABS material, and come with screws for secure attachment.

Image: Close-up of a side brush, illustrating its soft nylon bristles and the screw-tightening mechanism for secure installation.

1. Turn off and unplug the robot vacuum.
2. Capovolgi l'aspirapolvere.
3. Locate the side brushes. They are usually held by a single screw.
4. Svitare e rimuovere la vecchia spazzola laterale.
5. Align the new side brush with the post and secure it with the provided screw.

Sostituzione del filtro HEPA

HEPA filters are crucial for trapping fine dust, pollen, mold, bacteria, and other airborne particles as small as 0.3 microns, ensuring cleaner air output.

Image: Illustration of a HEPA filter, demonstrating its filtration capability for microscopic particles like dust, pollen, mold, and bacteria.

1. Aprire il vano del contenitore della polvere del robot aspirapolvere.
2. Rimuovere la pattumiera.
3. Locate the filter within the dustbin.
4. Remove the old HEPA filter by pulling it out.
5. Insert the new HEPA filter firmly into its slot.
6. Reinstall the dustbin into the vacuum.

Accessorio per mocio

Microfiber mop pads are designed for wet cleaning, made from fine, quality fabrics with excellent sewing for effective mopping.

Image: Close-up of a microfiber mop pad, highlighting its fine fiber construction, quality fabrics, and excellent sewing for durability and cleaning performance.

1. Locate the mop pad attachment area on the underside of your vacuum.
2. Attach the new microfiber mop pad, typically using a hook-and-loop fastener or by sliding it into a designated slot.
3. Ensure the pad is securely attached before operating the vacuum in mopping mode.

Sostituzione del sacchetto per la polvere

Dust bags are essential for collecting dust, dirt, fur, and pollen, ensuring efficient self-emptying functionality.

Image: Diagram illustrating the function of a dust bag, showing it collecting dust, dirt, pet fur, and pollen particles.

1. Open the dustbin or self-emptying station compartment.
2. Rimuovere con cautela il sacchetto raccoglipolvere pieno, assicurandosi che l'apertura sia sigillata per evitare perdite di polvere.
3. Insert a new dust bag into the compartment, making sure it is properly seated.
4. Chiudere bene lo scomparto.

Manutenzione e cura

To ensure your iHome AutoVac robot vacuum maintains optimal performance, regular maintenance and timely replacement of accessories are recommended.

• Frequenza di sostituzione: It is recommended to replace all accessories every three months, or more frequently depending on usage and environment (e.g., homes with pets or high traffic).
• Side Brush Recovery: If side brushes appear bent or curled due to shipping or storage, soak them in warm water for a few minutes. This will help them recover their original shape and will not affect their quality or performance.
• Pulizia: Regularly clean the main roller brush, side brushes, and mop pads to remove tangled hair and debris. Tap out dust from HEPA filters between replacements.

Risoluzione dei problemi

This section addresses common issues related to the replacement parts.

Specifiche

Immagine: Dimensionale suview of the replacement parts, including the main brush, side brush, HEPA filter, mop pad, and dust bag, alongside compatible iHome AutoVac models.

Garanzia e supporto

For any issues encountered during use, please contact the manufacturer or seller promptly. Support teams typically respond within 24 hours to resolve problems.

Specific warranty details may vary. Please refer to your purchase documentation or contact the seller for information regarding product warranty.
