Dowinx LS-6657B02 Gaming Chair Instruction Manual

1. Prodotto finitoview

The Dowinx LS-6657B02 Gaming Chair is designed for comfort and ergonomic support during extended periods of use. It features a breathable linen fabric, a unique pocket spring cushion, adjustable backrest, 4D armrests, massage lumbar support, and a retractable footrest. This manual provides essential information for assembly, operation, maintenance, and troubleshooting to ensure optimal performance and longevity of your chair.

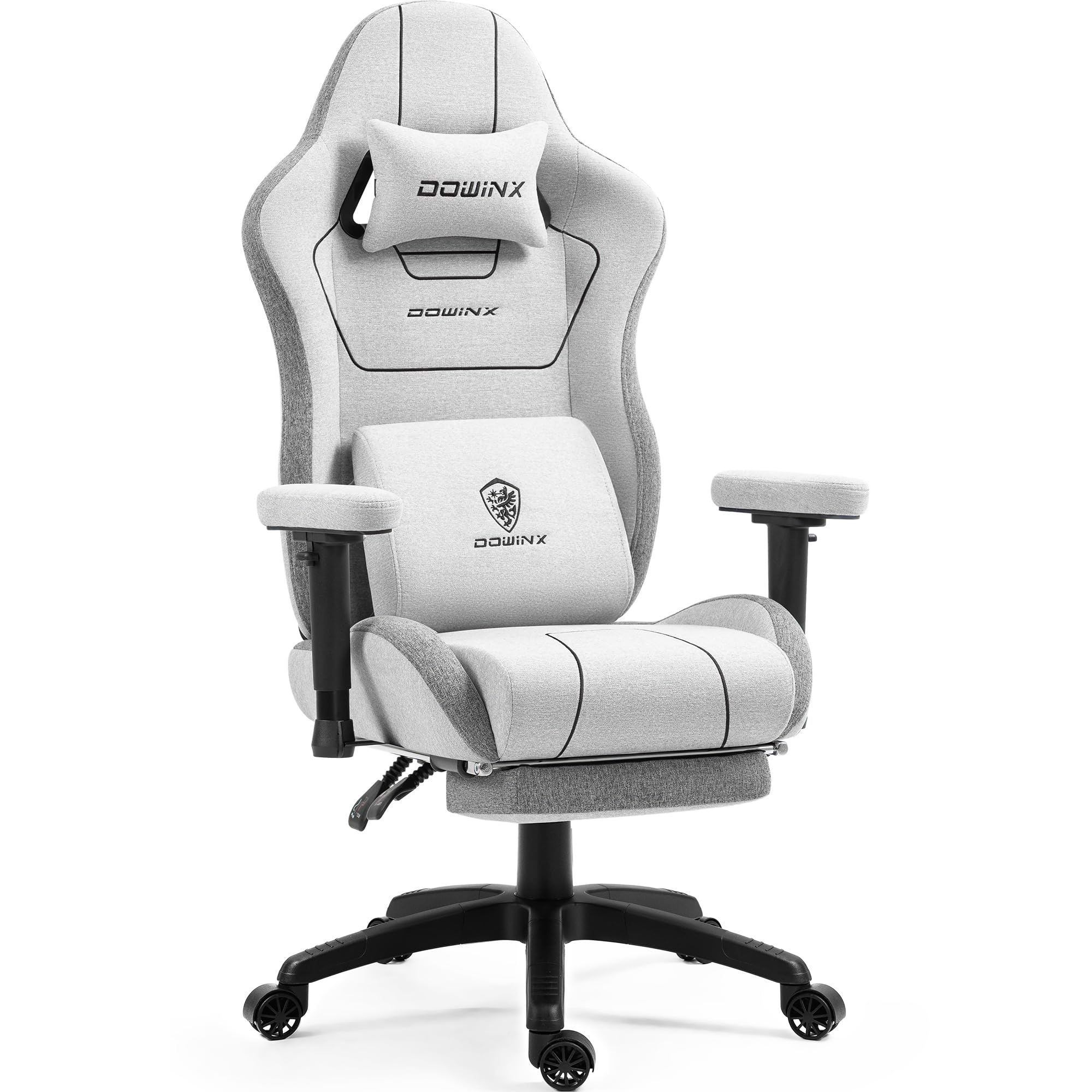

Figura 1: generale view of the Dowinx LS-6657B02 Gaming Chair in Grey.

2. Caratteristiche principali

• Comfort and Breathable Cushion Structure: The cushion combines pocket springs and breathable foam for excellent support, comfort, and air circulation, preventing heat and moisture accumulation.
• More Breathable Linen Fabric: Linen is a lightweight and durable material that helps regulate body temperature, prevents excessive sweating, and resists wear and tear.
• Garanzia di alta qualità: Features an upgraded backrest with steel plate fixings for enhanced stability (withstands over 200lbs impact) and triangular screw distribution. The tilt mechanism and gas cylinder exceed industry standards, supporting a maximum load capacity of 300lbs.
• Regolazioni multifunzionali: The backrest can be adjusted between 90° and 135°. 4D armrests offer height, forward/backward, and rotation adjustments. The headrest and massage lumbar support are adjustable to suit various sitting positions.
• Poggiapiedi retrattile: Provides additional comfort for reclining, gaming, working, or napping.

Figura 2: dettagliata view of the chair's exclusive cushion structure, highlighting breathable linen, cotton, shaping foam, and individually pocketed coils for superior support and comfort.

Figure 3: Illustration of the multi-layered linen fabric surface, emphasizing its tough, durable, skin-friendly, hygroscopic, and breathable properties for timely sweating and comfort.

Figure 4: Detail of the Dowinx Special 2D Soft Armrests, filled with high-density foam for comfort and breathability, featuring a sturdy structure and flexible support.

Figura 5: Oltreview of the chair's ergonomic functions, including 90°-135° tilt, 3-inch sitting height adjustment, 3-inch armrest height adjustment, 350 lbs max load capacity, and massage lumbar support function.

3. Installazione e assemblaggio

Your Dowinx Gaming Chair requires assembly. All necessary installation tools and detailed instructions are included in the package. Please follow the step-by-step guide provided in the separate assembly manual for a smooth setup process. Ensure all components are securely fastened before use. The backrest fixings have been upgraded with a steel plate and triangular screw distribution for improved stability.

Figure 6: Diagram illustrating various components of the gaming chair for assembly.

4. Istruzioni per l'uso

4.1 Adjusting Backrest Tilt

To recline the backrest, locate the lever on the side of the chair (typically on the right). Pull the lever upwards and lean back to your desired angle (between 90° and 135°). Release the lever to lock the backrest in position.

4.2 Regolazione dei braccioli

I braccioli 4D offrono molteplici possibilità di regolazione:

• Regolazione dell'altezza: Premere il pulsante sul lato del bracciolo e spostarlo verso l'alto o verso il basso.
• Regolazione avanti/indietro: Far scorrere il cuscinetto del bracciolo in avanti o indietro.
• Regolazione della rotazione: Ruotare il bracciolo verso sinistra o verso destra.

4.3 Using Massage Lumbar Support

The lumbar support cushion features a massage function. Connect the USB cable from the lumbar cushion to a power source (e.g., computer USB port, power bank). The massage function will activate. Adjust the position of the lumbar support cushion along the backrest to find your most comfortable spot.

4.4 Deploying/Retracting Footrest

To deploy the footrest, pull it out from underneath the seat. Flip the padded section upwards. To retract, flip the padded section down and push the footrest back under the seat until it is fully hidden.

4.5 Regolazione dell'altezza del sedile

To adjust the seat height, locate the lever under the seat (typically on the right, near the tilt lever). Pull the lever upwards. To raise the seat, lift your weight off the chair. To lower the seat, remain seated and pull the lever upwards until the desired height is reached. Release the lever to lock the height.

5. Manutenzione

• Pulizia: The linen fabric material is recommended for dry cleaning. For minor spills, gently blot with a clean, damp stoffa. Evitare prodotti chimici aggressivi.
• Controllo del dispositivo di fissaggio: Periodically check all screws and bolts to ensure they are tight. Loose fasteners can affect the chair's stability and safety.
• Cura generale: Avoid exposing the chair to direct sunlight for prolonged periods to prevent fading. Keep sharp objects away from the fabric to prevent tears.

6. Risoluzione Dei Problemi

• Decreased Support: If the chair's support effect decreases, especially for users weighing ≥300 lbs, this is due to the characteristics of the spring. Please consider this before purchase.
• Problemi di stabilità: Ensure all assembly screws are properly tightened. If issues persist, contact customer support.
• Funzione massaggio non funzionante: Verificare che il cavo USB sia collegato saldamente a una fonte di alimentazione funzionante.

7. Specifiche

8. Garanzia e supporto

The Dowinx Gaming Chair comes with a 1-month return policy e un Servizio di riparazione di 1 anni. Our dedicated after-sales service department is available to provide installation guidance and free replacement parts for any issues covered under warranty. Please refer to your purchase documentation for specific terms and conditions.
