Dowinx Gaming Chair Model 6657A Instruction Manual

1. Introduzione

Thank you for choosing the Dowinx Gaming Chair Model 6657A. This manual provides essential information for the safe assembly, operation, and maintenance of your new chair. Please read it thoroughly before use and retain it for future reference. This chair is designed to provide ergonomic support and comfort for extended periods of sitting, whether for gaming, work, or relaxation.

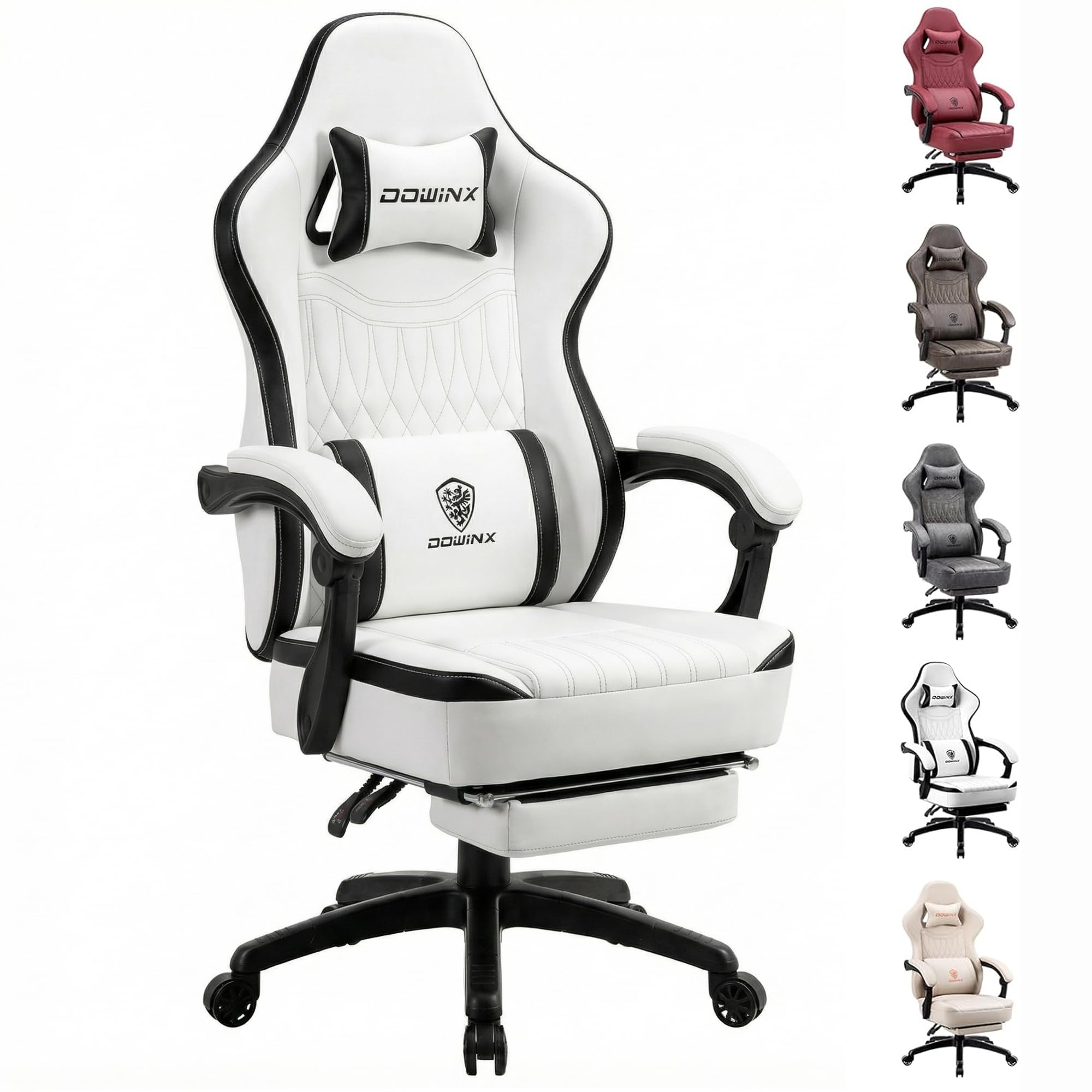

Figure 1: Dowinx Gaming Chair Model 6657A

2. Informazioni sulla sicurezza

Per evitare lesioni o danni al prodotto, attenersi alle seguenti norme di sicurezza:

• Capacità di peso massima: Do not exceed the maximum weight capacity of 150 kg (330 lbs). Exceeding this limit may compromise the chair's stability and lead to injury.
• Montaggio: Ensure all components are correctly assembled and tightened according to the instructions. Improper assembly can result in instability.
• Utilizzo del poggiapiedi: Use the retractable footrest responsibly. Avoid excessive force or standing on it to prevent damage or injury.
• Movimento: The chair features smooth-rolling casters. Exercise caution when moving the chair to avoid collisions or falls.
• Bambini: Keep children away from moving parts during adjustment to prevent pinching or other injuries.

3. Contenuto della confezione

Verificare che tutti i componenti siano presenti prima di iniziare il montaggio. Se qualche componente risulta mancante o danneggiato, contattare il servizio clienti.

• Schienale
• Seat Cushion with Pocket Spring
• Braccioli (2)
• Base a stella
• Rotelle (5)
• Cilindro di sollevamento a gas
• Piastra del meccanismo
• Cuscino poggiatesta
• Lumbar Support Pillow (with USB massage function)
• Poggiapiedi retrattile
• Ferramenta di montaggio (viti, chiave a brugola)
• Manuale di istruzioni

4. Installazione e assemblaggio

Follow these steps to assemble your Dowinx Gaming Chair. It is recommended to have a clear, flat surface for assembly.

4.1. Assemblaggio base

1. Inserire le cinque rotelle nei fori all'estremità di ciascuna gamba della base a stella. Spingere con decisione fino a sentire uno scatto.
2. Inserire il cilindro del pistone a gas nel foro centrale della base a stella. Posizionare il coperchio del cilindro sul pistone a gas.

4.2. Seat Assembly

3. Attach the mechanism plate to the underside of the seat cushion using the provided screws. Ensure the front of the mechanism faces the front of the seat.
4. Attach the armrests to the sides of the seat cushion using the designated screws.
5. Posizionare con cautela il sedile assemblato sul cilindro di sollevamento a gas.

4.3. Backrest and Accessories

6. Attach the backrest to the seat mechanism using the remaining screws. Tighten all screws securely.
7. Far scorrere il poggiapiedi retrattile nelle apposite fessure sotto il sedile.
8. Attach the headrest pillow and lumbar support pillow using their elastic straps. The lumbar support pillow has a USB cable for its massage function.

Per una guida visiva al montaggio, fare riferimento al seguente video:

Figure 2: Chair components ready for assembly.

5. Istruzioni per l'uso

5.1. Regolazione dell'altezza

To adjust the chair's height, locate the 'LIFT' lever on the right side, beneath the seat. While seated, pull the lever upwards to lower the chair. To raise the chair, stand up slightly to relieve weight from the seat and pull the 'LIFT' lever upwards.

5.2. Funzione di reclinazione

The chair's backrest can recline from 90° to 135°. To recline, locate the 'RCL' lever on the left side, beneath the seat. Pull the lever upwards and lean back to your desired angle. Release the lever to lock the backrest in position. To return to an upright position, pull the 'RCL' lever and lean forward slightly.

Figure 3: Chair recline range.

5.3. Poggiapiedi retrattile

To use the footrest, pull it out from underneath the seat. It can be extended to provide leg support when reclining. Push it back in when not in use.

Figura 4: Poggiapiedi retrattile in posizione estesa.

5.4. Supporto lombare massaggiante

The lumbar support pillow includes a USB-powered massage function. Connect the USB cable to a power source (e.g., a power bank or USB adapter) to activate soothing vibrations. The massage function is designed to relieve fatigue during long sitting sessions.

6. Manutenzione

To maintain the appearance and longevity of your Dowinx Gaming Chair, follow these simple cleaning instructions:

• Pulizia: Pulisci con un annuncioamp cloth. Avoid harsh chemicals or abrasive cleaners, as these may damage the PU leather.
• Ispezione: Controllare periodicamente tutte le viti e i bulloni per assicurarsi che siano ben serrati. Serrarli nuovamente se necessario.
• Evitare la luce solare diretta: L'esposizione prolungata alla luce solare diretta può causare lo scolorimento o la screpolatura della pelle PU.

7. Risoluzione Dei Problemi

Se riscontri problemi con la tua sedia da gaming Dowinx, consulta i seguenti suggerimenti comuni per la risoluzione dei problemi:

• La sedia è traballante: Check that all screws and bolts are securely tightened. Ensure the casters are fully inserted into the base.
• Il pistone a gas non funziona: Ensure the 'LIFT' lever is fully engaged. If the issue persists, the gas lift cylinder may need replacement. Contact customer support.
• Recline Not Locking: Verify that the 'RCL' lever is fully released after adjusting the backrest. Ensure no obstructions are preventing the mechanism from locking.
• Funzione massaggio non funzionante: Check that the USB cable is securely connected to a working power source. Try a different USB port or power bank.

8. Specifiche

9. Garanzia e supporto

Dowinx is committed to providing excellent customer service. Your purchase includes:

• 1-Month Replacement Services: For any manufacturing defects or issues within the first month.
• 1-Year Parts Quality Service: Covering quality-related issues for individual parts for up to one year.
• 24/7 Customer Services Team: Available to assist with any questions or concerns you may have.

Please refer to the contact information provided in your purchase documentation for support.
