Manuale di istruzioni per il lettino Bellababy Baby Bedside Sleeper

Importanti istruzioni di sicurezza

Please read all instructions carefully before assembly and use of the Bellababy Baby Bedside Sleeper. Keep this manual for future reference. Failure to follow these warnings and instructions could result in serious injury or death.

• PERICOLO DI SOFFOCAMENTO: Infants can suffocate in gaps between an extra mattress and the side of the bassinet/crib, or on soft bedding. Use ONLY the mattress provided by the manufacturer. NEVER add a pillow, comforter, or another mattress for padding.
• PERICOLO DI CADUTA: To prevent falls, do not use this product when the infant begins to push up on hands and knees, or has reached 20 lbs (9 kg), whichever comes first.
• Ensure all assembly fasteners are securely tightened before use. Periodically check fasteners for tightness.
• Do not use the bassinet if any parts are missing, damaged, or broken. Contact Bellababy for replacement parts. Do not substitute parts.
• Durante il montaggio, tenere le parti di piccole dimensioni lontano dalla portata dei bambini.
• Do not place the bassinet near windows where cords from blinds or drapes could strangle a child.
• Do not use this bassinet as a co-sleeper unless securely attached to an adult bed according to instructions.

Prodotto finitoview

The Bellababy Baby Bedside Sleeper is designed for safe co-sleeping and independent sleeping, offering comfort and convenience for newborns and infants. It features adjustable height, portability, and easy-to-clean fabrics.

Figure 1: Fully assembled Bellababy Baby Bedside Sleeper. This image shows the bassinet in its upright position, highlighting its light gray fabric and white frame, with the storage basket visible underneath.

Caratteristiche principali:

• Sicuro e confortevole: Sturdy construction with high-quality materials for a secure sleeping environment.
• Design portatile: Lightweight and easy to move, suitable for travel. No screws required for installation.
• Altezza regolabile: 7 height levels (24"-32.6") to match various bed heights, including queen beds.
• Facile da pulire: All fabric parts are removable and washable.
• Design elegante: Modern aesthetic to complement home decor.
• Borsa portaoggetti: Integrated storage basket for essentials.

Installazione e assemblaggio

The Bellababy Baby Bedside Sleeper is designed for quick and easy assembly without the need for tools.

Fasi di assemblaggio:

1. Disimballare i componenti: Rimuovere con attenzione tutti i componenti dall'imballaggio. Verificare che siano presenti tutti i componenti indicati nella lista di imballaggio.
2. Montare il telaio: Extend the main frame components until they click into place. Ensure all locking mechanisms are engaged.
3. Attach Fabric Bassinet: Secure the fabric bassinet portion to the frame. Ensure all zippers and fasteners are properly attached.
4. Inserisci materasso: Place the provided mattress firmly into the bassinet.
5. Attach Storage Basket: Secure the storage basket to the designated hooks or slots underneath the bassinet frame.

Figure 2: The bassinet features a triangular stable structure for enhanced stability, ensuring the bassinet remains firm and secure during use.

Figura 3: Fronte view of the bassinet, showcasing the mesh side for visibility and breathability, and the Bellababy logo.

Istruzioni per l'uso

Regolazione dell'altezza:

The bassinet offers 7 levels of height adjustment to seamlessly align with your adult bed.

1. Locate the height adjustment buttons/levers on both sides of the bassinet frame.
2. Simultaneously press the buttons and raise or lower the bassinet to the desired height.
3. Ensure both sides are locked into the same height setting before placing the infant inside.

Figure 4: Illustration of the 7 height adjustment levels, ranging from 66cm to 83cm, allowing for seamless splicing with various bed types.

Using as a Bedside Sleeper (Co-Sleeping):

To use the bassinet as a bedside sleeper, lower one side of the bassinet and secure it to your adult bed using the provided straps (if applicable).

• Adjust the bassinet height to match your bed's mattress height.
• Unzip and lower the side panel closest to your bed.
• Position the bassinet flush against your bed.
• Secure the bassinet to your bed using the attachment straps (if included) to prevent any gap formation.

Figure 5: The bassinet seamlessly splices with a queen-sized bed, allowing for easy care and proximity to the infant during sleep.

Portability and Mobility:

The bassinet is equipped with 360-degree swivel casters with brakes for easy movement between rooms.

• To move the bassinet, ensure the brakes on all casters are disengaged.
• Carefully push or pull the bassinet to its new location.
• Once in position, engage the brakes on all casters to secure the bassinet.

Figure 6: The bassinet features 360-degree swivel casters with integrated brakes, enabling easy and secure movement from room to room.

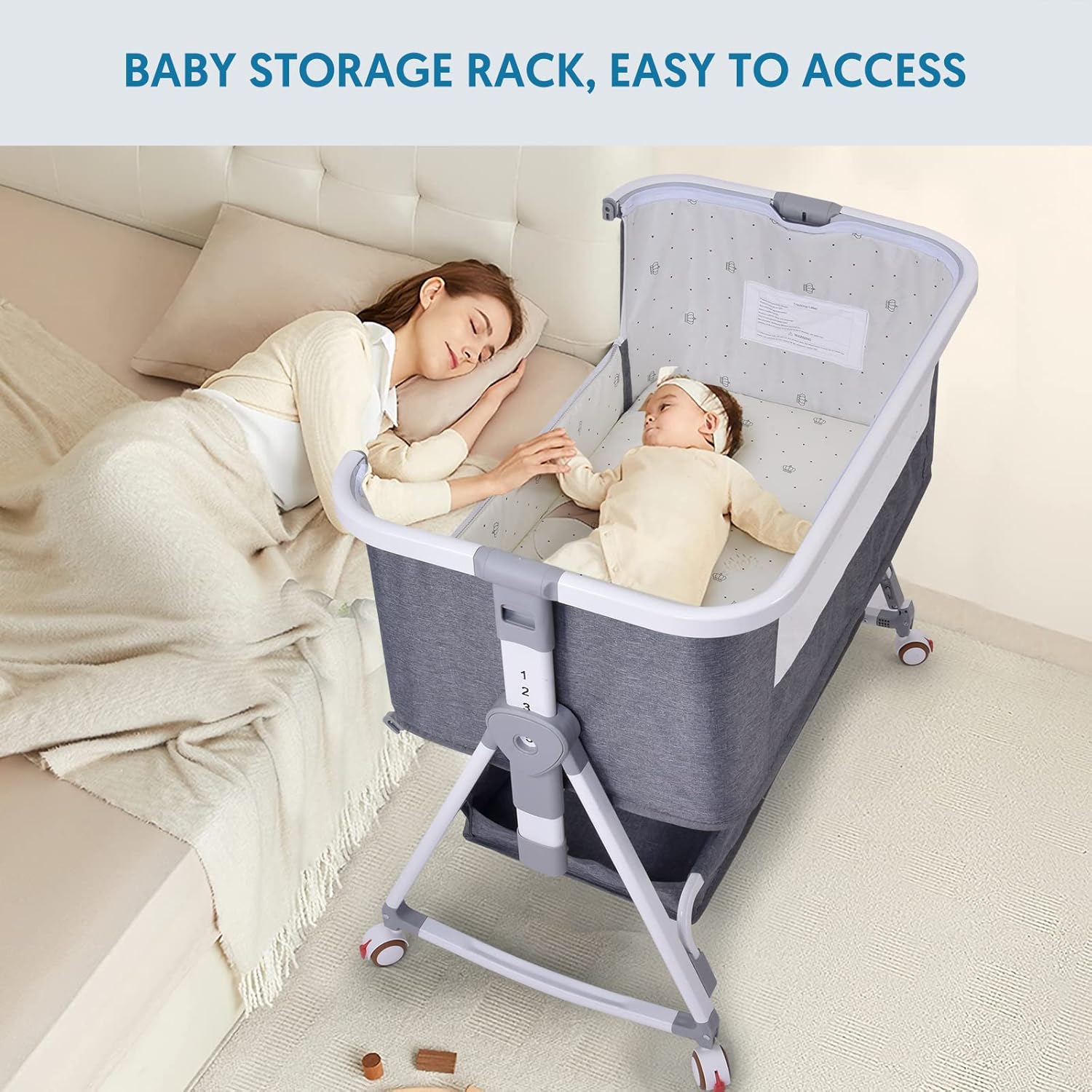

Figure 7: The integrated baby storage rack provides convenient access to essential items such as diapers and wipes.

Manutenzione e cura

Regular maintenance ensures the longevity and hygiene of your Bellababy Baby Bedside Sleeper.

Istruzioni per la pulizia:

• Componenti del tessuto: All fabric parts are removable and washable. Unzip and detach the fabric from the frame. Machine wash on a gentle cycle with cold water and mild detergent. Do not bleach. Air dry or tumble dry on low heat.
• Telaio e superfici dure: Pulisci il telaio e i componenti in plastica con un pannoamp panno e sapone neutro. Asciugare accuratamente. Non utilizzare detergenti abrasivi o solventi.
• Materasso: The mattress cover can be removed and washed following the fabric care instructions. Wipe the mattress pad with a damp cloth and mild soap, then air dry completely before reassembling.

Figure 8: The fabric cover of the bassinet can be easily unzipped and removed for thorough cleaning, ensuring a hygienic environment for the baby.

Magazzinaggio:

When not in use, the bassinet can be easily folded for compact storage.

• Disassemble the bassinet by reversing the assembly steps.
• Fold the frame components inward.
• Store all parts in a clean, dry place, away from direct sunlight and extreme temperatures.

Risoluzione dei problemi

Specifiche

• Numero modello: BLA-1209
• Marca: Bella bambina
• Colore: Grigio chiaro
• Dimensioni del prodotto (L x P x A): 37" x 5.9" x 23.6"
• Intervallo di altezza regolabile: 24" - 32.6" (7 levels)
• Peso dell'articolo: 18.55 libbre
• Montaggio: Required (Tool-free)
• Istruzioni per la cura: Pulisci con Asciutto, Pulisci con Damp Cloth (Fabric removable and washable)
• Produttore: Dispositivi medici Bellababy Inc.

Garanzia e supporto

For warranty information or technical support, please contact Bellababy customer service.

• Assistenza clienti: Refer to the product packaging or the official Bellababy websito per le informazioni di contatto più aggiornate.
• Risorse online: Visitare il Negozio Bellababy su Amazon per ulteriori informazioni e supporto sul prodotto.
• Parti di ricambio: Only use replacement parts supplied or approved by Bellababy.
