TOTAL 20V Cordless Paint Spray Gun P20S

Introduzione

This instruction manual provides essential information for the safe and efficient operation, setup, and maintenance of your TOTAL 20V Cordless Paint Spray Gun P20S (Model TSGLI2001). Please read this manual thoroughly before using the product and retain it for future reference. Proper understanding and adherence to these instructions will ensure optimal performance and extend the lifespan of your tool.

Avviso importante sulla sicurezza: Always use this electric tool away from water or open flames. Ensure the battery is correctly charged and handled. Avoid exposure to or inhalation of paint fumes and always use appropriate protective equipment such as gloves and safety glasses.

Prodotto finitoview e componenti

The TOTAL 20V Cordless Paint Spray Gun P20S is designed for precise paint application on various surfaces. It operates wirelessly with a 20V P20S battery (sold separately) and features adjustable spray pressure and volume for versatile use.

Figura 1: Principale view of the TOTAL 20V Cordless Paint Spray Gun P20S.

Componenti inclusi:

• 1 Cordless Paint Spray Gun
• 1 Viscosity Measuring Funnel
• 1 Maintenance Needle

Nota: The 20V P20S battery and charger are not included and must be purchased separately. These are compatible with all TOTAL P20S range tools.

Figura 2: lato view of the spray gun, highlighting the battery slot.

Specifiche

Impostare

1. Installazione della batteria

1. Ensure the spray gun is turned off.
2. Align the 20V P20S battery (sold separately) with the battery slot at the base of the handle.
3. Inserire la batteria nell'apposito alloggiamento finché non scatta in posizione.
4. Per rimuoverla, premere il pulsante di rilascio sulla batteria e farla scorrere fuori.

2. Preparazione della vernice

1. Before filling, ensure your paint is suitable for spray application. Water-based paints may require thinning.
2. Use the provided viscosity measuring funnel to check the paint's viscosity. The maximum supported viscosity is 40 DIN. If the paint is too thick, thin it according to the paint manufacturer's instructions.
3. Mescolare bene la vernice.

3. Riempimento del serbatoio

1. Unscrew the paint reservoir from the spray gun body.
2. Carefully pour the prepared paint into the 800ml reservoir. Do not overfill.
3. Screw the reservoir back onto the spray gun body, ensuring it is tightly sealed to prevent leaks.

4. Nozzle and Air Cap Assembly

1. Ensure the nozzle and air cap are clean and correctly assembled.
2. The air cap can be rotated to adjust the spray pattern (horizontal, vertical, or circular). Select the appropriate pattern for your task.

Figura 3: primo piano view of the adjustable nozzle and air cap.

Istruzioni per l'uso

1. Accensione/Spegnimento

Press the power button located on the top of the spray gun to turn it on or off.

2. Adjusting Spray Pressure and Volume

• The spray gun offers adjustable pressure between 0.1 and 0.2 bar. Use the pressure adjustment dial (if present, typically near the trigger) to fine-tune the pressure for different paint types and desired finishes.
• The paint flow volume can be adjusted up to 60 ml per minute. This is usually controlled by a knob or trigger adjustment to regulate the amount of paint sprayed.

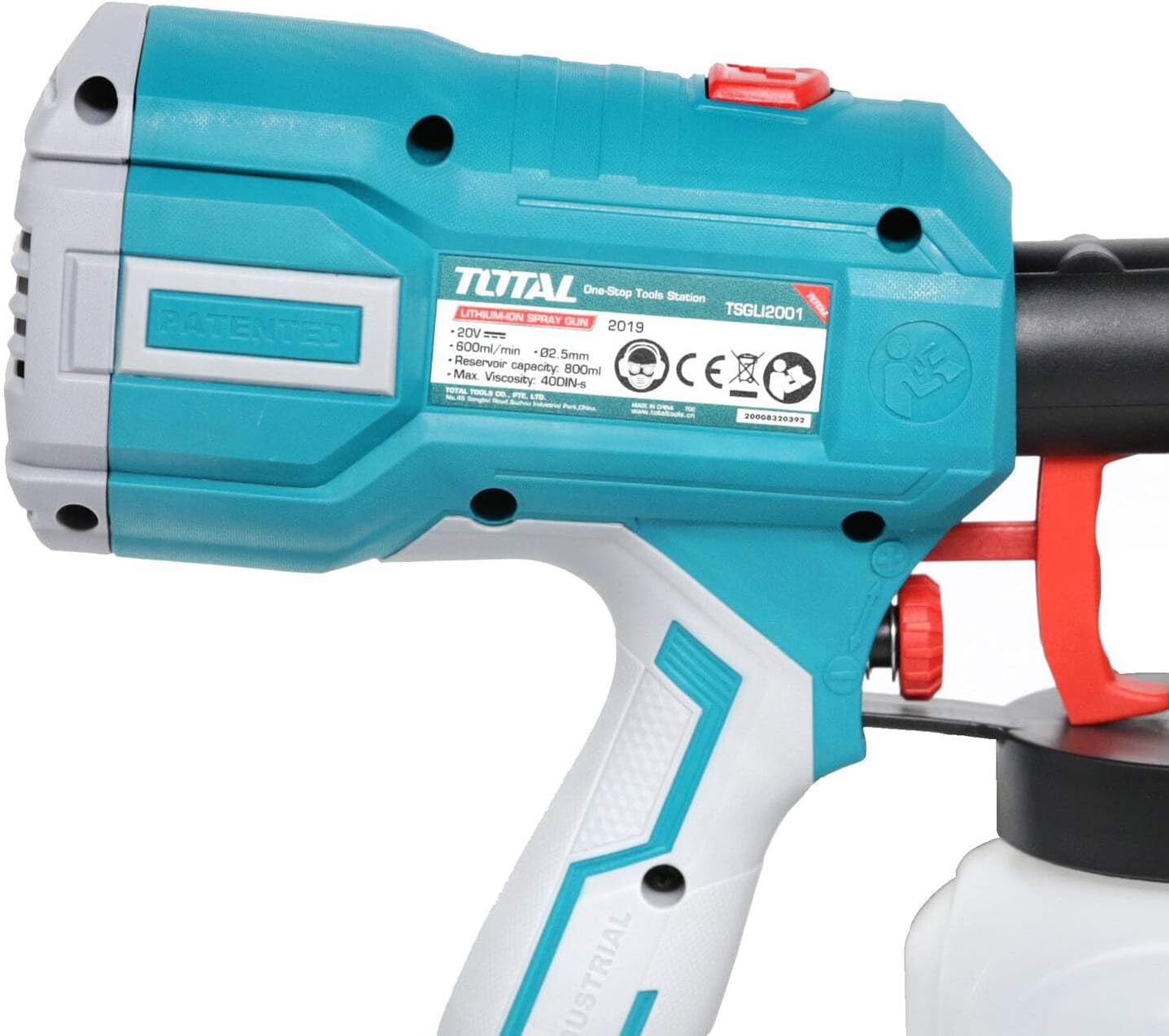

Figura 4: lato view illustrating the location of controls for adjustment.

3. Tecnica di spruzzatura

1. Prova a spruzzo: Always perform a test spray on a piece of scrap material to check the spray pattern and flow before applying to your main project. Adjust settings as needed.
2. Distanza: Hold the spray gun approximately 6-12 inches (15-30 cm) from the surface, depending on the desired coverage and paint type.
3. Movimento: Move the spray gun in smooth, even strokes, keeping a consistent distance and speed. Overlap each pass by about 50% to ensure even coverage.
4. Controllo del grilletto: Press the trigger fully to start spraying and release it at the end of each stroke. Avoid tilting the gun excessively, as this can affect paint flow.
5. Più strati: Apply multiple thin coats rather than one thick coat to achieve a better finish and prevent drips. Allow adequate drying time between coats.

Manutenzione

Regular cleaning and maintenance are crucial for the longevity and optimal performance of your paint spray gun.

1. Pulizia dopo ogni utilizzo

1. Serbatoio vuoto: Svuotare il serbatoio da eventuali residui di vernice.
2. Risciacquo: Fill the reservoir with an appropriate cleaning solution (water for water-based paints, mineral spirits or paint thinner for oil-based paints).
3. Spray Cleaner: Spruzzare la soluzione detergente attraverso la pistola finché non esce trasparente.
4. Smontare e pulire: Disassemble the nozzle, air cap, and reservoir. Clean all components thoroughly with the cleaning solution and the provided maintenance needle to remove any paint residue. Pay special attention to small openings and channels.
5. Asciugare: Wipe all parts dry with a clean cloth.
6. Rimontare: Reassemble the spray gun once all parts are dry.

2. Conservazione

• Store the clean and dry spray gun in a cool, dry place, away from direct sunlight and extreme temperatures.
• Prima di riporre l'utensile, assicurarsi che la batteria sia stata rimossa.

Risoluzione dei problemi

If you encounter issues with your paint spray gun, refer to the following common problems and solutions:

Informazioni sulla sicurezza

Always observe the following safety precautions when operating the TOTAL 20V Cordless Paint Spray Gun P20S:

• Dispositivi di protezione individuale (DPI): Always wear safety glasses, gloves, and a respirator or mask to protect against paint fumes and overspray.
• Area di lavoro: Ensure the work area is well-ventilated to prevent the buildup of flammable vapors and to minimize inhalation of paint fumes. Keep the area clear of children and pets.
• Materiali infiammabili: Do not use the spray gun near open flames, sparks, or any ignition sources. Ensure proper ventilation when using flammable paints or solvents.
• Sicurezza elettrica: Keep the tool away from water. Ensure the battery is correctly charged and handled according to its instructions. Do not expose the battery or tool to rain or wet conditions.
• Compatibilità vernice: Only use paints and thinners recommended for spray gun application. Always check the paint manufacturer's instructions for thinning and compatibility.
• Pulizia: Disconnect the battery before cleaning or performing any maintenance. Use appropriate cleaning solutions and dispose of waste materials responsibly.
• Magazzinaggio: Conservare l'utensile e la batteria in un luogo sicuro e asciutto, fuori dalla portata dei bambini.

Garanzia e supporto

Informazioni sulla garanzia

Questo prodotto TOTAL è dotato di una garanzia del produttore di 10 anniSi prega di conservare la prova d'acquisto per eventuali reclami in garanzia.

Assistenza clienti

For any questions regarding the product, including dimensions, weight, or operation, please contact TOTAL customer support through the internal messaging service of your purchase platform. Our team is available to assist you with any inquiries.
