Pride Mobility Victory LX Sport S710LXW Mobility Scooter User Manual

1. Prodotto finitoview

The Pride Mobility Victory LX Sport S710LXW is a 4-wheel electric mobility scooter designed for adults, offering enhanced comfort and performance for varied terrains. It features Comfort-Trac Suspension (CTS) with adjustable shocks, a delta tiller with ergonomic wraparound handles, and a full light package for visibility.

Image 1.1: Pride Mobility Victory LX Sport S710LXW Mobility Scooter (Blue). This image displays the scooter from a front-side angle, highlighting its robust design and basket.

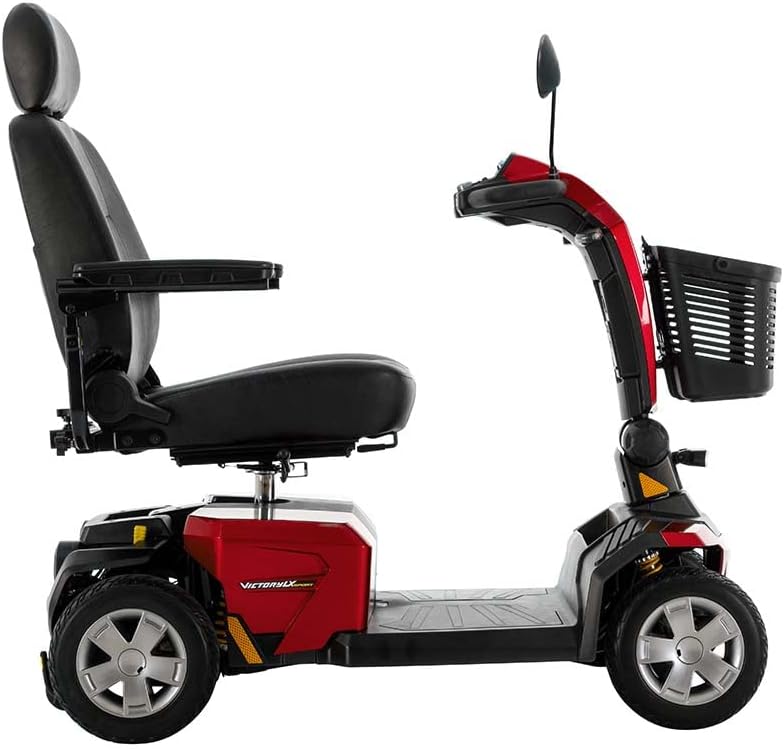

Image 1.2: Pride Mobility Victory LX Sport S710LXW Mobility Scooter (Red). This image shows the scooter from a side profile, illustrating its overall length and seat design.

Caratteristiche principali:

• CTS Suspension with Adjustable Shocks: Provides a smooth and comfortable ride over varied terrain.
• Convenient Charger Port: Easily accessible on the tiller for straightforward battery charging.
• Delta Tiller with Ergonomic Wraparound Handles: Designed for comfortable operation and wrist support.
• Easy-to-Read Voltmeter: Allows for quick monitoring of battery status.
• Full Light Package: Includes LED headlight, rear lights, directional signals, and an under-tiller courtesy light for enhanced visibility.

2. Assemblaggio e configurazione

The Victory LX Sport S710LXW requires some assembly. Follow these general steps, referring to the detailed instructions in your physical manual for specific diagrams and procedures.

1. Disimballaggio: Rimuovere con attenzione tutti i componenti dalla confezione.
2. Installazione del sedile: Attach the seat to the seat post.
3. Tiller Assembly: Secure the tiller column to the scooter base.
4. Installazione della batteria: Install the batteries according to the manual's instructions.
5. Regolazioni: Adjust the seat height, armrests, and tiller angle for optimal comfort using the easy-to-grip tiller adjustment knob.
6. Carica iniziale: Caricare completamente la batteria prima del primo utilizzo.

Image 2.1: Scooter Features Diagram. This diagram illustrates various components of the scooter including the 18"x18" vinyl reclining high-back seat, adjustable headrest, flip-up armrests, puddle light, standard front basket, easy-to-grip tiller adjustment knob, full LED lighting package, storage compartment, tiller console, and CTS Suspension with adjustable shocks.

3. Funzionamento

Operating your Victory LX Sport S710LXW is straightforward. Familiarize yourself with the controls and features before your first ride.

• Controlli: The delta tiller features ergonomic wraparound handles for comfortable steering. An easy-to-read voltmeter displays the battery status, allowing you to monitor power levels.
• Regolazione della velocità: Use the low/high-speed setting switch to control your travel speed. The scooter can reach up to 8.6 MPH (for a 200 lbs. user) or 8 MPH (for a 400 lbs. user).
• Illuminazione: The full light package includes an LED headlight, rear lights, directional signals, and an under-tiller courtesy light for enhanced visibility and safety, especially in low-light conditions.
• Ricarica: The convenient charger port is located on the tiller for easy access. Ensure proper charging care as outlined in the full manual for long-lasting battery life.
• Trasferimento: Utilize the armrests and delta tiller to assist with safely transferring in and out of the scooter.

4. Manutenzione e cura

Regular maintenance ensures the longevity and optimal performance of your scooter. Adhere to these guidelines for proper care.

• Magazzinaggio: Store the scooter in a dry place, protected from extreme temperatures and moisture, to safeguard electronic components and batteries.
• Pulizia: Keep the scooter clean by regularly wiping it down with a damp cloth. Avoid using harsh abrasive chemicals or excessive water, which can damage electrical components.
• Cura della batteria: Charge the battery as needed, following the recommendations in your complete user manual. Refer to the battery manufacturer's guidelines for specific charging cycles and practices to maintain battery health and maximize lifespan.
• Controlli regolari: Periodically inspect the tires for proper inflation and wear, brakes for proper function, and all other components for any signs of damage, loose connections, or unusual noises.
• Servizio professionale: For any complex issues, repairs, or routine professional inspections, consult an authorized Pride Mobility service provider. Do not attempt repairs beyond your technical capability.

5. Specifiche

The following table outlines the key specifications for the Pride Mobility Victory LX Sport S710LXW Mobility Scooter.

Image 5.1: Detailed Specifications Table. This image provides a comprehensive list of technical specifications for the Victory LX Sport S710LXW model.

6. Informazioni sulla garanzia

Pride Mobility offers a comprehensive warranty for the Victory LX Sport S710LXW, effective from the date of purchase for the original purchaser.

• Garanzia a vita: Structural Frame Components, including the main frame, seat post, fork, and tiller frame, are covered for the lifetime of the product against defects in material and/or workmanship.
• Garanzia di due anni: For two years from the date of purchase, Pride Mobility will repair or replace parts found to be defective in material and/or workmanship. This includes the transaxle, bushings, brake, motor brake, bearings, and electronic assemblies (controllers, harnesses, chargers, and any other electrical subassembly). Please note that warranty claims for electronic assemblies may be void if damage results from the use of parts or accessories that are not original Pride parts and are not purchased through an authorized Pride provider.
• Six-Month Battery Warranty: The battery is covered by a separate six-month warranty provided by the battery manufacturer. Batteries are not warranted by Pride Mobility.
• This warranty does not extend to items that may require replacement due to normal wear and tear. For full details, exclusions, and to make a warranty claim, please contact Pride Mobility or an authorized representative.

Image 6.1: Pride Mobility Quality Assurance. This image highlights Pride Mobility's commitment to quality with icons for FDA testing and approval, reliable service resources, and proven performance since 1986.

7. Supporto e contatto

For further assistance, technical support, or warranty inquiries regarding your Pride Mobility Victory LX Sport S710LXW Mobility Scooter, please contact Pride Mobility Products Corporation. Refer to your physical user manual for specific contact information or visit the official Pride Mobility websito per le risorse di supporto più aggiornate.
