Serpent SRX8 GTE 1/8 Scale 4WD Electric GT RC Car Instruction Manual

1. Introduzione

The Serpent Cobra SRX8 GTe 1/8 RTR Electric On-Road Sedan is engineered for electric GT racing, offering precise control and maximum cornering force. Its chassis adheres to ROAR and IFMAR rules, featuring a minimum kick-up angle for improved clearance over track obstacles. The design incorporates aluminum bulkheads and suspension brackets for durability and precise handling. Advanced HTD Differentials with large gears ensure optimal engagement and reduced performance fade. The vehicle is powered by a 120A ESC and a 1900kV motor, providing robust performance right out of the box.

Componenti inclusi:

• Serpent Cobra SRX8 GTE 1/8 RTR Electric On-Road Sedan
• Dragon-RC pistol type transmitter (2.4 GHz)
• Dragon-RC 120A waterproof speed controller
• Dragon-RC powerful 1900kV brushless sensorless motor
• Servo Dragon-RC da 15 kg con ingranaggi in metallo
• Dragon-RC high grip pre-mounted GT race tires and wheels
• Pre-painted and precut ultra-low GT bodyshell and large rear aero-wing
• Full color user manual and decal set

Items Needed to Complete (Not Included):

• 4 AA batteries for the transmitter
• 2 2S Lipo hard-packs (3800 mA or more with T-style connector)
• 1 Compatible charging equipment

2. Caratteristiche principali

• High-Performance Electric GT Car: Experience exceptional performance on the race track with this race-ready 1/8 electric GT car.
• Expertly Pre-Assembled and Pre-Set: The vehicle comes fully assembled and pre-set by experts, allowing you to start racing immediately with minimal setup time.
• Durable Construction and Precise Handling: The 3mm 6061T6 aluminum chassis plate, composite stiffeners, and angled sides ensure both durability and enhanced stiffness for stable and precise handling.
• Optimized Weight Distribution: The low-positioned longitudinal battery boxes contribute to a well-balanced weight distribution, resulting in improved handling and performance on the track.
• Comprehensive RTR Package: The car comes with a Dragon-RC pistol-type transmitter, waterproof speed controller, powerful brushless motor, high-grip pre-mounted GT race tires, and a prepainted and precut ultra-low GT bodyshell. The package also includes a full-color user manual and decal set for added convenience.

3. Guida all'installazione

3.1. Installazione della batteria del trasmettitore

1. Open the battery compartment on the Dragon-RC pistol type transmitter.
2. Inserire 4 batterie AA, assicurandosi della corretta polarità (+/-).
3. Chiudere bene il vano batterie.

3.2. Installazione e ricarica della batteria del veicolo

1. Ensure your 2S Lipo hard-packs (3800 mA or more with T-style connector) are fully charged using compatible charging equipment.
2. Remove the bodyshell from the SRX8 GTE.
3. Securely place the charged Lipo batteries into the low-positioned longitudinal battery boxes.
4. Connect the batteries to the Dragon-RC 120A waterproof speed controller, ensuring correct polarity.
5. Replace the bodyshell, ensuring it is securely fastened.

3.3. Accensione iniziale

1. Accendi prima il trasmettitore.
2. Then, turn on the power switch on the vehicle's speed controller.
3. Observe the LED indicators on both the transmitter and ESC to confirm successful binding and power-up.

4. Istruzioni per l'uso

4.1. Controlli di base

• Sterzo: Use the steering wheel on the transmitter to control the vehicle's direction (left/right).
• Throttle: Use the trigger on the transmitter to control forward and reverse movement. Pull for forward, push for reverse/brake.

4.2. Consigli di guida

• Start with gentle throttle inputs to familiarize yourself with the vehicle's response.
• Prima di cimentarsi in manovre ad alta velocità, esercitarsi a sterzare e frenare in uno spazio aperto.
• The waterproof speed controller allows for operation in damp condizioni, ma evitare l'immersione completa.

5. Manutenzione

5.1. Assistenza generale

• Dopo ogni utilizzo, pulire il veicolo per rimuovere sporco, polvere e detriti. Utilizzare una spazzola morbida o aria compressa.
• Inspect all screws and fasteners for tightness. Re-tighten as necessary.
• Check for any damaged or worn parts, especially after impacts. Replace damaged parts promptly.

5.2. Trasmissione e sospensioni

• Regularly inspect the HTD Differentials and drive shafts for smooth operation and wear.
• Check the oil-filled shocks for leaks and proper damping. Rabboccare o sostituire l'olio dell'ammortizzatore secondo necessità.
• Ensure suspension arms and linkages move freely without excessive play.

6. Risoluzione Dei Problemi

6.1. Vehicle Not Responding

• Check if both the transmitter and vehicle are powered on.
• Ensure batteries in both the transmitter and vehicle are fully charged.
• Verify that the transmitter and receiver are properly bound. Refer to the full user manual for binding instructions.

6.2. Scarsa prestazione

• Inspect tires for wear or damage. Replace if necessary.
• Check for debris obstructing the drivetrain or wheels.
• Ensure all moving parts of the suspension and steering are free from binding.

7. Specifiche

8. Immagini del prodotto

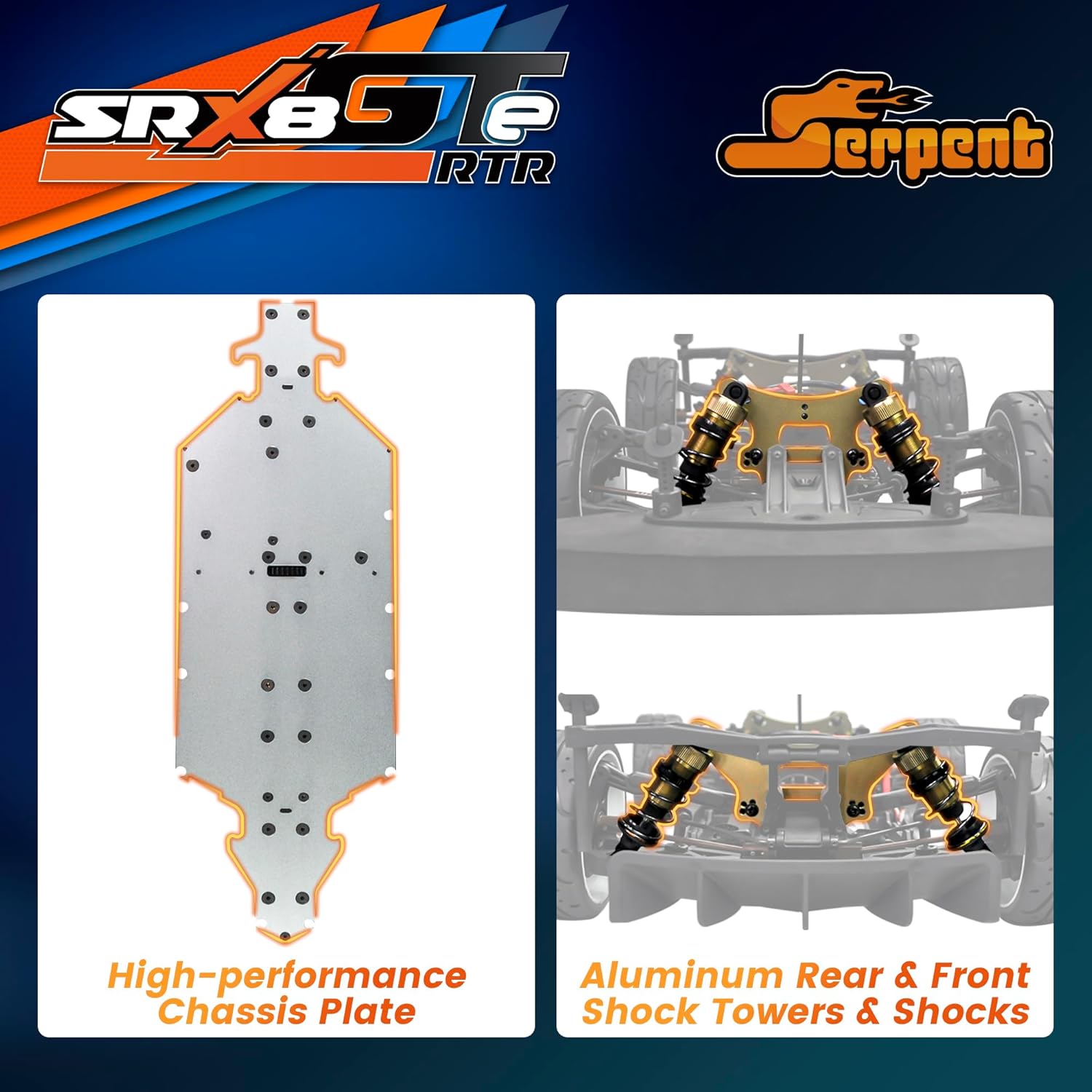

Image showing the robust 3mm 6061T6 aluminum chassis plate and the durable aluminum rear and front shock towers with their associated shocks, highlighting the vehicle's sturdy construction.

Avvicinamento view of the vehicle's drivetrain components, including the gear differential and CVD drive shafts, illustrating the advanced power transmission system.

Components of the Dragon-RC electronics package, featuring the pistol-type transmitter, 120A waterproof speed controller, 1900kV brushless motor, receiver, and 15kg metal gear servo.

A detailed diagram illustrating the various parts of the SRX8 GTE chassis, including steering components, shocks, motor, ESC, and differentials, providing an overview della disposizione interna.

9. Garanzia e supporto

For warranty information, technical support, or to inquire about replacement parts, please refer to the full user manual included with your product or visit the official Serpent websito. Conservare la ricevuta d'acquisto per eventuali reclami in garanzia.
