Rain Bird 4AP Adjustable Pattern Spray Nozzle Instruction Manual

Introduzione

The Rain Bird 4AP Adjustable Pattern Spray Nozzle is designed to provide precise and efficient watering for your lawn and garden. This nozzle features an adjustable spray pattern from 0° to 360° and a spray distance of 3' to 4', allowing for customized irrigation to minimize overspray and water waste. It is compatible with all Rain Bird pop-up sprinklers and is constructed from durable, UV and chemical-resistant materials for long-lasting performance.

Caratteristiche del prodotto

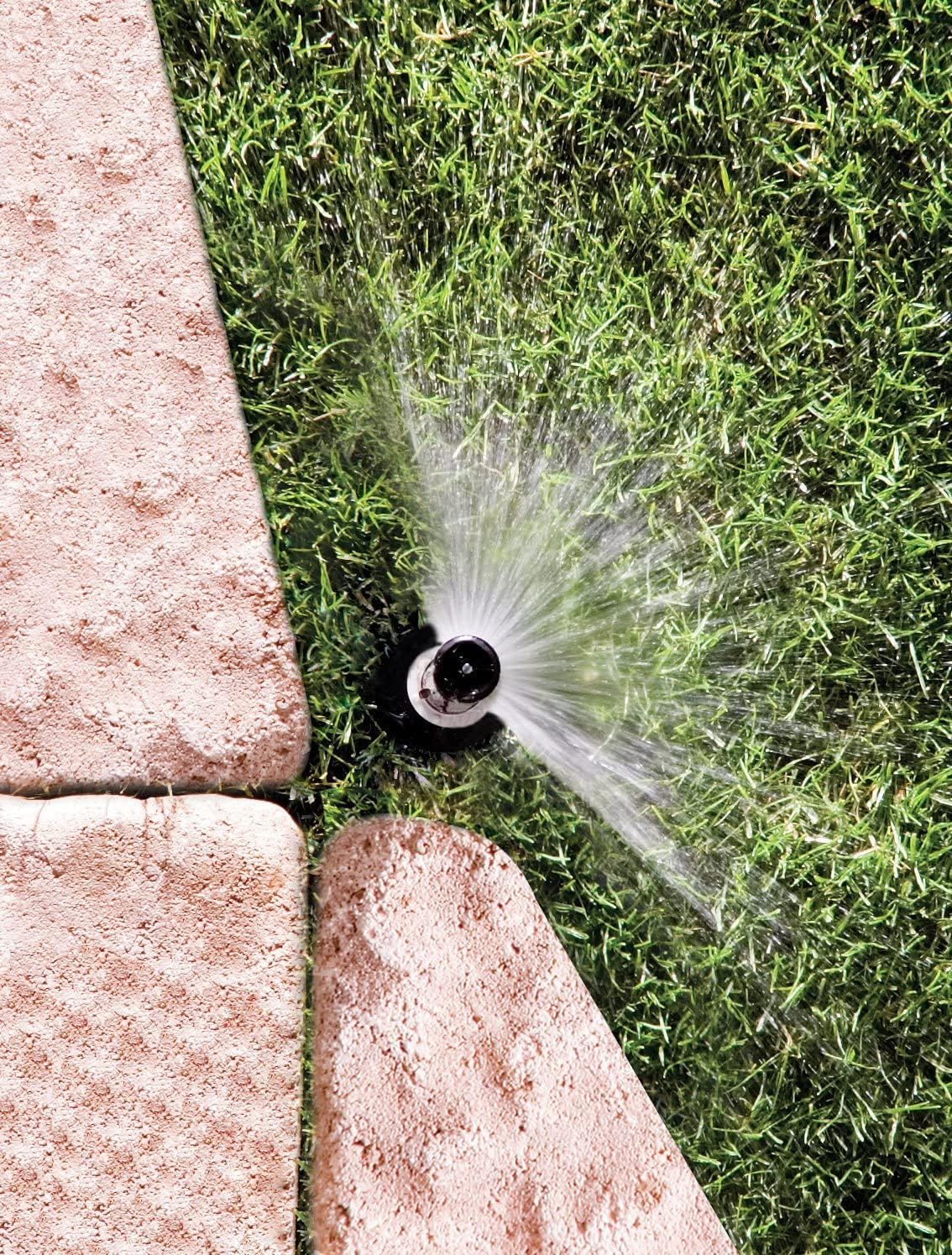

Image: An illustrative diagram highlighting the key features of the Rain Bird 4AP nozzle, including its adjustable pattern, spray distance, filter, and compatibility with Rain Bird pop-up sprinklers.

• Modello di spruzzo regolabile: Easily adjust the spray from 0° to 360° to match your landscape's exact needs.
• Optimized Spray Distance: Delivers water effectively within a 3' to 4' range.
• Compatibilità universale: Designed to fit all Rain Bird pop-up sprinklers and shrub adapters.
• Regolazione intuitiva: Features a textured adjustment collar for easy grip and precise pattern changes, even when wet.
• Costruzione durevole: Made from non-corrosive plastic and stainless steel for extended product life.
• Flow Rate Control: Stainless steel adjustment screw allows fine-tuning of water flow from 0.65 to 3.7 gallons per minute.
• Design anti-intasamento: Includes a blue fine mesh filter screen to prevent clogging and maintain precise radius adjustment.
• Matched Precipitation Rate (MPR): Ensures uniform water distribution when mixed with other Rain Bird MPR nozzles on the same zone.

Configurazione e installazione

Installing the Rain Bird 4AP nozzle is a straightforward process. Ensure your irrigation system is turned off before beginning installation or adjustment.

Steps for Nozzle Replacement:

1. Chiudere l'erogazione idrica: Locate the main water shut-off valve for your irrigation system and turn it off to prevent water flow during installation.
2. Rimuovere il vecchio ugello: Gently pull up the sprinkler riser. If replacing an existing nozzle, unscrew the old nozzle counter-clockwise from the top of the sprinkler riser.


   Image: A hand using a tool to pull up a pop-up sprinkler head from the lawn.
3. Pulisci lo schermo del filtro: Inspect the blue fine mesh filter screen. If it's dirty, rinse it thoroughly under clean water. This screen helps prevent clogging.
4. Installare il nuovo ugello: Screw the Rain Bird 4AP nozzle clockwise onto the top of the sprinkler riser until it is hand-tight. Do not overtighten.


   Image: A hand removing the top cap from a sprinkler riser.



   Image: A hand inserting a new nozzle into the sprinkler riser.

5. Adjust Spray Pattern (Initial): Before turning on the water, you can pre-set the approximate spray pattern by rotating the textured adjustment collar. The physical left edge indicator helps in feeling the fixed left edge of the pattern.


   Image: A hand making adjustments to the spray nozzle on a sprinkler head.
6. Attivare l'erogazione idrica: Slowly turn the main water supply back on and observe the sprinkler's operation.

Funzionamento e regolazione

The Rain Bird 4AP nozzle offers easy adjustment for precise watering.

Adjusting Spray Pattern (Arc):

1. Identify Adjustment Collar: The textured yellow collar on the nozzle is used for adjusting the spray pattern.
2. Rotate to Adjust Arc: While the sprinkler is operating, gently rotate the textured collar to increase or decrease the spray arc from 0° (off) to 360° (full circle). The physical left edge indicator helps in setting the starting point.


   Image: A hand making fine adjustments to the spray pattern of an active sprinkler nozzle.
3. Observe Coverage: Adjust until the desired coverage area is achieved, ensuring water is directed only where needed and minimizing overspray onto sidewalks or driveways.

Adjusting Spray Distance (Radius):

1. Individuare la vite di regolazione: A stainless steel screw is located at the top center of the nozzle.
2. Use a Screwdriver: Use a flat-head screwdriver to turn the screw. Turning it clockwise will decrease the spray distance, and counter-clockwise will increase it. The "captured" screw slot prevents screwdriver slippage.
3. Fine-Tune Distance: Adjust the screw until the spray distance is between 3' and 4' as required for your specific area.

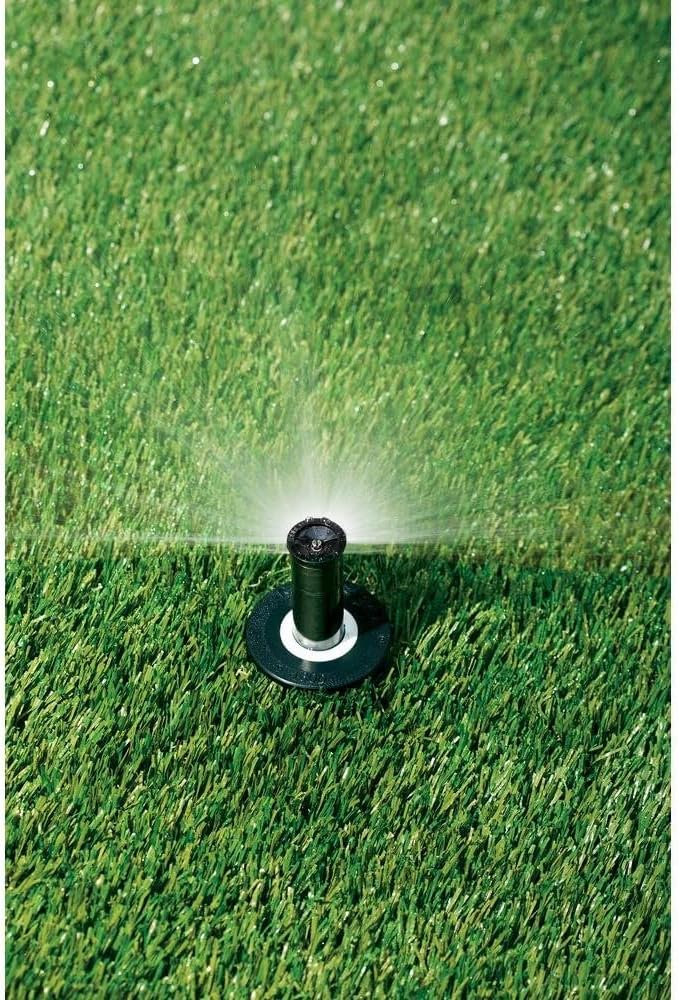

   Immagine: una vista dall'alto view of a sprinkler head actively spraying water onto a grassy area, demonstrating coverage.



   Immagine: Lato A view of a sprinkler head actively spraying water across a lawn, illustrating the spray distance.

Manutenzione

Regular maintenance ensures optimal performance and longevity of your Rain Bird 4AP nozzle.

Pulizia del filtro:

1. Chiudere l'acqua: Always turn off the water supply to the sprinkler before performing any maintenance.
2. Rimuovere l'ugello: Unscrew the nozzle from the sprinkler riser.
3. Filtro di accesso: The blue fine mesh filter screen is located at the base of the nozzle. Gently pull it out.
4. Schermo pulito: Rinse the filter screen under running water to remove any debris, dirt, or mineral deposits. A soft brush can be used for stubborn residue.
5. Reinstalla: Insert the clean filter screen back into the nozzle, then screw the nozzle back onto the sprinkler riser.

winterization:

In regions subject to freezing temperatures, it is recommended to winterize your irrigation system to prevent damage. Consult your irrigation system's main manual for specific winterization procedures, which typically involve draining water from lines and components.

Risoluzione dei problemi

Specifiche

Garanzia e supporto

For specific warranty information regarding your Rain Bird 4AP Adjustable Pattern Spray Nozzle, please refer to the documentation included with your purchase or visit the official Rain Bird website. Rain Bird is committed to providing high-quality irrigation products and customer support.

If you require further assistance, have questions about installation, operation, or troubleshooting, please contact Rain Bird Customer Service:

• Websito: www.rainbird.com
• Informazioni sui contatti: Refer to the "Contact Us" section on the Rain Bird websito per numeri di telefono e supporto via e-mail.
