MasterPro Foodies Contact Grill BGEU-3869 Instruction Manual

Introduzione

Thank you for choosing the MasterPro Foodies Contact Grill BGEU-3869. This versatile electric grill is designed to provide efficient and enjoyable cooking experiences with its 3-in-1 functionality. Please read this manual thoroughly before first use to ensure safe operation and optimal performance of your appliance.

Prodotto finitoview

The MasterPro Foodies Contact Grill is crafted from high-quality stainless steel and plastic, ensuring durability and resistance to wear. Its interior features a non-stick coating to prevent food from sticking and simplify cleaning. The grill offers three distinct cooking functions: a contact grill for meats, fish, vegetables, and sandwiches; an oven function for melting cheese or baking; and a 180° table grill for an expanded cooking surface.

Caratteristiche principali

• Funzionalità 3 in 1: Operates as a contact grill, oven, or 180° table grill.
• Dual Independent Thermostats: Allows separate temperature control for each grill plate.
• Piastre antiaderenti rimovibili: Garantisce un facile rilascio del cibo e una pulizia semplificata.
• Oil Collection System: Integrated tray to collect excess grease.
• Design ergonomico: Practical size for convenient storage and intuitive use.

This image displays the MasterPro Foodies Contact Grill in its closed position, highlighting its compact design and the main control panel. The image also indicates its 3-in-1 functionality.

Importanti istruzioni di sicurezza

Quando si utilizzano apparecchi elettrici, è necessario adottare sempre le seguenti precauzioni di sicurezza di base per ridurre il rischio di incendi, scosse elettriche e/o lesioni alle persone, tra cui:

• Leggere tutte le istruzioni prima di utilizzare l'apparecchio.
• Non toccare le superfici calde. Utilizzare sempre maniglie o manopole.
• To protect against electrical shock, do not immerse the cord, plugs, or the appliance body in water or any other liquid.
• È necessaria un'attenta supervisione quando un elettrodomestico viene utilizzato da bambini o nelle loro vicinanze.
• Unplug from the outlet when not in use and before cleaning. Allow the appliance to cool completely before attaching or removing parts, and before cleaning.
• Non utilizzare alcun apparecchio con un cavo o una spina danneggiati o dopo che l'apparecchio non funziona correttamente o è stato danneggiato in qualsiasi modo. Contatta l'assistenza clienti per ricevere assistenza.
• L'uso di accessori non consigliati dal produttore dell'apparecchio può causare lesioni.
• Non utilizzare all'aperto. Questo apparecchio è solo per uso domestico interno.
• Non lasciare che il cavo di alimentazione penda dal bordo di un tavolo o di un bancone o che tocchi superfici calde.
• Non posizionare l'apparecchio sopra o vicino a un fornello a gas o elettrico caldo, oppure in un forno caldo.
• Prestare la massima attenzione quando si sposta un apparecchio contenente olio bollente o altri liquidi bollenti.
• Collegare sempre prima la spina all'apparecchio, quindi collegare il cavo alla presa a muro. Per scollegarlo, posizionare un qualsiasi interruttore su "off", quindi rimuovere la spina dalla presa a muro.
• Non utilizzare l'apparecchio per scopi diversi da quello previsto.
• Questo apparecchio ha una spina polarizzata (una lama è più larga dell'altra). Per ridurre il rischio di scosse elettriche, questa spina è progettata per adattarsi a una presa polarizzata solo in un modo. Se la spina non si adatta completamente alla presa, inverti la spina. Se ancora non si adatta, contatta un elettricista qualificato. Non tentare di modificare la spina in alcun modo.

Componenti del prodotto

• Piastre per griglia: Two removable, non-stick plates for cooking.
• Manopole di controllo della temperatura: Independent controls for each plate, located on the front.
• Maniglia: Ergonomically designed for safe opening and closing of the grill.
• Sistema di bloccaggio: Secures the grill plates in the closed position for storage or specific cooking modes.
• Oil Collection Tray: A removable tray positioned to collect excess grease and liquids during cooking.
• Indicatore luminoso di alimentazione: Illuminates when the grill is connected to power.
• Spia luminosa di pronto intervento: Illuminates when the grill has reached the set temperature.

Installazione e primo utilizzo

Disimballaggio

• Rimuovere con cautela tutti i materiali di imballaggio, gli adesivi e le etichette dall'apparecchio.
• Pulire l'esterno dell'apparecchio con un panno pulito e asciutto.amp stoffa.
• Wash the removable grill plates and the oil collection tray with warm, soapy water. Rinse them thoroughly and dry completely before first use.

Installazione della piastra

• Assicurarsi che l'apparecchio sia scollegato e completamente freddo.
• Align each removable grill plate with its corresponding slots on the appliance.
• Press down firmly until the plates click securely into place.

Oil Collection Tray

• Slide the oil collection tray into its designated slot at the front of the grill. Ensure it is securely positioned before operating the appliance.

This image shows the removable non-stick grill plates being detached from the main unit, demonstrating the ease of removal for cleaning. The plates feature a ribbed design for effective grilling.

Istruzioni per l'uso

Preriscaldamento della griglia

• Plug the appliance into a suitable electrical outlet. The power indicator light will illuminate.
• Turn the temperature control dials to your desired setting. The ready indicator light will illuminate once the grill reaches the set temperature.
• Allow the grill to preheat for approximately 5-10 minutes for optimal cooking results.

Using as a Contact Grill

• Place food, such as meat, fish, vegetables, or sandwiches, directly onto the bottom grill plate.
• Gently lower the top grill plate onto the food. The floating hinge design allows for even pressure on various food thicknesses.
• Cook until the desired doneness is achieved.

Using as an Oven (Grill Position)

• With the grill closed, place food that requires melting or baking, such as cheese on bread or vegetables, onto the bottom plate.
• Close the lid without applying firm pressure, allowing heat to circulate around the food.
• Monitor food closely to prevent overcooking.

Using as a 180° Table Grill

• Ensure the grill is unplugged and cool before attempting to open it fully.
• Open the grill completely until both plates lie flat, creating a larger, open grilling surface.
• Plug in the appliance and set the desired temperature for each plate using the independent control dials.
• This mode is suitable for grilling larger quantities of food simultaneously, functioning as a table barbecue.

This image illustrates the three primary modes of the grill: Contact Grill, Oven Position, and 180° Table Grill. Each mode is suitable for different cooking needs.

Controllo della temperatura

• The MasterPro Foodies Contact Grill features two independent thermostats, allowing you to set different temperatures for the upper and lower plates.
• Adjust the dials to increase or decrease the heat as needed for various food types and cooking preferences.

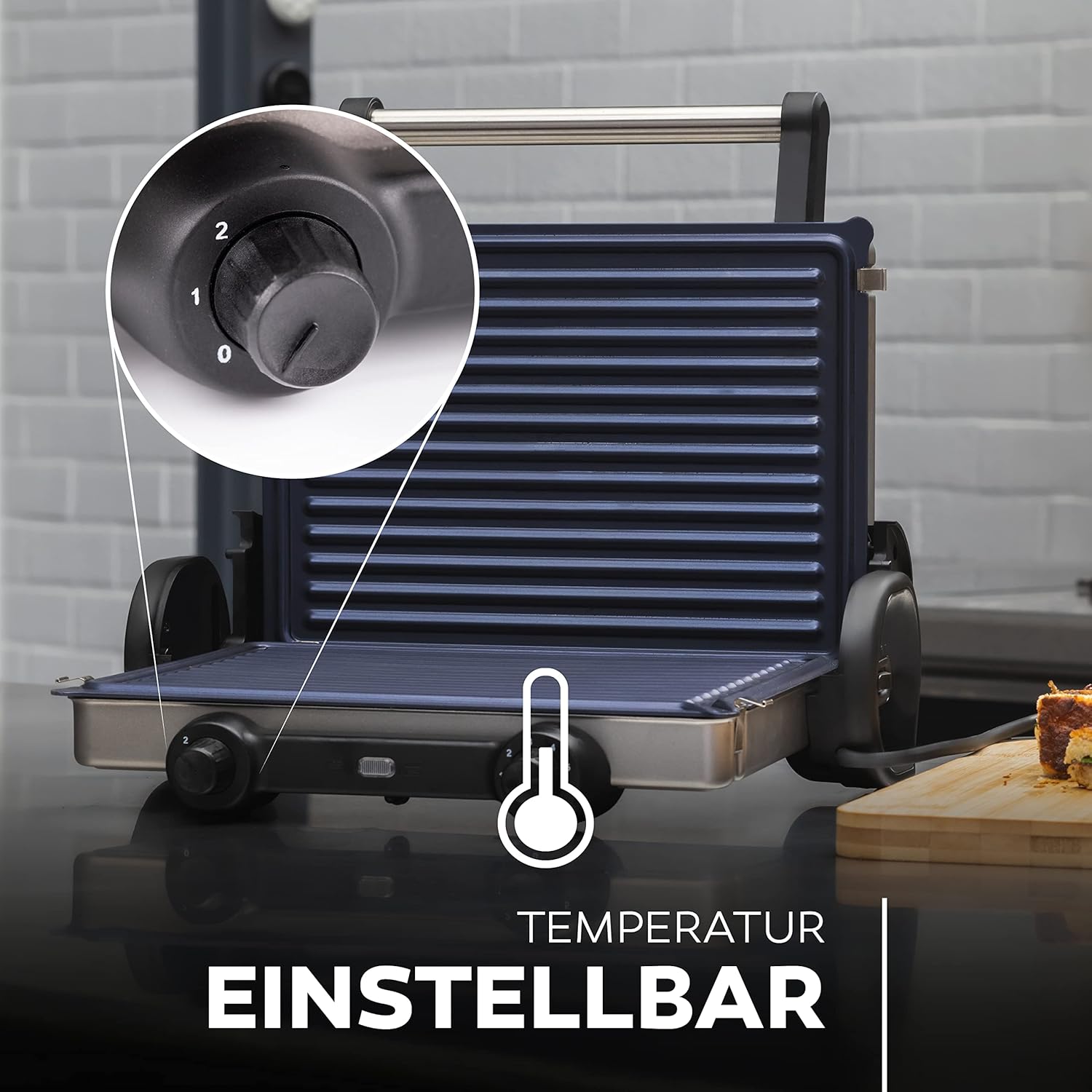

This image highlights the temperature control dial on the grill, showing the numbered settings. The grill features dual thermostats for independent temperature adjustment of each plate.

Pulizia e manutenzione

Dopo ogni utilizzo

• Scollegare sempre l'apparecchio dalla presa di corrente e lasciarlo raffreddare completamente prima di pulirlo.
• Remove the oil collection tray and empty any accumulated grease. Wash the tray with warm, soapy water and dry thoroughly.
• Remove the grill plates by pressing the release buttons (if applicable) and wash them with warm, soapy water. For stubborn residue, soak the plates before cleaning. Avoid using abrasive cleaners, metal scouring pads, or sharp utensils that could damage the non-stick coating.
• Pulire l'esterno dell'apparecchio con un pannoamp panno. Non immergere l'unità principale in acqua o altri liquidi.

Magazzinaggio

• Ensure the grill is clean and completely dry before storing.
• The grill can be stored vertically to save space. Utilize the locking system to keep the plates securely closed during storage.

This image focuses on the locking mechanism of the grill, which secures the top and bottom plates together. This feature is useful for storage and for maintaining even pressure during contact grilling.

Risoluzione dei problemi

Specifiche

• Numero modello: BGEU-3869
• Energia: 2100 Watt
• Voltage: 40 Volt
• Dimensioni (lunghezza x larghezza x altezza): 33P x 40l x 13H centimeters (33 x 40 x 13 cm)
• Peso: 4 chilogrammi
• Materiale: Ceramic (Non-stick coating), Stainless Steel, Plastic
• Colore: Argento/Nero
• Caratteristiche speciali: Non-stick coating, Removable plates, Temperature control, Oil collection tray, 180° opening.

This image provides a visual representation of the grill's dimensions, showing its length (40cm), width (33cm), and height (13cm) when closed. This helps users understand the physical size of the appliance.

Garanzia e supporto

Informazioni sulla garanzia

This MasterPro Foodies Contact Grill is covered by a manufacturer's warranty against defects in materials and workmanship. The specific duration and terms of the warranty may vary by region. Please refer to the warranty card included with your product or contact your local retailer for detailed information.

Assistenza clienti

For technical assistance, spare parts, or any questions regarding your MasterPro Foodies Contact Grill, please contact MasterPRO customer service. Contact details can typically be found on the manufacturer's websito o nella confezione del prodotto.
