Manuale utente della macchina da ricamo a specchio BAi

Introduzione

The BAi The Mirror Embroidery Machine is a state-of-the-art multi-needle commercial embroidery machine designed for professional and high-volume embroidery tasks. It offers exceptional precision, speed, and versatility for a wide range of applications, from intricate designs on 3D hats to large-scale projects on various fabrics. This manual provides essential information for setting up, operating, and maintaining your machine to ensure optimal performance and longevity.

Image: The BAi The Mirror Embroidery Machine, showcasing its 15 needles, thread spools, and integrated touch screen control panel.

Installazione e assemblaggio

Before operating your BAi The Mirror Embroidery Machine, proper setup and assembly are crucial. Ensure you have adequate space and follow these steps carefully.

1. Disimballaggio e posizionamento

The machine is heavy (approximately 391 pounds). It is recommended to have multiple people assist with unboxing and placing the machine on a sturdy, level surface. Ensure the chosen location has access to a power outlet and sufficient clearance around the machine for operation and maintenance.

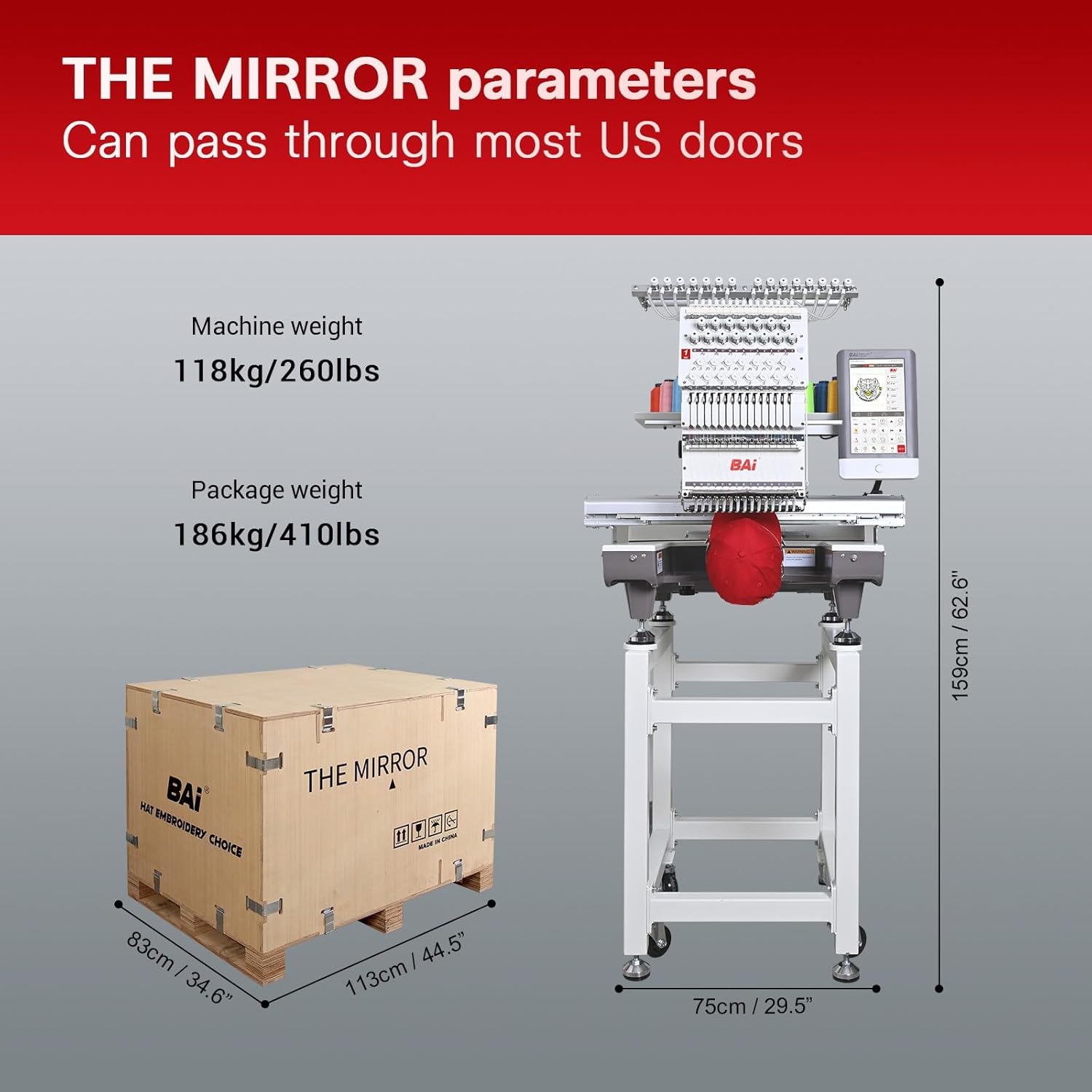

Image: Product dimensions and package weight for planning placement and handling.

2. Installazione degli accessori

Your machine comes with a wide range of accessories. Install the thread stand, hooping devices, and any other necessary components as per the included quick start guide or detailed manual (available as PDF).

Immagine: Un completo view of the rich and complete accessories provided with the machine, including various hoops, a tool kit, and thread.

3. Hooping and Material Preparation

Proper hooping is essential for quality embroidery. The machine supports various hooping devices, including those compatible with Hoop Master systems. Ensure your material is securely hooped and stabilized before starting any project.

Video: Demonstrates the BAi machine's compatibility and cooperation with the Hoop Master system for efficient material hooping.

Funzionamento della macchina

The BAi The Mirror Embroidery Machine features the intuitive Institch I5 Computer System, making operation easy to learn and quick to master.

1. Institch I5 Control System

The 10-inch touch screen provides a user-friendly interface with 1-3 step operation guidance. It supports batch patch processing, online editing, and various pattern file operazioni.

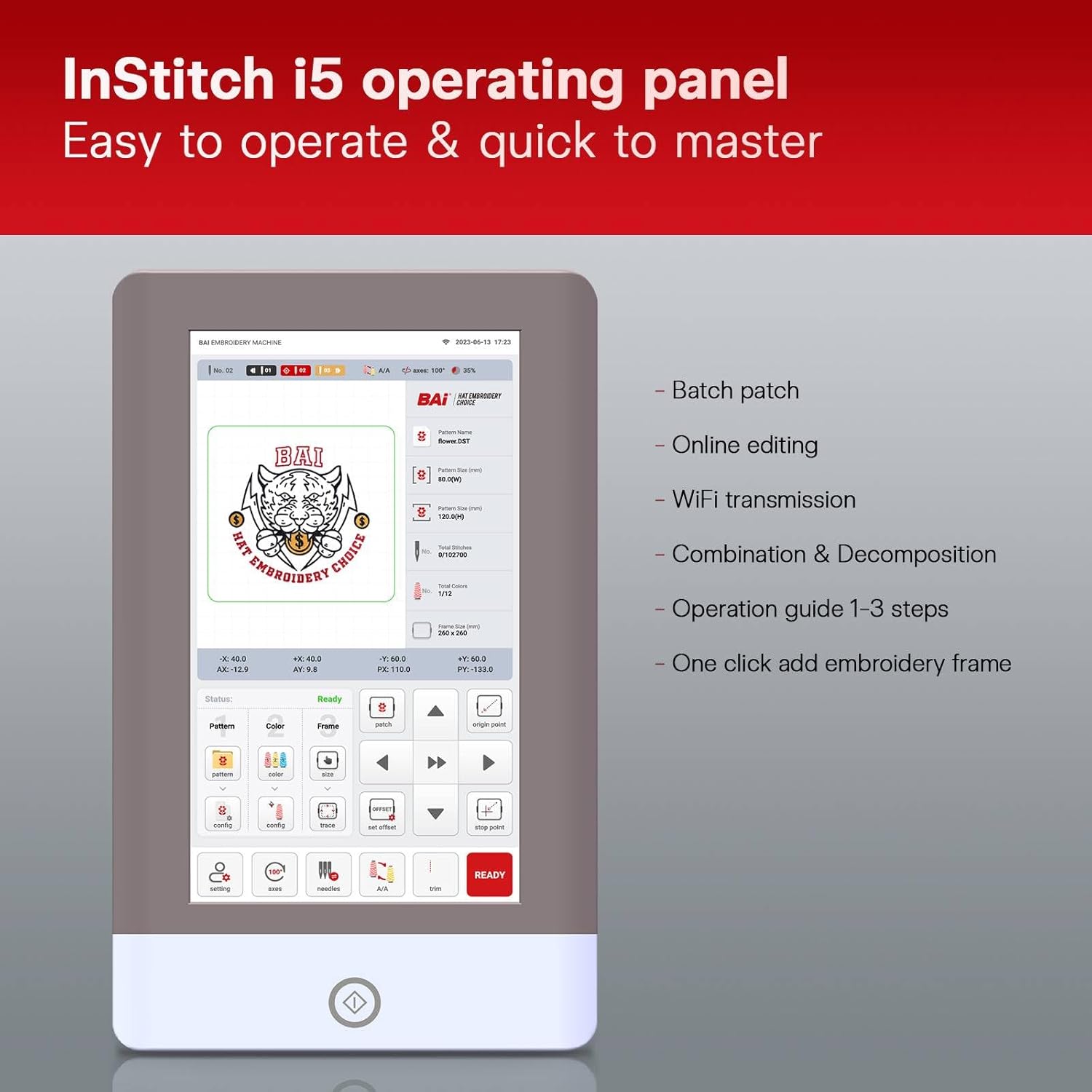

Image: The Institch i5 operating panel, highlighting its ease of use and quick mastery for various embroidery functions.

2. Design Input and Transmission

Designs can be easily transferred to the machine via Wi-Fi or USB. The unique Cloud Platform allows for managing and transferring pattern files across multiple machines and models, and even calculates automatic cost estimations.

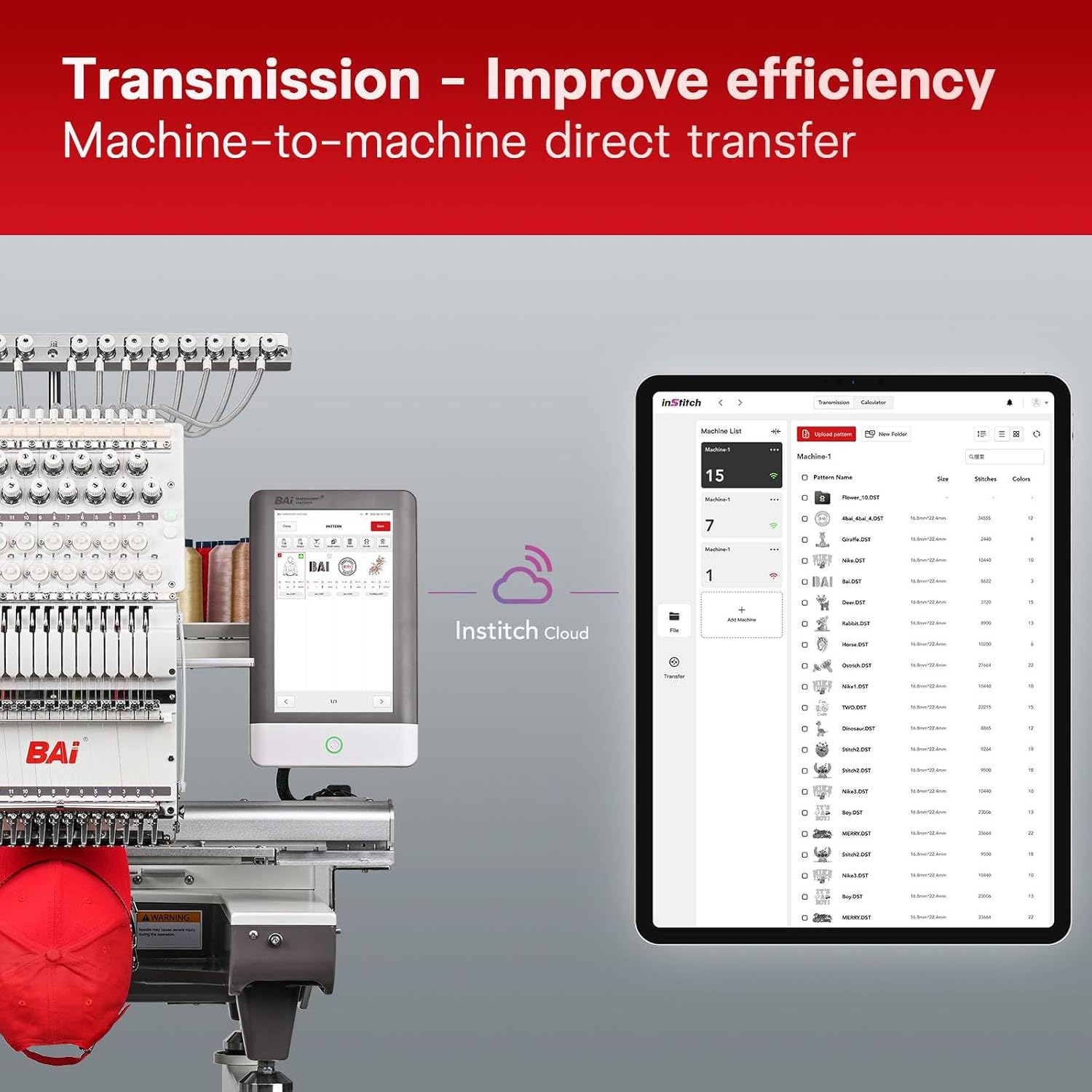

Image: Illustration of design transmission to the machine, emphasizing improved efficiency through machine-to-machine direct transfer.

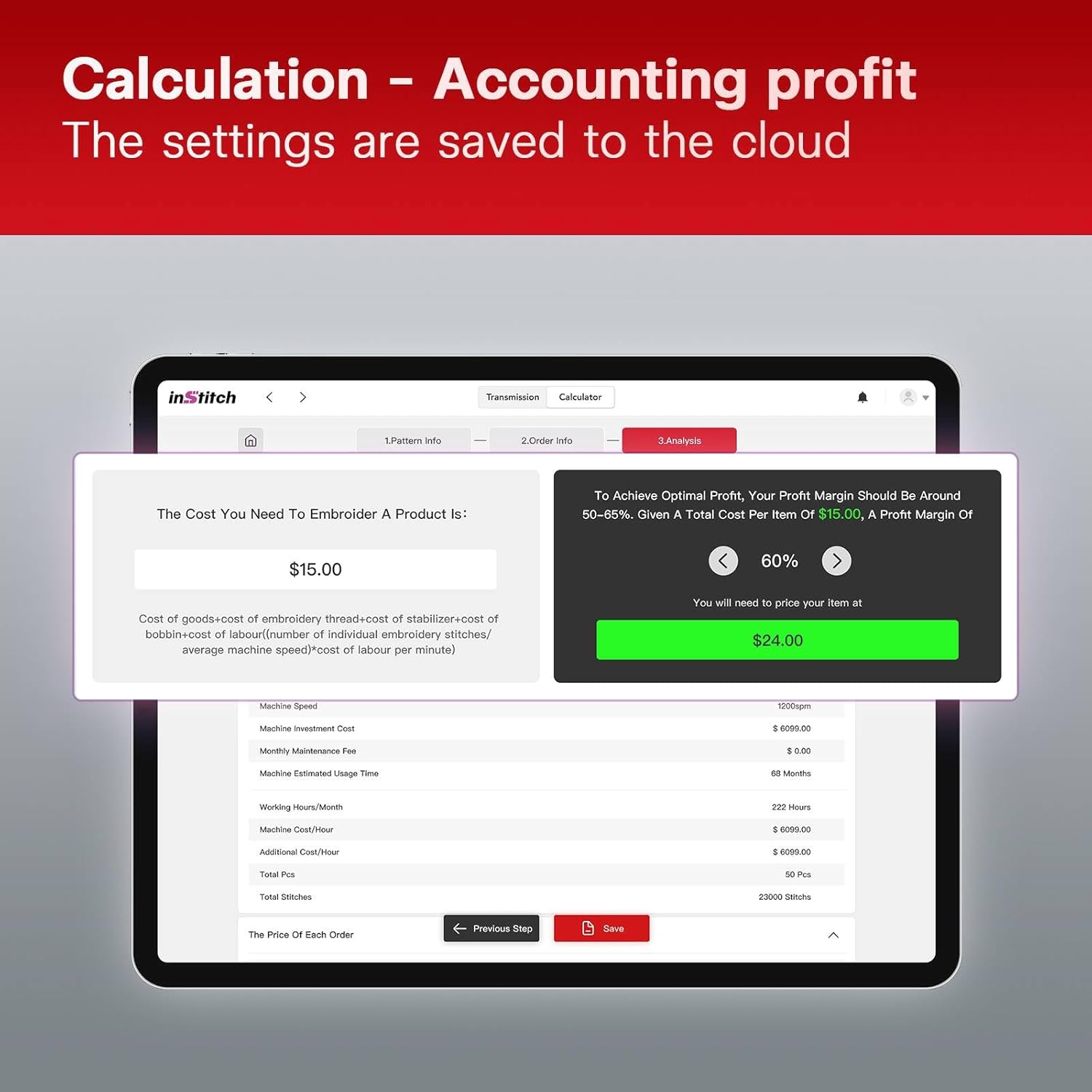

Image: A screen displaying the calculation and accounting profit feature, where settings are saved to the cloud for easy access.

3. High-Speed Embroidery

The machine can reach speeds of up to 1,200 stitches per minute (spm) and maintains a stable 850 spm when embroidering structural hats, significantly increasing produttività.

Image: A hat being embroidered, demonstrating the machine's capability for 850 spm on structural hats, reducing needle and thread breakage.

Video: Shows the process of 3D puff hat embroidery using The Mirror machine, highlighting its precision.

4. Applicazioni versatili

The Mirror machine is capable of embroidering on a wide variety of items, including hats, T-shirts, hoodies, jeans, jackets, bags, leather, shoes, and patches.

Immagine: Examples of various items that can be embroidered, such as hats, clothing, patches, bags, hoodies, and shoes, demonstrating the machine's versatility.

Image: A hat positioned for 270-degree side embroidery, indicating that areas 1-4 can be embroidered.

Video: Showcases the selection of embroidered structural hats, demonstrating the machine's capability for various hat types.

Manutenzione

Regular maintenance is vital for the longevity and optimal performance of your BAi The Mirror Embroidery Machine. Key maintenance tasks include:

• Oliatura: Lubricate moving parts as indicated in the detailed manual to reduce friction and wear.
• Pulizia: Regularly clean the needle area, bobbin case, and tension discs to prevent lint and thread buildup, which can affect stitch quality.
• Sostituzione dell'ago: Replace needles regularly, especially if they become dull or bent, to prevent thread breaks and fabric damage.
• Aggiornamenti software: Keep the Institch I5 system updated to ensure you have the latest features and bug fixes.

Risoluzione dei problemi

This section addresses common issues you might encounter during operation. For more complex problems, refer to the comprehensive user guide or contact customer support.

• Interruzioni del thread: Check thread path for tangles, ensure proper tension, and inspect the needle for damage or dullness.
• Scarsa qualità del punto: Verify correct tension settings for both upper and bobbin threads. Ensure the correct needle type and size are used for the fabric.
• La macchina non risponde: Check power connections, ensure the emergency stop button is not engaged, and restart the machine if necessary.
• Design Transfer Issues: Confirm Wi-Fi connectivity or USB connection. Ensure design files are in a compatible format (DST/DSB).

Specifiche

Garanzia e supporto

BAi is committed to providing excellent customer service and support for your embroidery machine.

Informazioni sulla garanzia

Please refer to your purchase documentation for specific warranty terms and conditions. Generally, products come with a manufacturer's warranty covering defects in materials and workmanship.

Assistenza clienti

BAi offers free training and technical support to assist users with any questions or issues. A dedicated support team is available to guide you through unboxing, assembly, threading, tension adjustment, and more.

For direct assistance, you can reach out to the BAi support team. Many users also find valuable tips and tricks by joining the official BAi Embroidery Machine Family user group on social media. Additionally, helpful video tutorials are available on the "BAIEmbroideryMachineTV" channel.

Il prodotto può essere restituito facilmente entro 30 giorni, come previsto dalla politica di Amazon.

For further details, you may also consult the official Instructions for Use (IFU) PDF document: Scarica la Guida per l'utente (PDF)
