Manuale utente dell'aspirapolvere e lavapavimenti senza fili Dibea G22 a doppio utilizzo

1. Introduzione

This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your Dibea G22 Dual Usage Cordless Vacuum and Mop Floor Cleaner. Please read this manual thoroughly before first use and retain it for future reference.

2. Istruzioni di sicurezza

• Prima del primo utilizzo, assicurarsi che l'apparecchio sia completamente carico.
• Do not use the vacuum cleaner to pick up water or other liquids, flammable substances, or sharp objects.
• Tenere capelli, abiti larghi, dita e tutte le parti del corpo lontano dalle aperture e dalle parti mobili.
• Non utilizzare l'apparecchio se danneggiato o malfunzionante. Contattare l'assistenza clienti per ricevere assistenza.
• Utilizzare solo accessori e accessori consigliati dal produttore.
• Store the appliance in a dry, indoor location when not in use.
• Questo apparecchio non è destinato all'uso da parte di persone con capacità fisiche, sensoriali o mentali ridotte, a meno che non siano supervisionate o istruite.

3. Contenuto della confezione

Verificare che tutti i componenti elencati di seguito siano inclusi nel pacchetto:

• 1 x Dibea G22 Main Machine
• 1 x Aluminum Tube
• 1 x Bend Tool
• 1 x Flexi Tool
• 1 x Adattatore
• 1 x Nozzle with Brush Tool
• 1 x Triangular Suction Tool
• 1 x Spazzola per la pulizia
• 1 x Mite Removal brush
• 1 x Wall mount (Hanger)
• 1 x Wall Screw/Sticker
• 1 x Magnetic Water Tank
• 1 x Brush Head
• 1 x spazzola a rullo
• 2 panni per la pulizia
• 1 x Manuale utente

An illustration of all components included in the Dibea G22 package, including the main unit, various attachments, and charging accessories.

4. Prodotto finitoview

Schermo LED HD da 4.1 pollici

The integrated HD LED display provides real-time updates on the cleaning status, including selected mode and potential airway blockages.

The HD LED display shows various operational modes: Daily mode (blue), Strong mode (purple), Ultra Power mode (red), and an Airway block indicator (red).

4.2 Potenza di aspirazione

The Dibea G22 features a powerful 29,000Pa suction, adjustable across three speeds to suit different cleaning requirements, effectively removing both large and small particles.

An illustration demonstrating the powerful 29,000Pa suction capability of the Dibea G22, highlighting its effectiveness on various debris.

4.3 Smart Power Control System

The Smart Power Control System optimizes usage time across different modes:

• Modalità giornaliera: Up to 48 minutes working time, suitable for normal dust and debris.
• Modalità forte: Up to 22 minutes working time, for dust with sticky substances and larger particles. Recommended for bed cleaning.
• Ultra Power Mode: Up to 10 minutes working time, for large surface dirt requiring quick removal. Avoid sharp objects.

A diagram illustrating the different power modes and their corresponding usage times for the Dibea G22.

4.4 Multi-Stage Sistema di filtrazione

The appliance incorporates a multi-stage cyclone filtration system with additional cyclones for precise dust and air separation. Air is ventilated from the top, ensuring cleaner exhaust.

A cross-sectional view of the Dibea G22's multi-stage filtration system, showing the path of air and dust separation.

It features a 0.5mm metal filter and an H13 high-grade HEPA filter, providing a filter effective rate of up to 99.7%. The fully sealed filtration outlet prevents secondary pollution.

Un dettagliato view of the 0.5mm metal filter and 360° HEPA filter components within the Dibea G22.

4.5 High Efficiency Turbo Brush

The upgraded roller brush design effectively prevents particle spillage. Its dense and smooth surface helps to avoid hair tangling. Features include a double metal design for noise reduction and an internal independent motor for enhanced cleaning.

An exploded diagram of the Dibea G22's high-efficiency turbo brush, detailing its internal motor, double metal design, and roller brush structure.

4.6 Powerful Motor and Energy Supply

Powered by a 120,000 rpm speed-increasing motor, the G22 provides a stable and long-term operation. The intelligent power supply control ensures constant power output, and the optimized 9C battery cell allows continuous use without overheating.

Un interno view of the Dibea G22's main unit, highlighting the 120,000 rpm brushless motor and the intelligent power supply system.

4.7 Dibea D.SOC 2.1 Integrated Chip

The Dibea D.SOC 2.1 integrated chip provides outstanding cleaning and control ability. This smart wind power control solution and chip optimization system improve the core kinetic energy of the power system, reducing battery system failure rates and maintaining stable cleaning performance.

A close-up diagram of the Dibea D.SOC 2.1 integrated chip, illustrating its role in smart power control and system optimization.

5. Impostazione

5.1 Montaggio

1. Attach the Aluminum Tube: Insert the aluminum tube into the main machine until it clicks securely into place.
2. Montare la testina della spazzola: Connect the desired brush head (e.g., Roller Brush) to the other end of the aluminum tube.
3. Installare il serbatoio dell'acqua (per lavare i pavimenti): If using the mopping function, attach the magnetic water tank to the brush head. Ensure it clicks into position.
4. Caricare l'elettrodomestico: Connect the adaptor to the charging port on the main machine and plug it into a power outlet. The LED display will indicate charging status.

5.2 Installazione a parete

Use the provided wall mount and screws/sticker to secure the hanger in a convenient location for storage and charging.

6. Istruzioni per l'uso

6.1 Accensione/spegnimento e selezione della modalità

Press the power button to turn the vacuum cleaner on. Use the mode selection button on the handle to cycle through Daily, Strong, and Ultra Power modes. The current mode will be displayed on the LED screen.

6.2 Aspirazione

Select the appropriate power mode for your cleaning task. Guide the vacuum cleaner across the desired surface. The LED lights on the turbo brush will illuminate dark areas for improved visibility.

6.3 Funzione di lavaggio

To use the mopping function, ensure the magnetic water tank is filled with water and attached to the brush head, and a mopping cloth is secured. The appliance will vacuum at the front and mop at the back simultaneously.

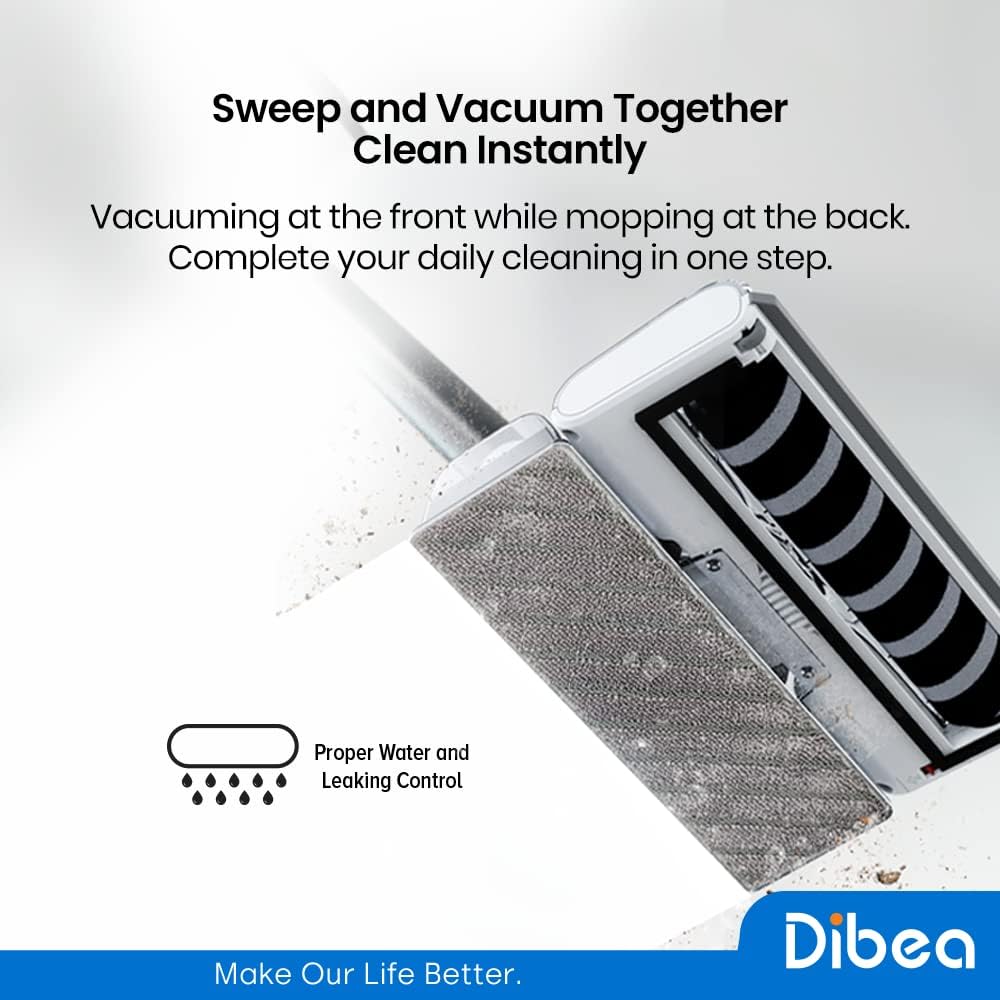

The Dibea G22 performing simultaneous vacuuming and mopping, illustrating the dual cleaning capability.

6.4 Utilizzo degli allegati

The Dibea G22 comes with various attachments for specialized cleaning:

• Strumento di piegatura: Allows cleaning under low furniture without bending down.
• Flexi Tool: Per raggiungere spazi e angoli stretti.
• Ugello con strumento pennello: Ideal for upholstery and delicate surfaces.
• Triangular Suction Tool: For specific corner or edge cleaning.
• Spazzola per la rimozione degli acari: Designed for deep cleaning mattresses and fabric surfaces to remove dust mites.

A collage of images demonstrating the versatility of the Dibea G22 with various attachments for carpet, fabric, car, and bendable cleaning.

6.5 Mattress Deep Cleaning

Attach the Mite Removal brush for high-frequency deep cleaning of mattresses. This brush is designed to effectively remove dust mites and allergens, promoting a cleaner sleeping environment.

The Dibea G22 being used with the mite removal brush for deep cleaning a mattress, highlighting its effectiveness against dust mites.

7. Manutenzione

7.1 Svuotamento del cestino

Regularly empty the dustbin to maintain optimal suction power. Press the release button to detach the dustbin and dispose of collected debris.

7.2 Pulizia dei filtri

The metal filter and HEPA filter should be cleaned periodically. Tap out loose dust and rinse with water if necessary. Ensure filters are completely dry before reinserting them into the appliance.

7.3 Pulizia delle testine delle spazzole

Remove any tangled hair or debris from the roller brush. The brush head can be detached for easier cleaning.

7.4 Water Tank and Mopping Cloths

After mopping, empty any remaining water from the magnetic water tank. Rinse the mopping cloths and allow them to air dry.

8. Risoluzione Dei Problemi

9. Specifiche

10. Garanzia e supporto

The Dibea G22 comes with a Garanzia del produttore di 2 anni. For warranty claims or technical support, please refer to your purchase documentation or contact the retailer where the product was purchased. Keep your proof of purchase for warranty validation.
