Introduzione
Thank you for choosing the EDISHINE Battery-Powered LED Projector with Motion Sensor. This manual provides essential information for the safe and efficient operation of your device. Please read it thoroughly before installation and use, and retain it for future reference.
Informazioni sulla sicurezza
- Ensure the product is installed on a stable surface or wall to prevent falling.
- Non mischiare batterie vecchie e nuove o diversi tipi di batterie.
- Smaltire le batterie usate in modo responsabile secondo le normative locali.
- Do not stare directly into the LED light source when it is active, as it may cause eye strain.
- Keep the device away from extreme temperatures and corrosive substances.
- Questo prodotto è progettato per l'uso all'aperto con grado di protezione IP44, ma evitare di immergerlo in acqua.
Contenuto della confezione
Verificare che tutti i componenti siano presenti prima dell'installazione.
- EDISHINE LED Projector with Motion Sensor
- Viti di montaggio e tasselli
- L-Pole for installation
- Manuale di istruzioni
Figure 1: Package Contents. Includes the LED projector, mounting hardware, and user manual.
Caratteristiche del prodotto
- Sensitive PIR Motion Sensor: Integrated rotatable PIR motion sensor with high sensitivity. The LED security light automatically turns on when motion is detected within an 8m range and 140° angle, and automatically turns off after a delay of 10 or 30 seconds.
- Alta luminosità: 300 lumens, 6000K outdoor projector provides ample illumination for pathways and enhances security. Suitable for lighting home entrances, patios, gardens, garages, or utility rooms.
- Design regolabile: Il lamp head can be rotated horizontally by 130° and vertically by 45°. This allows you to adjust the lighting area as desired.
- Risparmio energetico: Operates on 3 C (LR14) batteries (not included). Low power consumption ensures good lighting performance. Batteries provide extended use before replacement.
- Design resistente e impermeabile: The durable and weather-resistant design of this outdoor sensor light withstands adverse weather conditions such as rain, storms, snow, and sleet, making it ideal for outdoor use with an IP44 rating.
Configurazione e installazione
Follow these steps for proper installation of your LED projector.
- Preparare la superficie di montaggio: Choose a suitable location for installation, such as a wall, fence, or pole. Ensure the surface is sturdy enough to support the light. The recommended installation height is 2-3 meters for optimal motion detection.
- Separate the Back Cover: Loosen the screw on the back cover of the light unit to detach it from the main body.
- Mount the Back Cover: Using the provided screws and wall plugs, securely fasten the back cover to your chosen mounting surface. If using the L-pole, attach the L-pole to the back cover first, then mount it.
- Inserire le batterie: Open the battery compartment and insert 3 C (LR14) batteries (not included), ensuring correct polarity.
- Fissare l'unità luminosa: Align the main light unit with the mounted back cover and secure it by tightening the screw.
- Regola Lamp Testa: Regola la lamp head horizontally (up to 130°) and vertically (up to 45°) to direct the light as needed.

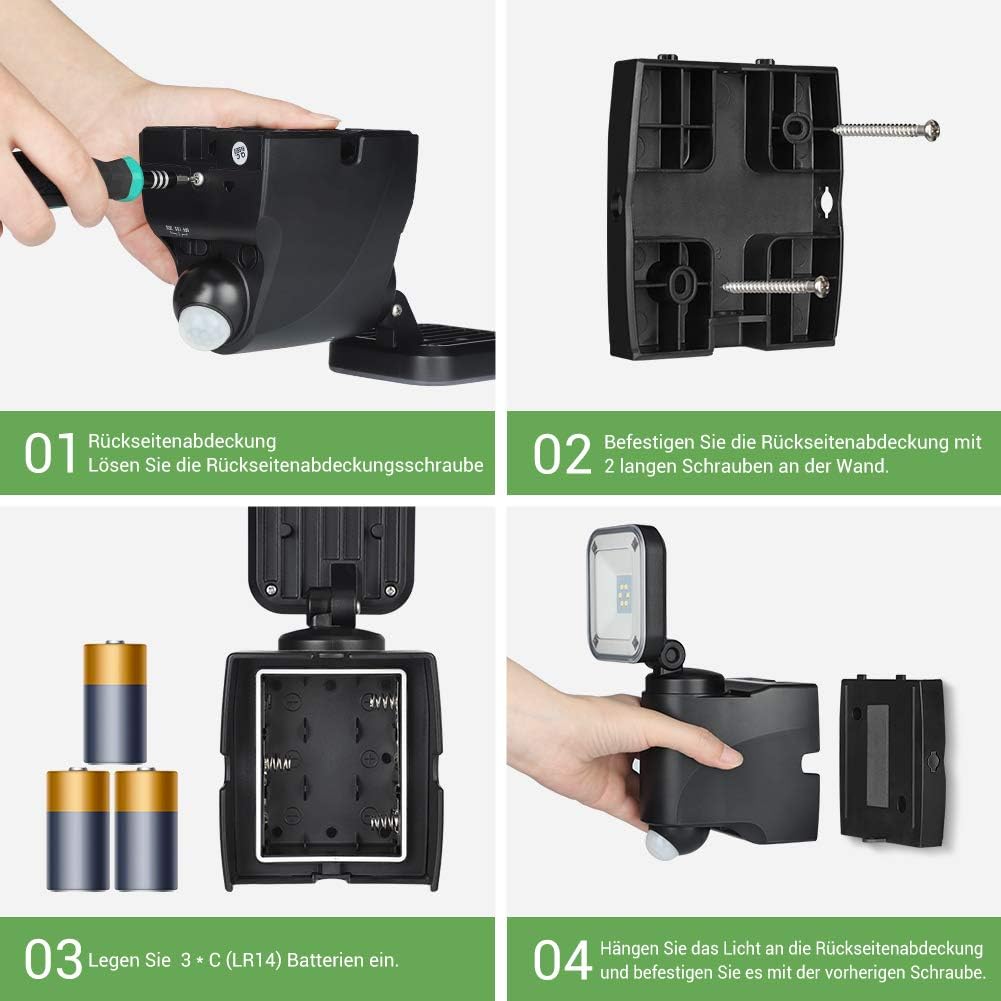

Figure 2: Installation Steps. Follow these visuals for mounting and battery insertion.
Figure 3: Adjustable Lamp Head. The lamp head and sensor can be adjusted for optimal coverage.
Istruzioni per l'uso
The EDISHINE LED Projector is designed for automatic operation based on motion detection.
- Attivazione del sensore di movimento: The integrated PIR motion sensor detects movement within an 8-meter range and a 140-degree angle. When motion is detected, the light will automatically turn on.
- Impostazione del timer: Locate the timer switch on the motion sensor unit. You can set the light to remain on for either 10 seconds or 30 seconds after motion is no longer detected. Select 'OFF' to disable the motion sensor function, though this is not the intended primary use for battery conservation.
- Sensibilità alla luce: The light is designed to operate in low-light conditions. It will not activate during daylight hours to conserve battery life.
Figure 4: Motion Sensor and Timer Switch. Adjust the duration the light stays on after motion detection.
Figure 5: Motion Sensor Coverage. Illustrates the detection range and angle.
Manutenzione
- Pulizia: Wipe the light fixture with a soft, damp panno. Non usare detergenti abrasivi o solventi.
- Sostituzione della batteria: When the light output diminishes or the motion sensor becomes less responsive, it is time to replace the batteries. Always replace all three C (LR14) batteries simultaneously.
- Ispezione: Periodically check the mounting screws to ensure the light remains securely attached. Inspect the housing for any signs of damage.
Figure 6: Durable and Waterproof Design. The light is built to withstand outdoor elements.
Risoluzione dei problemi
| Problema | Possibile causa | Soluzione |
|---|---|---|
| La luce non si accende. | 1. Le batterie sono scariche o inserite in modo errato. 2. Motion sensor is blocked or dirty. 3. La luce ambientale è troppo intensa. | 1. Sostituire le batterie assicurandosi che la polarità sia corretta. 2. Clean the sensor lens. Ensure no obstructions. 3. Test in darker conditions. |
| La luce rimane accesa troppo a lungo o troppo poco. | Timer setting is incorrect. | Adjust the timer switch to 10S or 30S as desired. |
| Il sensore di movimento non rileva alcun movimento. | 1. Sensor angle is incorrect. 2. L'oggetto è fuori dal raggio/angolo di rilevamento. 3. Sensor is dirty or obstructed. | 1. Adjust the sensor head to cover the desired area. 2. Ensure movement occurs within 8m and 140°. 3. Clean the sensor lens. |
Specifiche
| Marca | EDISHINE |
| Numero di modello | 631851165398 |
| Dimensioni del prodotto | Dimensioni: 13 x 10 x 20 cm |
| Peso | 470 grammi |
| Materiale | Plastica |
| Colore | Nero |
| Fonte di alimentazione | Battery Powered (3 x C/LR14, not included) |
| Voltage | 4.5 Volt (CC) |
| Cosatage | 3 Watt |
| Flusso luminoso | 300 lumen |
| Temperatura del colore | 6000 gradi Celsius |
| Caratteristiche speciali | Motion Detector, Waterproof |
| Grado di protezione IP | Grado di protezione IP44 |
| Intervallo di rilevamento del movimento | Fino a 8 metri |
| Angolo di rilevamento del movimento | 140 gradi |
| L regolabileamp Testa | Orizzontale 130°, Verticale 45° |
Garanzia e supporto
For warranty information or technical support, please refer to the contact details provided on the product packaging or the official EDISHINE websito. Conservare la ricevuta d'acquisto come prova d'acquisto per eventuali reclami in garanzia.
