Manuale di istruzioni per lavatrice e asciugatrice Samsung AI Control Ultrawash

Introduzione

This manual provides essential information for the safe and efficient operation of your Samsung AI Control Ultrawash Washer Dryer. Please read it thoroughly before using the appliance and keep it for future reference. This appliance combines washing and drying functions, offering advanced features like AI Control, Ecodosatore, and Steam Wash for optimal laundry care.

Immagine: Frontale view of the Samsung AI Control Ultrawash Washer Dryer, showcasing its modern design with a black door and white/silver panel.

Configurazione e installazione

Disimballaggio

• Rimuovere con attenzione tutti i materiali di imballaggio dall'apparecchio.
• Verificare eventuali danni durante il trasporto. In caso contrario, non installare il prodotto e contattare il rivenditore.
• Remove all transit bolts from the rear of the appliance. Refer to the separate installation guide for detailed instructions.

Posizionamento e connessioni

Ensure the appliance is placed on a firm, level surface. Adjust the leveling feet to prevent vibration and noise during operation.

Image: A diagram illustrating the dimensions of the washer dryer: 60 cm (width), 85 cm (height), and 65 cm (depth). It also highlights key features like 1400 RPM spin speed, 9/6 kg capacity, and AI Control.

• Dimensioni: 60 cm (width) x 85 cm (height) x 65 cm (depth).
• Connect the water inlet hose to a cold water tap and the drain hose to a suitable drain.
• Collegare il cavo di alimentazione a una presa elettrica dotata di messa a terra.

Configurazione iniziale

Before the first wash, run a drum clean cycle without laundry to remove any manufacturing residues.

Istruzioni per l'uso

Pannello di controllo Fineview

The washer dryer features an intuitive AI Control panel that learns your preferences and suggests frequently used programs.

Immagine: un primo piano view of the AI Control panel, showing a list of customizable programs such as Outdoor, Wool, Hygienic Steam, Shirts, Bedding, Rinse, and Sportswear, indicating the appliance's intelligent program selection.

Washing Cycles and Features

• Controllo AI: This intelligent system adapts to your preferences, suggesting up to 27 selectable programs and options you use most frequently.
• Ecodosatore (Auto Dispense): The integrated sensor system (water, weight, detergent) calculates the precise amount of detergent and softener for each load. The auto dispense system can last up to 1 month autonomously, reducing waste.


Immagine: Un dettaglio view of the Ecodosatore (Auto Dispense) detergent and softener compartments, highlighting its function to release the correct amount of detergent for over a month of washes, minimizing waste.

• Lavaggio a vapore: When activated, a powerful jet of steam is emitted from the bottom of the drum, removing stubborn dirt and 99.9% of bacteria and allergens for hygienically clean laundry.


Image: An illustrative graphic demonstrating the Steam Wash function, showing how steam penetrates fabrics to remove dirt and eliminate 99.9% of bacteria and allergens.

• Turbo+: This feature reduces washing time by pre-mixing detergent with air bubbles, creating a foam that acts from the first minute of washing. The rinse phase is also faster and more effective.
• Eco Lavaggio (Eco Wash): Achieve cold washes like hot washes, saving up to 70% energy.


Image: A visual representation of energy savings, indicating that with Eco Wash, you can save up to 70% energy while achieving effective cold washes.

Cicli di asciugatura

Select the appropriate drying cycle based on fabric type and desired dryness level. The AI Control can also suggest optimal drying settings.

Integrazione dell'app SmartThings

Control your washer dryer remotely and receive notifications via the SmartThings app. This requires a Wi-Fi connection and a Samsung account. The app allows for personalized program suggestions and monitoring.

Manutenzione

Una manutenzione regolare garantisce la longevità e le prestazioni ottimali del tuo elettrodomestico.

• Drum Clean Cycle: Run the Drum Clean cycle periodically (the appliance will notify you every 40 cycles) to remove 99.9% of bacteria from the inside of the washer and dirt from the rubber gasket.
• Pulizia del distributore di detersivo: Clean the detergent and softener compartments regularly to prevent residue buildup.
• Pulizia del filtro: Check and clean the debris filter located at the bottom front of the appliance periodically.
• Pulizia esterna: Pulisci l'esterno con un panno morbido eamp panno. Non usare detergenti abrasivi.

Risoluzione dei problemi

In caso di problemi, fare riferimento ai seguenti problemi comuni e alle relative soluzioni prima di contattare l'assistenza.

Specifiche

Key technical specifications for the Samsung WD90T734ABH/S3 Washer Dryer.

Image: The EU Energy Label for the Samsung WD90T734ABH/S3, showing energy efficiency class B for washing/drying and E for washing, along with consumption figures and noise levels. For more details, scan the QR code or visit eprel.ec.europa.eu/qr/262337.

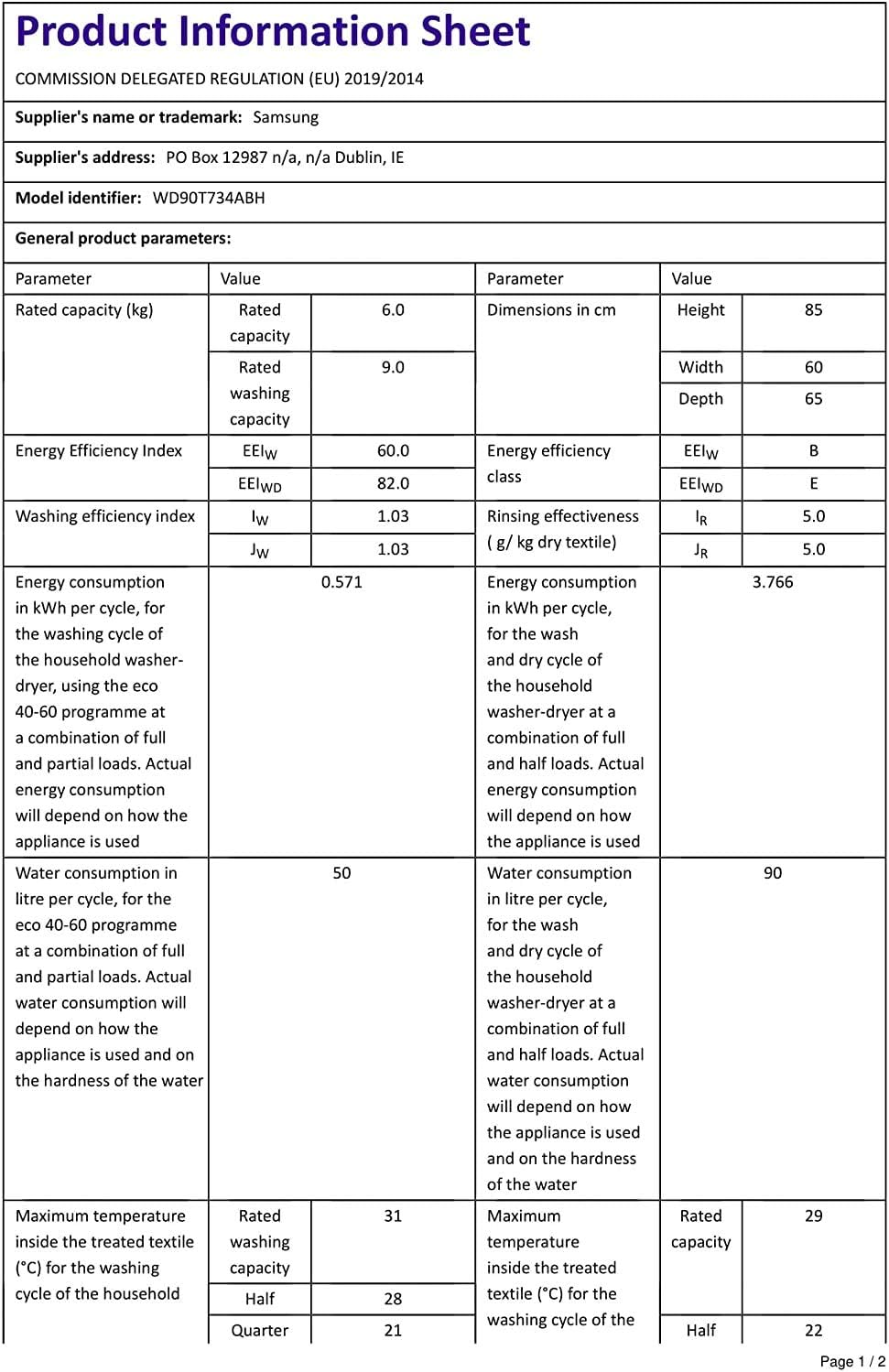

Image: The Product Information Sheet detailing general product parameters such as rated capacity, energy efficiency indices, water consumption, and dimensions for the Samsung WD90T734ABH/S3.

Garanzia e supporto

Your Samsung Washer Dryer comes with a manufacturer's warranty. For specific details regarding your warranty coverage and return policy, please refer to the terms provided at the time of purchase or consult the official Samsung support channels.

Image: A graphic highlighting the 20-year warranty on the Digital Inverter Motor, emphasizing the durability and reliability of this component.

Samsung offers a 20-year warranty on the Digital Inverter Motor, ensuring long-term reliability for a key component of your appliance.

For technical assistance, spare parts, or further information, please visit the official Samsung support website or contact their customer service. Keep your model number (WD90T734ABH/S3) and serial number ready when contacting support.
