1. Introduzione
Welcome to the user manual for your Voltair Heavy Duty 12V Air Compressor, Model AV12. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your compressor. Please read this manual thoroughly before operating the unit to ensure proper use and to prevent damage or injury.
The Voltair AV12 is a rugged, high-performance air compressor designed for demanding applications, particularly in service and farm trucks, providing reliable air where and when you need it.
2. Informazioni sulla sicurezza
Per ridurre il rischio di lesioni o danni, osservare sempre le seguenti precauzioni di sicurezza:
- Leggi il manuale: Prima dell'uso, leggere attentamente tutte le istruzioni e le avvertenze.
- Protezione degli occhi: Always wear ANSI-approved safety goggles when operating or servicing the compressor.
- Protezione dell'udito: Use hearing protection during extended operation to prevent hearing damage.
- Ventilazione: Utilizzare il compressore in un'area ben ventilata.
- Sicurezza elettrica: Ensure the 12V power source is appropriate and connections are secure to prevent electrical hazards. Do not operate with damaged wiring.
- Rilascio della pressione: Always release air pressure from the system before performing any maintenance or disconnecting hoses.
- Superfici calde: The compressor can become hot during operation. Avoid contact with hot surfaces to prevent burns.
- Bambini e astanti: Tenere i bambini e gli astanti lontani dal compressore in funzione.
3. Prodotto finitoview e Caratteristiche
The Voltair AV12 is engineered for durability and performance. Key features include:
- Rugged construction suitable for heavy-duty applications.
- Finest 1800 rpm, thermal protected permanent magnet motor on the market.
- Heavy-duty cast-iron twin cylinder, oil-lubed compressor running at only 470 rpm for extended life.
- Positive gear belt drive system for reliable power transmission.
- All steel powder-coated cabinet for protection and durability.

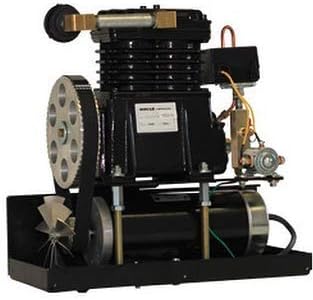

Figure 1: Main Voltair AV12 Compressor Unit. This image displays the robust construction of the compressor, highlighting its motor, twin cylinders, and belt drive system.
Figure 2: Voltair AV12 Compressor with key features. This image provides a visual representation of the compressor unit, emphasizing its compact design and robust build quality.

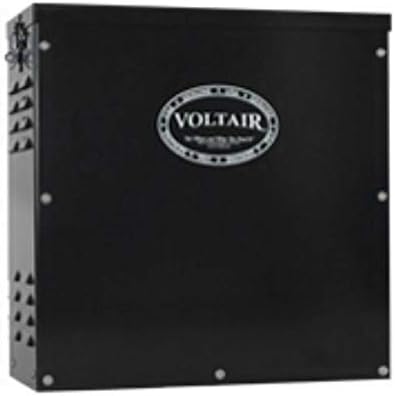

Figure 3: Voltair AV12 Compressor in its protective cabinet. The image shows the durable, powder-coated steel enclosure that protects the internal components of the compressor.
4. Istruzioni per l'installazione
Follow these steps for the initial setup of your Voltair AV12 compressor:
- Disimballaggio: Estrarre con cautela il compressore dall'imballaggio. Verificare che non vi siano danni dovuti al trasporto.
- Montaggio: Securely mount the compressor in a stable, well-ventilated location in your service or farm truck. Ensure it is protected from direct weather exposure and vibrations.
- Collegamento elettrico: Connect the compressor to a suitable 12V DC power source. Ensure the wiring is correctly sized for the compressor's amperage draw (approximately 90 amps at 100 PSI). A 100 amp alternator is recommended for optimal performance.
- Giunzione di tubi: Attach your air hose and desired air tools to the compressor's output port. Ensure all connections are tight to prevent air leaks.
5. Istruzioni per l'uso
The Voltair AV12 is designed for straightforward operation:
- Accensione: Ensure the compressor is securely connected to the 12V power source. Activate the power switch. The compressor will begin to build pressure.
- Funzionamento automatico: The compressor features an automatic pressure switch. It will turn on when pressure drops below a set threshold (e.g., 130 PSI) and turn off when it reaches the maximum pressure (e.g., 150 PSI).
- Utilizzo di utensili pneumatici: Connect your air tools (e.g., impact wrenches, drills, spray guns) to the air hose. The compressor is capable of running various air tools.
- Ciclo di lavoro: The Voltair AV12 has an 80% duty cycle, meaning it can run for 50 minutes out of every hour. Allow for a 10-minute cool-down period after 50 minutes of continuous operation.
- Utilizzi consigliati: This compressor is suitable for air brushing, drilling, nailing, and spraying applications.

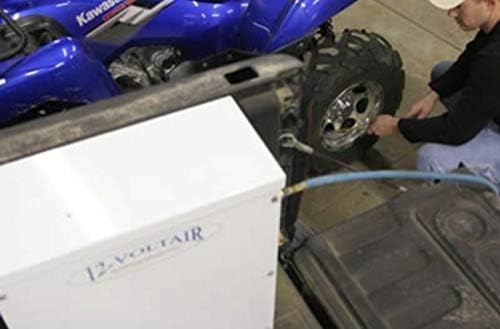

Figure 4: Voltair AV12 Compressor in use. This image demonstrates the compressor being used to inflate a tire, showcasing la sua applicazione pratica.
6. Manutenzione e cura
Regular maintenance ensures the longevity and optimal performance of your compressor:
- Controllo del livello dell'olio: Regularly check the oil level in the compressor. Use ISO-46, non-detergent, synthetic compressor oil for lubrication. Do not use automotive engine oil.
- Filtro dell'aria: Inspect and clean or replace the air filter as needed. A clogged filter can reduce efficiency and damage the compressor.
- Ispezione della cinghia: Periodically check the gear belt for wear, tension, and damage. Adjust or replace if necessary.
- Pulizia generale: Mantenere la parte esterna del compressore pulita e libera da polvere e detriti per garantire un raffreddamento adeguato.
- Collegamenti elettrici: Ensure all electrical connections remain tight and free of corrosion.
7. Risoluzione dei problemi comuni
Refer to the table below for solutions to common operational problems:
| Problema | Possibile causa | Soluzione |
|---|---|---|
| Il compressore non si accende. | No power, loose electrical connection, faulty switch. | Check 12V power source, verify connections, inspect power switch. |
| Compressor runs but does not build pressure. | Air leak, clogged air filter, worn piston rings/valves. | Check all hose connections for leaks, clean/replace air filter, consult support for internal issues. |
| Il compressore esegue i cicli troppo frequentemente. | Air leak in the system, pressure switch malfunction. | Inspect for air leaks, verify pressure switch operation. |
| Riduzione della portata d'aria. | Clogged air filter, low oil level, worn components. | Clean/replace air filter, check and replenish oil, inspect internal components. |
| Il compressore si surriscalda. | Poor ventilation, extended operation beyond duty cycle, low oil. | Ensure adequate ventilation, observe duty cycle, check oil level. |
Note on Air Tanks: The Voltair AV12 is designed for direct use and does not include an integrated air tank. It is intended for applications where continuous air supply is needed without the need for a large reservoir.
8. Specifiche tecniche
Detailed specifications for the Voltair Heavy Duty 12V Air Compressor AV12:
| Specificazione | Valore |
|---|---|
| Marca | Voltaire |
| Nome del modello | Voltaire |
| Numero modello articolo | AV12 |
| Numero di parte del produttore | AV12 |
| Voltage | 12 Volt |
| Fonte di alimentazione | Elettrico con cavo |
| Livello di rumore | 62 dB |
| Caratteristica speciale | Servizio pesante |
| Colore | Nero |
| Stile | Portatile |
| Usi consigliati | Aerografia, Foratura, Chiodatura, Spruzzatura |
| Codice UPC | 068811306131 |
9. Informazioni sulla garanzia
The Voltair Heavy Duty 12V Air Compressor AV12 comes with a FULL One Year Warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims. For specific terms and conditions, refer to the warranty card included with your product or contact customer support.
10. Assistenza clienti
If you encounter any issues not covered in the troubleshooting section or require further assistance, please contact Voltair customer support. Have your model number (AV12) and purchase information ready when contacting support.
For the most up-to-date contact information, please visit the official Voltair websito o fare riferimento ai materiali di imballaggio.
