Hoover H-Wash 500 HD4106ABMCB Washer Dryer

Prodotto finitoview

The Hoover H-Wash 500 HD4106ABMCB is a free-standing washer dryer designed for efficient and convenient laundry care. This model features a 10kg wash capacity and a 6kg drying capacity, making it suitable for various household needs. It incorporates advanced technologies such as WiFi connectivity, KG Mode for optimized load management, and Sensor Dry for precise drying.

Modello: HD4106ABMCB

Marca: Aspirapolvere

Capacità: 10kg Wash / 6kg Dry

Velocità di rotazione: 1400 giri al minuto

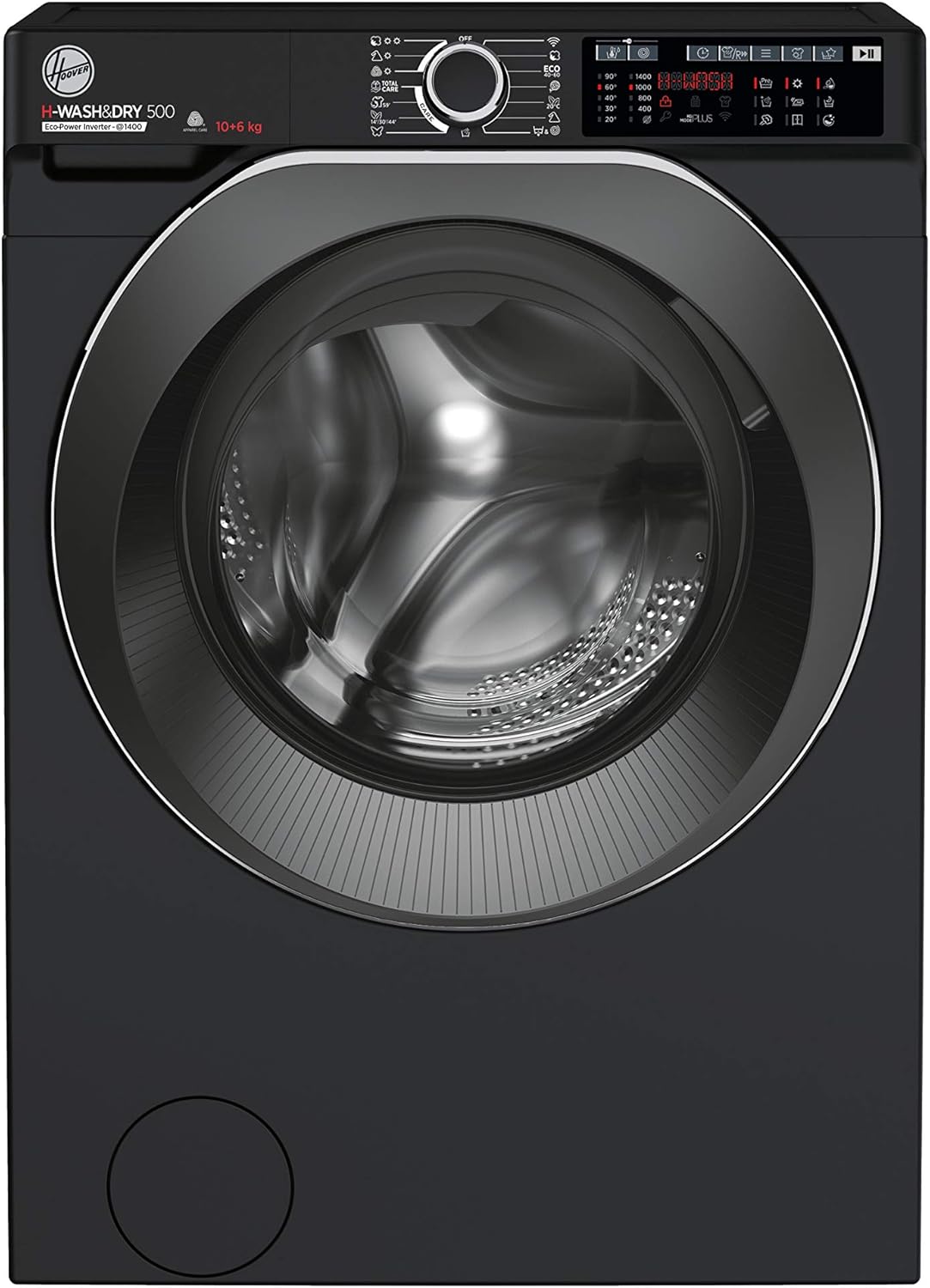

Figura 1: Fronte view of the Hoover H-Wash 500 HD4106ABMCB washer dryer, showcasing its black finish and central drum.

Caratteristiche principali

• Modalità KG: Automatically weighs the laundry load during the first four minutes of the cycle and adjusts program length and water consumption accordingly for optimal efficiency.
• Cicli di lavaggio multipli: Offers 17 cycles, including 4 wash cycles under 60 minutes, a 14-minute quick wash, and an All In One 59-minute cycle.
• Partenza ritardata: Allows delaying the cycle start time for up to 24 hours, providing flexibility for scheduling laundry.
• Connettività WiFi: Connects to your Android phone via the hOn app, enabling additional program downloads, diagnostic checks, and compatibility with Alexa and Google voice assistants.
• Sensor Dry Function: Automatically detects the moisture level in the load and switches off when the desired dryness level is reached, saving energy.
• Motore inverter Eco-Power: Reduces vibrations during washing and spinning for quieter operation and improved energy efficiency.

Impostare

Disimballaggio e posizionamento

Carefully remove the washer dryer from its packaging. Ensure all transit bolts and packing materials are removed from the rear of the appliance before installation. Failure to do so can cause significant damage during operation.

Place the appliance on a firm, level surface. Adjust the feet to ensure the machine is stable and level. Proper leveling is crucial to minimize vibration and noise during operation.

Figura 2: Angolato view of the washer dryer, highlighting its compact design and accessible control panel.

Collegamenti idrici e di scarico

Connect the water inlet hose to a cold water tap. Ensure the connection is secure to prevent leaks. The appliance requires a standard water line connection.

Connect the drain hose to a suitable drain pipe or standpipe. Ensure the drain hose is properly secured and positioned to allow for efficient water drainage without kinks or blockages.

Connessione elettrica

Plug the appliance into a grounded electrical outlet. The Hoover H-Wash 500 operates on 240 Volts. Do not use extension cords or adapters.

Utilizzo iniziale

Prima del primo lavaggio, effettuare un ciclo vuoto con una piccola quantità di detersivo per pulire il cestello e i componenti interni.

Istruzioni per l'uso

Caricamento del bucato

Open the door and load laundry into the drum. Do not overload the machine; ensure there is enough space for clothes to tumble freely. For optimal results, adhere to the recommended load capacities (10kg for washing, 6kg for drying).

Figure 3: The washer dryer with its door open, showing the large drum capacity for loading laundry.

Aggiunta di detersivo e ammorbidente

Pull out the detergent drawer located on the top left of the control panel. Add appropriate amounts of detergent to the main wash compartment and fabric softener to the designated compartment. Refer to detergent packaging for dosage recommendations.

Selezione di un programma

Turn the program selector dial to choose the desired wash or wash & dry program. The digital display will show the estimated cycle time and other relevant information.

Figura 4: dettagliata view of the control panel, illustrating the program selection dial and digital interface.

Use the touch controls to adjust options such as temperature, spin speed, and delay start. The machine offers 17 wash and 17 drying cycles.

Figure 5: A closer look at the control panel, showing the array of settings and smart features available.

Inizio di un ciclo

Press the Start/Pause button to begin the selected program. The machine will automatically adjust settings based on the KG Mode if applicable.

Using the hOn App (Smart Connectivity)

Download the hOn app on your Android device. Follow the in-app instructions to connect your washer dryer via WiFi. This allows for remote control, downloading additional programs, and running diagnostic checks. The appliance is compatible with Alexa and Google voice assistants.

Figure 6: The hOn app allows for smart control and monitoring of the washer dryer from your smartphone.

Manutenzione

Pulizia del cassetto del detersivo

Regularly clean the detergent drawer to prevent residue buildup. Remove the drawer and rinse it under warm water. Use a brush to remove any stubborn deposits.

Pulizia del tamburo

Periodically run a maintenance wash cycle (e.g., a hot wash with no laundry and a descaling agent) to clean the drum and remove any detergent or fabric softener residue.

Pulizia del filtro

Locate the filter at the bottom front of the machine. Place a shallow container underneath to catch any residual water. Unscrew the filter and remove any lint, coins, or small objects. Clean the filter thoroughly and reinsert it securely.

Cura della guarnizione della porta

After each wash, wipe the rubber door seal to remove any moisture or debris. This helps prevent mold and unpleasant odors.

Risoluzione dei problemi

• La macchina non si avvia: Ensure the power cord is securely plugged in, the door is fully closed, and the Start/Pause button has been pressed. Check if a delay start option is active.
• Nessun riempimento d'acqua: Check if the water tap is open and the water inlet hose is not kinked or blocked. Ensure water pressure is adequate.
• Vibrazioni/rumore eccessivi: Verify that the machine is level and all transit bolts have been removed. Ensure the load is balanced inside the drum.
• I vestiti non si asciugano correttamente: Check if the drying capacity has been exceeded (max 6kg). Ensure the lint filter is clean. Select an appropriate drying level using the Sensor Dry function.
• Codici di errore sul display: Refer to the full instruction manual for a list of specific error codes and their solutions. For persistent issues, contact Hoover customer support.

Specifiche

Efficienza energetica

The Hoover H-Wash 500 HD4106ABMCB has an energy efficiency rating of D. Below is the energy label providing detailed information on energy consumption and water usage.

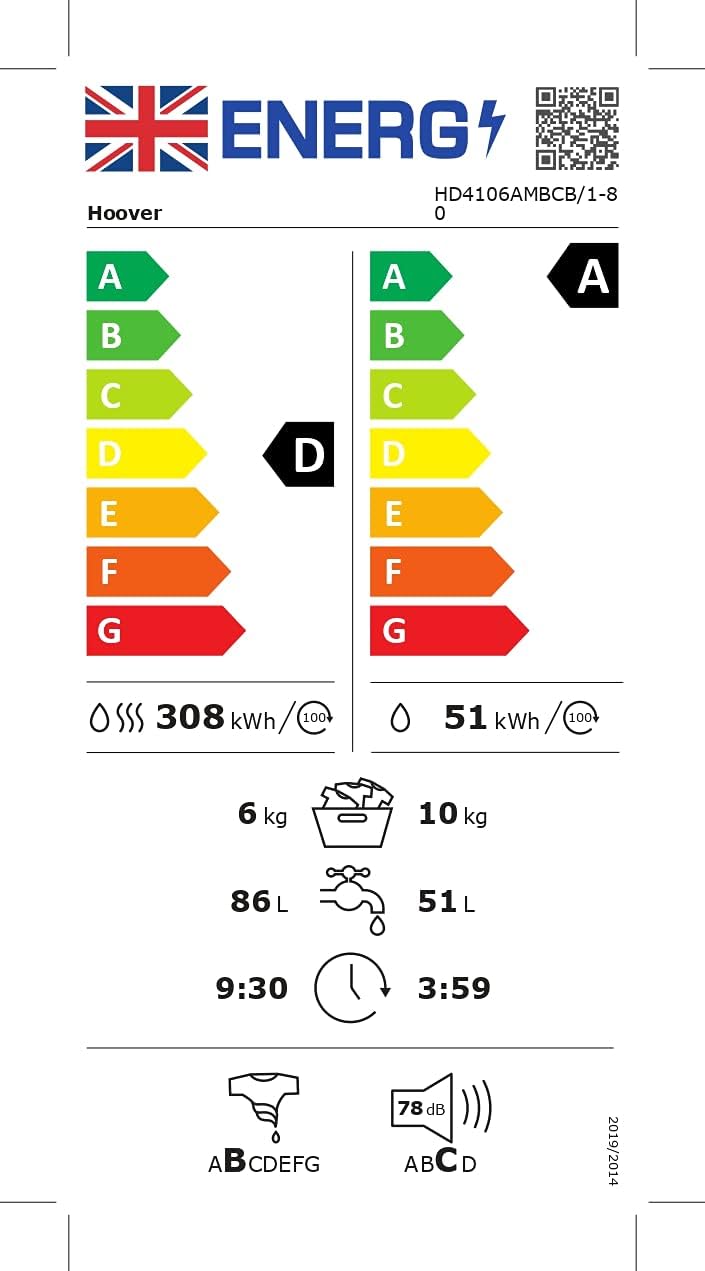

Figure 7: Energy label for the Hoover H-Wash 500 HD4106ABMCB, detailing energy and water consumption.

Per maggiori dettagli, visita il database ufficiale EPREL: https://eprel.ec.europa.eu/qr/304377

Scheda informativa del prodotto

A detailed product information sheet is provided below, containing comprehensive technical data and compliance information.

Figure 8: Product Information Sheet with detailed technical specifications.

Garanzia e supporto

This product comes with a manufacturer's warranty. Please refer to the registration pack included with your appliance for specific warranty terms and conditions. It is recommended to register your product upon purchase.

For technical assistance, troubleshooting not covered in this manual, or to arrange service, please contact Hoover customer support. Contact details can typically be found in your registration pack or on the official Hoover websito.

Servizio clienti Hoover: Refer to your local Hoover support contact information.

Risorse online: Visita il sito ufficiale Hoover websito per FAQ, manuali aggiuntivi e risorse di supporto.

Figure 9: Hoover is recognized as a Superbrand, reflecting its commitment to quality and customer satisfaction.
