Neewer i4T EX 400W Monolight Instruction Manual

Introduzione

Grazie per l'acquistoasing the Neewer i4T EX 400W Monolight. This professional studio flash is designed for both indoor and outdoor photography, offering advanced features such as TTL, HSS, and a built-in 2.4G wireless trigger system. This manual provides detailed instructions for safe operation, setup, and maintenance to ensure optimal performance and longevity of your device.

Informazioni sulla sicurezza

• Non esporre il dispositivo alla pioggia o all'umidità per evitare incendi o scosse elettriche.
• Do not disassemble the unit. If repairs are needed, contact qualified service personnel.
• Tenere fuori dalla portata dei bambini.
• Evitare l'esposizione diretta degli occhi al flash, poiché potrebbe causare danni temporanei alla vista.
• Garantire un'adeguata ventilazione durante l'uso per evitare il surriscaldamento.
• Use only the specified power adapter and battery.
• The flashtube and modeling LED can become hot during operation. Allow time for cooling before handling.

Prodotto finitoview

Familiarize yourself with the components and controls of your Neewer i4T EX 400W Monolight and its wireless trigger.

Monolight Components

Immagine: dettagliata view of the Neewer i4T EX 400W Monolight and its wireless trigger, highlighting various controls and ports. The monolight features an LCD display, power knob, sound and function button, channel button, modeling light switch, power switch, optical sensor, optical slave button, sync port (6.35mm), and a Tset button for recycling modes. The wireless trigger includes an LCD display, ID channel button, select group buttons (A, B, C), LED power setup button, signal indicator light, mode-setting button, LED light switch button, enter button, +/- button, 2.5mm PC sync port, 3.25mm PC sync port, test button, and power switch.

• Schermo LCD: Mostra le impostazioni e lo stato correnti.
• Manopola di potenza: Adjusts flash output.
• Sound and Function Button: Controls sound prompts and other functions.
• Pulsante canale: Selects wireless communication channel.
• Modeling Light Switch: Turns the modeling light on/off.
• Interruttore di alimentazione: Turns the monolight on/off.
• Sensore ottico: Detects other flashes for optical slave mode.
• Sync Port (6.35mm): Per la sincronizzazione cablata.
• Tset Button: Triggers a test flash and switches recycle modes.

Flashtube and Modeling LED

Immagine: Primo piano view of the monolight's front, detailing the flashtube and modeling LED. The flashtube has an overheat protection temperature of 95°C. The modeling LED is 10W, 1000Lux/1M Lumen, with an overheat protection temperature of 80°C.

• Flashtube: Provides the main flash output. Features overheat protection at 95°C.
• Modeling LED: A 10W LED providing 1000 Lux at 1 meter. Features overheat protection at 80°C.

Impostare

1. Installazione della batteria

Image: The Neewer i4T EX 400W Monolight with its high-capacity rechargeable lithium battery attached. The image highlights the DC Power Input and Locking Button for the battery. Key specifications shown are 4000mAh Battery Capacity, 0.2-1.3s Callback Time, and 4H Charging Time.

1. Align the battery pack with the battery compartment on the monolight.
2. Far scorrere la batteria in posizione finché non scatta in posizione. Assicurarsi che il pulsante di bloccaggio si innesti.
3. To remove, press the locking button and slide the battery out.
4. Charge the battery using the provided charger. A full charge takes approximately 4 hours.

2. Montaggio della monotorcia

The monolight features a standard Bowens mount for light modifiers and umbrella holes for umbrellas.

Image: The Neewer i4T EX 400W Monolight with a Bowens mount softbox attached, demonstrating compatibility with various light modifiers.

Monte Bowens: Attach compatible light modifiers (e.g., softboxes, beauty dishes) by aligning the modifier with the mount and twisting until it locks into place.

Image: The Neewer i4T EX 400W Monolight with an umbrella inserted into its dedicated umbrella hole, illustrating how to use umbrellas for light diffusion.

Umbrella Holes: Insert the shaft of a photographic umbrella into the designated hole on the monolight's bracket and secure it.

3. Attaching the Wireless Trigger

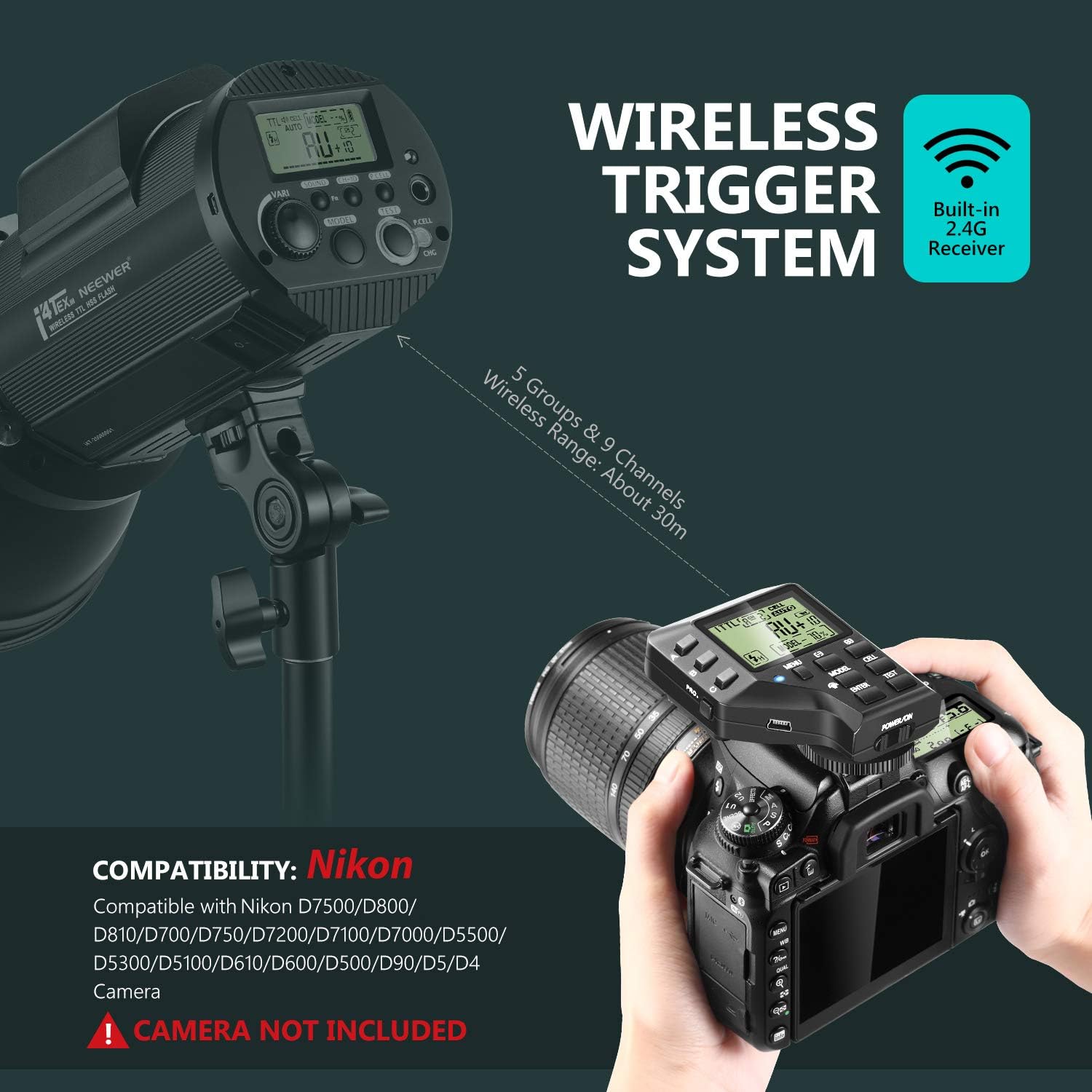

Image: The Neewer i4T EX 400W Monolight shown with a Nikon DSLR camera and the wireless trigger mounted on the camera's hot shoe. The image indicates a built-in 2.4G receiver, 5 groups, 9 channels, and a wireless range of approximately 30m. It also lists compatible Nikon camera models: D7500, D800, D810, D700, D750, D7200, D7100, D7000, D5500, D5300, D5100, D610, D600, D500, D90, D5, D4.

1. Mount the wireless trigger onto your camera's hot shoe.
2. Ensure both the monolight and the trigger are powered on.
3. Set the same channel and group on both the monolight and the trigger for wireless communication. The system supports 5 groups and 9 channels with a range of approximately 30 meters.

Istruzioni per l'uso

1. Accensione/spegnimento

• Per accendere, far scorrere l'interruttore di alimentazione in posizione "ON".
• Per spegnere, portare l'interruttore di alimentazione in posizione "OFF".

2. Adjusting Flash Output

Rotate the Power Knob on the monolight or use the +/- buttons on the wireless trigger to adjust the flash output. The output range is typically 1/1 to 1/128 or similar, depending on the mode.

3. Modalità operative

Image: Demonstrates the capabilities of the Neewer i4T EX 400W Monolight. It highlights 1/8000s High Speed Sync with a recycle time of 0.2-1.3s and 400W power. Flash duration is T0.5: 1/420-16500 (Quick Mode) and T1: 1/225-1/13520 (Ordinary Mode). Examples of Stroboscopic Mode (CO-1 Fast flash, C1-5, C2-10, C3-15, C4-20, C5-25) and a comparison of TTL Mode (Without i4T EX Strobe Flash vs. With i4T EX Strobe Flash) are also shown.

• Modalità TTL: (Through-The-Lens) Automatically adjusts flash output for correct exposure.
• Modalità manuale: Allows manual control over flash output.
• Modalità Multi (Stroboscopica): Fires a series of rapid flashes during a single exposure to capture multiple movements. Settings include flash frequency and number of flashes (e.g., CO-1 Fast flash, C1-5, C2-10, C3-15, C4-20, C5-25).
• Sincronizzazione ad alta velocità (HSS): Consente la sincronizzazione del flash con velocità dell'otturatore più elevate rispetto alla velocità di sincronizzazione nativa della fotocamera, fino a 1/8000 di secondo.

4. Luce modellante

Press the Modeling Light Switch to turn the modeling light on or off. The modeling light helps visualize the lighting effect before taking a shot.

5. Wireless Trigger Operation

• Selezione canale/gruppo: Use the Channel Button and Select Group Buttons (A, B, C) on the trigger to match the settings on the monolight.
• Test Flash: Press the Test Button on the trigger to fire a test flash.
• Impostazione modalità: Use the Mode-Setting Button to cycle through TTL, Manual, and Multi modes.
• Regolazione della potenza: Use the +/- buttons to adjust flash power.

Manutenzione

• Pulizia: Use a soft, dry cloth to clean the exterior of the monolight and trigger. Do not use abrasive cleaners or solvents.
• Flashtube: Avoid touching the flashtube directly with bare hands, as oils can reduce its lifespan. If touched, clean with alcohol.
• Cura della batteria: Store the lithium battery in a cool, dry place. If not used for extended periods, charge it periodically to maintain battery health. Do not expose to extreme temperatures.
• Magazzinaggio: Store the device in a protective case when not in use to prevent dust and damage.

Risoluzione dei problemi

Specifiche

• Marca: PIÙ NUOVI
• Numero modello: 10097748
• Energia: 400W
• Tempo di riciclo: 0.2-1.3 secondi
• Flash Duration (T0.5): 1/420-1/16500s (Quick Mode)
• Flash Duration (T1): 1/225-1/13520s (Ordinary Mode)
• Capacità della batteria: Batteria al litio da 4000 mAh
• Flash a piena potenza: Circa 520
• Tempo di ricarica: Circa 4 ore
• Sistema senza fili: 2.4G TTL HSS with Built-in Receiver
• Portata wireless: Circa 30 m
• Wireless Groups/Channels: 5 gruppi, 9 canali
• Modalità di sincronizzazione: High-Speed Sync (HSS) up to 1/8000s
• Luce modellante: 10W LED, 1000Lux/1M Lumen
• Tipo di montaggio: Monte Bowens
• Fotocamere compatibili: Nikon D7500, D810, D700, D750, D7200, D7100, D7000, D5500, D5300, D5100, D610, D600, D500, D90, D5, D4 (Camera not included)
• Peso: Approximately 2.2kg (with battery)

Contenuto della confezione

Immagine: Un overview of the Neewer i4T EX 400W Monolight package contents, including the monolight, wireless trigger, reflector, diffuser, power cables (EU and US plugs), and charger.

Il pacchetto tipicamente include:

• 1 x Neewer i4T EX 400W Monolight
• 1 x Wireless Trigger
• 1 x riflettore standard
• 1 x Diffuser Cap
• 1 x Lithium Battery Pack
• Caricabatteria 1 x
• 1 x Power Cable (EU Plug)
• 1 x cavo di alimentazione (spina USA)

Garanzia e supporto

Neewer products typically come with a limited warranty. Please refer to the warranty card included in your product packaging or visit the official Neewer website for detailed warranty terms and conditions. For technical support, troubleshooting assistance, or service inquiries, please contact Neewer customer service through their official websito o rivenditore presso cui è stato acquistato il prodotto.
