1. Introduzione
Welcome to the BLACK+DECKER FSM1620 1600-Watt Steam Mop user manual. This document provides essential information for the safe and effective operation, maintenance, and troubleshooting of your steam mop. Please read this manual thoroughly before first use and retain it for future reference.
The BLACK+DECKER FSM1620 Steam Mop is designed to clean and sanitize sealed hard floor surfaces using steam, eliminating up to 99.9% of germs and bacteria without the need for harsh chemicals. Its AutoSelect Technology allows for optimal steam output based on your floor type.
2. Informazioni sulla sicurezza
Always observe basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and personal injury. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- Leggere attentamente tutte le istruzioni prima di utilizzare l'apparecchio.
- Non immergere l'apparecchio in acqua o altri liquidi.
- Do not leave the appliance unattended while plugged in or operating.
- Tenere l'apparecchio fuori dalla portata dei bambini e degli animali domestici.
- Utilizzare solo acqua distillata o demineralizzata nel serbatoio dell'acqua per evitare l'accumulo di minerali e prolungare la durata dell'apparecchio.
- Do not use the appliance on unsealed wooden floors, as steam may cause damage.
- Scollegare sempre l'apparecchio prima di pulire o eseguire la manutenzione.
- The steam produced is very hot. Avoid direct contact with skin.
3. Prodotto finitoview
Familiarize yourself with the components of your BLACK+DECKER FSM1620 Steam Mop.

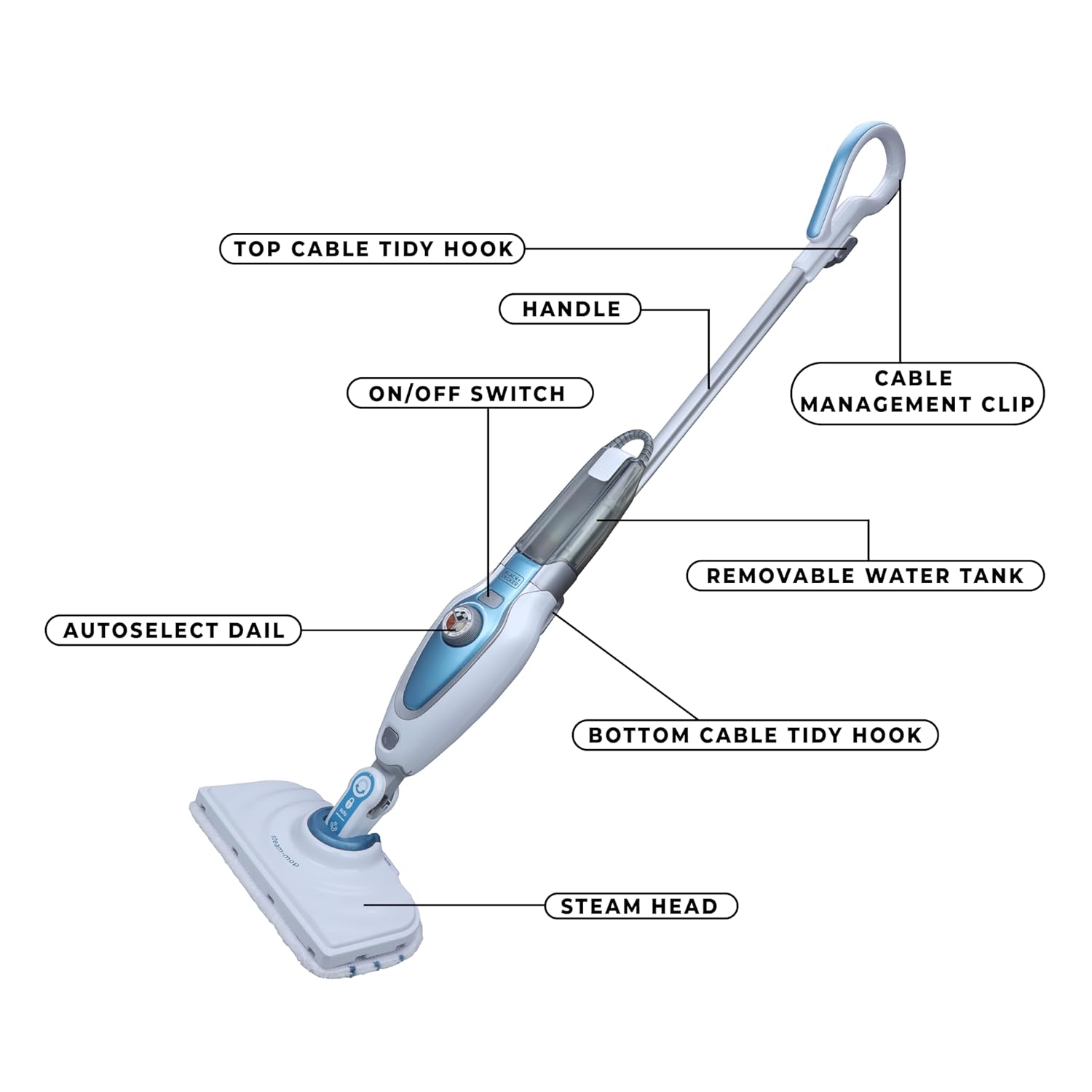

Figura 3.1: Main components of the FSM1620 Steam Mop.
This image displays the BLACK+DECKER FSM1620 Steam Mop with various parts labeled for identification. Key components include the handle, top cable tidy hook, cable management clip, ON/OFF switch, removable water tank, AutoSelect dial, bottom cable tidy hook, and steam head.
Componenti inclusi:
- 1 x FSM1620 Steam Mop Unit
- 2 x Microfiber Floor Pads
- 1 x Microfiber Delta Floor Pad
- 1 x Carpet Glider
Figura 3.2: Serbatoio dell'acqua rimovibile.
This image shows a close-up of the transparent, removable water tank on the steam mop, designed for easy refilling.
Figura 3.3: AutoSelect Dial.
Questa immagine fornisce una descrizione dettagliata view of the AutoSelect dial, which allows users to select different steam settings for various floor types such as Tiles, Vinyl, Stone, Marble, Wood, and Laminate.
4. Impostazione
4.1 Montaggio
- Inserire la maniglia nel corpo principale del pulitore a vapore finché non scatta saldamente in posizione.
- Prima di procedere, assicurarsi che tutti i collegamenti siano saldi.
4.2 Riempimento del serbatoio dell'acqua
- Rimuovere il serbatoio dell'acqua dall'unità principale.
- Open the tank cap and fill with distilled or demineralized water. Do not overfill. The tank capacity is 460 ml.
- Close the tank cap securely and reinsert the water tank into the steam mop until it locks.
4.3 Applicazione del tampone in microfibra
- Place the microfiber cleaning pad on the floor with the white side facing up.
- Align the steam head over the pad and press down firmly to attach it using the hook and loop fasteners.
Figura 4.1: Steam Head with Cleaning Pad.
This image shows the steam head of the mop with a microfiber cleaning pad securely attached, ready for use.
5. Istruzioni per l'uso
5.1 Powering On and Selecting Steam Level
- Collegare il cavo di alimentazione a una presa elettrica idonea.
- Press the ON/OFF switch to power on the appliance.
- Rotate the AutoSelect dial to the desired floor type (e.g., Tiles, Wood, Stone). The mop will automatically adjust the steam output for optimal cleaning.
- Wait approximately 15-30 seconds for the steam mop to heat up and produce steam.
Figura 5.1: Operating the Steam Mop.
This image illustrates a user operating the BLACK+DECKER FSM1620 Steam Mop on a hard floor surface, demonstrating its ease of use and swivel steering capability.
5.2 Pulizia delle superfici
- Move the steam mop slowly and steadily across the floor surface. The swivel steering allows for easy maneuverability around furniture and in tight spaces.
- For heavily soiled areas, hold the steam mop over the spot for a few seconds to allow the steam to penetrate and loosen dirt.
- Ensure the floor is dry before walking on it.
5.3 Utilizzo del tappeto scorrevole
- Attach the carpet glider over the microfiber pad and steam head.
- Use the steam mop with the carpet glider to refresh carpets and rugs. This is not intended for deep cleaning carpets, but for sanitizing and deodorizing.
6. Manutenzione
6.1 Pulizia dei panni in microfibra
- After each use, remove the microfiber cleaning pad from the steam head.
- The pads are machine washable. Wash them with similar colors at a low temperature. Do not use bleach or fabric softener.
- Lasciare asciugare completamente i cuscinetti all'aria prima di riapplicarli o riporli.
6.2 Svuotamento e pulizia del serbatoio dell'acqua
- Always empty any remaining water from the tank after each use.
- Risciacquare periodicamente il serbatoio con acqua pulita per evitare l'accumulo di residui.
6.3 Decalcificazione
To maintain optimal performance and prevent mineral buildup, especially if using tap water (though distilled water is recommended), descale the appliance every 3-6 months. Consult the manufacturer's websito o all'assistenza clienti per istruzioni specifiche sulla decalcificazione.
6.4 Conservazione
- Ensure the appliance is unplugged, cooled down, and the water tank is empty before storage.
- Wrap the power cord around the cable tidy hooks for neat storage.
- Store the steam mop in a dry, safe place, away from direct sunlight and extreme temperatures.
7. Risoluzione Dei Problemi
| Problema | Possibile causa | Soluzione |
|---|---|---|
| Nessun vapore prodotto | Serbatoio dell'acqua vuoto Apparecchio non collegato Not heated up sufficiently | Riempire il serbatoio dell'acqua Assicurarsi che il cavo di alimentazione sia collegato saldamente Wait 15-30 seconds after turning on |
| Striature sul pavimento | Microfiber pad dirty Too much steam for surface Floor not pre-cleaned | Replace or wash microfiber pad Adjust AutoSelect dial to a lower steam setting Vacuum or sweep floor before steam cleaning |
| L'apparecchio non si accende | Nessuna alimentazione ON/OFF switch not pressed | Controllare la presa di corrente e il cavo Press the ON/OFF switch firmly |
If you encounter issues not listed here, or if the problem persists, please contact customer support.
8. Specifiche
| Caratteristica | Specificazione |
|---|---|
| Marca | NERO+DECKER |
| Nome del modello | FSM1620 |
| Cosatage | 1600 Watt |
| Peso dell'articolo | 3.06 kg |
| Volume/capacità del serbatoio | 460 millilitri |
| Voltage | 230 Volt (CA) |
| Caratteristica speciale | Filtraggio |
| Raccomandazione di superficie | Pavimento |
| Fattore di forma | Verticale |
Figura 8.1: Key Product Specifications.
This infographic visually summarizes the key specifications of the steam mop, including Voltage (230V), Power (1600W), Weight (3.06 KG), and Tank Capacity (460 ML).
9. Garanzia e supporto
9.1 Informazioni sulla garanzia
Your BLACK+DECKER FSM1620 Steam Mop comes with a Garanzia di 1 anni dalla data di acquisto. Si prega di conservare la prova d'acquisto per eventuali reclami in garanzia. La garanzia copre i difetti di fabbricazione in condizioni di normale utilizzo.
9.2 Assistenza clienti
For any warranty-related issues, product feedback, or technical assistance, please contact BLACK+DECKER customer care:
- Telefono: 1860-425-1111 (Monday to Friday, 10 AM to 5 PM, except government holidays)
- E-mail: SBD-CUSTOMERCOMMUNICATIONS@SBDINC.COM
- WhatsApp: +91 96060 55835
Figura 9.1: Total Care Contact Information.
This image provides comprehensive contact details for BLACK+DECKER Total Care, including phone numbers, email address, and a WhatsApp contact option with a QR code.
