1. Istruzioni di sicurezza
Please read these safety instructions carefully before using the MINISO Mini Portable Aromatic Fan. Keep this manual for future reference.
- Non immergere il ventilatore in acqua o altri liquidi.
- Tenere fuori dalla portata dei bambini.
- Do not insert fingers or any objects into the fan blades.
- Utilizzare solo il cavo USB in dotazione per la ricarica.
- Do not disassemble, repair, or modify the fan yourself. Contact qualified personnel for service.
- Evitare di esporre il ventilatore a temperature estreme o alla luce solare diretta per periodi prolungati.
- Only use essential oils specifically designed for diffusers in the aromatherapy compartment.
2. Prodotto finitoview
The MINISO Mini Portable Aromatic Fan is designed for personal cooling and aromatherapy. Its compact and ergonomic design makes it suitable for various environments, including offices, schools, and outdoor use.
Figura 2.1: Davanti view of the MINISO Mini Portable Aromatic Fan. This image shows the fan's overall design, including the protective grille and handle.
Caratteristiche principali:
- Design portatile: Compact size (4.5 x 9.8 x 20.1 cm) and ergonomic handle for easy carrying.
- Tre impostazioni di velocità: Adjustable airflow for personalized comfort.
- Aromatherapy Compartment: Integrated space for adding aromatic oils.
- Ricaricabile tramite USB: Built-in 1200 mAh lithium battery, charged via USB.
- Funzionamento silenzioso: Engineered for low noise while providing effective airflow.
Figura 2.2: Close-up of the fan's ergonomic handle. The handle is designed to fit comfortably in your hand, ensuring a secure grip.
3. Impostazione
3.1 Ricarica della ventola
Before first use, fully charge the fan. The fan is equipped with a 1200 mAh lithium battery.
- Locate the USB charging port on the fan handle.
- Connect the provided USB cable to the fan's charging port.
- Collegare l'altra estremità del cavo USB a una fonte di alimentazione USB compatibile (ad esempio, computer, adattatore da parete).
- The charging indicator light will illuminate (color may vary) to show that the fan is charging.
- Charging time is approximately 1.5 to 3 hours. The indicator light will change or turn off once fully charged.
Figura 3.1: Illustration of the fan's rechargeable battery feature. The fan uses a USB cable for charging, providing up to 3.5 hours of continuous use on a full charge.
3.2 Adding Aromatic Oil
The fan includes a special compartment for aromatherapy.
- Locate the aromatherapy cover on the front grille of the fan.
- Aprire delicatamente il coperchio.
- Add a few drops of your preferred aromatic oil onto the small pad inside the compartment. Do not overfill.
- Chiudere bene il coperchio.

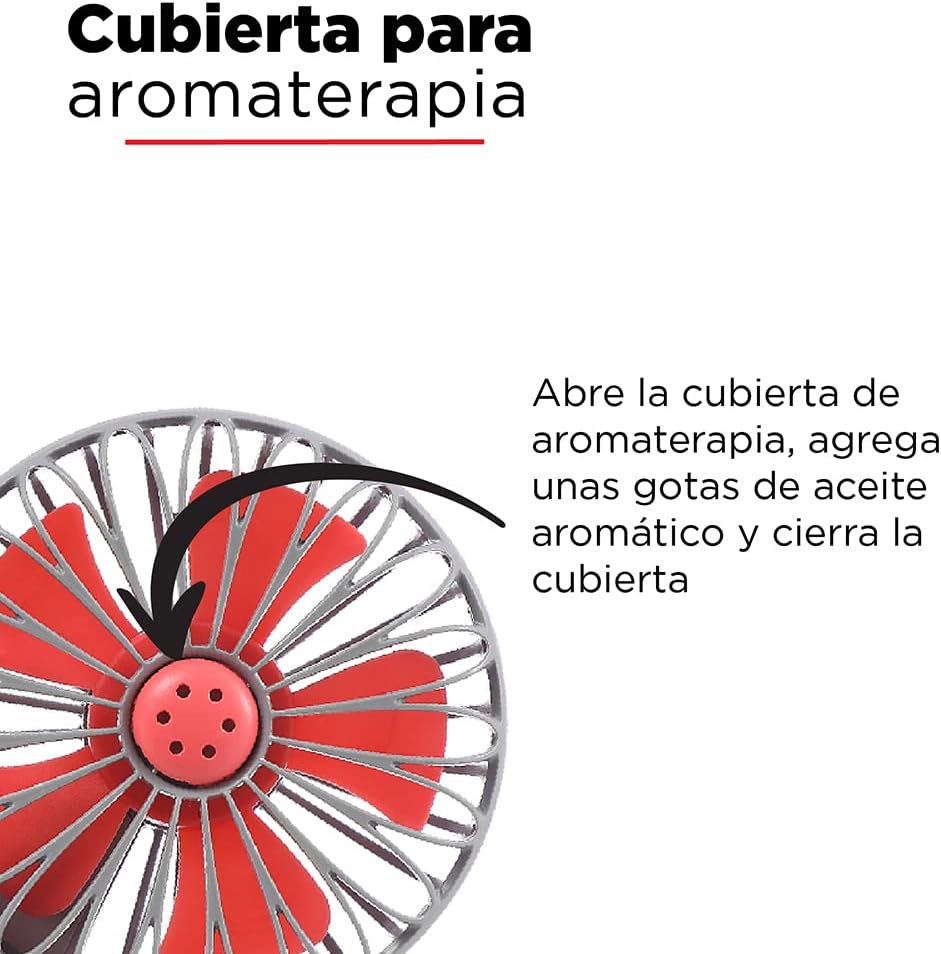

Figura 3.2: Detail of the aromatherapy cover. To use, open the cover, add a few drops of aromatic oil, and then close it.
4. Funzionamento
4.1 Accensione/spegnimento e regolazione della velocità
The fan features a single button for power control and speed adjustment.
- Per accendere: Press the power button located on the handle once. The fan will start at the lowest speed setting.
- Per regolare la velocità: While the fan is on, press the power button repeatedly to cycle through the three speed settings (Low → Medium → High).
- Per spegnere: After the highest speed setting, press the power button one more time to turn the fan off.
Figura 4.1: Location of the power/speed button on the fan handle. Pressing this button cycles through the three available speeds and turns the fan off.
5. Manutenzione
Una corretta manutenzione garantisce la longevità e le prestazioni ottimali del ventilatore.
- Pulizia dell'esterno: Wipe the fan's exterior with a soft, dry cloth. For stubborn dirt, a slightly damp cloth can be used, but ensure no water enters the fan's internal components.
- Pulizia delle lame: Use a soft brush or cotton swab to gently clean dust from the fan blades through the grille. Do not attempt to remove the grille or blades.
- Aromatherapy Compartment: Regularly clean the aromatic oil pad and compartment to prevent residue buildup. Replace the pad if it becomes discolored or loses effectiveness.
- Magazzinaggio: When not in use for extended periods, store the fan in a cool, dry place, away from direct sunlight and moisture. Ensure the battery is partially charged before storage.
6. Risoluzione Dei Problemi
If you encounter issues with your fan, refer to the following table for common problems and solutions.
| Problema | Possibile causa | Soluzione |
|---|---|---|
| La ventola non si accende. | La batteria è scarica. | Caricare il ventilatore utilizzando il cavo USB in dotazione. |
| Fan runs weakly or stops unexpectedly. | Batteria scarica. | Ricaricare il ventilatore. |
| Aroma is not noticeable. | Aromatic oil pad is dry or needs more oil. | Add more drops of aromatic oil to the pad or replace the pad. |
| La ventola fa un rumore insolito. | Ostruzione nelle pale del ventilatore o problema interno. | Turn off the fan and check for any visible obstructions. If the noise persists, discontinue use and contact support. |
7. Specifiche
Technical details for the MINISO Mini Portable Aromatic Fan.
| Caratteristica | Dettaglio |
|---|---|
| Marca | MINISIO |
| Nome del modello | Mini Ventilador Aromático |
| Fonte di alimentazione | Battery, Electric Cord (USB) |
| Tipo di batteria | Batteria al litio da 1200 mAh |
| Tempo di ricarica | Da 1.5 a 3 ore |
| Tempo di utilizzo | 1.5 to 3 hours (up to 3.5 hours continuous use) |
| Potenza in uscita | 3 Watt |
| Numero di velocità | 3 |
| Metodo di controllo | Touch (Single Button) |
| Dimensioni (P x L x A) | 4.5 x 9.8 x 20.1 cm (1.77 x 3.86 x 7.91 pollici) |
| Materiale | Plastica |
| Colore | Black (as per product data, though images show grey) |
Figura 7.1: Visual representation of the fan's dimensions, showing a height of 20 cm and a width of 9.8 cm.
8. Garanzia e supporto
For warranty information, technical support, or service inquiries, please contact MINISO customer support through their official websito o rivenditore presso cui è stato acquistato il prodotto.
Please have your product model name (Mini Ventilador Aromático) and purchase details ready when contacting support.
