moistenland Automatic Drip Irrigation System

1. Introduzione

Thank you for choosing the moistenland Automatic Drip Irrigation System. This DIY kit is designed to provide consistent and automated watering for your indoor potted plants, ensuring they remain healthy even when you are away. Featuring a programmable timer and flexible power options (USB or batteries), this system offers a convenient and efficient solution for plant care.

Figure 1.1: The moistenland Automatic Drip Irrigation System in an outdoor setting, highlighting its easy installation, hands-free operation, timed dripping, and compact design.

Le caratteristiche principali includono:

• Programmable watering schedules
• Automatic drip irrigation for precise water delivery
• USB power operation or battery power for flexibility
• Suitable for vacation plant watering with 30-day programming

2. Installazione e assemblaggio

2.1. Contenuto della confezione

Prima di iniziare il montaggio, verificare che tutti i componenti siano presenti:

Figure 2.1: All components included in the moistenland Automatic Drip Irrigation System kit.

• Main Device (Control Unit with Pump)
• Placing Stand
• Cavo USB
• 33ft Tube (Hose)
• Drippers (Watering Stakes)
• Cross Joints
• T Joints
• Estremità del tubo
• Filtro

2.2. Fasi di assemblaggio

Per installare il tuo sistema di irrigazione a goccia, segui questi passaggi:

1. Prepare the Main Device: Place the main device on a stable surface or use the provided placing stand to hang it over your water reservoir (e.g., a bucket or large container). Ensure the water inlet tube reaches the bottom of your reservoir.
2. Misurare e tagliare i tubi: Determine the length of tubing needed to reach each plant from the main device. Measure carefully and cut the 33ft tube into appropriate segments using scissors.
3. Collegare tubi e giunti: Use the T-joints and cross-joints to create a network that connects the main device's water outlet to each of your potted plants. Ensure all connections are secure to prevent leaks.
4. Installare i gocciolatori: Attach a dripper (watering stake) to the end of each tube segment leading to a plant. Insert the dripper into the soil of each potted plant. For optimal watering, ensure the dripper is placed near the plant's roots.
5. Alimentare il dispositivo: Insert 4 AA batteries into the battery compartment or connect the USB cable to a 5V USB power source.

Figure 2.2: Visual guide for assembling the drip irrigation system, showing measuring, cutting, connecting tubes, and placing drippers.

For best results, ensure your water reservoir is large enough to hold sufficient water for your desired watering duration and frequency.

3. Istruzioni per l'uso

3.1. Pannello di controllo finitoview

The main device features a control panel for setting watering parameters:

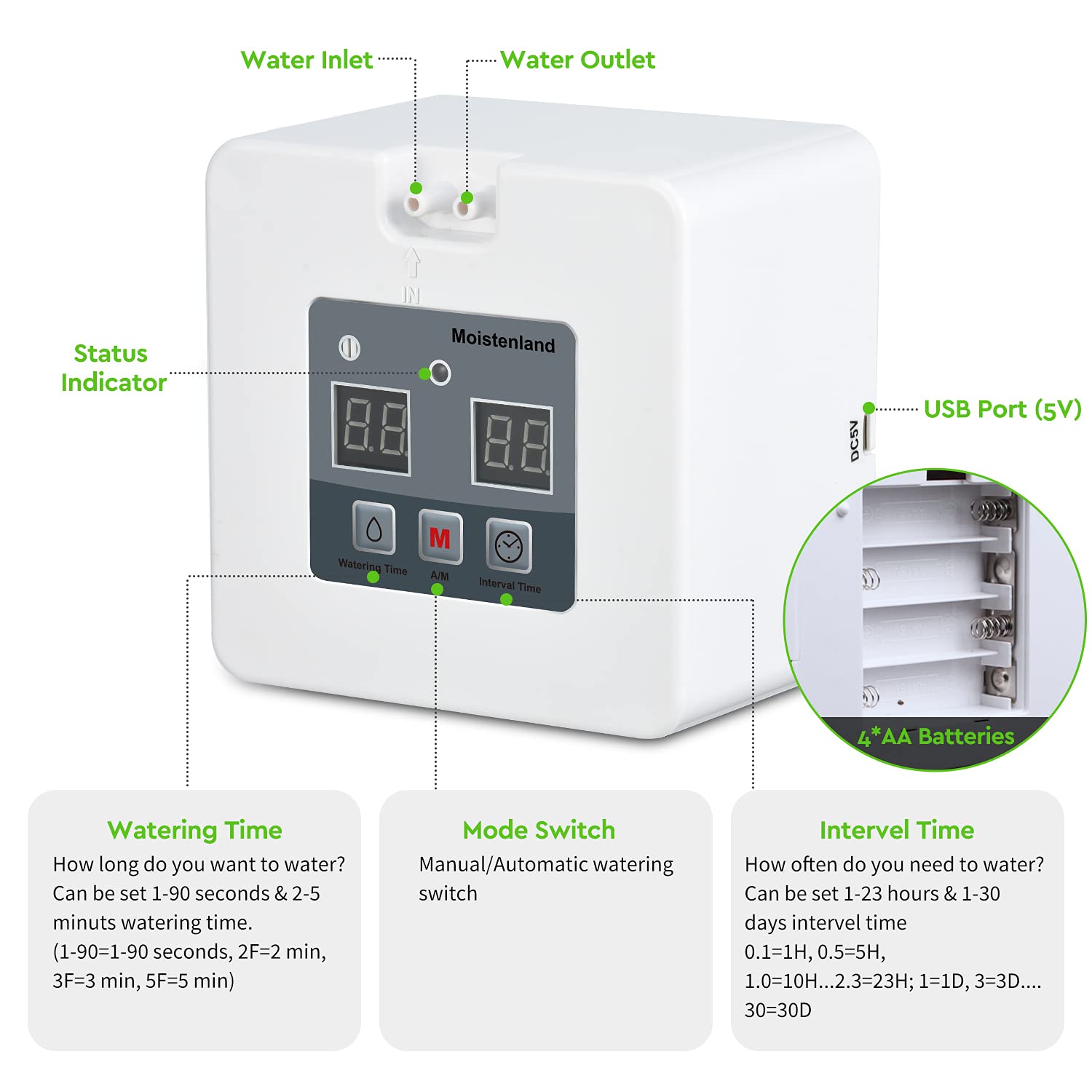

Figura 3.1: dettagliata view of the control panel, showing the status indicator, watering time display, mode switch, interval time display, USB port, and battery compartment.

• Indicatore di stato: Lights up to show operation status.
• Watering Time (Left Display): Sets how long the system waters during each cycle. Adjustable from 1-90 seconds or 2-5 minutes. (1-90 = 1-90 seconds, 2F=2 min, 3F=3 min, 5F=5 min)
• Interruttore modalità (pulsante M): Toggles between Manual and Automatic watering modes.
• Interval Time (Right Display): Sets how often the system waters. Adjustable from 1-23 hours or 1-30 days. (0.1=1H, 0.5=5H, 1.0=10H...2.3=23H; 1=1D, 3=3D....30=30D)
• USB Port (5V): Per alimentazione esterna.
• 4*AA Batteries: Per alimentazione portatile.

3.2. Setting Watering Schedule

Programming the system is straightforward. Here’s an exampon:

Figure 3.2: Illustration of setting the watering time and interval time on the control panel.

If your plants need watering once every day at 9 o'clock for 30 seconds each time:

1. Imposta il Tempo di irrigazione to "30" (for 30 seconds).
2. Imposta il Intervallo di tempo to "1" (for 1 day).

After 5 seconds of setting, the system will automatically enter the first automatic watering mode based on your programmed schedule.

3.3. Watering Method

This system is designed for bottom watering, which allows water to penetrate deeply into the soil, delivering moisture directly to the plant roots. This method promotes healthier root development and reduces water evaporation.

Figure 3.3: Diagram illustrating how water penetrates deeply into the soil from the bottom, reaching the roots directly.

3.4. Recommended Watering Frequencies

The ideal watering frequency varies by plant type. The system allows for precise volume control to prevent under-watering or over-watering.

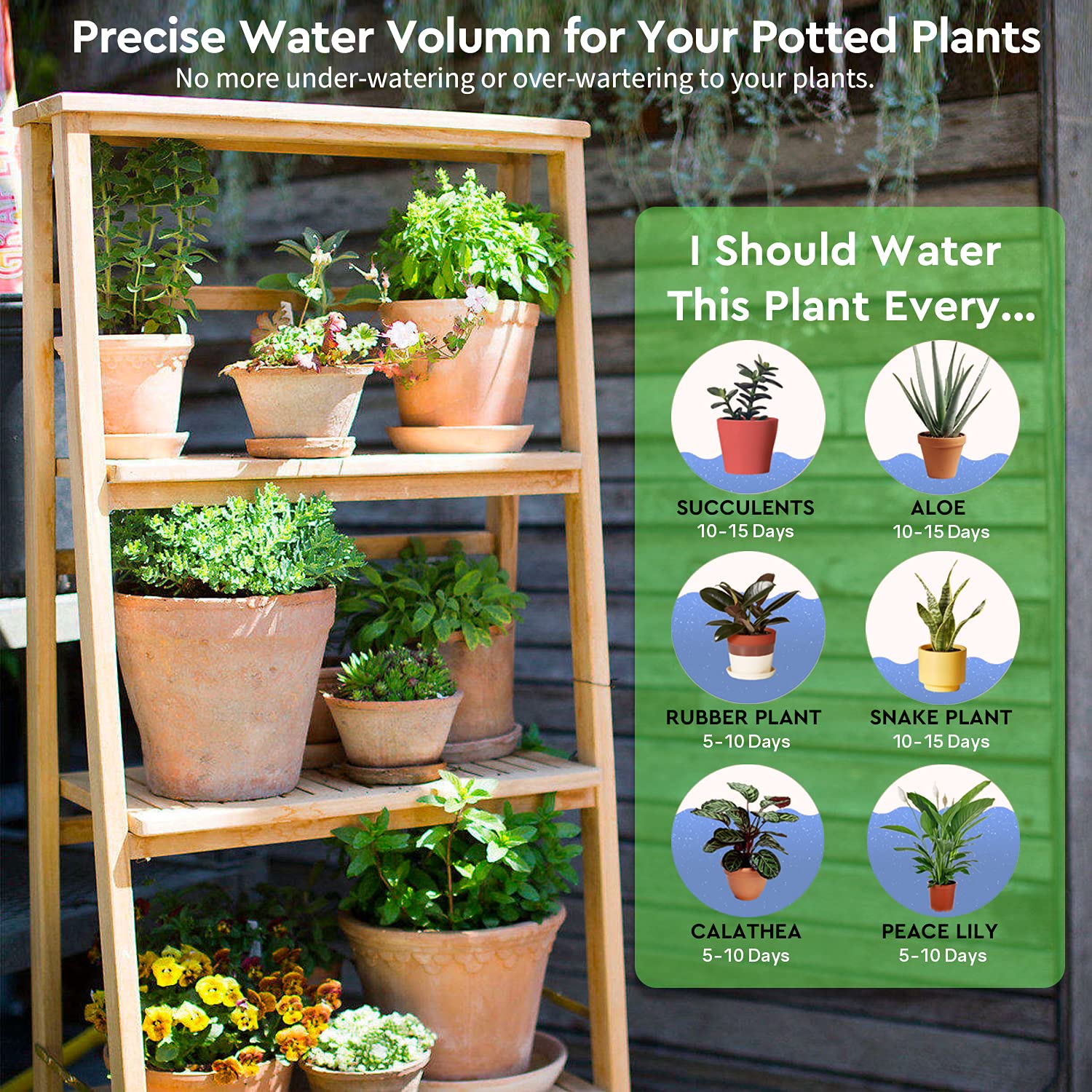

Figure 3.4: A guide suggesting watering intervals for common indoor plants like succulents, aloe, rubber plants, snake plants, calathea, and peace lilies.

Consult the guide above for general recommendations, and adjust based on your specific plant needs, pot size, and environmental conditions.

4. Manutenzione

Regular maintenance ensures the longevity and optimal performance of your moistenland Automatic Drip Irrigation System.

• Refill Water Reservoir: Regularly check the water level in your reservoir and refill it as needed. The system will beep to warn you when the water is running out.
• Pulisci il filtro: Periodically remove and clean the filter located at the end of the water inlet tube to prevent clogs and ensure smooth water flow.
• Controllare eventuali perdite: Inspect all tube connections and joints regularly for any signs of leaks. Tighten connections if necessary.
• Sostituzione della batteria: If using battery power, replace the 4 AA batteries when the device indicates low power or stops functioning.
• Pulizia dei tubi: If you notice reduced water flow, the tubes may need flushing or cleaning to remove mineral buildup or debris.

5. Risoluzione Dei Problemi

This section addresses common issues you might encounter with your automatic watering system.

6. Specifiche

7. Garanzia e supporto

Specific warranty details for the moistenland Automatic Drip Irrigation System are not provided in this manual. For warranty information, technical support, or any inquiries regarding your product, please contact the manufacturer directly through their official websito o il rivenditore da cui hai acquistato il prodotto.

Conservare sempre la prova d'acquisto per eventuali reclami in garanzia.
