Fracarro CT-Bus GSM Mini Telephone Combiner User Manual

1. Introduzione

This manual provides comprehensive instructions for the installation, configuration, and operation of the Fracarro CT-Bus GSM Mini Telephone Combiner. This device is designed to integrate with alarm systems via a bus connection, enabling GSM communication for alerts and remote control functionalities.

Please read this manual thoroughly before attempting any installation or operation to ensure proper functioning and to prevent damage to the device or associated systems.

2. Informazioni sulla sicurezza

• Sicurezza elettrica: Installation must be performed by qualified personnel in accordance with local electrical codes. Disconnect power before installation or maintenance.
• GSM Module: Ensure proper SIM card insertion and secure antenna connection for optimal GSM signal.
• Condizioni ambientali: Do not expose the device to moisture, extreme temperatures, or direct sunlight. Operate within specified temperature and humidity ranges.
• Interferenza: Tenere il dispositivo lontano da forti campi elettromagnetici per evitare interferenze.
• Manutenzione: Refer to the maintenance section for cleaning and care instructions. Do not attempt to repair the device yourself.

3. Contenuto della confezione

Verificare che tutti gli articoli siano presenti nel pacco:

• Fracarro CT-Bus GSM Mini Telephone Combiner unit
• Antenna GSM
• Cavi di collegamento (se applicabile)
• Viti di montaggio e tasselli
• Guida rapida (questo manuale)

4. Prodotto finitoview

The Fracarro CT-Bus GSM Mini is a compact GSM telephone combiner designed for integration with compatible alarm control panels via a dedicated bus. It allows the alarm system to send voice calls and SMS messages to pre-programmed numbers in case of an event, and can also receive commands for remote control.

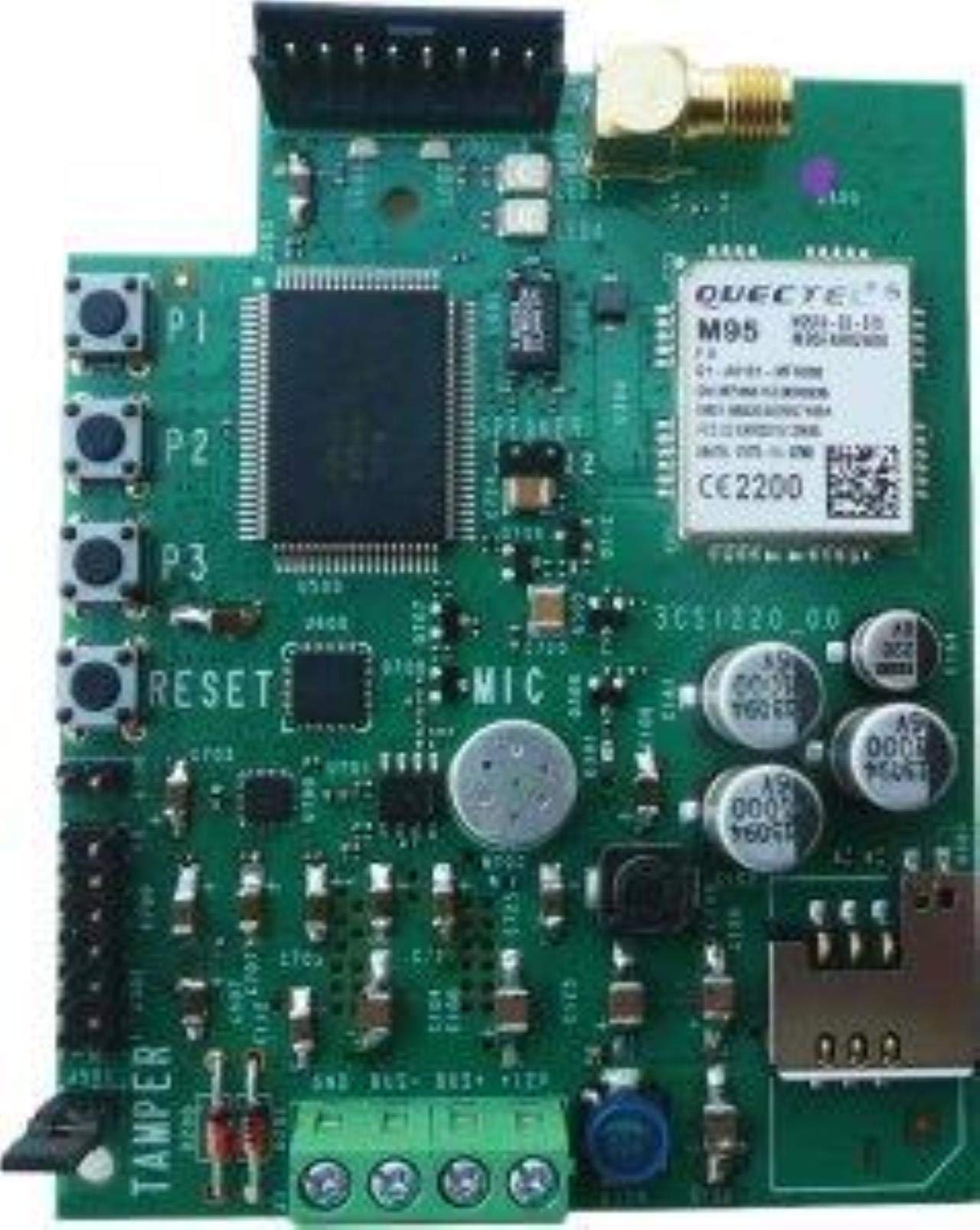

Figura 1: Fronte view of the Fracarro CT-Bus GSM Mini Telephone Combiner. The image displays the compact unit, typically showing the SIM card slot, antenna connector, and bus connection terminals.

Caratteristiche principali:

• GSM communication for alarm events.
• Bus integration with compatible alarm control units.
• Remote control capabilities via SMS or call.
• Design compatto per una facile installazione.

5. Impostazione

5.1. Luogo di installazione

Scegli una posizione che sia:

• Within range of a good GSM signal.
• Protected from environmental elements (moisture, extreme temperatures).
• Accessible for maintenance but secure from unauthorized access.
• Close to the alarm control panel for bus connection.

5.2. Inserimento della scheda SIM

1. Assicurarsi che il dispositivo sia spento.
2. Locate the SIM card slot on the device (refer to Figure 1).
3. Insert a standard size (2FF) activated GSM SIM card into the slot, ensuring correct orientation.
4. Spingere delicatamente finché non scatta in posizione.

5.3. Collegamento dell'antenna

Screw the provided GSM antenna onto the antenna connector on the device. Ensure it is finger-tight for a secure connection and optimal signal reception.

5.4. Wiring and Bus Connection

Connect the CT-Bus GSM Mini to the alarm control panel's bus terminals according to the wiring diagram provided with your specific alarm system and the CT-Bus GSM Mini. Typically, this involves connecting data lines (e.g., DATA+, DATA-) and power lines (e.g., +12V, GND).

Importante: Refer to the specific wiring instructions for your alarm control panel model to ensure correct polarity and connection. Incorrect wiring can damage both devices.

5.5. Accensione iniziale e configurazione

1. After all connections are secure, apply power to the alarm control panel. The CT-Bus GSM Mini will power on.
2. Observe the status LEDs on the device. A blinking LED typically indicates searching for GSM network, while a solid LED indicates successful connection.
3. Refer to your alarm control panel's programming manual for instructions on how to recognize and configure the CT-Bus GSM Mini on the system bus. This usually involves assigning an address or enabling the GSM module.
4. Program the desired telephone numbers for voice calls and SMS alerts through the alarm control panel's interface.

6. Istruzioni per l'uso

6.1. Alarm Event Communication

When an alarm event occurs (e.g., intrusion, fire, panic), the alarm control panel will trigger the CT-Bus GSM Mini to initiate communication. The device will:

• Send pre-programmed SMS messages to designated recipients.
• Initiate voice calls to designated recipients, playing a pre-recorded message or allowing two-way communication if supported by the alarm panel.

6.2. Remote Control via GSM

The CT-Bus GSM Mini allows for remote control of certain alarm system functions (e.g., arming/disarming, checking status) via SMS commands or specific call sequences from authorized phone numbers. Refer to your alarm control panel's manual for the specific commands and procedures.

Nota: Only authorized phone numbers programmed into the system will be able to send commands or receive alerts.

7. Manutenzione

• Pulizia: Utilizzare un panno morbido e asciutto per pulire l'esterno del dispositivo. Non utilizzare detergenti liquidi o materiali abrasivi.
• Controllo dell'antenna: Periodically ensure the GSM antenna is securely connected and undamaged.
• Scheda SIM: Ensure the SIM card is active and has sufficient credit (if prepaid) for communication.
• Aggiornamenti del firmware: Controlla il Fracarro website for any available firmware updates for your device. Updates should only be performed by qualified technicians.

8. Risoluzione Dei Problemi

9. Specifiche

• Modello: CT-Bus GSM Mini
• Comunicazione: Rete GSM (2G)
• Tipo di carta SIM: Standard (2FF)
• Compatibilità autobus: Fracarro Bus systems (verify specific panel compatibility)
• Alimentazione elettrica: Typically supplied via alarm panel bus (e.g., 12V DC)
• Temperatura di esercizio: Da -10°C a +50°C (da 14°F a 122°F)
• Dimensioni: (Specific dimensions not provided, placeholder) Approx. 80 x 50 x 20 mm
• Peso: (Specific weight not provided, placeholder) Approx. 100g

10. Garanzia e supporto

Fracarro products are covered by a standard manufacturer's warranty. Please refer to the warranty card included with your purchase or visit the official Fracarro websito per termini e condizioni di garanzia dettagliati.

For technical support, troubleshooting assistance, or service requests, please contact your authorized Fracarro dealer or visit the Fracarro support portal:

Websito: www.fracarro.com

Assistenza clienti: Refer to the contact information on the Fracarro websito per la tua regione.
