AMETEK VCD 50L Suction Motor

1. Introduzione

This manual provides essential information for the safe and effective installation, operation, and maintenance of your AMETEK VCD 50L suction motor. This motor is designed as a direct replacement part for compatible HILTI VCD 50L wet and dry vacuum cleaners. Please read this manual thoroughly before attempting any installation or maintenance procedures.

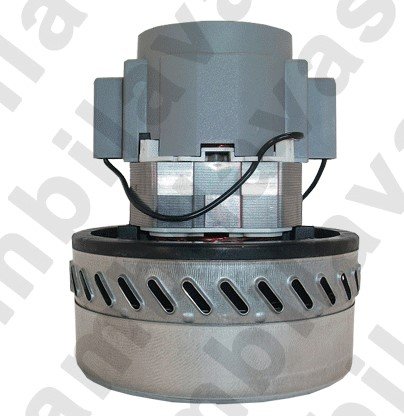

Image 1: The AMETEK VCD 50L Suction Motor. This image displays the compact design of the replacement motor, highlighting its primary components and electrical connections.

2. Istruzioni di sicurezza

Always adhere to the following safety guidelines to prevent injury or damage to the product and equipment:

• Scollegare l'alimentazione: Always ensure the vacuum cleaner is unplugged from the power source before attempting any installation, maintenance, or repair.
• Installazione professionale consigliata: Motor replacement can be complex. If you are not confident in your technical abilities, seek assistance from a qualified technician.
• Sicurezza elettrica: Do not expose the motor or electrical connections to water or moisture. Ensure all wiring connections are secure and properly insulated.
• Utilizzare gli strumenti corretti: Per lo smontaggio e il rimontaggio utilizzare utensili adeguati per evitare di danneggiare i componenti.
• Ispezionare i componenti: Before installation, inspect the new motor and surrounding vacuum components for any signs of damage.

3. Configurazione e installazione

This section outlines the general steps for replacing the suction motor in a HILTI VCD 50L wet/dry vacuum cleaner. Specific disassembly steps may vary slightly depending on the exact vacuum model.

Strumenti necessari:

• Cacciaviti (a croce e/o a taglio)
• Pinze
• Wire strippers/cutters (if wiring needs modification)
• Multimeter (for testing connections, optional)

Fasi di installazione:

1. Preparare il vuoto: Ensure the vacuum cleaner is unplugged. Remove the top motor head assembly from the dust container.
2. Disassemble Motor Head: Carefully unfasten the screws or clips securing the motor head casing. Note the position of all components and wiring for reassembly.
3. Scollegare il vecchio motore: Identify the electrical connections to the old motor. Disconnect them, noting which wire connects to which terminal. Take photos if necessary for reference.
4. Rimuovere il vecchio motore: Unmount the old motor from its housing. This may involve removing additional screws or brackets.
5. Installare il nuovo motore: Place the new AMETEK VCD 50L motor into the housing. Secure it with the original screws or brackets.
6. Collegare il cablaggio: Reconnect the electrical wires to the new motor's terminals, ensuring they match the original configuration. Double-check all connections for security.
7. Reassemble Motor Head: Carefully reassemble the motor head casing, ensuring all wires are tucked away safely and no components are pinched. Fasten all screws or clips.
8. Funzionalità di prova: Place the motor head back onto the dust container. Plug in the vacuum cleaner and perform a brief test to ensure the motor operates correctly and suction is restored.

4. Istruzioni per l'uso

Once the AMETEK VCD 50L suction motor is correctly installed, the HILTI wet/dry vacuum cleaner will operate as intended. Refer to your original HILTI VCD 50L vacuum cleaner instruction manual for detailed operating procedures, including:

• Powering on/off the vacuum.
• Switching between wet and dry vacuuming modes.
• Attaching and using various accessories.
• Svuotamento del contenitore della polvere.

The AMETEK motor is designed to provide reliable suction power for your vacuum cleaner's intended use.

5. Manutenzione

Proper maintenance ensures the longevity and optimal performance of your AMETEK VCD 50L suction motor and the vacuum cleaner as a whole.

• Keep Motor Clean: Periodically inspect the motor housing for dust and debris accumulation. Use a dry cloth or soft brush to gently clean the exterior. Ensure no foreign objects obstruct the motor's ventilation.
• Controllare le connessioni: During routine vacuum maintenance, briefly inspect the motor's electrical connections to ensure they remain secure.
• Manutenzione del filtro: The motor's performance is directly affected by the vacuum cleaner's filters. Regularly clean or replace the vacuum's dust filters and wet filters as recommended in the HILTI vacuum manual. A clogged filter can overwork the motor.
• Nessuna parte riparabile dall'utente: The AMETEK VCD 50L motor contains no user-serviceable parts. Do not attempt to open the motor casing.

6. Risoluzione Dei Problemi

If you encounter issues after installing the new motor, consider the following troubleshooting steps:

If these steps do not resolve the issue, or if you suspect a motor defect, contact a qualified service technician or the product supplier for further assistance.

7. Specifiche

Key specifications for the AMETEK VCD 50L Suction Motor:

• Marca: AMETEK
• Modello: VCD 50L (Replacement Motor)
• Fonte di energia: Con filo elettrico
• Senza fili: NO
• ASIN: B07FDG2GRN
• Compatibilità: Designed for HILTI VCD 50L Wet/Dry Vacuum Cleaners

8. Garanzia e supporto

This AMETEK VCD 50L suction motor is covered by a manufacturer's warranty against defects in materials and workmanship. The specific terms and duration of the warranty may vary. Please retain your proof of purchase for warranty claims.

For technical support, warranty inquiries, or to purchase replacement parts, please contact your retailer or the AMETEK customer service department. Contact information can typically be found on the product packaging or the retailer's websito.
