Sumerain S3220NI Brushed Nickel Ceiling Shower Faucet System Instruction Manual

1. Introduzione

This manual provides detailed instructions for the installation, operation, and maintenance of your Sumerain S3220NI Brushed Nickel Ceiling Shower Faucet System. Please read this manual thoroughly before installation and use to ensure proper function and longevity of your product. Retain this manual for future reference.

2. Informazioni sulla sicurezza

• Chiudere sempre l'alimentazione idrica principale prima di iniziare qualsiasi operazione di installazione o manutenzione.
• In caso di dubbi su qualsiasi fase del processo di installazione, consultare un idraulico qualificato.
• Durante l'installazione, indossare adeguati dispositivi di protezione individuale (DPI), come occhiali e guanti di sicurezza.
• Assicurarsi che tutti i collegamenti siano ben saldi per evitare perdite.
• Questo prodotto è progettato per uso residenziale.
• Rispettare tutte le normative edilizie e idrauliche locali.

Image: Compliance logos indicating adherence to U.S./CA UPC & IPC standards and Pb-Free certification. This ensures the product meets safety and quality regulations.

3. Contenuto della confezione

Verify that all components are present and undamaged before beginning installation. If any parts are missing or damaged, contact Sumerain customer support.

• 10-inch Square Ceiling Mount Rain Shower Head
• Doccia portatile
• Shower Hose (59 inches, Stainless Steel)
• Rough-in Valve with Trim
• braccio doccia
• Supporto per doccetta
• Hardware di montaggio

Image: A complete set of the Sumerain shower system components, including the ceiling-mount shower head, handheld shower, hose, valve, and trim, displayed on a white background.

Image: A collage highlighting key components: brass hand shower, NPT 1/2" connecting thread, 59" stainless steel shower hose, and a complete shower package, alongside a shower head in use.

4. Specifiche

Image: Technical drawing illustrating the dimensions and installation requirements for the ceiling shower head, handheld shower, and rough-in valve, including NPT 1/2" connections and recommended heights.

Image: Information regarding Energy Policy and Conservation Act compliance, including Department of Energy list, California Energy Commission list, and WaterSense Certification for the showerhead.

5. Configurazione e installazione

Si consiglia l'installazione da parte di un professionista. Assicurarsi di avere tutti gli strumenti e i materiali necessari prima di iniziare.

5.1 Passaggi di pre-installazione

1. Chiudere l'erogazione idrica: Locate the main water shut-off valve and turn off the water supply to your home or the specific bathroom.
2. Area di lavoro libera: Assicurarsi che l'area di installazione sia pulita e libera da ostruzioni.
3. Review Diagrammi: Refer to the technical diagrams provided in Section 4 for precise measurements and rough-in specifications.

5.2 Installazione della valvola grezza

1. Install the rough-in valve body into the wall according to the provided dimensions and local plumbing codes. Ensure the "HOT" and "COLD" inlets are correctly oriented.
2. Connect the NPT 1/2" hot and cold water lines to the valve inlets.
3. Connect the NPT 1/2" outlet lines from the valve to the ceiling shower arm and the handheld shower outlet.
4. Secure the valve body firmly to the framing.

Immagine: Un esploso view showing the ceiling-mount shower head, the rough-in valve (green box), the control trim, and the handheld shower with hose, illustrating their relative positions for installation.

5.3 Ceiling Shower Head Installation

1. Install the ceiling shower arm into the ceiling, ensuring it is securely fastened and connected to the NPT 1/2" water supply line from the rough-in valve.
2. Apply plumber's tape to the threads of the shower arm.
3. Thread the 10-inch square rain shower head onto the shower arm and tighten securely. Do not overtighten.

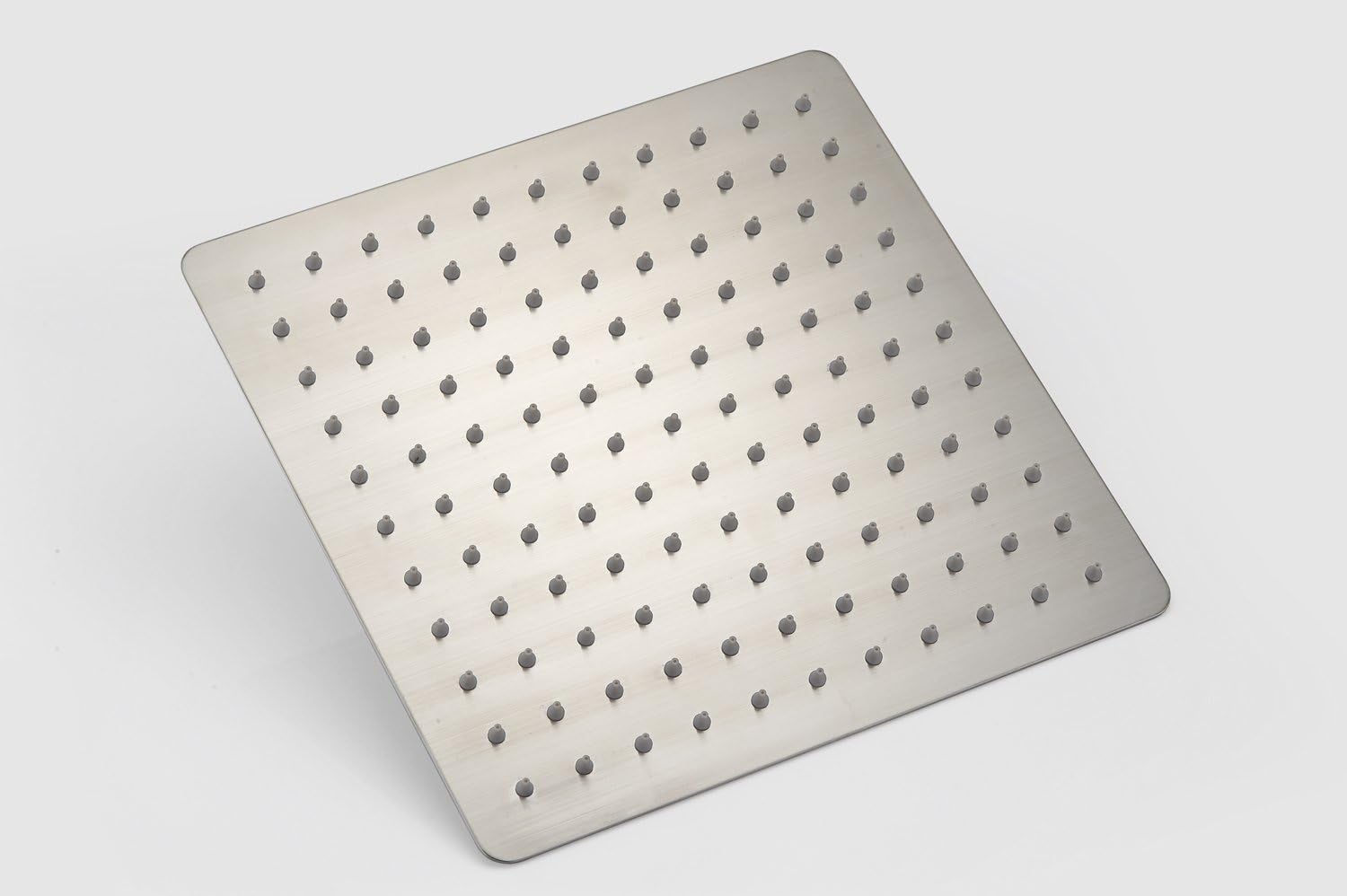

Immagine: dall'alto verso il basso view of the 10-inch square rain shower head, showcasing its brushed nickel finish and the central threaded connection point for the shower arm.

Immagine: un primo piano view of the underside of the 10-inch square rain shower head, clearly showing the evenly spaced rubber nozzles designed for easy cleaning and consistent water flow.

5.4 Handheld Shower Installation

1. Install the hand shower holder at a comfortable height on the wall, ensuring it is securely mounted.
2. Connect one end of the 59-inch stainless steel shower hose to the handheld shower head.
3. Connect the other end of the shower hose to the wall outlet for the handheld shower.
4. Place the handheld shower into its holder.

5.5 Installazione del rivestimento

1. Install the decorative trim plate and handle onto the rough-in valve according to the manufacturer's instructions.
2. Ensure the handle operates smoothly and controls water flow and temperature correctly.

5.6 Controllo post-installazione

1. Turn on the main water supply slowly.
2. Controllare che tutti i raccordi non presentino perdite. Serrare eventuali raccordi che perdono, se necessario.
3. Test the functionality of both the ceiling shower head and the handheld shower, as well as the temperature and flow controls.

6. Istruzioni per l'uso

Your Sumerain shower system features a single handle for controlling both water flow and temperature.

• Accensione/spegnimento: Sollevare la maniglia per aprire l'acqua. Spingerla verso il basso per chiuderla.
• Regolazione della temperatura: Rotate the handle left for hotter water and right for colder water.
• Diverting Water Flow: Use the diverter knob or lever on the trim plate to switch water flow between the ceiling rain shower head and the handheld shower.

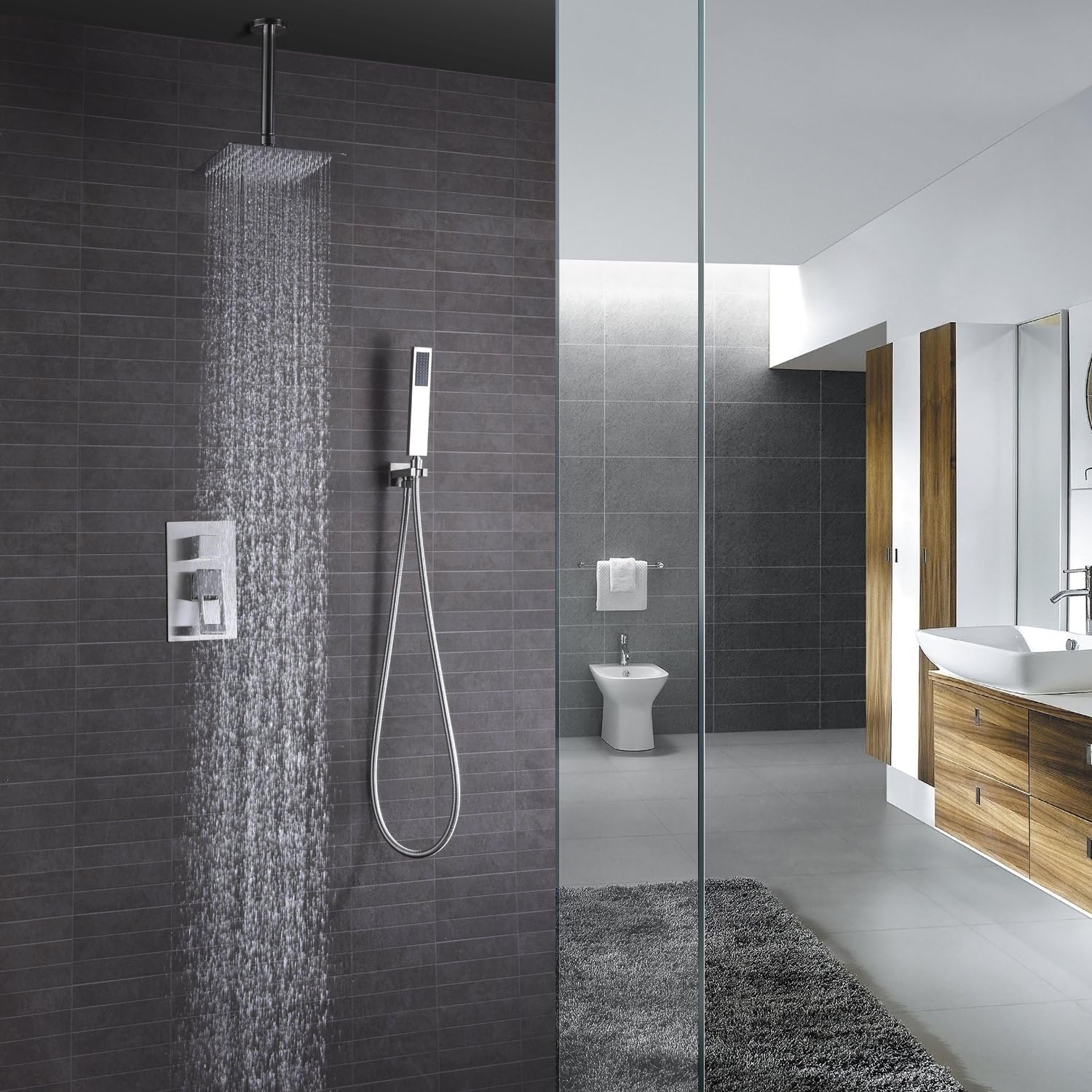

Image: A modern bathroom setting with the Sumerain ceiling-mount rain shower head and handheld shower both actively dispensing water, demonstrating the system's functionality.

7. Manutenzione

Regular cleaning and maintenance will ensure the optimal performance and appearance of your Sumerain shower system.

• Pulizia della finitura: Pulisci la finitura in nichel spazzolato con un panno morbido eamp panno. Evitare detergenti abrasivi, prodotti chimici aggressivi o pagliette, poiché possono danneggiare la finitura.
• Pulizia degli ugelli della doccia: The shower head features Touch Clean soft, rubber nubbins (spray holes). To remove calcium and lime build-up, simply wipe the rubber nozzles with your finger or a soft cloth. This is especially useful in areas with hard water.
• Manutenzione del tubo: Periodically check the shower hose for kinks or damage. Clean with a soft cloth and mild soap if necessary.
• Ispezione generale: Regularly inspect all connections for any signs of leaks or wear. Address any issues promptly.

Immagine: Un dettaglio view of water streams emanating from the nozzles of the rain shower head, illustrating the consistent flow and the design of the spray holes.

8. Risoluzione Dei Problemi

9. Informazioni sulla garanzia

Sumerain products are manufactured to high-quality standards and are backed by a limited warranty. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official Sumerain websito.

Typically, the warranty covers manufacturing defects in materials and workmanship under normal use. Damage resulting from improper installation, misuse, abuse, or neglect is not covered.

10. Supporto

If you require further assistance, have questions about your product, or need to order replacement parts, please contact Sumerain customer support:

• Websito: www.sumerain.com
• E-mail: Fare riferimento a websito per modulo di contatto o indirizzo email.
• Telefono: Fare riferimento a websito per le opzioni di supporto telefonico.

When contacting support, please have your product model number (S3220NI) and purchase date available.
