Manuale di istruzioni per il puzzle in legno 3D della fabbrica di robot meccanici UGEARS

1. Introduzione

This instruction manual provides guidance for the assembly, operation, and maintenance of the UGEARS Mechanical Robot Factory 3-D Wooden Puzzle, Model 70039. This intricate mechanical model is designed for self-assembly without the need for glue or specialized tools. It features a functional assembly line, articulated robots, a monorail system, and a decorative Stirling engine.

Please read this manual thoroughly before beginning assembly to ensure a smooth and successful building experience.

2. Informazioni sulla sicurezza

• Età consigliata: This model is recommended for individuals 15 years of age and older due to the complexity and presence of small parts.
• Piccole parti: The kit contains small components that may pose a choking hazard. Keep out of reach of young children.
• Bordi taglienti: Wooden parts may have sharp edges. Handle with care during removal from the sheets and assembly.
• Supervisione: Per i costruttori più giovani si raccomanda la supervisione di un adulto.

3. Contenuto della confezione

Your UGEARS Mechanical Robot Factory kit (Model 70039) includes:

• Multiple laser-cut plywood sheets containing 598 individual components.
• Rubber bands for mechanical functions.
• Wooden toothpicks for axles and connections.
• Detailed graphical instruction booklet (physical copy).

Inspect all components upon opening the package. If any parts are missing or damaged, please refer to the 'Warranty and Support' section.

4. Istruzioni di montaggio

The estimated assembly time for this model is 10-12 hours. Patience and attention to detail are crucial for successful construction.

4.1. General Tips for Assembly

• Leggere prima: Before detaching any parts, familiarize yourself with the entire instruction booklet provided in the kit.
• Rimozione delle parti: Carefully remove parts from the plywood sheets. Use a hobby knife or similar tool if necessary to avoid splintering.
• Carteggiatura: Lightly sand the edges of moving parts, especially gears and axles, to ensure smooth operation. Fine-grit sandpaper or an emery board can be used.
• Ceretta: Lubricate all moving connections and gear teeth with paraffin wax (e.g., from a tea candle) to reduce friction and improve functionality. This step is critical for optimal performance.
• Prova di adattamento: Dry-fit components before final assembly to ensure proper alignment.
• Pazienza: Do not force parts together. If a connection is too tight, gently sand the peg or hole until it fits snugly without excessive force.

4.2. Key Assembly Stages

The assembly process involves constructing several interconnected modules:

1. Base Structure: Begin by assembling the main base and frame of the factory, which will support all subsequent mechanisms.
2. Assembly Line Mechanism: Construct the intricate gear system and Geneva drive that powers the robot assembly line. Ensure all gears rotate freely after waxing.
3. Componenti del robot: Assemble the individual robot figures, including their articulated legs, arms, and body rotation mechanisms.
4. Monorail and Forklift: Build the monorail track and the accompanying forklift vehicle.
5. Stirling Engine: Assemble the decorative Stirling engine component.
6. Final Integration: Connect all sub-assemblies to form the complete Robot Factory.

Immagine 1: Un overview of the fully assembled UGEARS Mechanical Robot Factory, showcasing its complex wooden mechanisms and steampunk aesthetic.

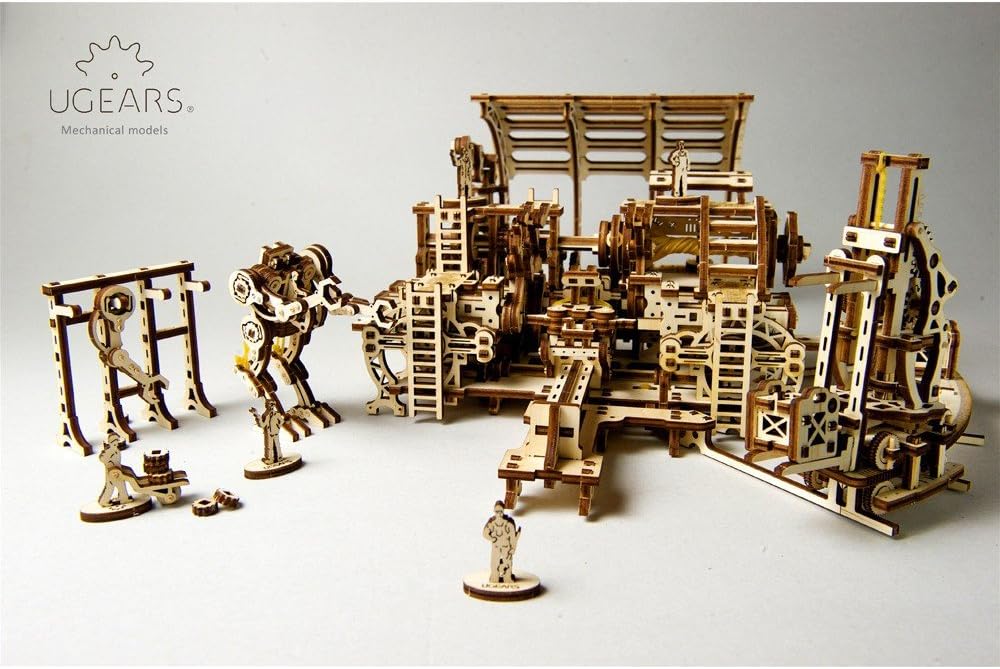

Image 2: A broader perspective of the factory, highlighting the various sections including the monorail arch and multiple robot figures in different stages.

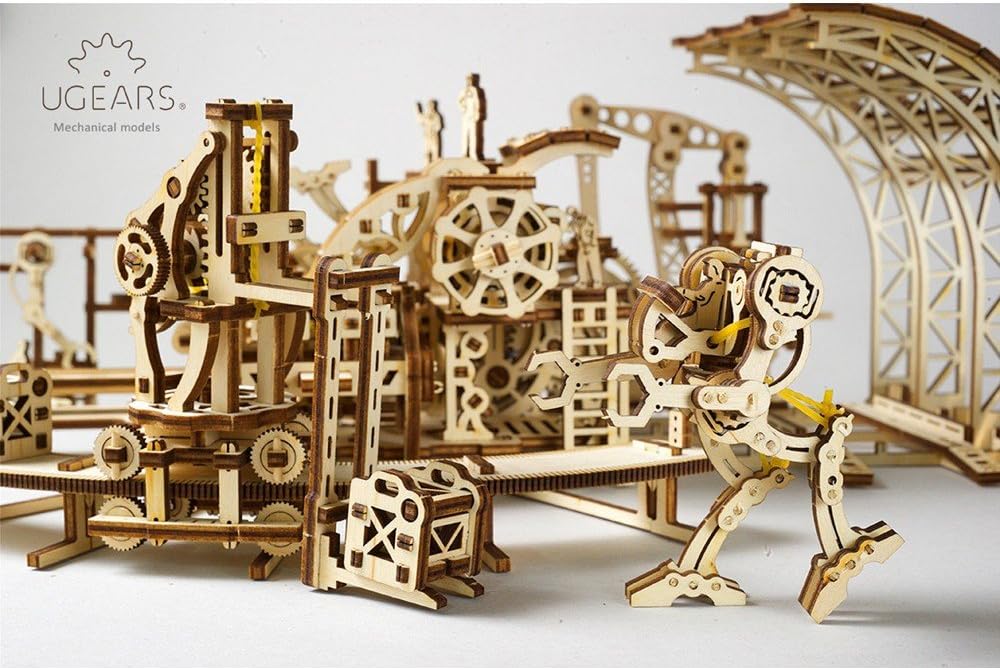

Image 3: Detail of a robot positioned on the assembly line, illustrating the intricate gearwork and the process of robot construction within the factory.

5. Istruzioni per l'uso

Once fully assembled, the UGEARS Mechanical Robot Factory can be operated as follows:

• Robot Assembly Line: Place the pre-assembled robot parts onto the designated positions along the assembly line. Wind the main spring mechanism (refer to the physical manual for specific winding points). Press the activation button to initiate the automated assembly sequence. The Geneva drive will move the robot parts through various stages, simulating assembly.
• Robot: The individual robot figures feature articulated leg and arm joints, allowing for various poses. Their bodies can also rotate.
• Monorail and Forklift: The forklift can be manually moved along the monorail track to simulate transporting spare parts and tools around the factory.
• Stirling Engine: The Stirling engine is a decorative element designed to enhance the steampunk aesthetic of the model. It does not provide power to the factory's mechanisms.

Image 4: A robot figure shown in the process of placing a component onto another part on the factory's assembly line, demonstrating the interactive nature of the model.

6. Manutenzione

Proper maintenance ensures the longevity and smooth operation of your UGEARS model:

• Pulizia: Regularly dust the model with a soft, dry cloth or a soft brush to prevent dust accumulation in the gears and moving parts.
• Lubrificazione: Periodically re-apply paraffin wax to all moving connections, axles, and gear teeth, especially if you notice increased friction or stiffness.
• Magazzinaggio: Store the model in a dry environment away from direct sunlight and extreme temperature fluctuations to prevent wood warping or damage.
• Gestione: Handle the model gently, especially delicate parts, to avoid breakage.

7. Risoluzione Dei Problemi

If you encounter issues with your Mechanical Robot Factory, consider the following:

• Parti che non si muovono fluidamente: This is often due to insufficient lubrication. Re-apply wax to all contact points, especially gear teeth and axle connections. Ensure no dust or debris is obstructing movement.
• Parti rotte: Wooden parts can be delicate. If a part breaks during assembly or operation, it can often be repaired using a small amount of wood glue or super glue. Allow sufficient drying time before handling.
• Mechanism Jams: Check for any misaligned parts or components that are too tightly fitted. Disassemble the affected section if necessary, sand and wax parts, and reassemble carefully.
• Parti mancanti o danneggiate: Refer to the 'Warranty and Support' section for information on obtaining replacement parts.

8. Specifiche

9. Garanzia e supporto

UGEARS products are designed with precision and care. If you encounter any issues with missing or defective parts, or require assistance with assembly, please contact UGEARS customer support directly. Refer to the contact information provided in your product packaging or on the official UGEARS websito per le opzioni di supporto più aggiornate.
