Manuale utente del forno a microonde da incasso Siemens BF525LMS0

1. Introduzione

This user manual provides essential information for the safe and efficient operation, installation, and maintenance of your Siemens BF525LMS0 built-in microwave. Please read these instructions carefully before using the appliance and keep them for future reference.

2. Istruzioni di sicurezza

Per evitare lesioni o danni all'apparecchio, attenersi sempre alle seguenti linee guida di sicurezza:

• Non tentare di far funzionare il forno con lo sportello aperto, poiché ciò potrebbe causare un'esposizione dannosa all'energia delle microonde.
• Non posizionare alcun oggetto tra la parte anteriore del forno e lo sportello e non lasciare che residui di sporco o detergente si accumulino sulle superfici di tenuta.
• Non azionare il forno se è danneggiato. È particolarmente importante che la porta del forno si chiuda correttamente e che non vi siano danni a: (1) porta (piegata), (2) cerniere e chiavistelli (rotte o allentate), (3) guarnizioni e superfici di tenuta della porta.
• Il forno non deve essere riparato o regolato da nessuno, eccetto personale di assistenza adeguatamente qualificato.
• Garantire una ventilazione adeguata intorno all'apparecchio.
• Never use metal containers or foil in the microwave, as this can cause arcing.
• Supervise food heating, especially liquids, to prevent boil-overs.

3. Prodotto finitoview

The Siemens BF525LMS0 is a high-quality built-in microwave designed for seamless integration into your kitchen. It features a sleek stainless steel finish and an intuitive electronic clock with touch controls.

Caratteristiche principali:

• cookControl 7: This technology offers 7 automatic programs for perfect preparation of your dishes. The programs handle the ideal settings for you.
• touchControl: The temperature of individual programs can be set by direct input or by moving the slider with a finger.
• Side-opening door: Side-mounted doors are ideal for high installation of the microwave. The wide opening angle simplifies access to all dishes.
• Easy-operation concept: With the easy-operation concept, you can set the programs without problems.
• Cooking and defrosting programs: Frozen meat or bread can be optimally defrosted with this built-in appliance, potatoes or vegetables cook on the glass turntable.

Prodotto Views:

Figura 3.1: Fronte view of the Siemens BF525LMS0 built-in microwave, showcasing its stainless steel design and electronic display.

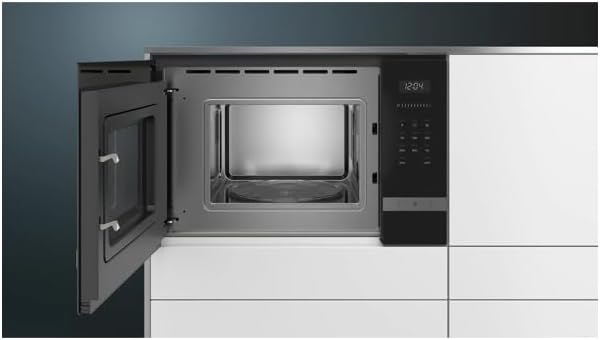

Figura 3.2: Interno view of the microwave with the door fully open, revealing the spacious stainless steel cooking cavity and the removable glass turntable.

Figure 3.3: A different angle of the microwave's interior, emphasizing the LED lighting for clear visibility during operation.

4. Configurazione e installazione

The Siemens BF525LMS0 is designed for partial integrated installation. It is highly recommended that installation be performed by a qualified professional to ensure proper fit and electrical safety.

Dimensioni di installazione:

The appliance dimensions are 29.7 cm (Height) x 59.4 cm (Width) x 38.2 cm (Depth). Ensure your cabinet opening meets the required specifications for a secure and flush fit.

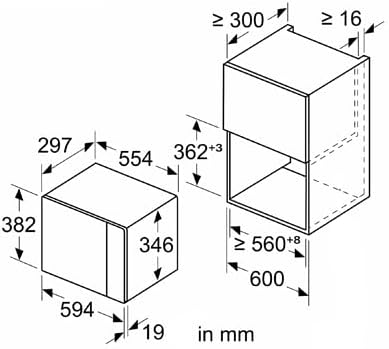

Figure 4.1: Technical drawing illustrating the required cabinet dimensions and appliance measurements for installation.

Figure 4.2: Another technical diagram showing specific cut-out and clearance dimensions for optimal built-in installation.

Fasi di installazione (riepilogo):

1. Preparare l'apertura dell'armadio in base alle dimensioni fornite.
2. Ensure the electrical outlet is accessible and meets the appliance's power requirements (220 Volt, 800 Watt).
3. Inserire con cautela il microonde nell'apertura preparata.
4. Fissare l'apparecchio utilizzando le viti di montaggio fornite.
5. Collegare il cavo di alimentazione alla presa elettrica.
6. Eseguire un test di funzionamento per garantire il corretto funzionamento.

5. Istruzioni per l'uso

Your Siemens BF525LMS0 microwave is equipped with user-friendly touch controls and an electronic clock for precise operation.

Funzionamento di base:

• Impostazione dell'ora: Use the electronic clock controls to set the current time. Refer to the detailed instructions in the full manual for specific steps.
• Livelli di potenza: The microwave operates at 800 Watts. You can select various power levels for different cooking needs using the touch control interface.
• Avvio di un programma: Place food in a microwave-safe container on the glass turntable. Close the door. Select the desired power level and cooking time, then press Start.

Using cookControl 7 Programs:

The cookControl 7 feature simplifies cooking by offering pre-set programs for common dishes. To use:

1. Select the desired automatic program from the menu.
2. Follow the on-screen prompts, which may include entering the weight of the food.
3. The microwave will automatically adjust cooking time and power.

Defrosting and Cooking Functions:

Utilize the dedicated defrosting programs for frozen items like meat or bread. For cooking vegetables or potatoes, place them on the glass turntable and select the appropriate cooking program or manually set the time and power.

6. Manutenzione e pulizia

Una pulizia e una manutenzione regolari garantiranno la longevità e le prestazioni ottimali del tuo microonde.

• Pulizia interna: Wipe the stainless steel interior with a damp cloth and mild detergent after each use. For stubborn food residues, place a bowl of water with lemon slices inside and microwave for a few minutes to loosen the grime, then wipe clean.
• Pulizia esterna: Clean the stainless steel exterior and touch control panel with a soft, damp cloth. Avoid abrasive cleaners that can scratch the surface. Due to the touch-sensitive surface, regular cleaning is recommended to avoid fingerprints.
• Piatto girevole in vetro: The glass turntable can be removed and washed with warm soapy water or in a dishwasher. Ensure it is completely dry before placing it back in the microwave.
• Guarnizioni delle porte: Regularly inspect and clean the door seals to ensure they are free from food particles and remain intact for proper sealing.

7. Risoluzione Dei Problemi

If you encounter issues with your Siemens BF525LMS0 microwave, refer to the following common problems and solutions before contacting service.

8. Specifiche

Detailed technical specifications for the Siemens BF525LMS0 built-in microwave:

9. Garanzia e supporto

Your Siemens BF525LMS0 microwave comes with a standard manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions, including coverage period and what is covered.

For technical assistance, service requests, or to order spare parts, please contact Siemens customer support. Have your model number (BF525LMS0) and serial number ready when contacting support to expedite the process.

Puoi trovare le informazioni di contatto per il servizio clienti Siemens sul sito ufficiale Siemens websito o nella documentazione fornita con l'apparecchio.
