1. Introduzione
This instruction manual provides essential information for the safe and effective installation, maintenance, and troubleshooting of Buildalot carbon brushes, model 0734_Stayer_LRT150. These brushes are specifically designed as replacement components for the STAYER LRT150 grinder. Please read this manual thoroughly before attempting any installation or maintenance procedures.
2. Prodotto finitoview
Carbon brushes are critical components in many electric motors, including those found in angle grinders. They conduct electricity to the motor's rotating armature, allowing the tool to function. Over time, carbon brushes wear down and require replacement to maintain optimal tool performance and prevent damage to the motor.

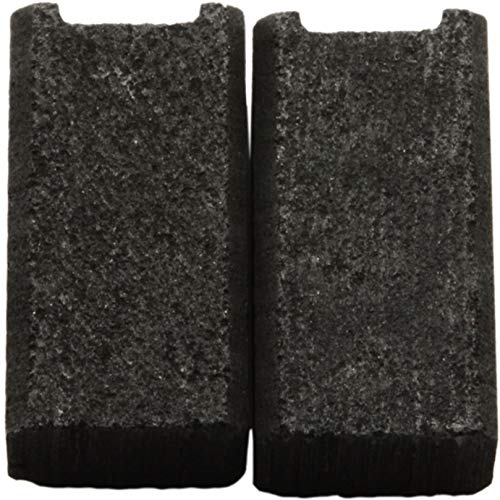

Figura 2.1: A pair of Buildalot carbon brushes. These brushes are designed to fit the STAYER LRT150 grinder and are essential for its electrical operation.
This package contains two (2) carbon brushes, sized approximately 6mm x 8mm x 15mm, ensuring a direct fit for the specified STAYER LRT150 grinder model.
3. Informazioni sulla sicurezza
Dare sempre priorità alla sicurezza quando si lavora con utensili elettrici e componenti elettrici. Il mancato rispetto di queste linee guida di sicurezza può causare lesioni o danni all'utensile.
- Scollegare l'alimentazione: Before attempting any inspection, maintenance, or replacement of carbon brushes, always ensure the grinder is unplugged from the power source.
- Indossare dispositivi di protezione individuale (DPI): Use safety glasses and gloves to protect against dust and sharp edges.
- Lavorare in un'area ben illuminata: Assicurare un'illuminazione adeguata per vedere chiaramente i componenti con cui si sta lavorando.
- Utilizzare gli strumenti corretti: Only use appropriate tools for opening the grinder and removing/installing brushes.
- Consult Grinder Manual: Refer to your specific STAYER LRT150 grinder's instruction manual for detailed disassembly and reassembly procedures.
- Sicurezza elettrica: In caso di dubbi sulle procedure elettriche, consultare un tecnico qualificato.
4. Installation (Replacing Carbon Brushes)
Replacing carbon brushes is a common maintenance task for power tools. Follow these general steps. Specific grinder models may vary, so always refer to your tool's manual.
- Preparare lo strumento: Ensure the STAYER LRT150 grinder is unplugged from the power outlet. Place it on a stable, clean work surface.
- Individuare i cappucci delle spazzole: Carbon brushes are typically housed in brush holders, often covered by screw-on caps on the exterior of the grinder's motor housing. There is usually one cap on each side of the motor.
- Rimuovere i vecchi pennelli:
- Carefully unscrew the brush caps using a screwdriver or coin, depending on the cap type.
- Once the cap is removed, the spring-loaded carbon brush will be accessible. Gently pull out the old carbon brush and its attached wire.
- Inspect the old brush for wear. If it is significantly shorter than a new brush or chipped, it needs replacement.
- Installa nuovi pennelli:
- Take a new Buildalot carbon brush. Ensure the wire lead is properly attached.
- Carefully insert the new carbon brush into the brush holder, ensuring the carbon block slides smoothly into its channel. The wire lead should connect to the tool's internal wiring.
- The brush should be oriented correctly to make proper contact with the commutator. Refer to the diagram below for typical brush shape.
Figura 4.1: Diagram illustrating the typical shape of a carbon brush (labeled '51'). Note the notched top for proper seating in some brush holders.
- Cappucci per pennelli sicuri: Once the new brush is seated, replace the brush cap and screw it back on firmly, but do not overtighten.
- Ripetere per la seconda spazzolatura: Perform the same procedure for the second carbon brush on the other side of the motor.
- Prova lo strumento: After both brushes are replaced and caps secured, plug the grinder back into the power source. Briefly run the tool to ensure proper operation. Initial sparking is normal as the new brushes seat themselves, but excessive sparking or unusual noises should prompt immediate disconnection and inspection.
5. Considerazioni operative
While carbon brushes themselves do not have an "operating" procedure, their proper function is integral to the grinder's operation. Once installed correctly, the brushes will make continuous electrical contact with the motor's commutator, allowing the motor to spin. Ensure that the grinder operates smoothly without excessive sparking or loss of power after brush replacement.
6. Manutenzione
Regular inspection of carbon brushes is recommended, especially if the tool is used frequently or shows signs of reduced performance. The lifespan of carbon brushes varies depending on usage intensity and motor load.
- Frequenza di ispezione: For heavy users, inspect brushes every few months. For occasional users, inspect annually or when performance issues arise.
- Segni di usura: Look for brushes that are significantly shortened, chipped, or have uneven wear patterns. A general rule is to replace brushes when they are worn down to about one-third of their original length.
- Condizione del commutatore: While inspecting brushes, also check the commutator (the copper segments on the motor's armature). It should be clean and smooth. Excessive sparking can indicate a worn commutator or improper brush contact.
Figura 6.1: A collection of carbon brushes and associated motor components. Regular maintenance helps identify worn parts before they cause tool failure.
7. Risoluzione Dei Problemi
If your STAYER LRT150 grinder exhibits any of the following symptoms, worn or improperly installed carbon brushes may be the cause:
| Sintomo | Possibile causa | Soluzione |
|---|---|---|
| L'utensile non si avvia o funziona in modo intermittente | Severely worn or stuck carbon brushes. | Inspect and replace carbon brushes. Ensure brushes move freely in their holders. |
| Scintille eccessive al motore | Spazzole usurate, commutatore sporco o posizionamento non corretto delle spazzole. | Replace brushes. Clean commutator if necessary. Ensure brushes are correctly installed. |
| Potenza o velocità ridotte | Brushes not making full contact, or nearing end of life. | Inspect brushes for wear and replace if necessary. |
| Odore di bruciato dal motore | Overheating due to excessive sparking or motor strain. | Immediately stop using the tool. Inspect brushes and commutator. Seek professional repair if smell persists after brush replacement. |
8. Specifiche
- Tipo di prodotto: Spazzole di carbone
- Marca: Costruisci molto
- Numero modello: 0734_Stayer_LRT150
- Compatibilità: STAYER LRT150 Grinder
- Dimensioni (L x P x A): Circa 6 mm x 8 mm x 15 mm
- Quantità: 2 pezzi per confezione
9. Garanzia e supporto
For specific warranty information regarding Buildalot carbon brushes, please refer to the retailer's purchase terms or contact Buildalot customer support directly. This manual covers the installation and maintenance of the carbon brushes; for issues related to the STAYER LRT150 grinder itself, consult the grinder's manufacturer documentation.
If you encounter difficulties that cannot be resolved using this manual, it is recommended to seek assistance from a qualified power tool technician.
