Manuale di istruzioni per le spazzole di carbone Buildalot

1. Introduzione

This manual provides essential information for the proper installation, operation, and maintenance of your Buildalot Carbon Brushes designed for the HITACHI PDM-115 Grinder. Carbon brushes are critical components in electric motors, facilitating the transfer of electrical current to the rotating armature. Regular inspection and timely replacement ensure optimal performance and extend the lifespan of your power tool.

2. Prodotto finitoview

The Buildalot Carbon Brushes are specifically manufactured to be compatible with the HITACHI PDM-115 Grinder. Each package contains two carbon brushes, complete with springs and terminals, ready for installation.

• Dimensioni: 6.5 x 7.5 x 13 mm (circa 2.6 x 3.0 x 5.1 pollici)
• Quantità: 2 brushes per package
• Peso: Approximately 20 g per package

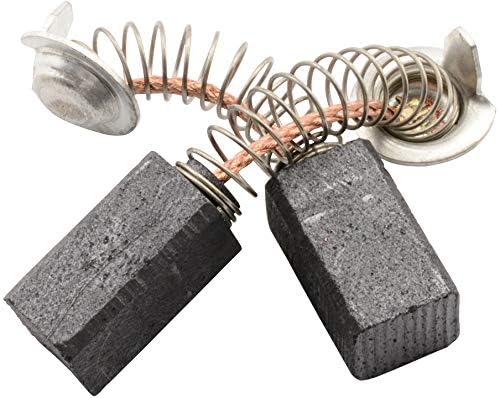

Image 2.1: A pair of Buildalot carbon brushes, showing the carbon block, spring, and electrical connector.

3. Specifiche

4. Configurazione e installazione

Replacing carbon brushes requires careful attention to safety and proper procedure. If you are unsure, consult a qualified technician.

Precauzioni di sicurezza:

• ALWAYS disconnect the power tool from the electrical outlet before attempting any maintenance or installation.
• Indossare dispositivi di protezione individuale (DPI) adeguati, come occhiali di sicurezza.
• Assicurati che la tua area di lavoro sia pulita e ben illuminata.

Fasi di installazione:

1. Individuare i cappucci delle spazzole: Identify the brush caps on the housing of your HITACHI PDM-115 Grinder. These are typically small, screw-in caps located on opposite sides of the motor housing.
2. Rimuovere i vecchi pennelli: Unscrew the brush caps. Carefully pull out the old carbon brushes and their springs. Note their orientation for correct installation of the new brushes.
3. Ispezionare il commutatore: Mentre le spazzole sono rimosse, ispeziona il commutatore (i segmenti di rame sull'indotto). Dovrebbe essere pulito e liscio. Se è eccessivamente rigato o sporco, potrebbe essere necessario un intervento di manutenzione professionale.
4. Inserisci nuovi pennelli: Insert the new Buildalot carbon brushes into the brush holders. Ensure the carbon block slides freely and the spring applies even pressure to the brush. The copper wire terminal should be positioned correctly to make contact.
5. Sostituire i cappucci delle spazzole: Carefully screw the brush caps back into place. Do not overtighten.
6. Test: Reconnect the power tool to the electrical outlet. Run the grinder at a low speed for a few minutes without load to allow the new brushes to seat properly against the commutator. Slight sparking is normal during this initial run-in period.

Image 4.1: Schematic diagram illustrating a carbon brush assembly with its spring and cap.

5. Considerazioni operative

After installing new carbon brushes, it is recommended to allow a brief run-in period. Operate the grinder without load for approximately 5-10 minutes. This allows the carbon brushes to conform to the shape of the commutator, ensuring optimal contact and reducing initial sparking. During this period, observe for excessive sparking or unusual noises. If these occur, disconnect power and re-check the installation.

6. Manutenzione

Carbon brushes are wear items and will gradually shorten with use. Regular inspection is crucial for maintaining tool performance and preventing damage to the motor.

Ispezione e sostituzione:

• Inspect carbon brushes every 50-100 hours of operation, or if you notice a decrease in power, excessive sparking, or intermittent operation.
• Sostituire le spazzole quando sono consumate fino a circa un quarto della loro lunghezza originale o quando la molla non esercita più una pressione adeguata.
• Always replace both carbon brushes at the same time, even if one appears less worn. This ensures balanced current transfer and prevents premature wear on the commutator.

7. Risoluzione Dei Problemi

If your HITACHI PDM-115 Grinder exhibits issues after carbon brush replacement, consider the following:

• Scintille eccessive: This can indicate improperly seated brushes, a dirty or damaged commutator, or incorrect brush type. Ensure brushes are fully inserted and caps are tightened.
• Perdita di potenza/funzionamento intermittente: Worn brushes are a common cause. If new brushes are installed, check for proper contact with the commutator and ensure the springs are applying sufficient pressure.
• Rumori insoliti: Grinding or squealing noises can suggest improper brush seating or a damaged commutator. Discontinue use and inspect the motor components.

Se le procedure di risoluzione dei problemi non risolvono il problema, si consiglia di rivolgersi a un professionista.

8. Informazioni sulla garanzia

Specific warranty details for Buildalot Carbon Brushes are typically provided at the point of purchase or by the manufacturer. Please refer to your purchase documentation or contact Buildalot directly for information regarding warranty coverage and terms.

9. Supporto

For technical assistance, product inquiries, or further support regarding your Buildalot Carbon Brushes, please contact the seller from whom you purchased the product or visit the official Buildalot websito per informazioni di contatto del servizio clienti.
