Lavor Ashley 901 Ash Vacuum Cleaner 1000W 18L Instruction Manual

1. Introduzione

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Lavor Ashley 901 Ash Vacuum Cleaner. Please read this manual thoroughly before using the appliance and keep it for future reference.

The Lavor Ashley 901 is an 18-liter ash vacuum cleaner designed specifically for collecting cold ash from fireplaces, stoves, and barbecues. It features a quiet motor, double electrical insulation, and a robust design for effective ash removal.

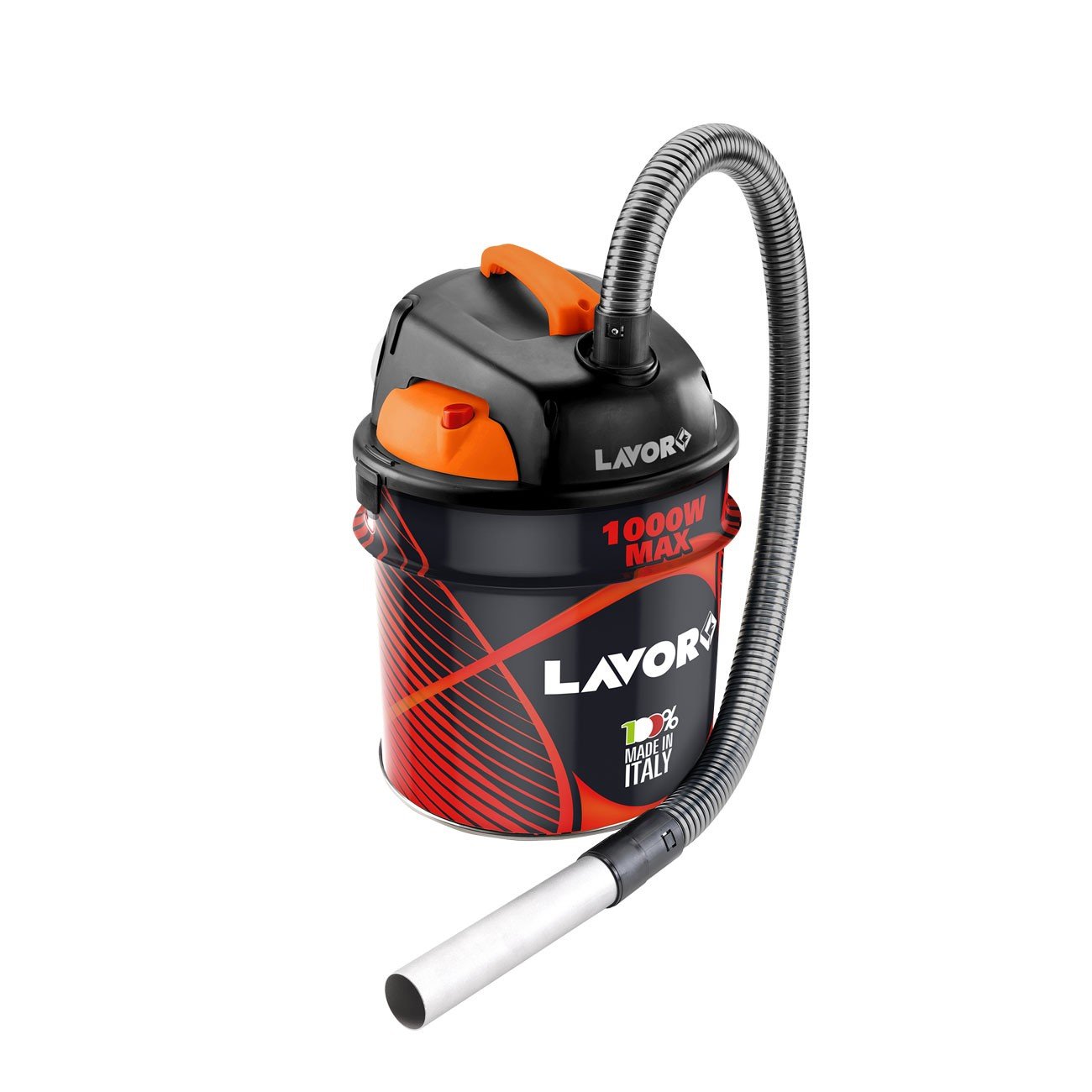

Figure 1: Lavor Ashley 901 Ash Vacuum Cleaner main unit.

2. Istruzioni di sicurezza

WARNING: Read all safety warnings and instructions before using this appliance. Failure to follow the warnings and instructions may result in electric shock, fire, and/or serious injury.

• Solo cenere fredda: Questo apparecchio è progettato esclusivamente per aspirare COLD ASH. Do not vacuum hot ash, embers, or any burning materials. Hot ash can cause fire and severe damage to the appliance and surroundings.
• Nessun liquido: Do not vacuum liquids or wet materials. This is a dry ash vacuum.
• Sicurezza elettrica: Garantire l'alimentazione voltage matches the rating on the appliance. Do not use the appliance with a damaged cord or plug. Do not immerse the appliance in water or other liquids.
• Supervisione: Questo apparecchio non è destinato all'uso da parte di persone (bambini compresi) con ridotte capacità fisiche, sensoriali o mentali, o prive di esperienza e conoscenza, a meno che non siano supervisionate o abbiano ricevuto istruzioni riguardanti l'uso dell'apparecchio da una persona responsabile della loro sicurezza.
• Uso del filtro: Always ensure the filter is correctly installed before operation. Operating without a filter can damage the motor and release fine dust.
• Manutenzione: Scollegare l'apparecchio dalla rete elettrica prima di pulirlo o di effettuare qualsiasi intervento di manutenzione.
• Magazzinaggio: Quando non viene utilizzato, riporre l'apparecchio in un luogo asciutto e al chiuso.

3. Contenuto della confezione

Carefully unpack the appliance and check that all items are present and undamaged. If any items are missing or damaged, contact your retailer immediately.

• Lavor Ashley 901 Ash Vacuum Cleaner Unit
• Flexible Steel Hose
• Filtro a cartuccia lavabile
• Pre-filter for Fine Dust
• Manuale di istruzioni (questo documento)

4. Impostazione

1. Installazione del filtro:

   Open the lid of the ash vacuum cleaner. Ensure the washable cartridge filter is securely placed over the motor housing. Then, place the pre-filter for fine dust over the cartridge filter. Close the lid, ensuring it latches properly.
2. Giunzione di tubi:

   Insert the flexible steel hose into the suction inlet on the main unit. Twist or push firmly until it is securely connected. Ensure there are no leaks at the connection point.

3. Collegamento elettrico:

   Plug the power cord into a suitable electrical outlet (230V AC). Ensure the outlet is easily accessible.

5. Istruzioni per l'uso

Follow these steps for safe and effective ash collection:

1. Preparazione:

   Ensure the ash you intend to vacuum is completely cold. Wait at least 24-48 hours after the last fire, or until you are certain no embers remain. Never vacuum hot ash or embers.

2. Accensione:

   Press the ON/OFF switch located on the unit to start the ash vacuum cleaner.
3. Ash Collection:

   Direct the nozzle of the flexible steel hose towards the cold ash. Move the nozzle slowly over the ash to ensure thorough collection. The steel shaft is designed for durability during this process.

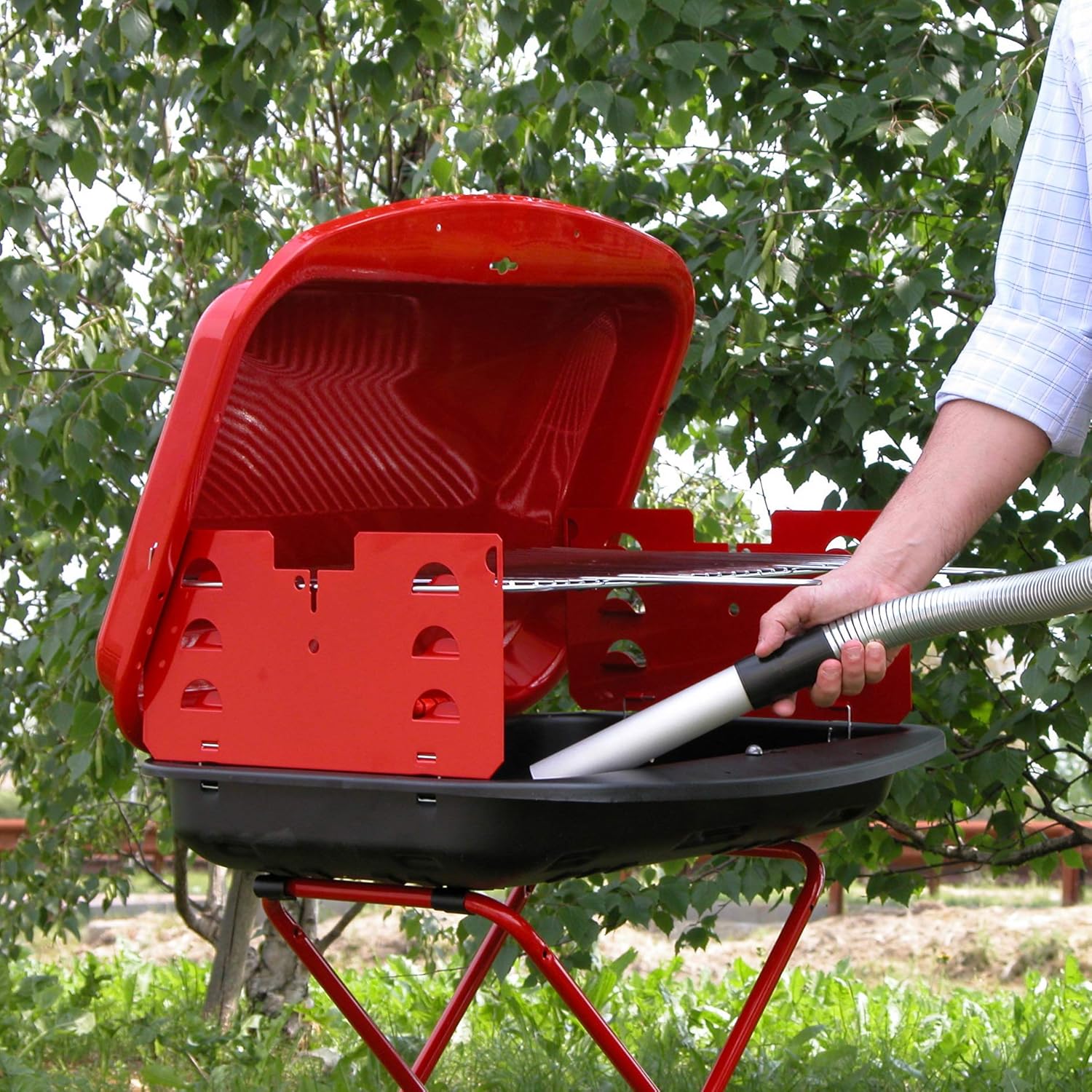

   Figure 2: Demonstrating ash collection from a grill using the ash vacuum.

4. Filter Cleaning System (Scuotifiltro):

   If suction power decreases during operation, the filter may be clogged. This model features a filter cleaning system (scuotifiltro). Refer to the specific mechanism on your unit, which typically involves a lever or button to shake the filter and dislodge accumulated ash. This can be done periodically during longer cleaning sessions to maintain suction.
5. Spegni:

   Once you have finished collecting ash, press the ON/OFF switch to turn off the appliance. Unplug the power cord from the electrical outlet.

6. Manutenzione

Una manutenzione regolare garantisce prestazioni ottimali e prolunga la durata del vostro aspiracenere.

1. Svuotamento del contenitore:

   After each use, or when the container is full, disconnect the unit from power. Unlatch and remove the lid. Carefully lift the filter assembly and empty the collected ash into a suitable, non-combustible waste container. Tap the container gently to dislodge any remaining ash.

2. Pulizia del filtro lavabile:

   The cartridge filter and pre-filter are washable. Remove them from the unit. Gently tap them to remove loose ash. For a more thorough cleaning, rinse them under cold running water until the water runs clear. Allow the filters to air dry completely before re-installing them. Do not use the vacuum with wet filters.

3. Cleaning the Hose and Nozzle:

   Periodically check the flexible steel hose and nozzle for blockages. Clear any obstructions using a non-sharp object. Wipe the exterior of the hose and nozzle with a damp panno se necessario.
4. Pulizia esterna:

   Wipe the exterior of the ash vacuum cleaner with a soft, damp panno. Non usare detergenti abrasivi o solventi.

7. Risoluzione Dei Problemi

8. Specifiche

9. Garanzia e supporto

Your Lavor Ashley 901 Ash Vacuum Cleaner is covered by a manufacturer's warranty. Please refer to the warranty card included with your purchase or visit the official Lavor websito per informazioni dettagliate sui termini e le condizioni di garanzia.

For technical support, spare parts, or service inquiries, please contact your retailer or the authorized Lavor service center in your region. Keep your proof of purchase and model number (8.245.0010) ready when contacting support.
